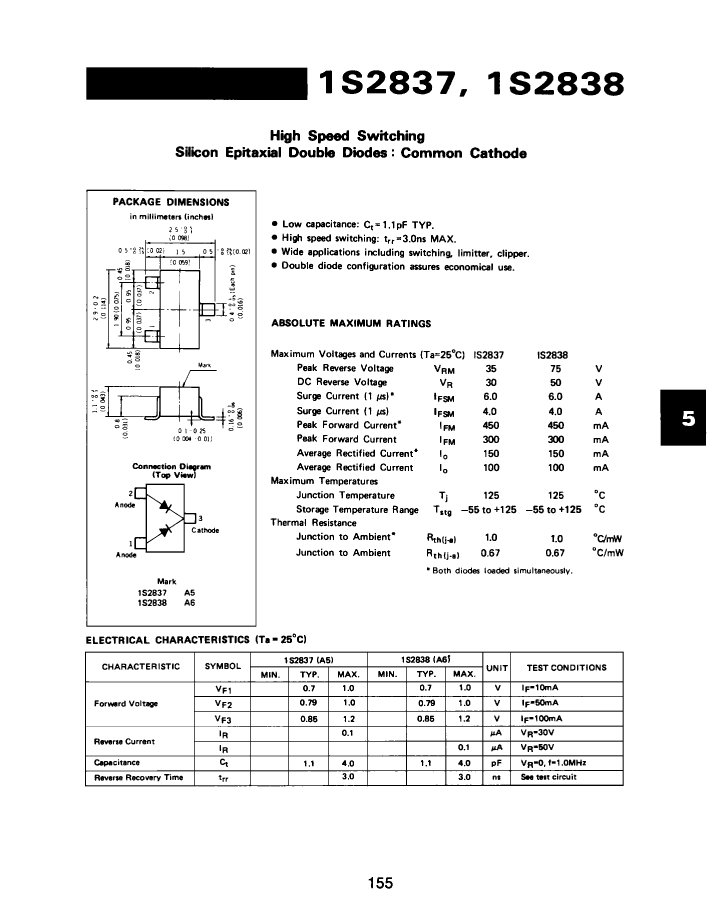

1S2837 datasheet, PDF - EEWORLD Datasheet

1S2837: DescriptionRectifier Diode, 2 Element, 0.1A, Silicon, PLASTIC, MINIMOLD PACKAGE-3; CategoryDiscrete semiconductor diode; File Size58KB，3 Pages; ManufacturerNEC Electronics

Download Datasheet Parametric Compare View All

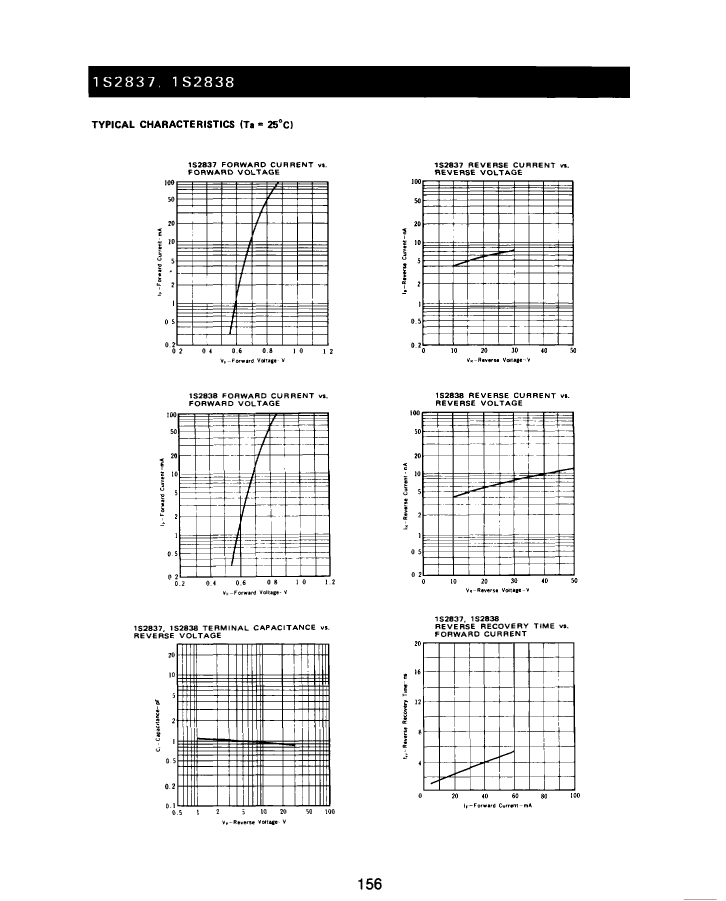

1S2837 Overview

Rectifier Diode, 2 Element, 0.1A, Silicon, PLASTIC, MINIMOLD PACKAGE-3

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	NEC Electronics
package instruction	R-PDSO-G3
Contacts	3
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	R-PDSO-G3
JESD-609 code	e0
Number of components	2
Number of terminals	3
Maximum output current	0.15 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum reverse recovery time	0.003 µs
surface mount	YES
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

	1S2837	1S2838
Description	Rectifier Diode, 2 Element, 0.1A, Silicon, PLASTIC, MINIMOLD PACKAGE-3	Rectifier Diode, 2 Element, 0.1A, Silicon, PLASTIC, MINIMOLD PACKAGE-3
Is it Rohs certified?	incompatible	incompatible
Maker	NEC Electronics	NEC Electronics
package instruction	R-PDSO-G3	MINIMOLD PACKAGE-3
Contacts	3	3
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Is Samacsys	N	N
Configuration	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	R-PDSO-G3	R-PDSO-G3
JESD-609 code	e0	e0
Number of components	2	2
Number of terminals	3	3
Maximum output current	0.15 A	0.15 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified
Maximum reverse recovery time	0.003 µs	0.003 µs
surface mount	YES	YES
Terminal surface	TIN LEAD	TIN LEAD
Terminal form	GULL WING	GULL WING
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
Base Number Matches	1	1
