1-1461330-7 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> 1-1461330-7

1-1461330-7: DescriptionPOWER/SIGNAL RELAY, SPST, MOMENTARY, 0.015A (COIL), 48VDC (COIL), 720mW (COIL), 10A (CONTACT), 30VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT, ROHS COMPLIANT; CategoryMechanical and electronic products relay; File Size135KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

1-1461330-7 Overview

POWER/SIGNAL RELAY, SPST, MOMENTARY, 0.015A (COIL), 48VDC (COIL), 720mW (COIL), 10A (CONTACT), 30VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT, ROHS COMPLIANT

1-1461330-7 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1283410114
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	.4
body width	12.8 mm
body height	20.6 mm
Body length or diameter	29.21 mm
Maximum coil current (DC)	0.015 A
Coil operating voltage (DC)	33.6 V
Coil power	720 mW
Coil release voltage (DC)	4.8 V
Coil resistance	3300 Ω
Maximum coil voltage (DC)	48 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	10A@240VAC
Maximum contact current (AC)	10 A
Maximum contact current (DC)	10 A
Contact (DC) maximum rated R load	10A@30VDC
Maximum contact voltage (AC)	250 V
Maximum contact voltage (DC)	30 V
Contact/Output Power Type	AC/DC
Dielectric strength between coil and contacts	5000 Vrms
Dielectric strength between breaking contacts	1000 Vrms
Electrical life	100000 Cycle(s)
End contact material	SILVER TIN ALLOY
Insulation resistance	1000000000 Ω
Installation features	PANEL MOUNT
operating hours	15 ms
Maximum operating temperature	60 °C
Minimum operating temperature	50 °C
method of packing	BOX
physical size	29.2mm x 12.8mm x 20.6mm
Guideline	CSA; SEMKO; UL; VDE
Relay action	MOMENTARY
Relay style	1 FORM A
Relay function	SPST-NO
Relay type	POWER/SIGNAL RELAY
release time	8 ms
seal	PLASTIC SEALED
surface mount	NO
Termination type	SOLDER/QUICK CONNECT
weight	13 g

Preview

Download Datasheet

View All

TE Connectivity

My Cart |

My Part Lists | Sign In/Register

English

(Change)

What can we help you find?

Products

Industries

Resources

About TE

My Account

Innovation

Support Center

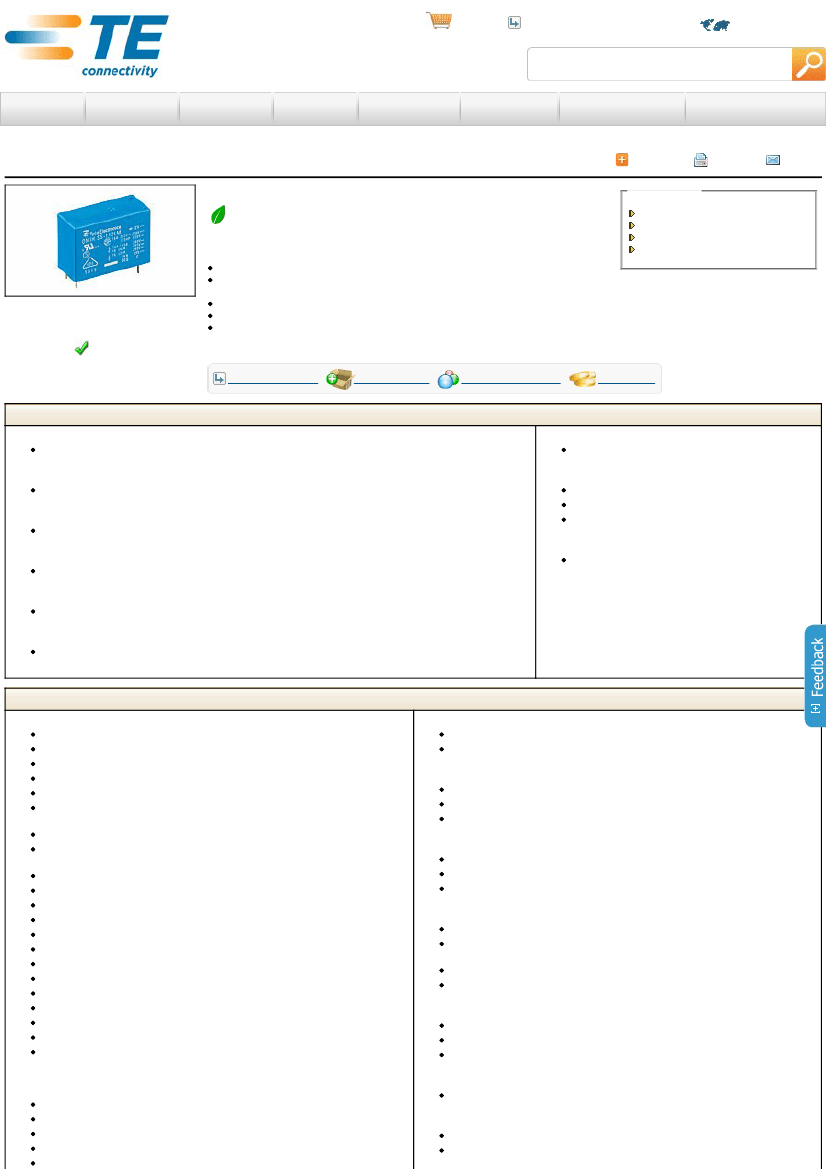

Home > Products > Relays > Product Feature Selector > Product Details

OMISH148DM,394 Product Details

Industrial Relays (General Purpose)

Always EU RoHS compliant but not ELV Compliant

(

Statement of

Compliance

)

Quick Links

Pricing & Availability

Search for Tooling

Product Feature Selector

OMISH148DM,394

(114613307)

TE Internal Number: 114613307

Product Highlights:

OMI/OMIH Series

Contact Current Class = 5A to 10A Class, Less Than

16A

Contact Rated Current = 10 A

Terminal Type = PCBTHT

Contact Arrangement = 1 Form A (NO)

View all Features

Active

Add to My Part List

Request Sample

Find Similar Products

Buy Product

Documentation & Additional Information

Product Drawings:

None Available

Catalog Pages/Data Sheets:

None Available

Product Specifications:

None Available

Application Specifications:

None Available

Instruction Sheets:

None Available

CAD Files:

None Available

Additional Information:

Product Line Information

Additional Product Images:

Schematic

Wiring Diagram

PCB Layout (Bottom Surface)

1-1461330-7 Related Products

	1-1461330-7	OMI-SH-148DM.394
Description	POWER/SIGNAL RELAY, SPST, MOMENTARY, 0.015A (COIL), 48VDC (COIL), 720mW (COIL), 10A (CONTACT), 30VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT, ROHS COMPLIANT	POWER/SIGNAL RELAY, SPST, MOMENTARY, 0.015A (COIL), 48VDC (COIL), 720mW (COIL), 10A (CONTACT), 30VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT
Reach Compliance Code	compliant	unknown
ECCN code	EAR99	EAR99
body width	12.8 mm	12.8 mm
body height	20.6 mm	20.6 mm
Body length or diameter	29.21 mm	29.2 mm
Maximum coil current (DC)	0.015 A	0.015 A
Coil operating voltage (DC)	33.6 V	33.6 V
Coil power	720 mW	720 mW
Coil release voltage (DC)	4.8 V	4.8 V
Coil resistance	3300 Ω	3300 Ω
Maximum coil voltage (DC)	48 V	48 V
Coil/Input Power Type	DC	DC
Contact (AC) maximum rated R load	10A@240VAC	10A@250VAC
Maximum contact current (AC)	10 A	10 A
Maximum contact current (DC)	10 A	10 A
Contact (DC) maximum rated R load	10A@30VDC	10A@30VDC
Maximum contact voltage (AC)	250 V	250 V
Maximum contact voltage (DC)	30 V	30 V
Contact/Output Power Type	AC/DC	AC/DC
Electrical life	100000 Cycle(s)	100000 Cycle(s)
Installation features	PANEL MOUNT	THROUGH HOLE-STRAIGHT MOUNT
operating hours	15 ms	15 ms
Maximum operating temperature	60 °C	55 °C
Minimum operating temperature	50 °C	-30 °C
physical size	29.2mm x 12.8mm x 20.6mm	29.2mm x 12.8mm x 20.6mm
Guideline	CSA; SEMKO; UL; VDE	CSA; SEMKO; UL; VDE
Relay action	MOMENTARY	MOMENTARY
Relay function	SPST-NO	SPST
Relay type	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY
release time	8 ms	8 ms
surface mount	NO	NO
Termination type	SOLDER/QUICK CONNECT	SOLDER
