10-07-2085 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 10-07-2085

10-07-2085: DescriptionBoard Connector, 8 Contact(s), 1 Row(s), Female, Straight, 0.098 inch Pitch, Solder Terminal, Plug; CategoryThe connector The connector; File Size113KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

10-07-2085 Overview

Board Connector, 8 Contact(s), 1 Row(s), Female, Straight, 0.098 inch Pitch, Solder Terminal, Plug

10-07-2085 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	BOTTOM ENTRY
body width	0.311 inch
subject depth	0.339 inch
body length	0.785 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Filter function	NO
IEC compliance	NO
maximum insertion force	1.946 N
Insulation resistance	1000000000 Ω
insulator material	NYLON
MIL compliance	NO
Manufacturer's serial number	5124
Plug contact pitch	0.098 inch
Plug information	22-03-1082
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.142 inch
Terminal pitch	2.5 mm
Termination type	SOLDER
Total number of contacts	8
UL Flammability Code	94V-0
Evacuation force-minimum value	.556 N
Base Number Matches	1

Preview

Download Datasheet

View All

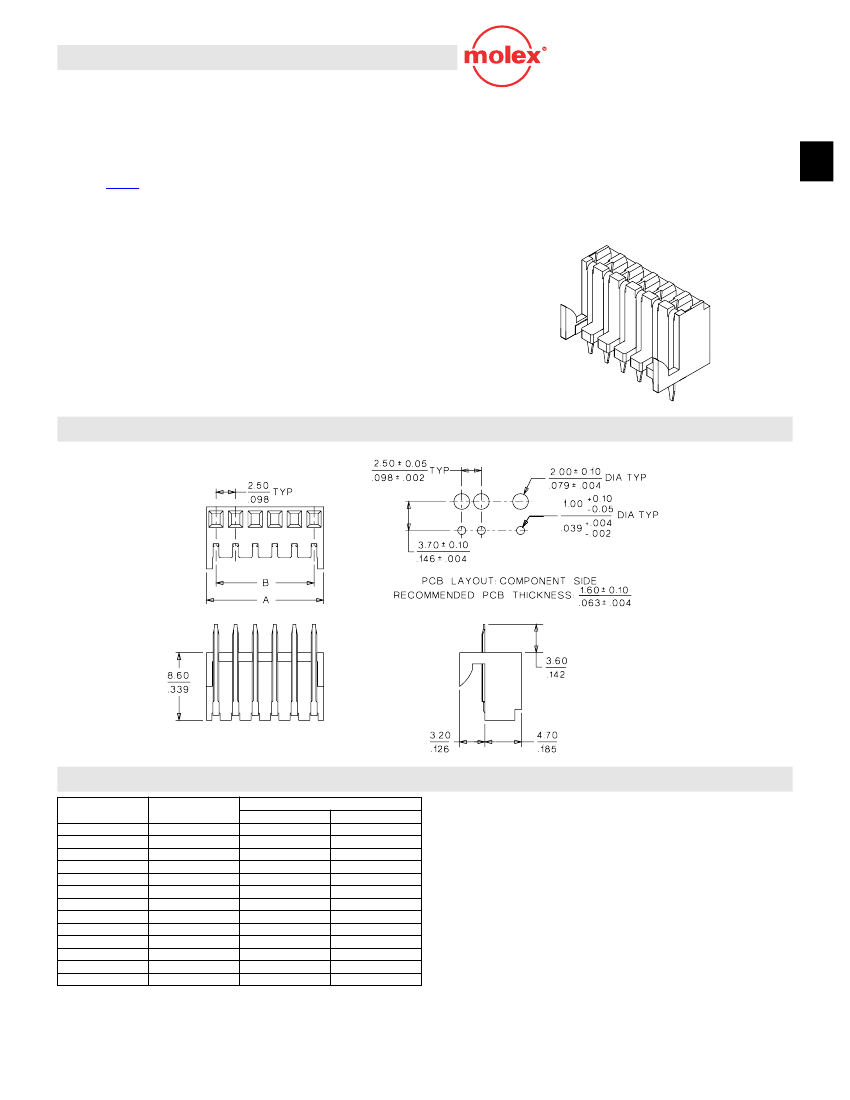

FEATURES AND SPECIFICATIONS

Features and Beneﬁts

Sizes 3 to 15 circuits

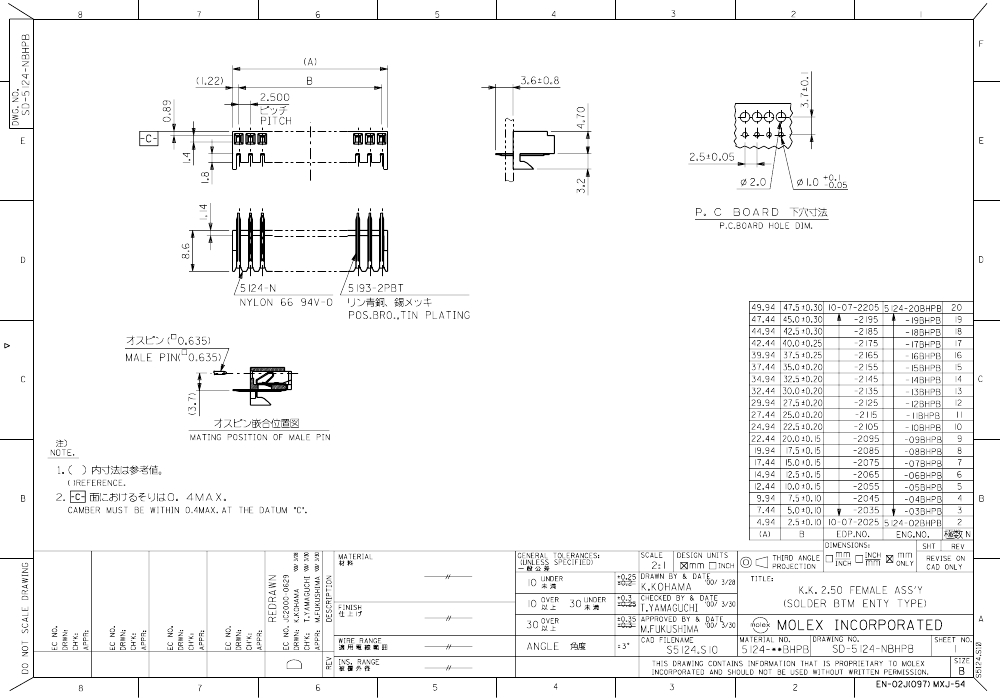

CATALOG DRAWING (FOR REFERENCE ONLY)

ORDERING INFORMATION AND DIMENSIONS

Circuits

Order No.

10-07-2035

10-07-2045

10-07-2055

10-07-2065

10-07-2075

10-07-2085

10-07-2095

10-07-2105

10-07-2115

10-07-2125

10-07-2135

10-07-2145

10-07-2155

7.44

9.94

12.44

14.94

17.44

19.94

22.44

24.94

27.44

29.94

32.44

34.94

37.44

Dimension

(.293)

(.391)

(.490)

(.588)

(.687)

(.785)

(.883)

(.982)

(1.080)

(1.179)

(1.277)

(1.376)

(1.474)

5.00

7.50

10.00

12.50

15.00

17.50

20.00

22.50

25.00

27.50

30.00

32.50

35.00

(.196)

(.295)

(.393)

(.492)

(.590)

(.688)

(.787)

(.885)

(.984)

(1.082)

(1.181)

(1.279)

(1.377)

MX01

B-163

2.00 to 2.50mm (.079 to .098") Pitch

Reference Information

Packaging: Bulk or tray

UL File No.: E29179

CSA File No.: LR19980

Mates With:

3022-NB

Mated Height: 14.40mm (.567")

Mated Width: 7.90mm (.311")

Designed In: Millimeters

Electrical

Voltage: 250V

Current: 3.0A

Contact Resistance: 20m

Ω

max.

Dielectric Withstanding Voltage: 1000V AC/1 min.

Insulation Resistance: 1000 M

Ω

min.

Physical

Housing: 6/6 nylon, UL 94V-0

Contact: Phosphor Bronze

Plating: Tin

Operating Temperature: -40 to +105˚C

2.50mm (.098") Pitch

Board-to-Board

Connector

5124-NBHPB

Bottom Entry

Single Row
