ARK-4180

Expandable PCI-104 Performance

Solution with -40 ~ 75° C

Operating Temperature

Features



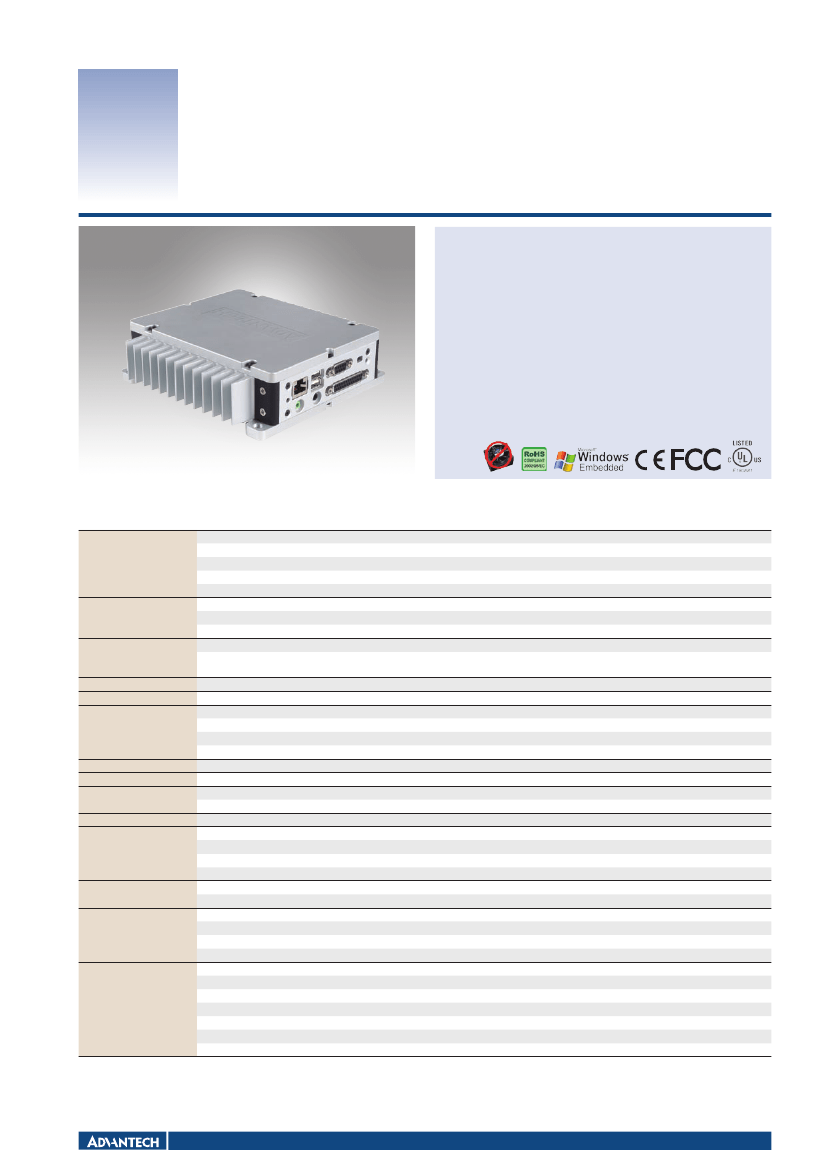

Fanless, rugged, compact embedded box IPC



Built-in Celeron

1.0 GHz (512 KB L2 Cache)/600 MHz CPU



Two serial ports and six USB 2.0 ports



VGA, LAN, Audio, LPT and KB/MS ports



Modularized and stackable design



Supports 1 x PCI-104 expansion slot



Supports -40 ~ 75° C operating temperature



IP40

Specifications

Processor System

CPU

Max. Speed

Front Side Bus

System Chipset

BIOS

Technology

Max. Capacity

Socket

Chipset

Interface

LAN

Interface

Serial Ports

Parallel Port

USB Interface

Keyboard/Mouse

Watchdog Timer

PC/104

HDD

SSD

Microsoft Windows

Power Type

Power Input Voltage

Minimum Power Input

Power Adapter

Typical

Max

Construction

Mounting

Dimensions (W x H x D)

Weight

Operating Temperature

Storage Temperature

Relative Humidity

Vibration During Operation

Shock During Operation

EMC

Safety Certifications

Intel Celeron M ULV

373 (1 GHz)

600 MHz

400 MHz FSB

855GME

852GM

AWARD 4 Mbit, FWH

DDR 333/400 MHz

1 GB

1 x 200-pin SODIMM

Built-in Intel 855GME/852GM

CRT interface

36-bit LVDS (optional)

10/100 Mbps Ethernet Controller

Line-in, Line-out

2 x RS-232

1 x Parallel port, Compliant with IEEE1284

6 x USB ports, USB 2.0 Compliant

1 x PS/2 port, Supports PS/2 Mouse and Keyboard

255 level timer interval, setup by software

PCI-104

Optional

Supports CompactFlash socket for type I/II CompactFlash disk

XP Professional, XP Embedded, CE .NET 6.0

AT, +5 V ± 5%, +12 V ± 5% (Optional) (5 V only, 12 V optional for PC104 add on card and LCD inverter)

+5 V @ 1.63 A

5 V @ 7 A, 12 V @ 3 A, 65 W

10.65 W (Intel ULV Celeron M 1 GHz)

12.5 W (Intel ULV Celeron M 1 GHz)

Aluminum housing

DIN-rail mounting; Desk/wall-mounting; VESA mounting

164 mm x 49.2 mm x 170 mm (6.46" x 1.94" x 6.69" )

2 kg (4.4 lb)

-40 ~ 75° C (-40 ~ 167° F)

-40 ~ 85° C (-40 ~ 185° F)

95% @ 40° C (non-condensing)

5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 Oct./min, 1 hr/axis.

50 Grms, IEC 60068-2-27, half sine, 11 ms duration

CE/FCC Class A, CCC, BSMI

UL, CCC, BSMI

Memory

Graphics

Ethernet

Audio

I/O Interface

Other

Expansion

Storage

Software Support

Power Requirement

Power Consumption

Mechanical

Environment

Box IPCs

All product specifications are subject to change without notice

Last updated : 24-Mar-2009
