ARK-6310-6M01E
ARK-6310-3M03E
NEW

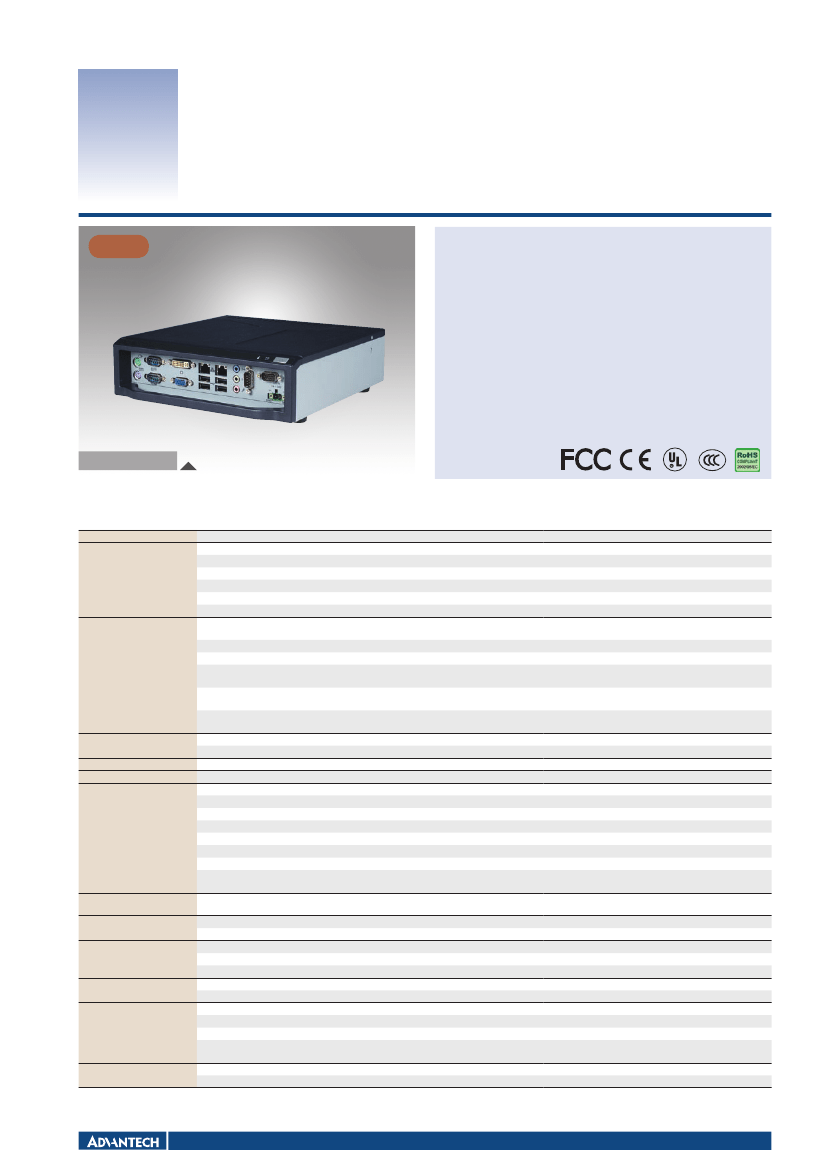

Features
Fanless Mini-ITX
Embedded Computer System
Built-inIntel
®
Core™ 2 Duo 1.06 GHz/Low-Power Celeron M 1.0 GHz
Comprehensive I/O of Dual Gigabit Ethernet, 4 USB, audio ports, COM ports,
and VGA/DVI port
Wide range of DC input voltage supported: 14 ~ 24 V
DC
Ultra compact and robust construction without fan
Anti-vibration cushion design to one 2.5" HDD-bay to ensure maximum
reliability
Bottom access cover design gives easy maintenance to CompactFlash socket
Built-in mounting bracket support wall-mount and table-mount, optional
Support of VESA mounting bracket
Optional WLAN 802.11 b/g module
ARK-6310-6M01E
Specifications
Model
Chipset
CPU
L2 Cache
Front Side Bus
Memory
BIOS
Controller
VRAM
Resolution
Graphics
LVDS Support (optional)
DVI Support (optional)
Dual Display
Ethernet
Storage
Drive Bay
Interface
Controller
HDD (supported)
CompactFlash (supported)
USB
PS/2
COM
RJ-45
Audio
VGA
DVI
Reserved Cutouts
Operating System
Watchdog Timer
Power Supply
Miscellaneous
Output
Interval
Power Output Wattage
Input Voltage
Output Voltage
LED Indicators
Control
Temperature
Humidity
Vibration (5 ~ 500 GHz)
Physical Characteristics
Dimensions (W x H x D)
Weight
ARK-6310-6M01E
ARK-6310-3M03E
Intel GME965 + ICH8M
Intel 910GMLE + ICH6M
Intel Core 2 Duo 1.06 GHz (U7500)
Intel Celeron M 1.0 GHz
2 MB
0 KB
533 MHz
400 MHz
DDR2 533/667 SDRAM 1 x 200-pin SODIMM socket up to 2GB* DDR2 400/533 SDRAM 2 x 240-pin DIMM socket up to 2GB
AMI 16 Mbit SPI
Award 4 Mbit FWH
Intel GME965 GMCH integrated mobile Intel GMA X3100
Intel 910GMLE GMCH integrated graphics media controller 900
controller
Intel DVMT 4.0 supports up to 384 MB video memory
Intel DVMT 3.0 supports up to 128 MB video memory
2048 x 1536 @ 32 bpp (60Hz)
1600 x 1200 @ 32 bpp (85 Hz)
Single channel 18-bit / 24-bit
Single channel 18-bit
Dual channel 36-bit / 48-bit
Dual channel 36-bit
DVI specification 1.0 compliant
-
Chrontel CH7307C SDVO transmitter
CRT + DVI
Optional support CRT + LVDS
Optional support CRT + LVDS or DVI + LVDS
10/100/1000 Mbps Gigabit Ethernet
10/100/1000 Mbps Gigabit Ethernet
Realtek RTL8111B
Realtek RTL8111C
SATA, 2.5"
SATA, 2.5"
Card Type I/II
Card Type I/II
4
4
2
2
2
3
2
2
3 (Mic-in, Line-in, Line-out)
3 (Mic-in, Line-in, Line-out)
1
1
1
-
2 x COM or 1 x COM & 4 x USB
1 x COM, 1 x LVDS, 1 x INV
(4 x USB cable kit is required)
Microsoft Windows 2000/ XP/ Vista
Microsoft Windows 2000/ XP/ Vista
Windows XP Embedded
Windows XP Embedded
System reset
System reset
Programmable 1 ~ 255 seconds
Programmable 1 ~ 255 seconds
75 W
14 V
DC
~ 24 V
DC
@ 6.4 A ~ 3.75 A (Max.); 19 V
DC
@ 4.74 A (Max.)
+5 V @ 6 A ( with +5 Vsb @ 2A Max.); +3.3 V @ 5 A; +12 V @ 2 A;-12 V @ 0.3 A; -5 V @ 0.3 A
Power, HDD, temperature
Power on/off switch
Operating
Non-Operating
0 ~ 40° C (32 ~ 104° F)
-20 ~ 60° C (-4 ~ 140° F)
10 ~ 85% @ 40° C, non-condensing
10 ~ 85% @ 40° C, non-condensing
1 Grms (ARK-6310-3M03E)
2G
0.5 Grms (ARK-6310-6M01E)
232 x 65 x 232 mm (9.1" x 2.6" x 9.1")
2.7 kg (6.0 lb)
Processor System
Front I/O Interface
Environment
*Note: To prevent from system failure due to overheating, ARK-6310-6M01E supports only one 200-pin SODIMM socket.
Pre-Configured Systems
All product specifications are subject to change without notice
Last updated : 24-Mar-2009
ARK-6310-6M01E
ARK-6310-3M03E

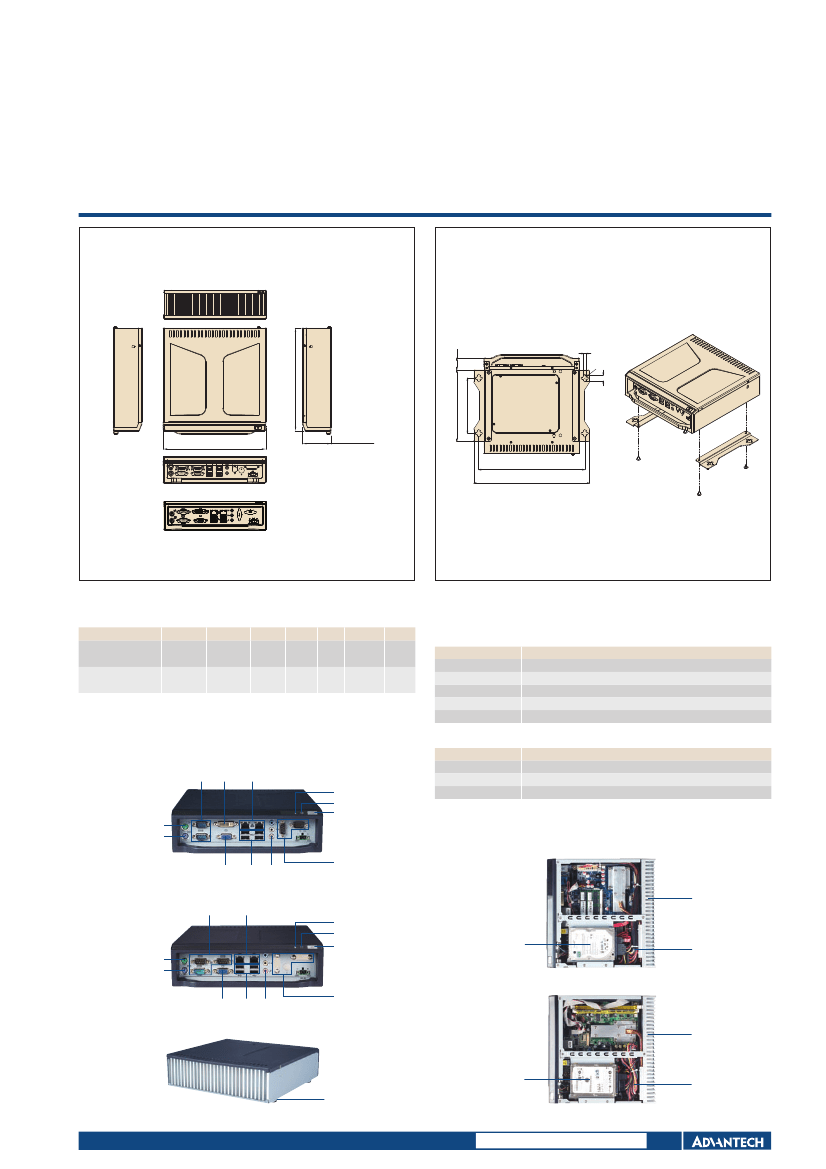

Dimensions
Unit: mm (inch)
Installation
Unit: mm (inch)
28.8 [1.13]
232 [9.13]
174 [6.85]
134 [5.28]
232 [9.13]
65 [2.56]
257 [10.12]
281.18 [11.07]
ARK-6310-3M03E
ARK-6310-6M01E
System Ordering Information
CPU
Display G-LAN *USB COM KB/MS Audio
LV C2D
ARK-6310-6M01E
VGA+DVI 2
4 ~ 8 2 ~ 4 Yes
Yes
1.06 GHz
LV CM
ARK-6310-3M03E
VGA
2
4 ~ 8 3 ~ 4 Yes
Yes
1.0 GHz
Note: Packing accessory kit is included, and its serial cable supports up to 4 COMs
* Supports up to 8 USB ports via optional cable kit (P/N: 9652631001)
Part Number
Optional Accessories
External AC-to-DC Adapter and Power Cable
Part Number
1757001377
1700001947
1700001948
1700001949
1700002141
Description
AC-to-DC adapter, DC 19 V/90 W with Phoenix power plug
Power Cable 2-pin 180 cm, USA type
Power Cable 2-pin 180 cm, Europe type
Power Cable 2-pin 180 cm, UK type
Power Cable 2-pin 180 cm, Japan type
Description
VESA Mounting Plate for ARK-6620/6310
ARK-6 series Wireless LAN 802.11 b/g module
4 x USB Cable Kit for ARK-6310
Front View
ARK-6310-6M01E
COMs DVI Dual Giga LANs
Temperature LED
HDD LED
Power switch
PS/2 mouse
PS/2 keyboard
Extra I/O cutouts
with optional
cables
Accessories
Part Number
989K008732
ARK-WLAN-USBE
9652631001
Inside View
ARK-6310-6M01E
VGA USB Audio
ARK-6310-3M03E
COMs Dual Giga LANs
Temperature LED
HDD LED
Power switch
PS/2 mouse
PS/2 keyboard
Extra I/O cutouts
Disk drive housing
for one 2.5" HDD
14 [0.55]
Ø1
0
[Ø
0
5 [0.20]
.3
9]
Fanless heatsink
75W DC power
module
ARK-6310-3M03E
Rear View
VGA USB Audio
Fanless heatsink
Disk drive housing
for one 2.5" HDD
Rubber stands
75W DC power
module
Download
www.advantech.com/products
