Double-Row, Dual-Barrier Strips
.374 [9.5], .433 [11.0], .437 [11.1] and .563 [14.3]
Centerlines
Issued 06/03
1654555
DESCRIPTION
• Double-row, dual barrier strips for wire-to-wire
applications. These parts also allow end users
to complete the wiring to a separate screw
without disturbing the factory wiring.
• Available with either binding head screws
or wire clamp
• Available in four centerline spacings:
.374 [9.5], .433 [11.0], .437 [11.1]
and .563 [14.3]
• Increased current-carrying capability
new product
APPLICATIONS
•
•
•
•
•
•
Industrial Controls
Test Equipment
HVAC
Power Supplies
Traffic Signals
Telecom

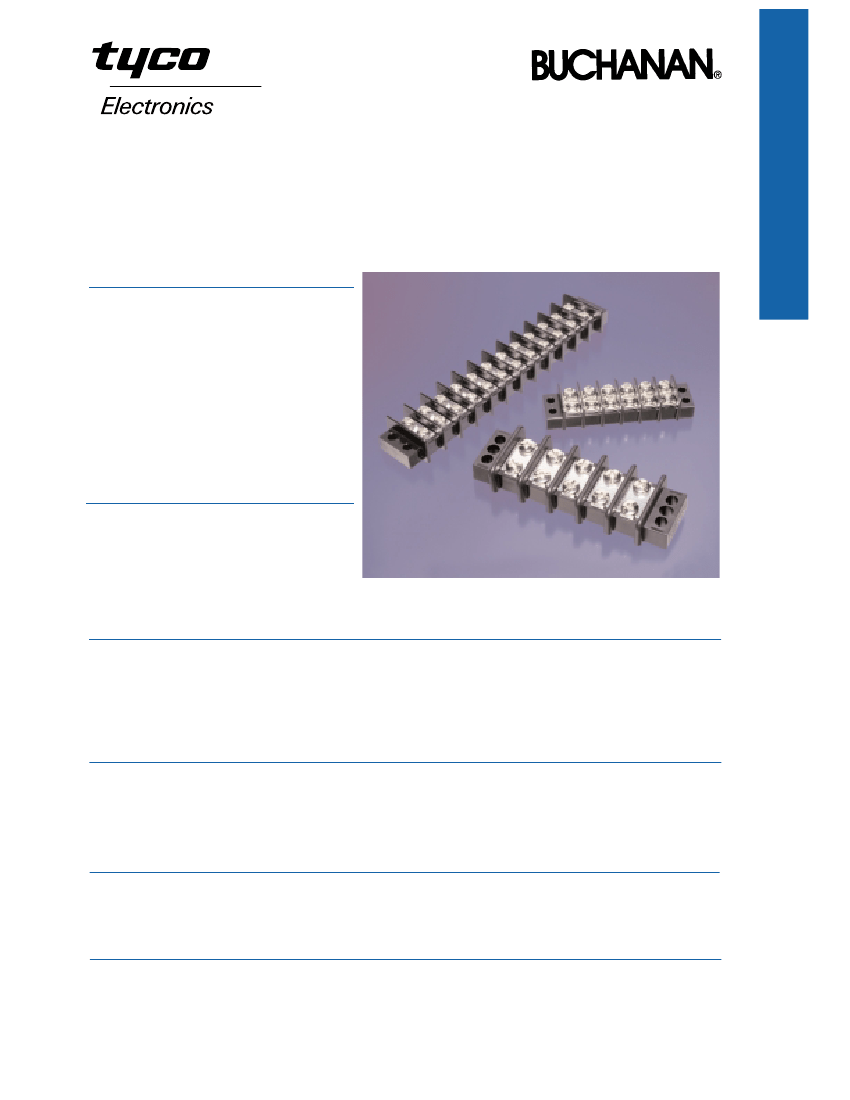

Photo #112443
KEY FEATURES
• Closed bottom design allows for mounting direct to
sheet metal panel
• Molded to length
• Accessories such as Quick-Connect Tabs and Jumpers
available
• Wire-to-wire termination:
- .374 [9.5] centerline: Up to 30 positions
- .433 [11.0] centerline: Up to 26 positions
- .437 [11.1] centerline: Up to 26 positions
- .563 [14.3] centerline: Up to 18 positions
STANDARDS AND SPECS
• UL 1059
• CSA 22.2 NO. 158-1987
• Component Recognized by UL to US and Canadian
Standards, File No. E60677
MATERIALS
• Insulator Body: UL 94V-0 Thermoplastic, Black
• Terminal:
Brass, Tin Plated
• Screw:
#6-32 Steel, Nickel Plated
M4.0 Steel, Nickel Plated [14.3 mm]
FOR MORE INFORMATION
Technical Support
Internet: www.tycoelectronics.com
E-mail:
newproducts@tycoelectronics.com
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-5-792-0425
South America: 55-11-3611-1514
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-141-810-8967

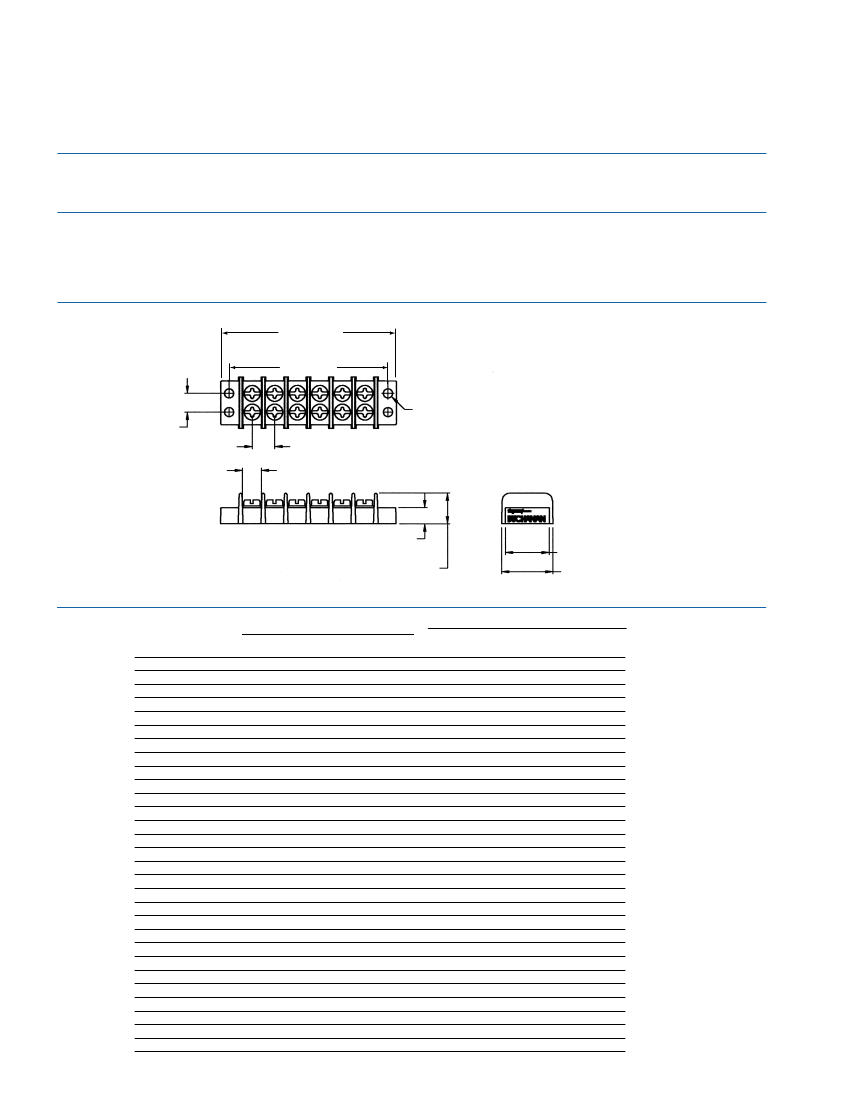

.433 [11.0] and .437 [11.1] Centerlines
MECHANICAL
• Screw Torque: 12 in-lb
ELECTRICAL
• Current Rating:
• Wire Range:
• Withstanding Voltage:
25 A, 300 VAC
14-22 AWG
2000 VAC min.
• Insulation Resistance:
>5000 MΩ @ 500 VDC
• Operating Temperature: -40˚F to +221˚F [-40˚C to +105˚C]

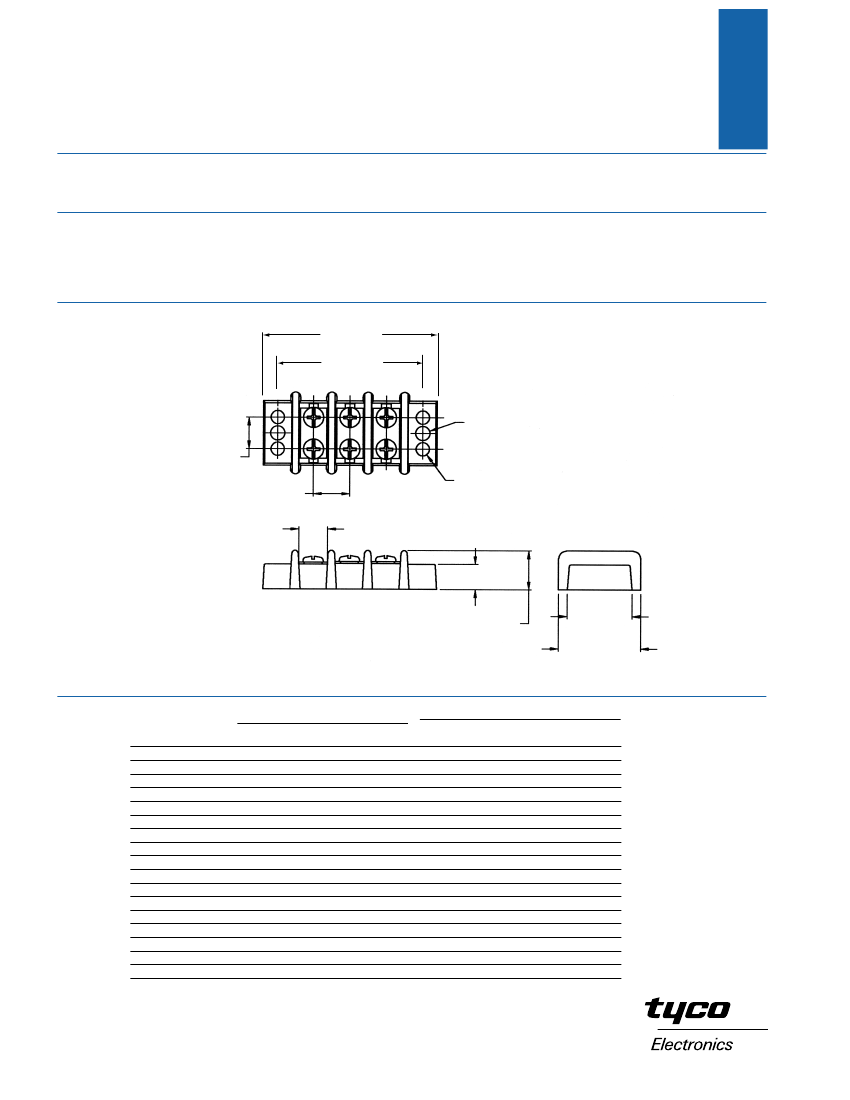

PRODUCT DIMENSIONS
Dim. L
±
.08
[±2.0]
.177
[4.5] Dia. Typ.
.413±.01
[10.5±0.3]
.433±.008
[11.0±0.2] Typ. for .433 Centerline
.437±.008
[11.1±0.2] Typ. for .437 Centerline
.366±.008
[9.3±0.2]
Typ.
.551±.01
.315±.01
[14.0±0.3]
[8.0±0.3]
1.10±.02
[28.0±0.6]
.827±.01
[21.0±0.3]
PRODUCT OFFERING
No. of
Positions
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
Dimension
L
1.65 [41.8]
2.08 [52.8]
2.51 [63.8]
2.94 [74.8]
3.38 [85.8]
3.81 [96.8]
4.24 [107.8]
4.68 [118.8]
5.11 [129.8]
5.54 [140.8]
5.98 [151.8]
6.41 [162.8]
6.84 [173.8]
7.27 [184.8]
7.71 [195.8]
8.14 [206.8]
8.57 [217.8]
9.01 [228.8]
9.44 [239.8]
9.87 [250.8]
10.31 [261.8]
10.74 [272.8]
11.17 [283.8]
11.61 [294.8]
12.04 [305.8]
.433 [11.0] Centerline
Part Numbers
w/Binding Head
w/Wire
Screws
Clamp Screws
0-1546481-2 0- 0-1546477-2
0-1546481-3
0-1546477-3
0-1546481-4
0-1546477-4
0-1546481-5
0-1546477-5
0-1546481-6
0-1546477-6
0-1546481-7
0-1546477-7
0-1546481-8
0-1546477-8
0-1546481-9
0-1546477-9
1-1546481-0
1-1546477-0
1-1546481-1
1-1546477-1
1-1546481-2
1-1546477-2
1-1546481-3
1-1546477-3
1-1546481-4
1-1546477-4
1-1546481-5
1-1546477-5
1-1546481-6
1-1546477-6
1-1546481-7
1-1546477-7
1-1546481-8
1-1546477-8
1-1546481-9
1-1546477-9
2-1546481-0
2-1546477-0
2-1546481-1
2-1546477-1
2-1546481-2
2-1546477-2
2-1546481-3
2-1546477-3
2-1546481-4
2-1546477-4
2-1546481-5
2-1546477-5
2-1546481-6
2-1546477-6
Dimension
L
1.62 [41.2]
2.06 [52.3]
2.50 [63.4]
2.93 [74.5]
3.37 [85.6]
3.81 [96.7]
4.24 [107.8]
4.68 [118.9]
5.12 [130.0]
5.55 [141.1]
5.99 [152.2]
6.43 [163.3]
6.87 [174.4]
7.30 [185.5]
7.74 [196.6]
8.18 [207.7]
8.61 [218.8]
9.05 [229.9]
9.49 [241.0]
9.93 [252.1]
10.36 [263.2]
10.80 [274.3]
11.24 [285.4]
11.67 [296.5]
12.11 [307.6]
.437 [11.1] Centerline
Part Numbers
w/Binding Head
w/Wire
Screws
Clamp Screws
0-1546670-2
0-1546671-2
0-1546670-3
0-1546671-3
0-1546670-4
0-1546671-4
0-1546670-5
0-1546671-5
0-1546670-6
0-1546671-6
0-1546670-7
0-1546671-7
0-1546670-8
0-1546671-8
0-1546670-9
0-1546671-9
1-1546670-0
1-1546671-0
1-1546670-1
1-1546671-1
1-1546670-2
1-1546671-2
1-1546670-3
1-1546671-3
1-1546670-4
1-1546671-4
1-1546670-5
1-1546671-5
1-1546670-6
1-1546671-6
1-1546670-7
1-1546671-7
1-1546670-8
1-1546671-8
1-1546670-9
1-1546671-9
2-1546670-0
2-1546671-0
2-1546670-1
2-1546671-1
2-1546670-2
2-1546671-2
2-1546670-3
2-1546671-3
2-1546670-4
2-1546671-4
2-1546670-5
2-1546671-5
2-1546670-6
2-1546671-6
