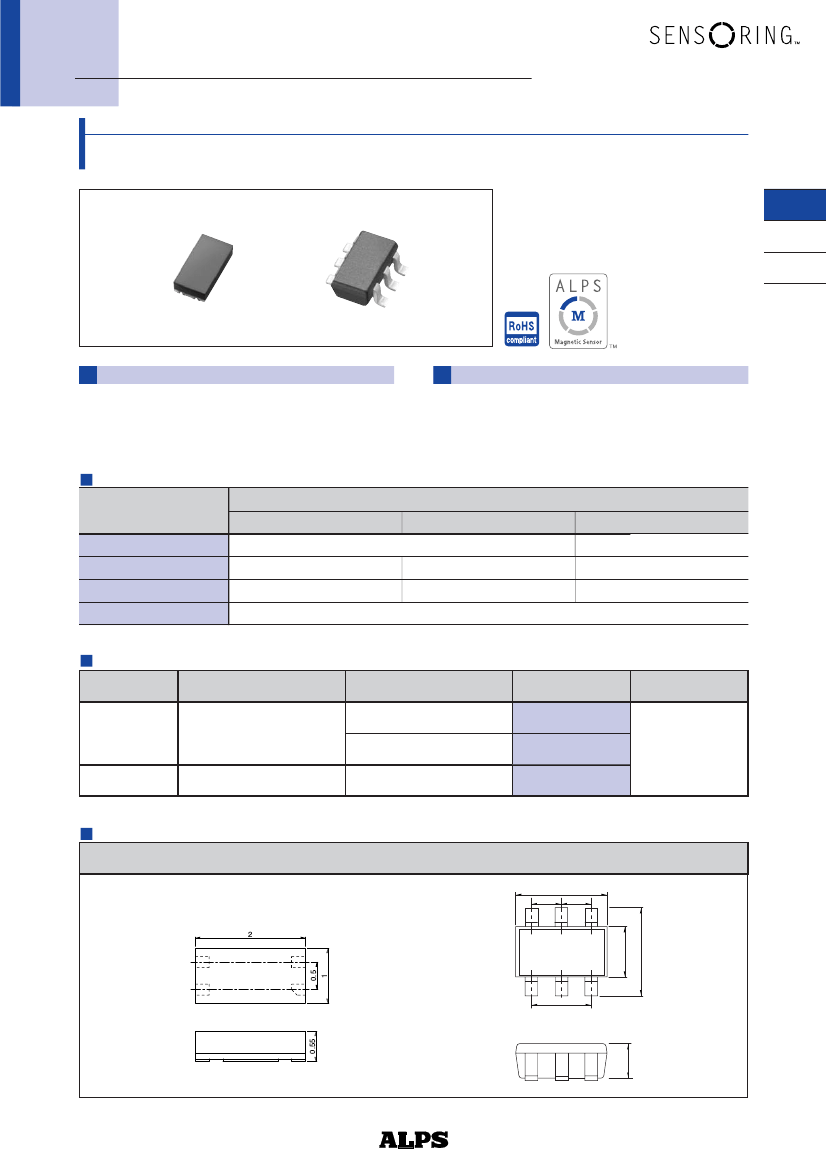

Magnetic Sensors
Incremental Encode Output Type
HGP□D
Series
Built-in 2-phase output in a small sized package. Contributes to making the
encoder system smaller and to increasing the design flexibility.
Magnetic
Sensor
Piezo
Sensor
Resistive
Sensor
MAP type
SOT23 type
Features
●
●
●
Applications
●
Has a built-in high sensitivity and high precision two phase output
Small size (1.8V type 2
G
1
G
0.55mm).
Low consumption current (1.8V type total 20
B
A for two
phases).
Detection of rotation speed and rotation direction for rotation
mechanisms of small motors and actuators, etc., as well as
dial input of all kinds of portable devices such as mobile
phones and digital cameras.
Typical Specifications
Specifications
Items
HGPJDM
Operating voltage
Sampling period
Current consumption
2-phase element interval
HGPHDM
HGPFDT
Typ. 5V (4.5V min. to 5.5V max.)
35B sec
4mA Ave. (at VDD= 5V)
Typ. 1.8V (1.6V min. to 3.6V max.)
1.3m sec
20BA Ave. (at VDD= 1.8V)
320B sec
70BA Ave. (at VDD= 1.8V)
Typ. 0.65mm
Product list
Operating voltage
Package Specifications/Size
Function
2-phase alternating output
Sampling period：1.3msec
2-phase alternating output
Sampling period：320Bsec
2-phase alternating output
Sampling period：35Bsec
Model No.
HGPJDM001A
HGPHDM001A
HGPFDT001A
Operating
magnetic field
Typ. 1.8V
MAP type
2×1×0.55mm
Hon:+1mT
Hoff:-1mT
Typ. 5V
SOT23 type
2.9×2.8×1.1mm
Dimensions
Style
MAP type
SOT23 type
0.95
2.9
0.95
Unit:mm
2
1.6
2.8
0.5
1
1.9
0.55
1.1
13
