NJM2723
High Speed Current Feedback Operational Amplifier
■
General Description
The NJM2723 is a high speed, wide bandwidth and
high output current feedback operational amplifier.
Driving 150Ω load can expand the versatility of several
multimedia applications. Current feedback technology
has wide bandwidth and Low supply current.
With a 75MHz at G=+2, 24MHzat G=+10, high slew
rate of 2000V/µs, second harmonic distortion -65dB
and settling time of 50ns(0.1%) The NJM2723 makes it
ideal for high frequency amplifier, active filter and pulse
amplifier applications.
■
Features
High Speed
●Bandwidth
75MHz (−3dB, G=+2)
●Bandwidth
24MHz (−3dB, G=+10)
●Slew
Rate
2000V/µs
For Video Applications
(V
+
/V
−
=±5V)
●Bandwidth
52MHz (−3dB, G=+2)
●Bandwidth
8MHz (0.1dB, G=+2)
●Differential
Gain
0.05%
●Differential
Phase
0.25deg
●Settling
Time
50ns (0.1%, G=+2)
Low Noise
●Voltage
Noise
6nV/√Hz (@1kHz)
●Current
Noise
13pA/√Hz (@1kHz)
●THD
−60dBc
(@10MHz)
●Specified
for ±5V and ±15V operation
●150Ω
Drive Capability
●Output
Voltage
±3.5V min. (R
L
=150Ω, V
+
/V
−
=±15V)
±2.4V min. (R
L
=150Ω, V
+
/V
−
=±5V)
●Supply
Range
±3.5V~±17.5V
●Supply
Current
5mA max.
■
Applications
●High
frequency amplifier
●Active
Filter
●150Ωcable
driver
●Video
amplifier
150ΩDrive High Slew Rate OP
−
AMP Lineup (Single)
SR=250V/µs SR=500V/µs SR=2000V/µs
Voltage Feedback
NJM2720
NJM2721
Current Feedback
NJM2723
■
Package Outline
NJM2723D
NJM2723E
ORDER INFORMATION
Parts
NJM2723D
NJM2723E
Package
DIP8
EMP8
■
Pin Configuration
( Top View )
N.C.
-INPUT
+INPUT
V
-
1
2
3
4
8
7
6
5
N.C.
V
+
OUTPUT
N.C.
Ver.2009-10-28
-1-
NJM2723
■
ABSOLUTE MAXIMUM RATINGS
(Ta=25
º
C, unless otherwise noted.)
PARAMETER
Supply Voltage
Common Mode Input Voltage Range
Differential Input Voltage Range
Power Dissipation (Note4)
SYMBOL
V
DD
V
ICM
V
ID
P
D
RATING
±18
±18(Note1)
±3(Note1)
DIP8: 500
EMP8: 375 / 625 (Note2) / 875 (Note3)
UNIT
V
V
V
mW
°C
°C
Operating Temperature Range
Topr
-40~+85
Storage Temperature Range
Tstg
-50~+150
(Note1) For supply voltage less than ±18V, the absolute maximum rating is equal to the supply voltage.
(Note2) On the PCB "EIA/JEDEC (114.3×76.2×1.6mm, 2 layers, FR-4)"
(Note3) On the PCB "EIA/JEDEC (114.3×76.2×1.6mm, 4 layers, FR-4)"
(Note4) See Figure “Power Dissipation Derating Curve" when ambient temperature is over 25ºC.
Power Dissipation Derating Curve
1000
900
Power Dissipation Pd (mW)
EMP8(Note3)
800
700
600
500
400
300
200
100
0
5
15 25 35 45 55 65 75 85 95 105
Ambient Temperature Ta (ºC)
EMP8
EMP8(Note2)
DIP8
∆Pd
(mW/°C)
Package
DIP8
-4.0
EMP8
-3.0
-5.0
EMP8(Note2)
-7.0
EMP8(Note3)
■RECOMMENDED
OPERATING VOLTAGE
(Ta=25
º
C)
PARAMETER
Supply Voltage
SYMBOL
V
+
/V
-
TEST CONDITION
MIN.
±3.5
TYP.
-
MAX.
±17.5
UNIT
V
-2-
Ver.2009-10-28
NJM2723
■
ELECTRICAL CARACTERISTICS
(Measurement is to be conducted as pulse testing.)
●
DC CHARACTERISTICS
(V
+
/V
-
=±15V, Ta=25
º
C, unless otherwise noted.)
PARAMETER
Supply Current
Input Offset Voltage
Input Bias Current
Transimpedance
Common Mode Input Voltage Range
Common Mode Rejection Ratio
Supply Voltage Rejection Ratio
Maximum Output Voltage
Maximum Output Voltage
SYMBOL
Icc
V
IO
I
B+
I
B-
Z
T
V
ICM
CMR
SVR
V
OM
V
OM
TEST CONDITION
No Signal
MIN.
-
-
-
-
1.0
±11
56
66
±11.5
±3.5
TYP.
2.9
4
2
2
2.5
±12
66
76
±13
±4.5
MAX.
5
20
20
20
-
-
-
-
-
-
UNIT
mA
mV
uA
uA
MΩ
V
dB
dB
V
V
R
L
=1kΩ, Vo=±10V
CMR≥56dB
-11V≤V
ICM
≤+11V
+ -
±3.5V≤V /V
≤±17.5V
R
L
=1kΩ
R
L
=150Ω
●
AC CHARACTERISTICS
(V
+
/V
-
=±15V, Ta=25
º
C, unless otherwise noted.)
PARAMETER
Bandwidth
0.1dB Flatness
Slew Rate
Slew Rate
Settling Time 0.1%
Equivalent Input Noise Voltage
Equivalent Input Noise Current
Total Harmonic Distortion
2nd Harmonic Distortion
3rd Harmonic Distortion
SYMBOL
BW
-3dB
TEST CONDITION
G
V
=6dB, R
F
=680Ω, R
G
=680Ω, R
L
=1kΩ, C
L
=1pF
G
V
=20dB, R
F
=680Ω, R
G
=75Ω, R
L
=1kΩ, C
L
=1pF
G
V
=6dB, R
F
=680Ω, R
G
=680Ω, R
L
=1kΩ, C
L
=1pF,
Vo=10Vpp, measured20% to 80%
G
V
=6dB, R
F
=680Ω, R
G
=680Ω, R
L
=1kΩ, C
L
=1pF,
Vo=20Vpp, measured20% to 80%
G
V
=-1, R
F
=620Ω, R
G
=620Ω, R
L
=1kΩ, C
L
=1pF,
Vo=10Vpp
f=100kHz
f=100kHz
G
V
=6dB, R
F
=680Ω, R
G
=680Ω, R
L
=1kΩ,
Vo=2Vpp, f=10MHz
G
V
=6dB, R
F
=680Ω, R
G
=680Ω, R
L
=1kΩ,
Vo=2Vpp, f=10MHz
G
V
=6dB, R
F
=680Ω, R
G
=680Ω, R
L
=1kΩ,
Vo=2Vpp, f=10MHz
MIN.
-
-
-
-
-
-
-
-
-
-
-
TYP.
75
24
12
1500
2000
50
6
13
-60
-65
-70
MAX.
-
-
-
-
-
-
-
-
-
-
-
UNIT
MHz
MHz
MHz
V/us
V/us
ns
nV/√Hz
pA/√Hz
dBc
dB
dB
BW
0.1dB
G
V
=6dB, R
F
=680Ω, R
G
=680Ω, R
L
=1kΩ, C
L
=1pF
SR
SR
ts
Vni
Ini+
THD
HD
2nd
HD
3nd
Ver.2009-10-28
-3-
NJM2723
■
ELECTRICAL CARACTERISTICS
(Measurement is to be conducted as pulse testing.)
●
DC CHARACTERISTICS
(V
+
/V
-
=±5V, Ta=25
º
C, unless otherwise noted.)
PARAMETER
Supply Current
Input Offset Voltage
Input Bias Current
Transimpedance
Common Mode Input Voltage Range
Common Mode Rejection Ratio
Supply Voltage Rejection Ratio
Maximum Output Voltage
Maximum Output Voltage
SYMBOL
Icc
V
IO
I
B+
I
B-
Z
T
V
ICM
CMR
SVR
V
OM
V
OM
TEST CONDITION
No Signal
MIN.
-
-
-
-
0.25
±2
50
66
±2.8
±2.4
TYP.
2.8
4
2
2
0.85
±2.25
60
76
±3.3
±2.8
MAX.
4.5
20
20
20
-
-
-
-
-
-
UNIT
mA
mV
uA
uA
MΩ
V
dB
dB
V
V
R
L
=150Ω, Vo=±2V
CMR≥50
-2≤V
ICM
≤+2
+ -
±3.5≤V /V
≤±17.5
R
L
=1kΩ
R
L
=150Ω
●
AC CHARACTERISTICS
(V
+
/V
-
=±5V, Ta=25
º
C, unless otherwise noted.)
PARAMETER
Bandwidth
0.1dB Flatness
Slew Rate
Settling Time 0.1%
Equivalent Input Noise Voltage
Equivalent Input Noise Current
Total Harmonic Distortion
2nd Harmonic Distortion
3rd Harmonic Distortion
Differential Gain
Differential Phase
SYMBOL
BW
-3dB
TEST CONDITION
G
V
=6dB, R
F
=680Ω, R
G
=680Ω, R
L
=150Ω, C
L
=1pF
G
V
=20dB, R
F
=680Ω, R
G
=75Ω, R
L
=150Ω, C
L
=1pF
G
V
=6dB, R
F
=680Ω, R
G
=680Ω, R
L
=150Ω, C
L
=1pF,
Vo=2Vpp
G
V
=-1, R
F
=620Ω, R
G
=620Ω, R
L
=150Ω, C
L
=1pF,
Vo=2Vpp
f=100kHz
f=100kHz
G
V
=6dB, R
F
=680Ω, R
G
=680Ω, R
L
=150Ω,
Vo=2Vpp, f=10MHz
G
V
=6dB, R
F
=680Ω, R
G
=680Ω, R
L
=150Ω,
Vo=2Vpp, f=10MHz
G
V
=6dB, R
F
=680Ω, R
G
=680Ω, R
L
=150Ω,
Vo=2Vpp, f=10MHz
G
V
=6dB, R
F
=680Ω, R
G
=680Ω, R
L
=150Ω, C
L
=1pF,
V
INDC
=1/0, V
IN
=0.286V
G
V
=6dB, R
F
=680Ω, R
G
=680Ω, R
L
=150Ω, C
L
=1pF,
V
INDC
=1/0, V
IN
=0.286V
MIN.
-
-
-
-
-
-
-
-
-
-
-
-
TYP.
52
16
8
180
50
5
13
-50
-60
-50
0.05
0.25
MAX.
-
-
-
-
-
-
-
-
-
-
-
-
UNIT
MHz
MHz
MHz
V/us
ns
nV/√Hz
pA/√Hz
dBc
dB
dB
%
deg
BW
0.1dB
G
V
=6dB, R
F
=680Ω, R
G
=680Ω, R
L
=150Ω, C
L
=1pF
SR
ts
Vni
Ini+
THD
HD
2nd
HD
3nd
DG
DP
-4-
Ver.2009-10-28
NJM2723
■

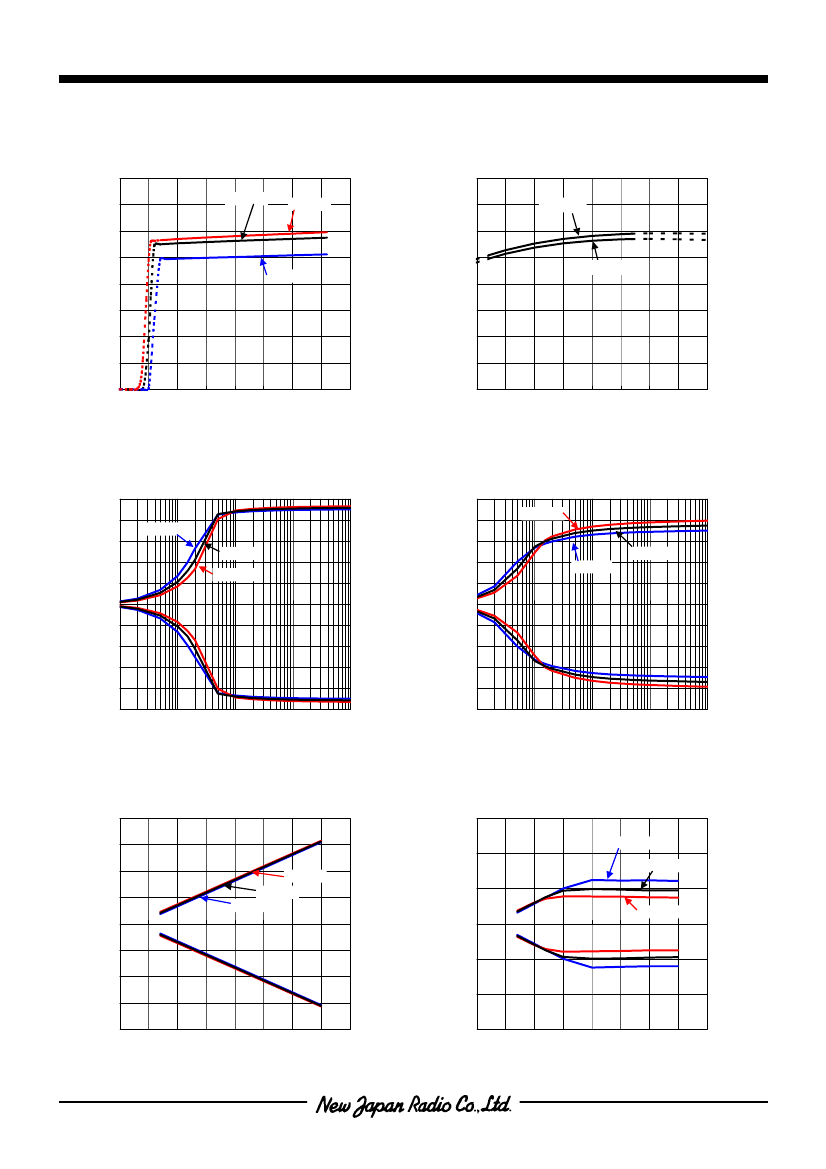

TYPICAL CHARACTERISTICS
Supply Current vs. Supply Voltage
4
3.5
Supply Current [mA]
R
F
=680Ω, R
G
=680Ω, R
T
=50Ω
Ta=+25ºC
Supply Current vs. Temperature
4.0
R
F
=680Ω, R
G
=680Ω, R
T
=50Ω
Ta=+85ºC
3.5
Supply Current [mA]
V
+
/V
-
=±15V
3
2.5
2
1.5
1
0.5
0
0
2.5
5
7.5 10 12.5 15
+ -
Supply Voltage V /V [V]
17.5
20
Ta=-40ºC
3.0
2.5
2.0
1.5
1.0
0.5
0.0
-50
-25
0
25 50 75 100 125 150
Ambient Temperature [ºC]
V
+
/V
-
=±5V
Maximum Output Voltage vs. Load Resistance
15
12
9
Output Voltage [V]
Ta=-40ºC
Ta=+25ºC
Ta=+85ºC
V
+
/V
-
=±15V, V
IN
=±0.3V
Maximum Output Voltage vs. Load Resistance
5
4
3
Output Voltage [V]
V
+
/V
-
=±5V, V
IN
=±0.3V
Ta=+85ºC
6
3
0
-3
-6
-9
-12
-15
10
0k
2
1
0
-1
-2
-3
-4
-5
Ta=+25ºC
Ta=-40ºC
100
0k
1k
10k
Load Resistance [Ω]
100k
10
0k
100
0k
1k
10k
Load Resistance [Ω]
100k
Maximum Output Voltage vs. Supply Voltage
20
Maximum Output Voltage [V]
V
IN
=±0.3V, R
L
=1kΩ
Maximum Output Voltage vs. Supply Voltage
15
Maximum Output Voltage [V]
V
IN
=±0.3V, R
L
=150Ω
15
10
5
0
-5
-10
-15
-20
0
2.5
5
7.5 10 12.5 15
+ -
Supply VoltageV /V [V]
17.5
20
Ta=-40ºC
Ta=+85ºC
Ta=+25ºC
Ta=-40ºC
10
Ta=+25ºC
5
Ta=+85ºC
0
-5
-10
-15
0
2.5
5
7.5 10 12.5 15
+ -
Supply Voltage V /V [V]
17.5
20
Ver.2009-10-28
-5-
