7311S-DG-505P-62.5M-NSA3345L: DescriptionLVDS Output Clock Oscillator, 62.5MHz Min, 220MHz Max, 62.5MHz Nom, ROHS COMPLIANT PACKAGE-6; CategoryPassive components oscillator; File Size369KB，1 Pages; ManufacturerNDK; Websitehttp://www.ndk.com/en/; Environmental Compliance

Download Datasheet Parametric View All

7311S-DG-505P-62.5M-NSA3345L Overview

LVDS Output Clock Oscillator, 62.5MHz Min, 220MHz Max, 62.5MHz Nom, ROHS COMPLIANT PACKAGE-6

7311S-DG-505P-62.5M-NSA3345L Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	NDK
package instruction	DILCC6,.2
Reach Compliance Code	unknown
Other features	TRI-STATE; STANDBY FUNCTION; COMPLEMENTARY OUTPUT
Frequency Adjustment - Mechanical	NO
frequency stability	50%
Manufacturer's serial number	7311S-DG
Installation features	SURFACE MOUNT
Number of terminals	6
Maximum operating frequency	220 MHz
Minimum operating frequency	62.5 MHz
Nominal operating frequency	62.5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	LVDS
Output load	100 OHM
Package body material	CERAMIC
Encapsulate equivalent code	DILCC6,.2
physical size	7.0mm x 5.0mm x 1.7mm
power supply	3.3 V
Certification status	Not Qualified
Maximum slew rate	60 mA
Maximum supply voltage	3.63 V
Minimum supply voltage	2.97 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	60/40 %

Preview

Download Datasheet

View All

Crystal Oscillator

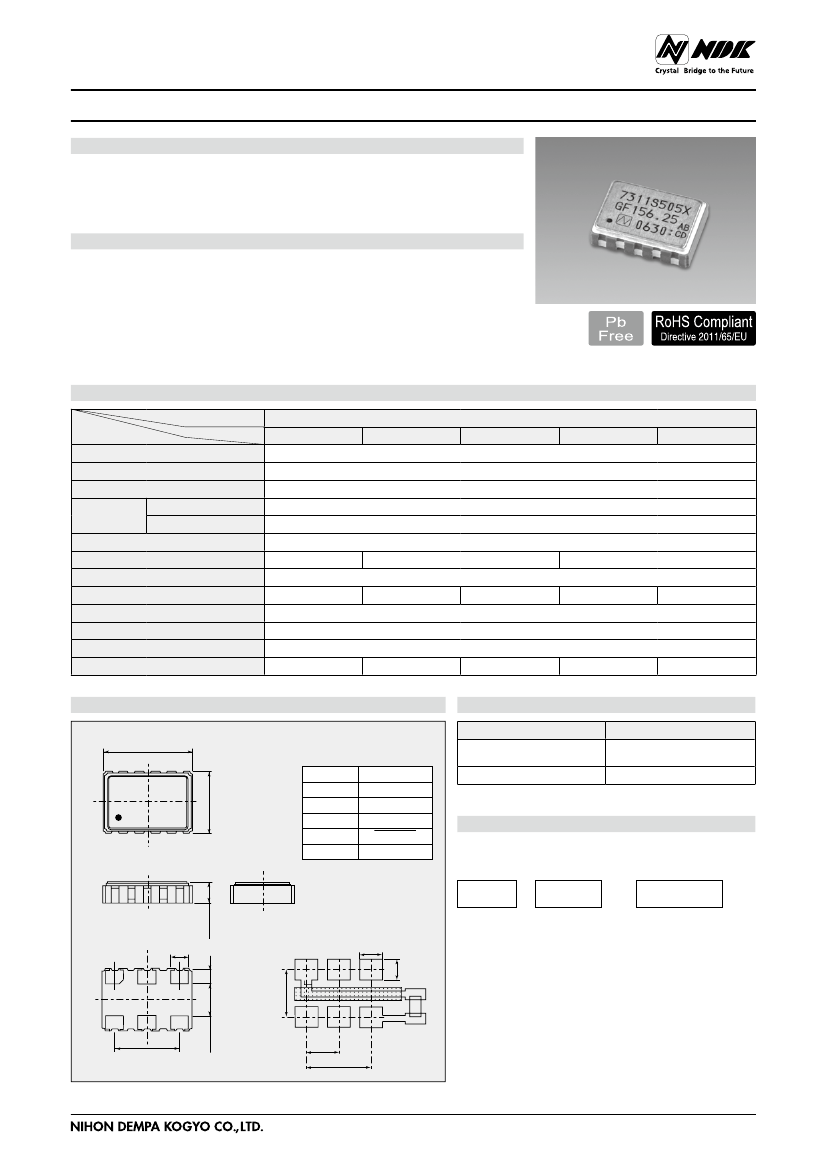

Model Name 7311S-DG

■

Main Application

For SONET-, SDH-, and GbEthernet-related equipment

Simple Packaged Crystal Oscillator (SPXO) 7300 Series

■

Features

● Low power supply voltage (3.3V)

● LVDS output level.

● Low phase jitter : Max. 1ps

● Compact with dimensions of 7.0 x 5.0 x 1.7 mm.

■

Specifications

Item

Model

Classification

7311S

DG-255R

DG-505X

DG-104X

62.5 to 220

+3.3 ± 10 %

100 (Pad #4 - #5)

Max. 60 (Typ. 43)

Max. 30

LVDS level (Complementary)

0 to +70

Max. ±25×10

−6

DG-505P

DG-104P

Nominal frequency range (MHz)

Supply voltage [V

CC

] (V)

Load resistance (Ω)

Current

consumption

Output level

Operating temperature range (°C)

Storage Temperature Range (°C)

Frequency tolerance

Symmetry (%)

Phase jitter [ RMS ] (ps)

Stand-by function [ Three-state ]

Number for specifying an order

NSA3344C

NSA3345C

Max. ±50 ×10

−6

During operation (mA)

During standby (μA)

0 to +85

−55 to +125

Max. ±100 ×10

−6

−40 to +85

Max. ±50 ×10

−6

Max. ±100 ×10

−6

45 to 55 (at 50% Waveform)

Max. 1 (12 kHz to 20 MHz)

Available

NSA3346C

NSA3345L

NSA3346L

■

Dimensions

7.0 ± 0.1

■

Standby Function Table (Three-state)

mm

Terminal land connections

#1

5.0 ± 0.1

#2

#3

#4

#5

#6

STAND-BY

N.C

GND

OUTPUT

V

CC

#1 Input

Level H (V

IH

≥ 0.7 V

cc

)

or OPEN

Level L (V

IL

≤ 0.3 V

cc

)

#4 and #5 output

Oscillation output ON

High impedance

■

How to Specify an Order

When ordering our products, specify them with an “Ordering

Code” that consists of the following:

Model name

Frequency

(up to 8 digits)

Number for

specifying an order

–

M –

1.7 ± 0.2

Land pattern (Typical)

1.2 ± 0.1

#6

#5

#4

1.6

1.5

Example : When ordering +3.3 V,

Max. ±100×10

−6

/0 to 85 °C, 125 MHz

Ordering Code: 7311S-DG-104X-125M-NSA3346C

If you have any queries concerning our standard frequencies

and numbers for specifying orders, please contact our sales

representatives or visit our homepage (http://www.ndk.com/).

#1

#2

1.4 ± 0.1

#3

2.6 ± 0.1

3.9

#1

#6

#5

5.08 ± 0.1

#4

#2

2.54

#3

Cby=0.01 F

5.08

13A_0730_7311S-DG_e
