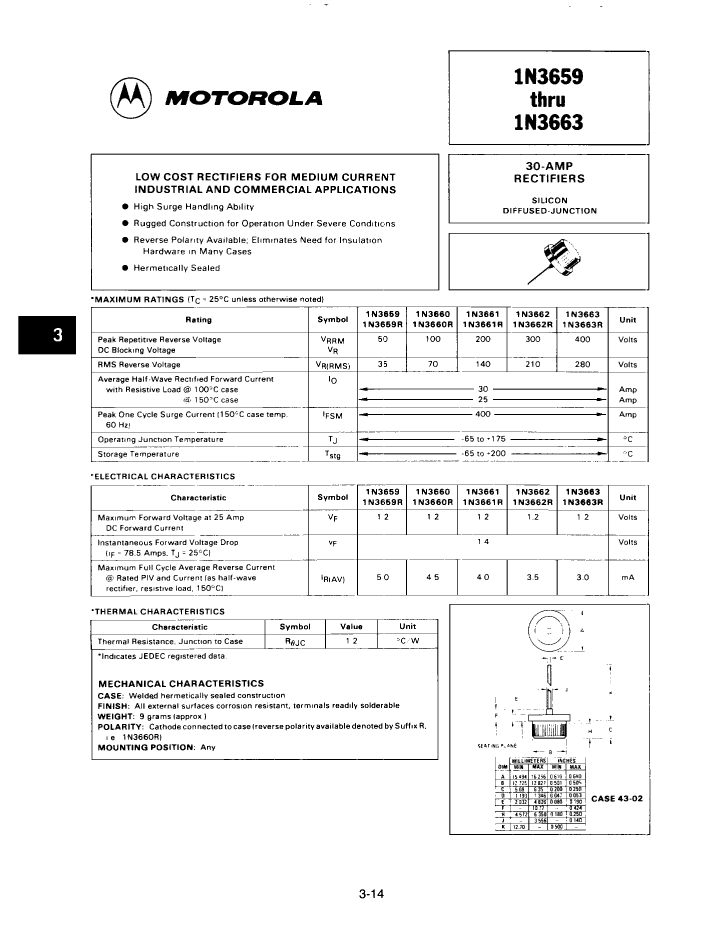

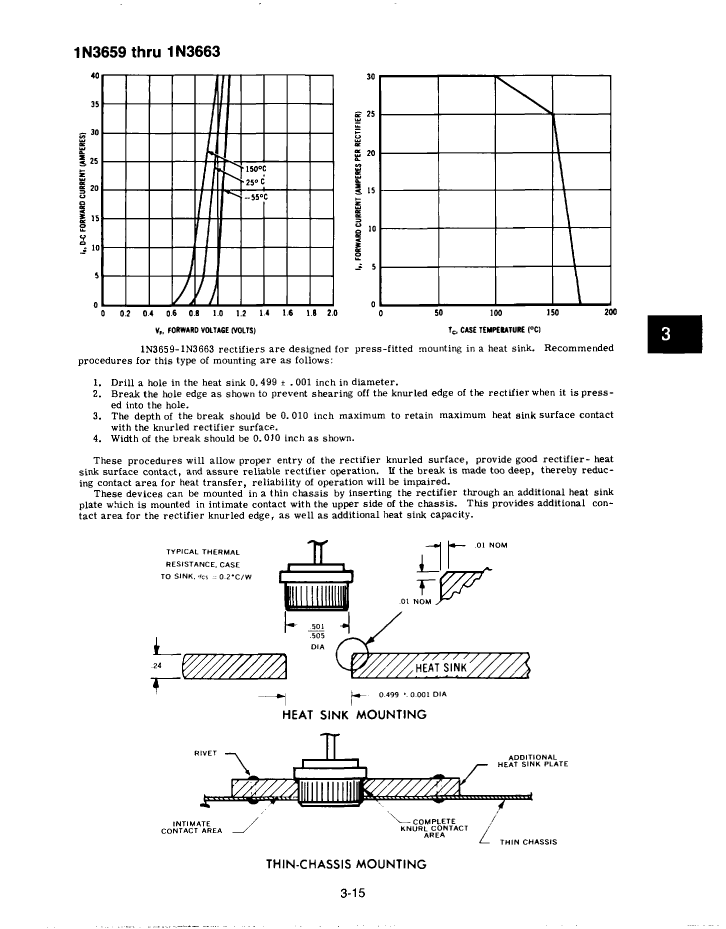

30 A, 50 V, SILICON, RECTIFIER DIODE, DO-21
| Parameter Name | Attribute value |
| Maker | Motorola ( NXP ) |
| package instruction | O-MUPF-P1 |
| Reach Compliance Code | unknown |
| Is Samacsys | N |
| application | GENERAL PURPOSE |
| Shell connection | CATHODE |
| Configuration | SINGLE |
| Diode component materials | SILICON |
| Diode type | RECTIFIER DIODE |
| Maximum forward voltage (VF) | 1.2 V |
| JEDEC-95 code | DO-21 |
| JESD-30 code | O-MUPF-P1 |
| Maximum non-repetitive peak forward current | 400 A |
| Number of components | 1 |
| Phase | 1 |
| Number of terminals | 1 |
| Maximum operating temperature | 175 °C |
| Minimum operating temperature | -65 °C |
| Maximum output current | 30 A |
| Package body material | METAL |
| Package shape | ROUND |
| Package form | PRESS FIT |
| Certification status | Not Qualified |
| Maximum repetitive peak reverse voltage | 50 V |
| Maximum reverse current | 5000 µA |
| surface mount | NO |
| Terminal form | PIN/PEG |
| Terminal location | UPPER |
| Base Number Matches | 1 |
| 1N3659 | 1N3659R | LM3S8733-EQC80-A2T | 1N3663R | 1N3660 | |
|---|---|---|---|---|---|
| Description | 30 A, 50 V, SILICON, RECTIFIER DIODE, DO-21 | 30A, 50V, SILICON, RECTIFIER DIODE, DO-21 | Stellaris® LM3S8733 Microcontroller | 30 A, 400 V, SILICON, RECTIFIER DIODE, DO-21 | 30A, 100V, SILICON, RECTIFIER DIODE, DO-21 |
| Maker | Motorola ( NXP ) | Motorola ( NXP ) | - | Motorola ( NXP ) | - |
| package instruction | O-MUPF-P1 | O-MUPF-P1 | - | O-MUPF-P1 | O-MUPF-P1 |
| Reach Compliance Code | unknown | unknown | - | unknown | unknown |
| Is Samacsys | N | N | - | N | - |
| application | GENERAL PURPOSE | GENERAL PURPOSE | - | GENERAL PURPOSE | GENERAL PURPOSE |
| Shell connection | CATHODE | ANODE | - | ANODE | CATHODE |
| Configuration | SINGLE | SINGLE | - | SINGLE | SINGLE |
| Diode component materials | SILICON | SILICON | - | SILICON | SILICON |
| Diode type | RECTIFIER DIODE | RECTIFIER DIODE | - | RECTIFIER DIODE | RECTIFIER DIODE |
| Maximum forward voltage (VF) | 1.2 V | 1.2 V | - | 1.2 V | 1.2 V |
| JEDEC-95 code | DO-21 | DO-21 | - | DO-21 | DO-21 |
| JESD-30 code | O-MUPF-P1 | O-MUPF-P1 | - | O-MUPF-P1 | O-MUPF-P1 |
| Maximum non-repetitive peak forward current | 400 A | 400 A | - | 400 A | 400 A |
| Number of components | 1 | 1 | - | 1 | 1 |
| Phase | 1 | 1 | - | 1 | 1 |
| Number of terminals | 1 | 1 | - | 1 | 1 |
| Maximum operating temperature | 175 °C | 175 °C | - | 175 °C | 175 °C |
| Minimum operating temperature | -65 °C | -65 °C | - | -65 °C | -65 °C |
| Maximum output current | 30 A | 30 A | - | 30 A | 30 A |
| Package body material | METAL | METAL | - | METAL | METAL |
| Package shape | ROUND | ROUND | - | ROUND | ROUND |
| Package form | PRESS FIT | PRESS FIT | - | PRESS FIT | PRESS FIT |
| Certification status | Not Qualified | Not Qualified | - | Not Qualified | Not Qualified |
| Maximum repetitive peak reverse voltage | 50 V | 50 V | - | 400 V | 100 V |
| Maximum reverse current | 5000 µA | 5000 µA | - | 3000 µA | 4500 µA |
| surface mount | NO | NO | - | NO | NO |
| Terminal form | PIN/PEG | PIN/PEG | - | PIN/PEG | PIN/PEG |
| Terminal location | UPPER | UPPER | - | UPPER | UPPER |
| Base Number Matches | 1 | 1 | - | 1 | 1 |
