AT-51-16MHZ-TOL2-SR Overview

Series - Fundamental Quartz Crystal, 16MHz Nom

AT-51-16MHZ-TOL2-SR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	NDK
Reach Compliance Code	unknown
Crystal/Resonator Type	SERIES - FUNDAMENTAL
Drive level	50 µW
frequency tolerance	250 ppm
Installation features	THROUGH HOLE MOUNT
Nominal operating frequency	16 MHz
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
physical size	L11.05XB4.65XH5.08 (mm)
Series resistance	50 Ω
surface mount	NO

Preview

Download Datasheet

View All

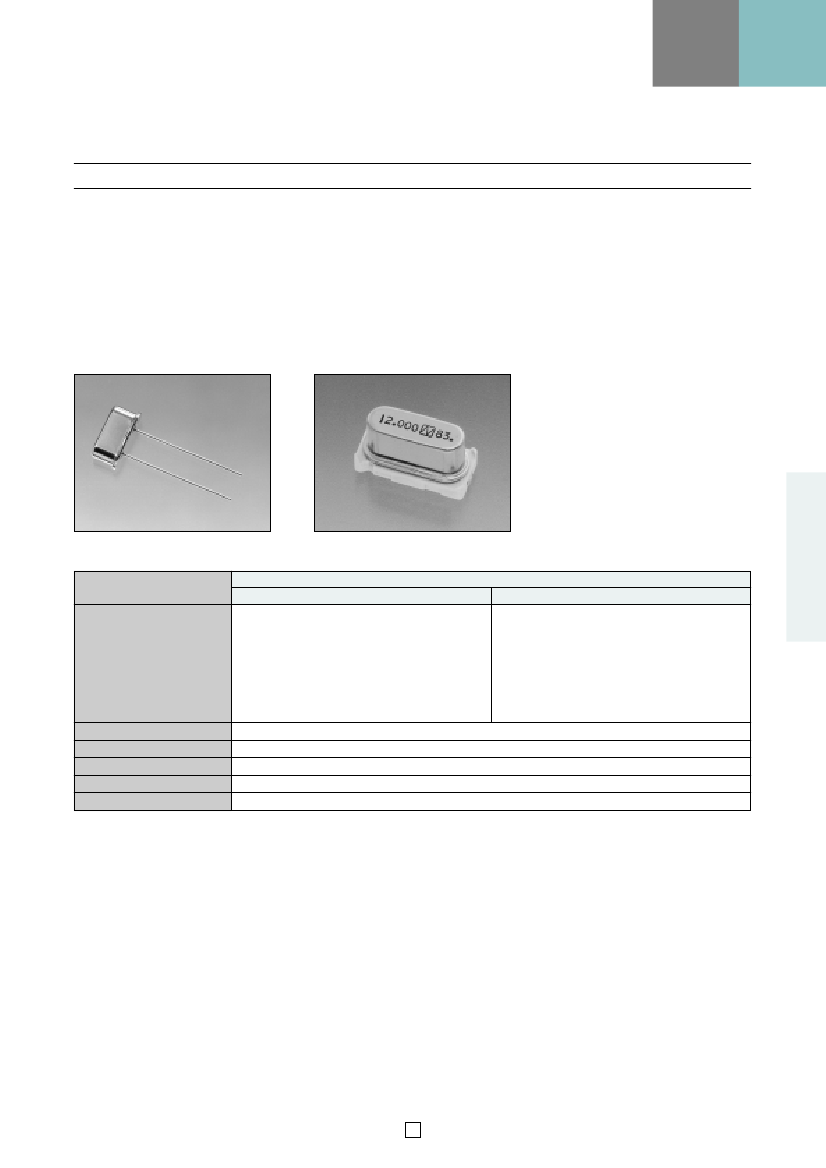

CRYSTAL UNITS FOR CAR ELECTRONICS (AT-51 SERIES)

These crystal units are ideally suited for clock signal generating sources for CPUs for power trains and safety control

devices requiring extremely high reliability as an electronic part used in a car.

s

Features

8

High stability under strict conditions in terms of stable start-up characteristics, heat resistance, thermo-cycle resistance

and vibration resistance.

For further details, please contact us.

8

Surface mount crystal unit that retains high-level electrical characteristics and reliability due to the resin seating

attached to the AT-51 type crystal unit.

CRYSTAL UNITS

s

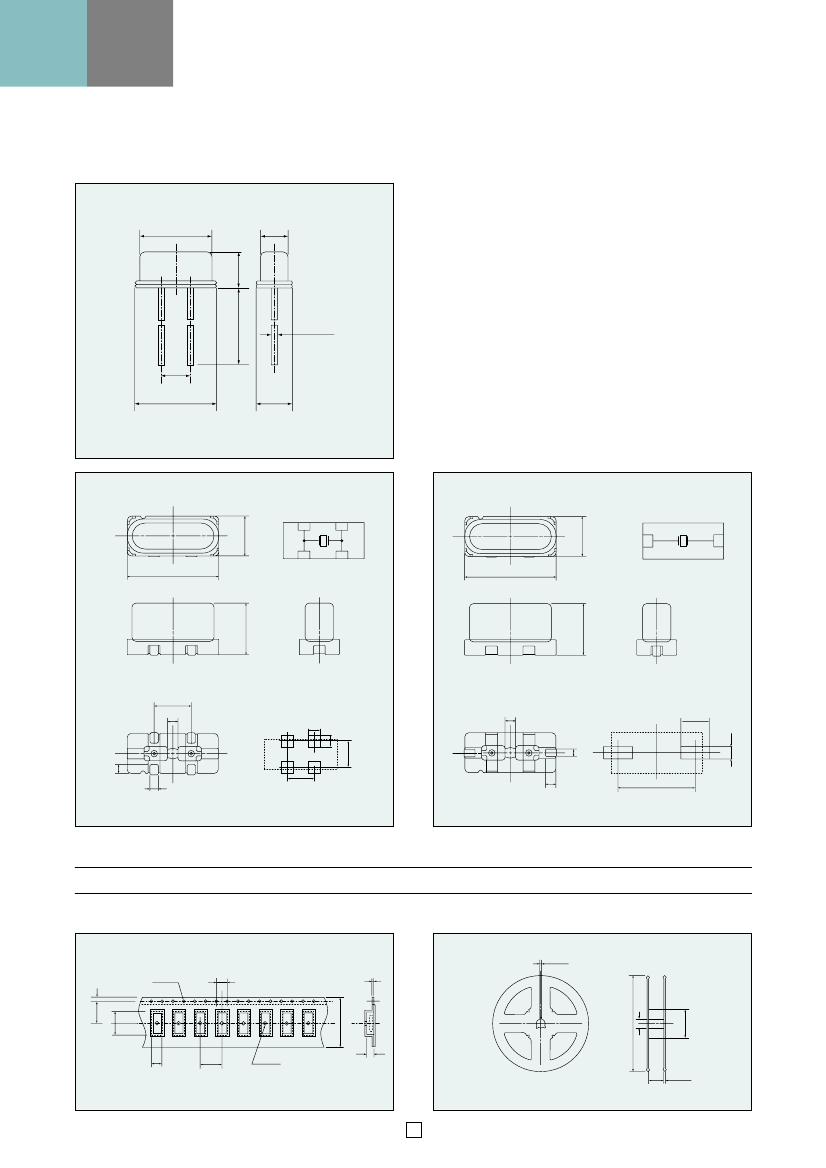

Specification

Type

AT-51 SERIES

Nominal Frequency (MHz)

4

6

8

10

12

16

20

Equivalent Series Resistance (W)

180

120

80

70

60

50

Nominal Frequency

&

Equivalent Series Resistance

Overtone

Frequency Tolerance (overall)

Operating Temperature Range

Drive Level

Standard Load Capacitance

Fundamental

±1000

×

10

-6

, ±250

×

10

-6

–40 ~ +125°C

50µW (1000µW max)

16pF

Measuring Circuit: CI Meter

63
