RIO-3309S-A1E Overview

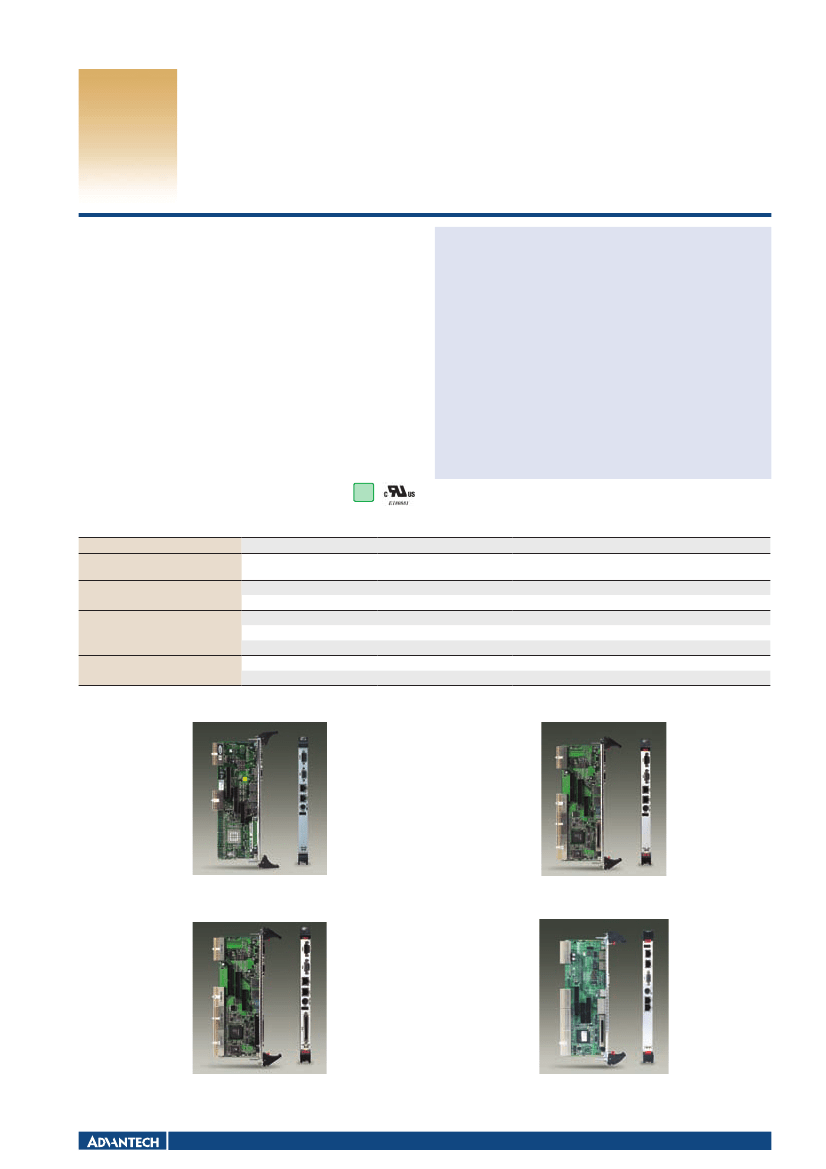

6U CompactPCI㈢ Rear Transition Boards

RIO-3309/3310
Introduction
The RIO series of rear transition boards provide rear-panel access to the I/O interfaces of
Advantech’s CompactPCI CPU boards.
RIO-3309C/3309S is designed for the MIC-3358A and MIC-3369C series.
RIO-3310S/3310A is designed for the MIC-3390 and MIC-3392 series.
6U CompactPCI
®
Rear Transition Boards
Features
External rear-panel interface connectors for CPU boards
Onboard CompactFlash socket
Ultra 320 SCSI interface
Supports SATA interface
RoHS
2002/95/EC
COMPLIANT
Specifications
CompactPCI Connector
SCSI Controller
Power
Environment
Physical Characteristics
RIO-3309C: J3, J5; RIO-3309S: J1/J2/J3/J5; RIO-3310S: J1/J2/J3/J5; RIO-3310A: J3/J5
RIO-3309S: Adaptec AIC-7901 Ultra 320 SCSI controller chip supports RAID 0, 1, 10
RIO-3310S: Adaptec AIC-7901 Ultra 320 SCSI control chip supports RAID 0, 1, 10
Power Consumption
+3.3 V
+5 V
3A
2A
Operating
Temperature
0 ~ 60° C (32 ~ 140° F)
Humidity
-
Dimensions (W x D)
233.35 x 80 mm (9.2" x 1.5"), 1-slot width
Weight
0.4 kg (0.88 lb)
+12 V
1A
Non-Operating
-20 ~ 80° C (-4 ~ 176° F)
5 ~ 95%, non-condensing
RIO-3309C-AE
RIO-3309S-A1E
RIO-3309S-A2E
RIO-3310S series
