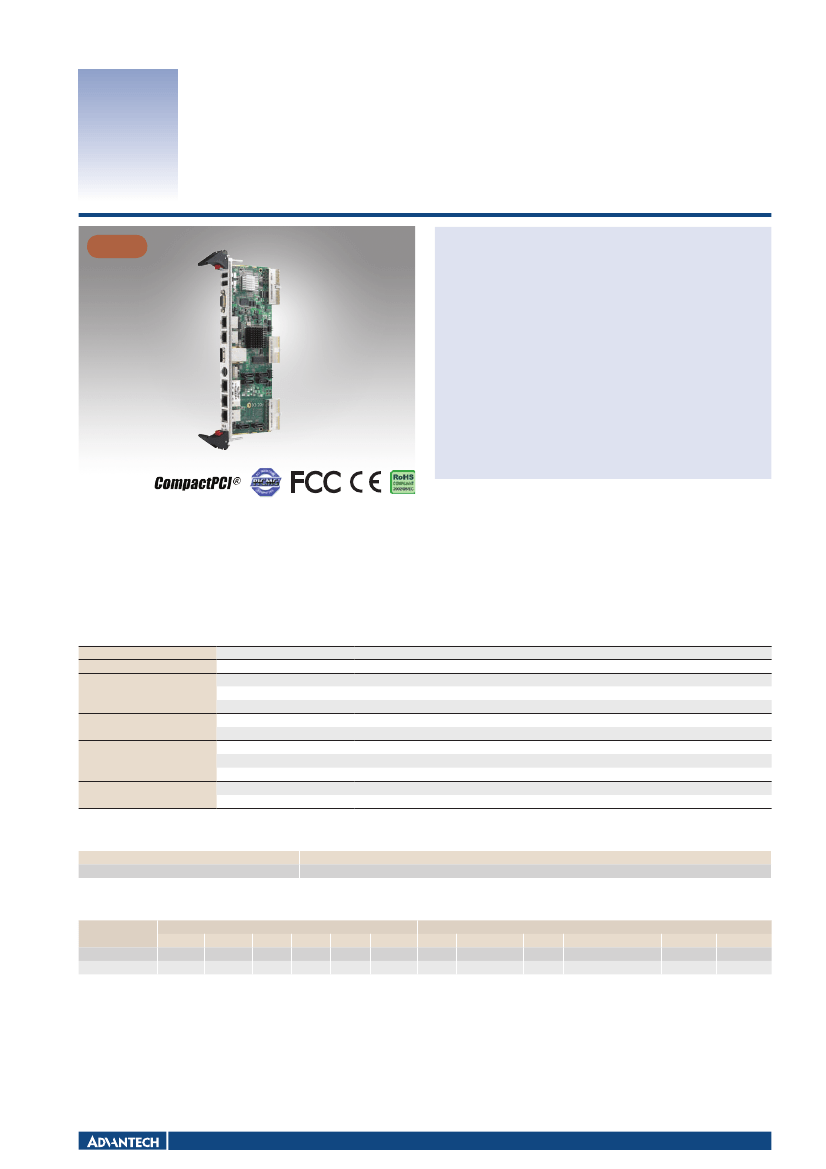

RIO-3311
NEW
6U CompactPCI
®
Rear Transition Board
for MIC-3393
Features
External rear-panel interface connectors for the MIC-3393 CPU board
Supports SAS, SATA, USB2.0, COM, and PS/2 interfaces
1 USB header for USB NAND Flash Module
3 RJ-45 GbE ports on the rear panel
1 VGA port on the rear panel
1 Mini-SAS port on the rear panel
Introduction
The RIO-3311 is the first Rear Transition Module (RTM) supporting PCIe connectivity to the main CPCI board enabling significant value-added features and extensions to next
generation CPCI blades such as the MIC-3393.
The RIO-3311 supports one PS/2 port, 3 USB ports, two RS232 ports, 2 SATA ports, a PCIe based server graphics controller with VGA port and alternate cabling for the three Gigabit
Ethernet ports. Two versions of the RIO-3311 provide a choice of storage options. The RIO-3311-A2E supports SATA disk drives and SATA RAID via the ICH9R. When higher performance
and reliability is required, the RIO-3311-A1E supports a 4 port SAS controller with RAID and failover support.
Specifications
CompactPCI Connector
SAS Controller
Graphic
Power
Environment
Physical Characteristics
J1/J3/J5
Controller
Controller
VRAM
Resolution
Power Consumption
LSISAS1064E SAS controller chip supports 3Gb/s SAS / SATA data transfer and RAID
XGI Volari Z11
32 MB
Up to 1600 x 1200, 64 K hi-color at 70 Hz
+3.3 V
+5 V
1.5 A
1.5 A
Operating
Non-Operating
0 ~ 55° C (32 ~ 122° F)
-40 ~ 85° C (-40 ~ 185° F)
95% @ 40° C, non-condensing
95 %@ 60° C, non-condensing
233.35 mm x 80 mm (9.2" x 1.5"), 1-slot width
0.3 kg (0.66 lbs)
Temperature
Humidity
Dimensions (W x D)
Weight
Recommended Configurations
Rear I/O Board
RIO-3311-A1E, RIO-3311-A2E
CPU Board
MIC-3393A, MIC-3393B, MIC-3393C Series

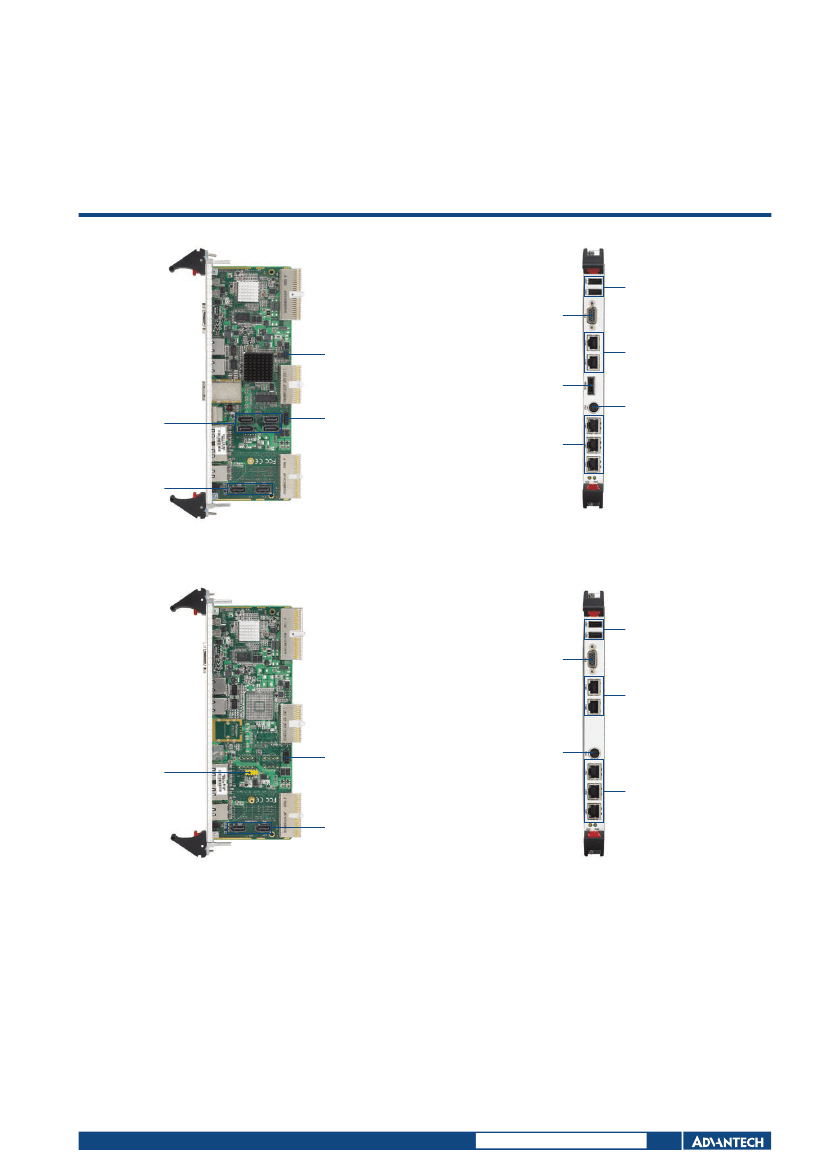

Ordering Information
RTM Model
Number
RIO-3311-A1E
RIO-3311-A2E
Rear Panel
LAN
COM
3
2
3
2
VGA
1
1
PS/2*
1*
1*
USB
2
2
MiniSAS
1
-
USB
1
1
On-board Header/Socket/Connector
USB Flash**
SATA
SAS (SATA interface)
Slot Width
-
2
4
1
1
2
-
1
Conn.
J1,J3,J5
J1,J3,J5
*Note: One PS/2 port carries the signals for both K/B and mouse. Y cable is included.
**Note: Use of Advantech EmbCore USB 2.0 Disk Module (Type C) recommended
Computer On Modules
All product specifications are subject to change without notice
Last updated : 26-Nov-2009
