1N5524D-1

Description
Zener Diode, 5.6V V(Z), 1%, 0.5W, Silicon, Unidirectional, DO-35, HERMETIC SEALED, GLASS, DO-35, 2 PIN
CategoryDiscrete semiconductor    diode
File Size621KB,2 Pages
ManufacturerCompensated Devices Inc.
Download Datasheet Parametric View All

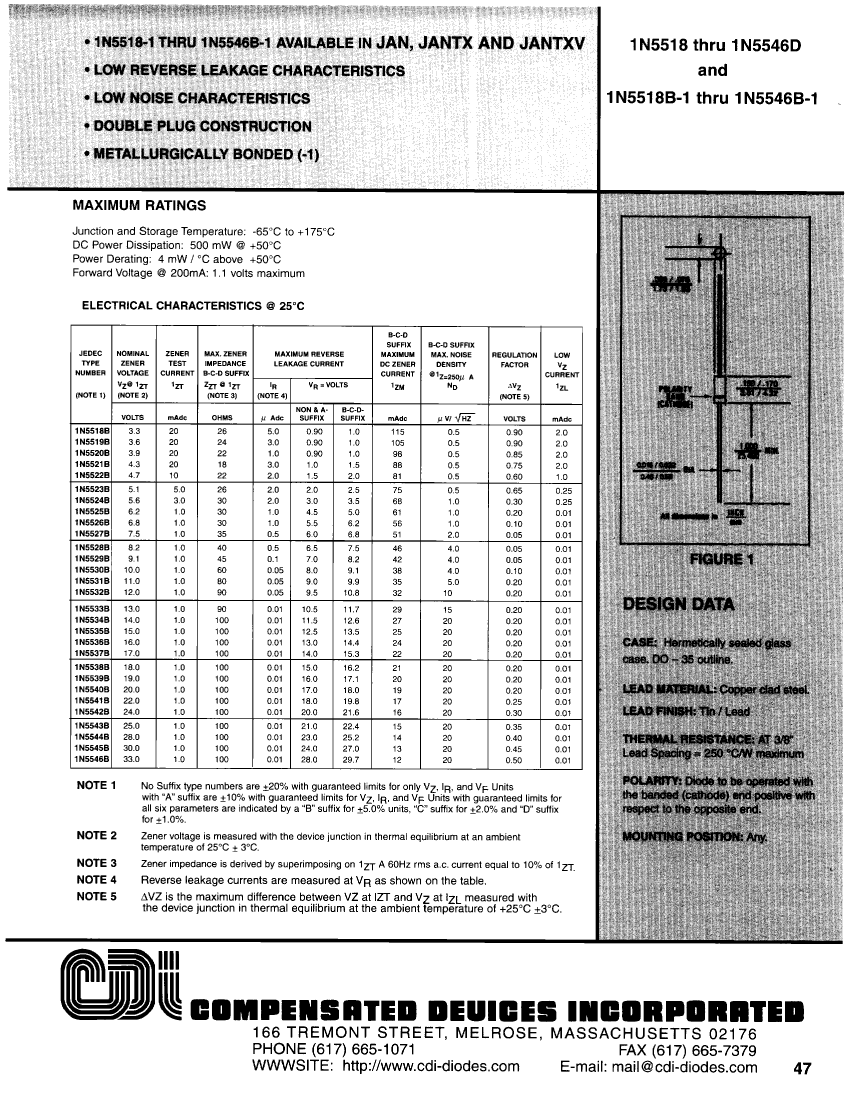

1N5524D-1 Overview

Zener Diode, 5.6V V(Z), 1%, 0.5W, Silicon, Unidirectional, DO-35, HERMETIC SEALED, GLASS, DO-35, 2 PIN

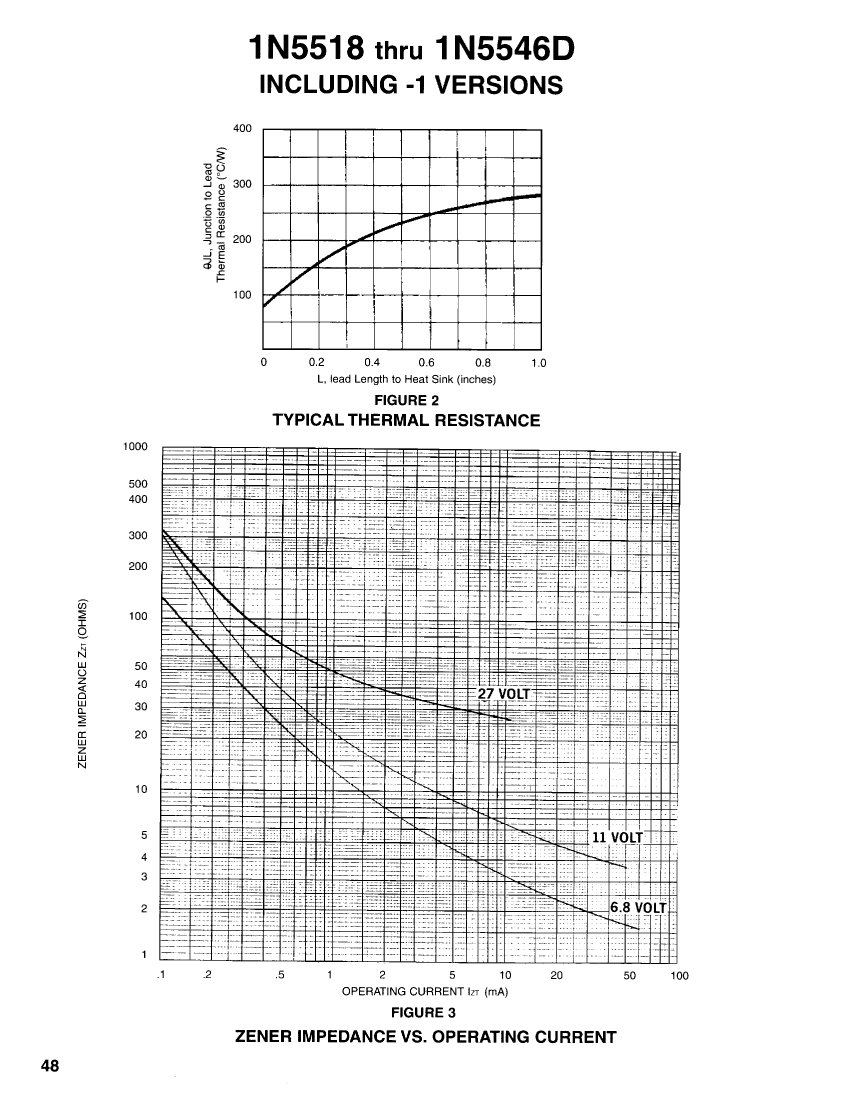

1N5524D-1 Parametric

Parameter NameAttribute value
package instructionHERMETIC SEALED, GLASS, DO-35, 2 PIN
Reach Compliance Codeunknown
Is SamacsysN
Other featuresLOW NOISE
Shell connectionISOLATED
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeZENER DIODE
JEDEC-95 codeDO-35
JESD-30 codeO-LALF-W2
JESD-609 codee0
Number of components1
Number of terminals2
Package body materialGLASS
Package shapeROUND
Package formLONG FORM
polarityUNIDIRECTIONAL
Maximum power dissipation0.5 W
Certification statusNot Qualified
Nominal reference voltage5.6 V
surface mountNO
technologyZENER
Terminal surfaceTIN LEAD
Terminal formWIRE
Terminal locationAXIAL
Maximum voltage tolerance1%
Working test current3 mA
Base Number Matches1
