Document 296 -1

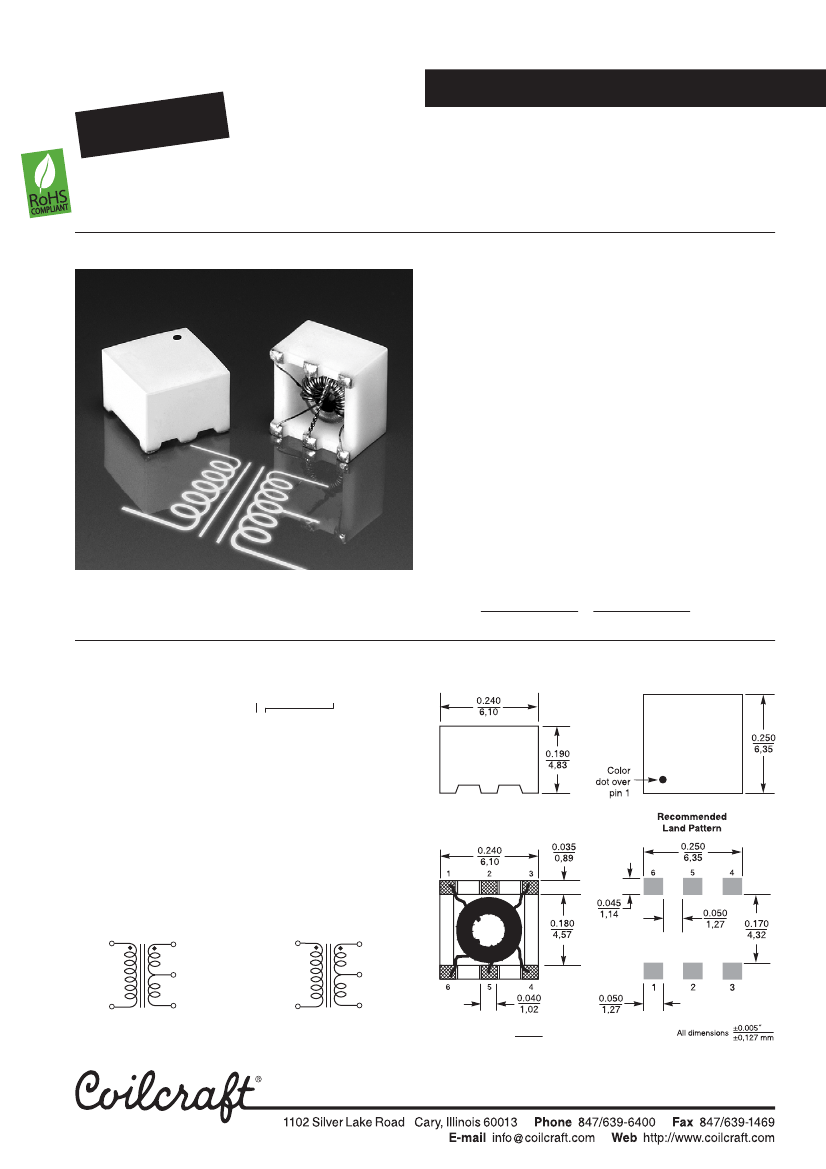

Surface Mount Wideband RF Transformers

• Developed for use with Analog Devices digital to analog

high-speed converters

• 400 V interwinding isolation, 1/4 Watt RF input power

• 250 mA max current rating.

Core material

Ferrite

Terminations

RoHS compliant tin-silver-copper over silver-

platinum-glass frit. Other terminations available at additional cost.

Weight

0.4 g

Ambient temperature

–40°C to +85°C

Storage temperature

Component: –40°C to +85°C.

Packaging: –40°C to +80°C

Resistance to soldering heat

Max three 40 second reflows at

+260°C, parts cooled to room temperature between cycles

Moisture Sensitivity Level (MSL)

1 (unlimited floor life at <30°C /

85% relative humidity)

Failures in Time (FIT) / Mean Time Between Failures (MTBF)

60 per billion hours / 16,666,667 hours, calculated per Telcordia SR-332

Packaging

500 per 13″ reel; Plastic tape: 24 mm wide,

0.42 mm thick, 20 mm pocket spacing, 6.6 mm pocket depth

PCB washing

Only pure water or alcohol recommended

Part

number

Z9280-AL_

Z9314-AL_

Impedance

ratio

pri : sec

6.25

3 dB frequency

response

(MHz)

0.250 – 450

0.350 – 1700

Irms

(mA)

250

Insertion

loss typ

(dB)

0.58

1.10

Pins 1-3

L min DCR max

(µH)

(Ohms)

9.5

0.075

0.080

Pins 6-4

L min DCR max

(µH)

(Ohms)

9.5

0.075

4.5

0.038

Color dot

Orange

Black

1. When ordering, please specify

termination

and

packaging

codes:

Z9280-ALD

Termination: L

= RoHS compliant tin-silver-copper over silver-

platinum-glass frit.

Special order:

= non-RoHS tin-lead (63/37).

Packaging: D

= 13″ machine ready reel. EIA-481 embossed plastic

tape, 1000 parts per full reel.

= Less than full reel. In tape, but not machine ready.

To have a leader and trailer added ($25 charge), use

code letter D instead.

2. Impedance ratio is for the full primary winding to the full secondary

winding.

3. Electrical specifications at 25°C.

Refer to Doc 362 “Soldering Surface Mount Components” before soldering.

Z9280-A

Sec

Z9314-A

Pri

Sec

Dimensions are in

inches

Specifications subject to change without notice.

Please check our website for latest information.

Document 296-1

Revised 10/21/08
