Part Number

Search

51952-212

Description
Board Connector, 16 Contact(s), Male, Straight, Press Fit Terminal, Guide Pin, Receptacle
CategoryThe connector    The connector
File Size253KB,4 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric View All

51952-212 Overview

Board Connector, 16 Contact(s), Male, Straight, Press Fit Terminal, Guide Pin, Receptacle

51952-212 Parametric

Parameter NameAttribute value
Reach Compliance Codecompliant
ECCN codeEAR99
Is SamacsysN
Board mount optionsHOLE .086-.098
body width0.574 inch
subject depth0.5 inch
body length1.95 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact arrangementS12P4
Contact completed and terminatedTIN/LEAD OVER NICKEL
Contact point genderMALE
Contact materialCOPPER ALLOY
Contact resistance20 mΩ
Contact styleHYBRID
Dielectric withstand voltage2500VDC V
Durability200 Cycles
maximum insertion force.973 N
Insulation resistance500000000 Ω
insulator materialGLASS FILLED THERMOPLASTIC
Manufacturer's serial number51952
Mixed contactsYES
Installation option 1GUIDE PIN
Installation option 2LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
Maximum operating temperature105 °C
Minimum operating temperature-55 °C
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.165 inch
Termination typePRESS FIT
Total number of contacts16
Evacuation force-minimum value.1668 N
Base Number Matches1

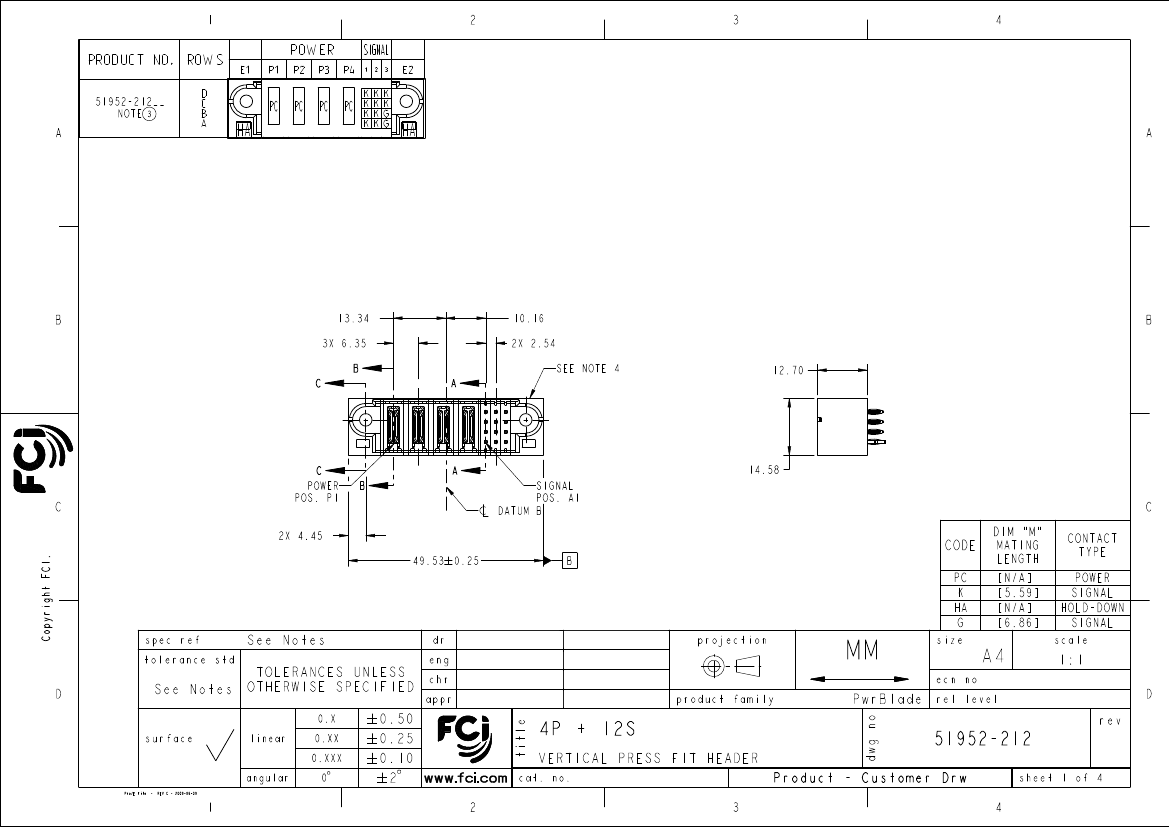

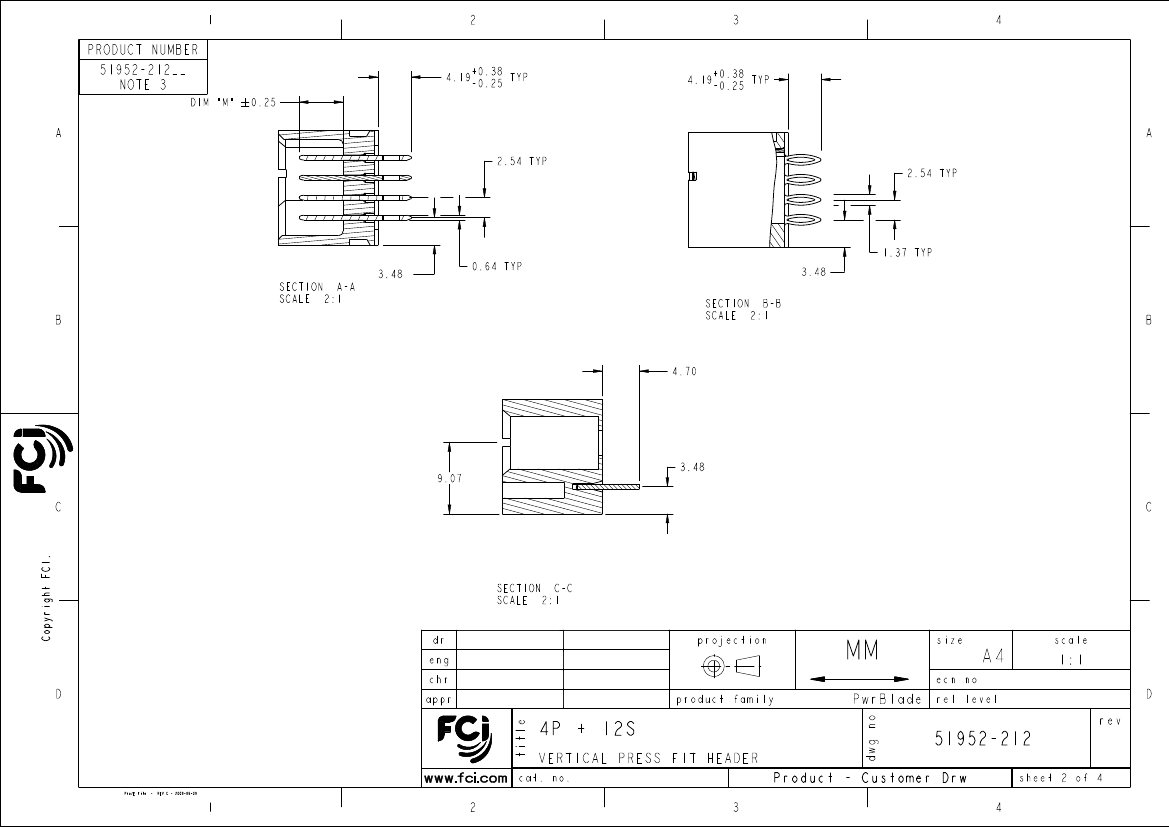

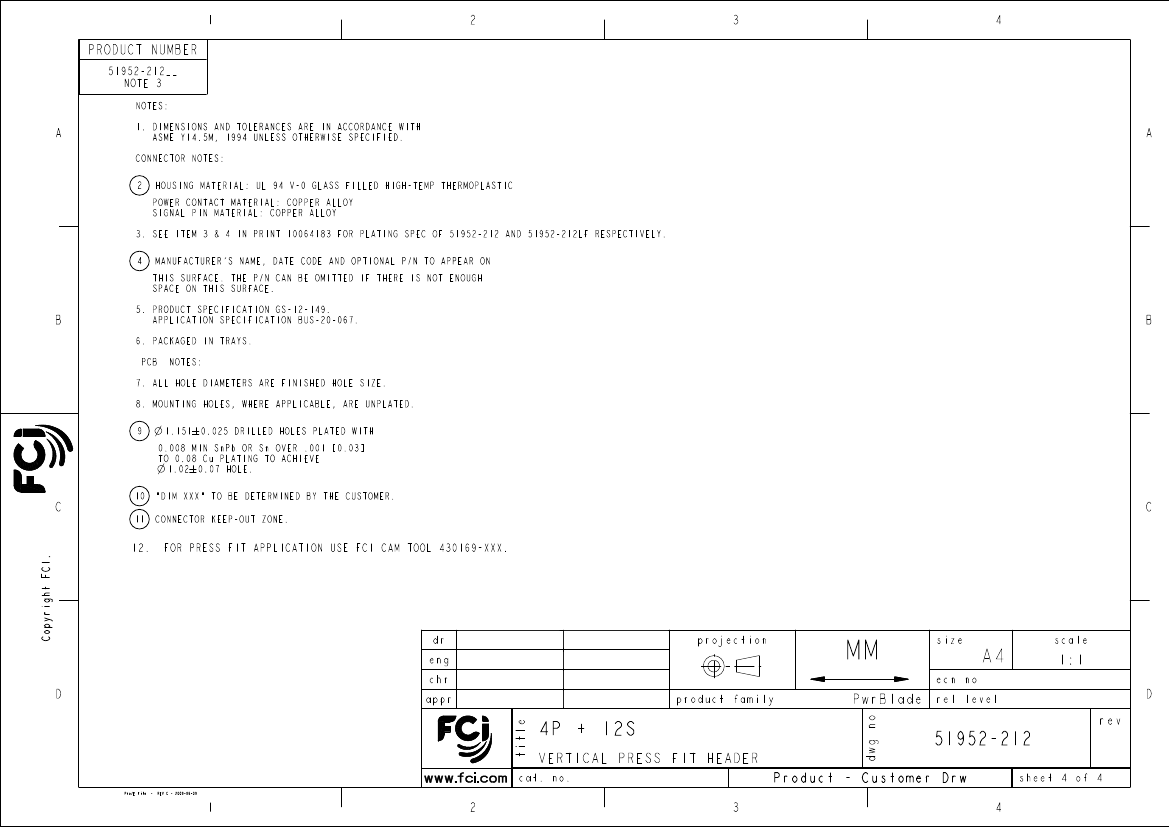

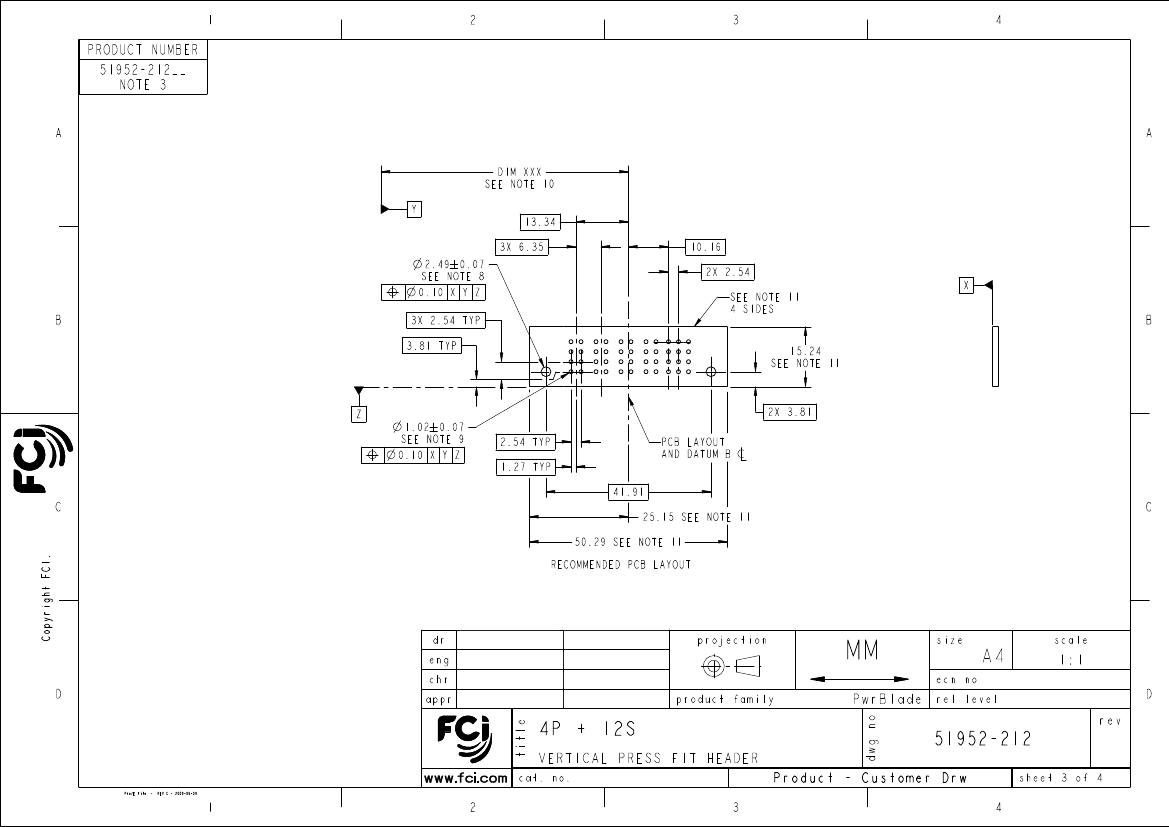

Shi Guang
Ruan MT
-
Pei-Ming Zheng
2012/05/23
2013/02/27
-
2013/02/27
-
Released
A
PDS: Rev :A
STATUS:Released
Printed: Mar 04, 2013
