12507WR-11L datasheet, PDF - EEWORLD Datasheet

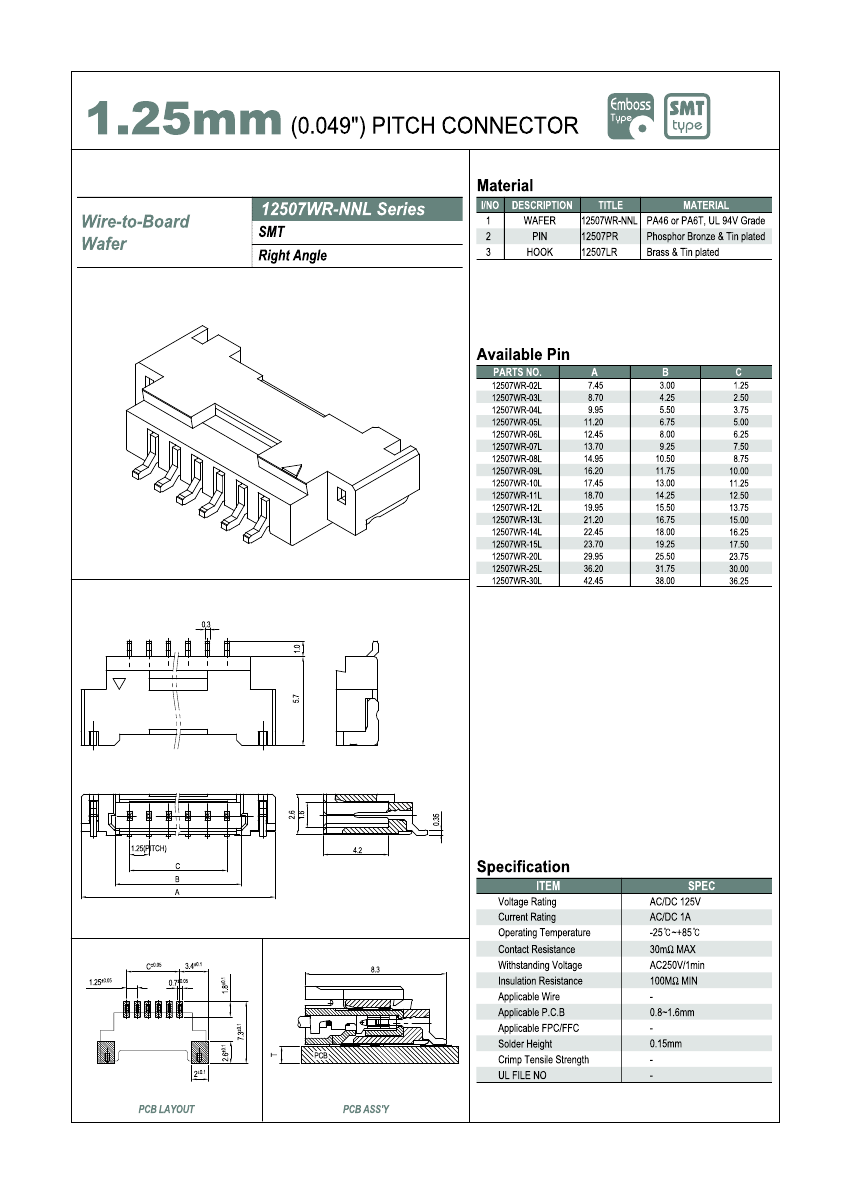

12507WR-11L: DescriptionBoard Connector, 11 Contact(s), 1 Row(s), Female, Right Angle, 0.049 inch Pitch, Surface Mount Terminal, Locking, Plug; CategoryThe connector The connector; File Size370KB，1 Pages; ManufacturerYEONHO ELECTRONICS CO., LTD.; Websitehttp://www.yeonho.com/

Download Datasheet Parametric View All

12507WR-11L Overview

Board Connector, 11 Contact(s), 1 Row(s), Female, Right Angle, 0.049 inch Pitch, Surface Mount Terminal, Locking, Plug

Parameter Name	Attribute value
Reach Compliance Code	unknown
Is Samacsys	N
Board mount options	SOLDER HOLDING FLANGE
body width	0.102 inch
subject depth	0.224 inch
body length	0.736 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Dielectric withstand voltage	250VAC V
Insulation resistance	100000000 Ω
insulator material	POLYAMIDE
Manufacturer's serial number	12507WR
Plug contact pitch	0.049 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1.2446 mm
Termination type	SURFACE MOUNT
Total number of contacts	11
Base Number Matches	1
