02S_02XC61C（½電圧用） 02.09.12 14:23 ページ 131
Series
Low Voltage Detectors（V
DF
=0.9V∼1.5V）
NCMOS
NHighly
Accurate
: ± 2%
NLow
Power Consumption : 0.7µA (V
IN
= 1.5V)
NUltra
small SSOT-24 (SC-82) Package
■Applications
GMicroprocessor
reset circuitry
GMemory
battery back-up circuits
GPower-on
reset circuits
GPower
failure detection
GSystem
battery life and charge voltage monitors
2
■General Description
The XC61C series are highly precise, low power consumption voltage
detectors, manufactured using CMOS and laser trimming technologies.
Detect voltage is extremely accurate with minimal temperature drift.
Both CMOS and N-channel open drain output configurations are
available.
■Features
Highly accurate
: ± 2%
Low power consumption:
TYP 0.7
µA
[ V
IN
=1.5V ]
Detect voltage range
: 0.9V ~ 1.5V in 0.1V increments
Operating voltage range
: 0.7V ~ 6.0V
Detect voltage temperature characteristics
: TYP± 100ppm/°C
Output configuration
: N-channel open drain or CMOS
Ultra small package
: SSOT-24 (150mW) super mini-mold
: SOT-23 (150mW) mini-mold
: SOT-89 (500mW) mini-power mold
: TO-92 ( 300mW )
Note
: There are no products available with a set-up voltage
accuracy of ± 1%.

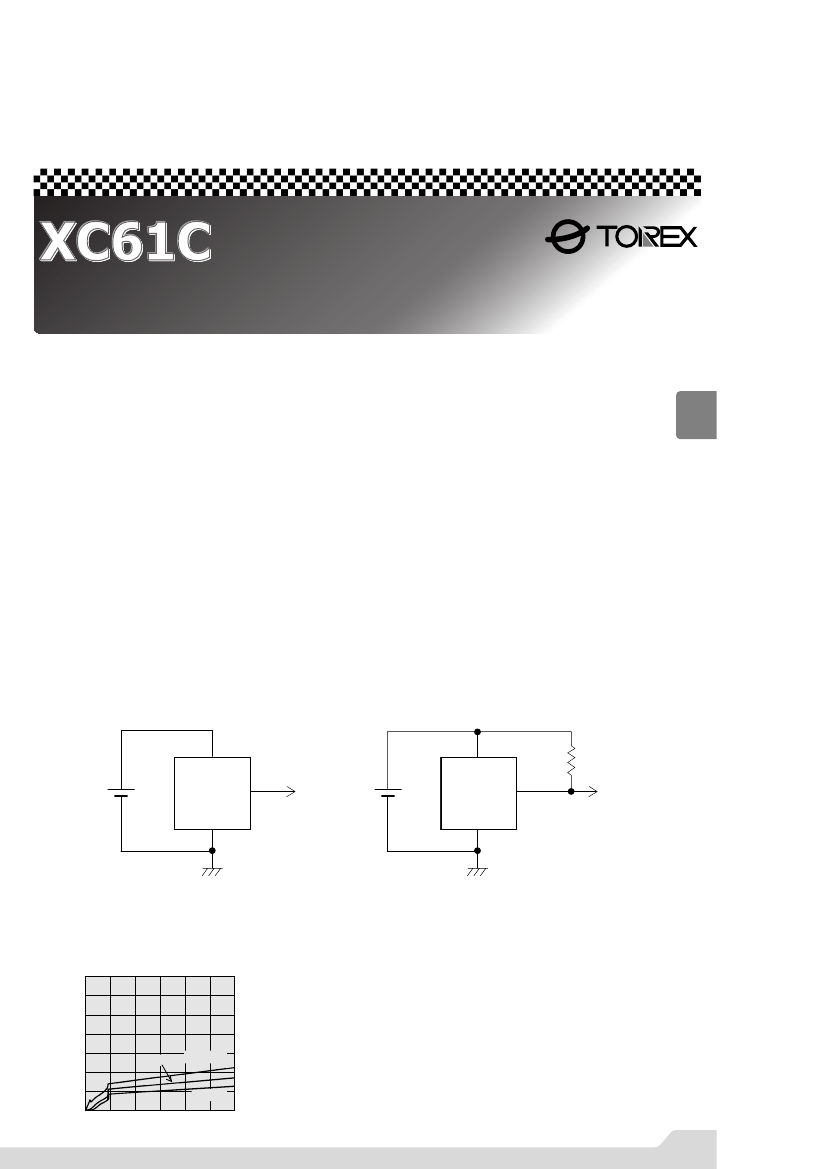

■Typical Application Circuits
V
IN
V
IN
V
OUT
V
SS
V
IN
V
IN
V
OUT
V
SS
R
100kΩ
CMOS Output
N-ch Open Drain Output
■Typical Performance Characteristic
SUPPLY CURRENT vs. INPUT VOLTAGE
3.5
Ｘ ６ ＣＣ
Ｃ １ ０９０２ (０.９Ｖ)
Supply Current: I
SS
(μA)
3.0
2.5
2.0
1.5
1.0
0.5
0
0
1
2
3
4
5
6
-40℃
25℃
Ta=85℃
Input Voltage: V
IN
(V)
131
02S_02XC61C（½電圧用） 02.09.12 14:23 ページ 132
XC61C
Series
■Pin Configuration
V
SS
４
■Pin Assignment
V
IN
３
NC
３
PIN NUMBER
SSOT-24
2
4
1
3
SOT-23
3
2
1
-
SOT-89
2
3
1
-
TO-92 (T) TO-92 (L)
2
3
1
-
1
2
3
-
PIN
NAME
V
IN
V
SS
V
OUT
NC
FUNCTION
Supply Voltage Input
Ground
Output
No Connection
1
２
V
OUT
V
IN
SSOT-24(SC-82)
(TOP VIEW)
２
1
V
OUT
V
SS
SOT-23
(TOP VIEW)
2
1
V
OUT
２
V
IN
SOT-89
(TOP VIEW)
３
V
SS
1
2
3
1
V
IN
2
V
SS
3
V
OUT
V
OUT
V
IN
V
SS
TO-92 (T Type)
（TOP VIEW）
TO-92 (L Type)
（TOP VIEW）
■Product Classification
GOrdering
Information
XC61C x x x x x x x
a b cdef
DESIGNATOR
a
DESCRIPTION
Output Configuration :
C = CMOS
N = N-ch open drain
Detect Voltage :
09 = 0.9V
15 = 1.5V
Output Delay :
0 = No delay
Detect Accuracy :
2 = within
±
2.0%
DESIGNATOR
e
DESCRIPTION
Package Type:
N = SSOT-24 (SC-82)
M = SOT-23
P = SOT-89
T = TO-92 (Standard)
L = TO-92 (Custom pin Configuration)
Device Orientation :
R = Embossed Tape ( Right )
L = Embossed Tape ( Left )
H = Paper Type ( TO-92)
B = Bag ( TO-92 )
b
c
f
d
132
02S_02XC61C（½電圧用） 02.09.12 14:23 ページ 133
XC61C
Series
■Packaging Information
GSSOT-24
(SC-82)
D
e
b
C
He
L
2
b1
MIN
A
A1
A2
b
0.80
0.00
0.80
0.15
0.25
0.075
1.80
1.15
1.80
1.10
0.10
0.25
0.35
0.125
2.00
1.25
2.10
1.30
0.30
0.10
SIZE mm
TYP
MAX
1.10
0.10
1.00
0.30
0.40
0.225
2.20
1.45
2.40
1.50
A2
A
E
b1
C
A1
D
y
E
He
e
L
y
GSOT-23
0.4
+0.1
-0.05
0.15
-0.05
+0.1
0∼0.1
2.8±0.2
1.6
+0.2
-0.1
（0.95）
1.9±0.2
2.9±0.2
1.1±0.1
0.2min
133
02S_02XC61C（½電圧用） 02.09.12 14:23 ページ 134
XC61C
Series
GSOT-89
4.5±0.1
1.6
+0.15
-0.2
1.5±0.1
（0.4）
2.5±0.1
0.8
min
4.25max
2
0.42±0.06
0.47±0.06
1.5±0.1 1.5±0.1
0.42±0.06
0.4
+0.03
-0.02
GTO-92
4.65
+0.35
-0.45
3.7±0.3
0.45±0.1
10.0min
0.4±0.05
2.5
-0.1
+0.4
2.5
-0.1
+0.4
134
1.6±0.1
4.8
-0.5
+0.4
02S_02XC61C（½電圧用） 02.09.12 14:23 ページ 135
XC61C
Series
■Marking
GSSOT-24,
SOT-23, SOT-89
w
q w r
q w e r
r
e
q
SSOT-24(SC-82)
(TOP VIEW)
SOT-23
(TOP VIEW)
SOT-89
(TOP VIEW)
2
N-Channel Open Drain Output (XC61CN series)
q
Represents the integer of the Output Voltage and Detect Voltage
CMOS Output (XC61CC series)
DESIGNATOR
A
B
CONFIGURATION
CMOS
CMOS
VOLTAGE (V)
0.w
1.w
DESIGNATOR
K
L
CONFIGURATION
N-ch
N-ch
VOLTAGE (V)
0.w
1.w
w
Represents the decimal number of the Detect Voltage
e
Based on internal standards
( SSOT-24 excepted )
DESIGNATOR
0
1
2
3
4
VOLTAGE
q
.0
q
.1
q
.2
q
.3
q
.4
DESIGNATOR
5
6
7
8
9
VOLTAGE
q
.5
q
.6
q
.7
q
.8
q
.9
DESIGNATOR
3
r
Represents the assembly lot no.
Based on internal standards
GTO-92
q
Represents the output
configuration
OUTPUT
DESIGNATOR
CONFIGURATION
C
N
CMOS
N-ch
w
Represents the Detect Voltage
DESIGNATOR
61C
1
2 3 4 5
L
6 7
61C
1
2 3 4 5
6 7
②
0
1
③
9
5
VOLTAGE
(V)
0.9
1.5
r
Indicates Delay Time
DESIGNATOR
0
DELAY TIME
No delay
t
Represents the Detect Voltage Accuracy
TO-92（L Type）
(TOP VIEW)
TO-92（T Type）
(TOP VIEW)
DESIGNATOR
2
DETECT VOLTAGE ACCURACY
within
±2％
y
Represents a least significant
digit of the produced year
DESIGNATOR
0
1
Produced year
2000
2001
u
Denotes the production lot number
0 to 9, A to Z repeated(G.I.J.O.Q.W excepted)
135
