AMPMODU Interconnection System
MTE High Pressure Receptacle Assemblies – Guide Ribs
Receptacle Contacts
(See Note 1)
.520
[13.21]

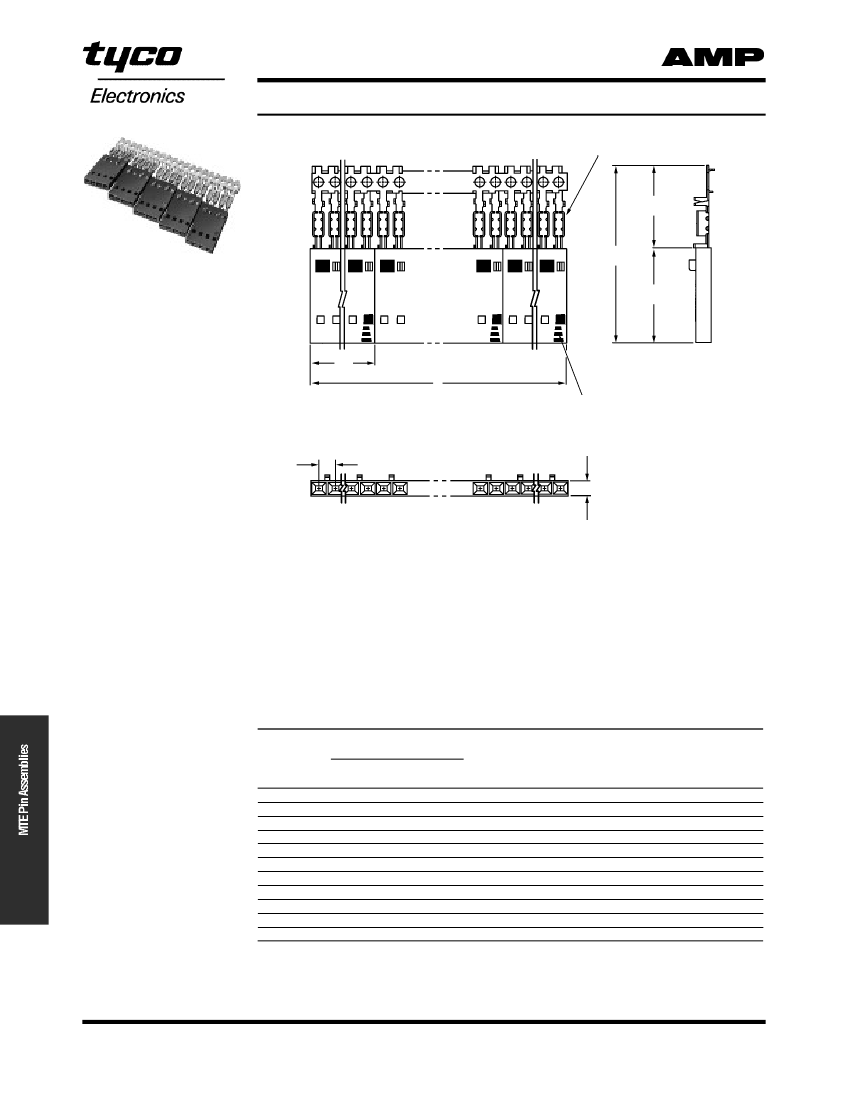

Photo 5527
Preassembled housings in strip
form are available in positions
2 thru 12. For ease of handling,
positions 2 thru 5 are
recommended when using the
Tyco Electronics Manual Pistol
Grip Tool.
B
Typ.
A
1.120
[28.45]
.600
[15.24]
Material and Finish:
Housing––Thermoplastic,
Color-
Black, 94V-0 rated
Contacts––Phosphor
Bronze,
Duplex plated .000030 [0.00076] gold
on contact area .000100 [0.00254] min.
tin-lead on crimp area, with entire post
under-plated .000050 [0.00127] nickel.
Position No. 1 Indicator
(Farside)
.100
[2.54] Typ
Related Product Data:
Coupling Shrouds used with:
Single-Row—page
257
Double-Row—page
258
Mateable AMPMODU Products
(with Receptacle Assemblies
Installed in Single-Row Coupling
Shrouds):
Pin Assemblies (Polarized/
Latching)—pages
253, 254
Pin Assemblies with Guide Ribs
(installed in Panel Mount Pin
Shroud)—pages
255, 256, 259
Headers (Polarized/Latching)—
pages 261-270
Mateable AMPMODU Products
(with Receptacle Assemblies
Installed in Double-Row Coupling
Shrouds):
Headers, Shrouded, Double-Row
(.318 [8.08] mating post length,
.150 [3.81] end dimension)—
pages 135, 137, 141, 145, 146, 148-
150, 166
Application Tooling—pages
291, 292
Performance Specifications—
page 242
.098
[2.49]
No. of
.
Pos
2
3
4
5
6
7
8
9
10
11
12
Dimensions
A
1.980
[50.29]
1.490
[37.85]
1.990
[50.55]
1.990
[50.55]
2.390
[60.71]
1.400
[35.56]
1.600
[40.64]
1.800
[45.72]
2.000
[50.80]
2.200
[55.88]
2.400
[60.96]
B
.198
[5.03]
.298
[7.57]
.398
[10.11]
.498
[12.65]
.598
[15.19]
.698
[17.73]
.798
[20.27]
.898
[22.81]
.998
[23.35]
1.098
[27.89]
1.198
[30.43]
Housings
Quantites Per
Strip Segment
10
5
5
4
4
2
2
2
2
2
2
5
252
Technical Documents
(pages
295, 296):
Product Specification
108-25034
Application Specification
114-25026
Strip Form
Receptacle
Assembly
30-26 AWG
[.05-.15mm
2
] Wire
147396-1
147396-2
147396-3
147396-4
147396-5
147396-6
147396-7
147396-8
147396-9
1-147396-0
1-147396-1
Strip Form
Receptacle
Assembly
26-22 AWG
[.12-.30mm
2
] Wire
147030-3
147030-4
147030-1
147030-2
147030-5
147030-6
147030-7
147030-8
147030-9
1-147030-0
1-147030-1
Catalog 1307819
