AMPMODU Interconnection System
MT and Shielded MT Interconnection System

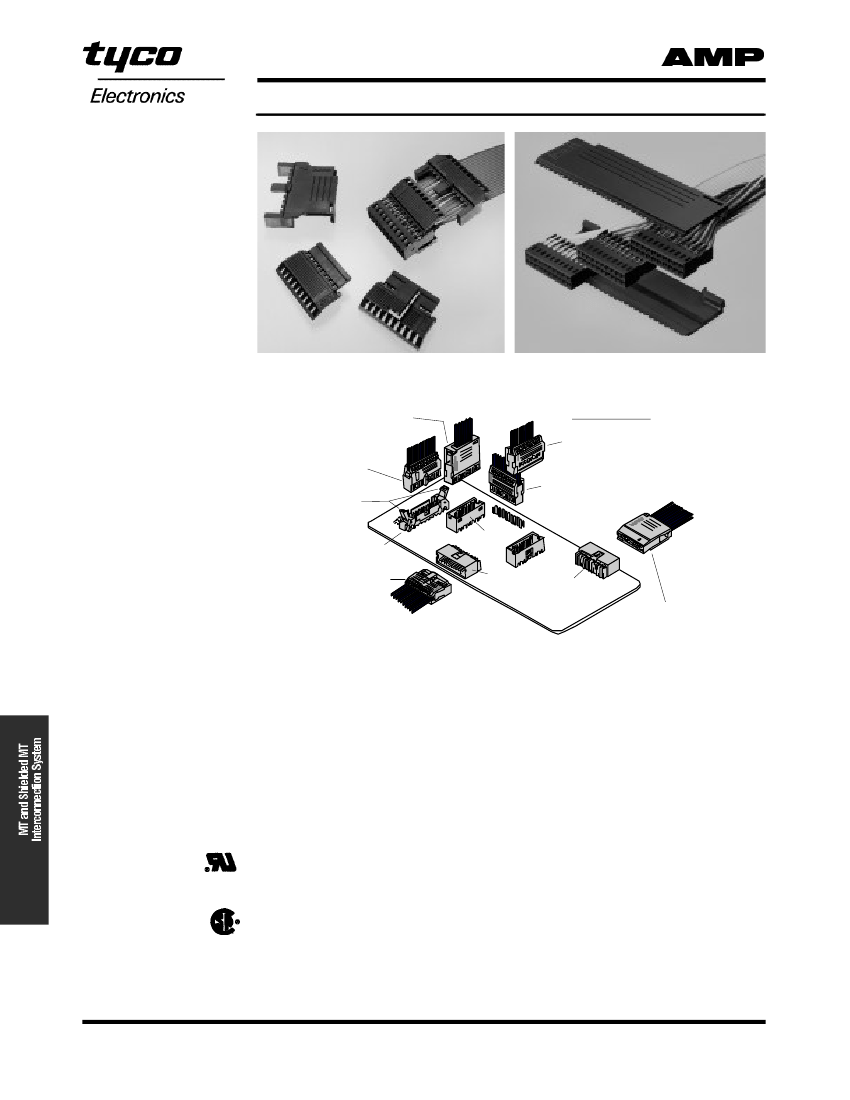

Product Facts
s
Full line of mass termination
tooling offers lowest installed
cost for most production
needs
Dual cantilever beams with
anti-overstress features
provide redundant contact
of mating post and limit
beam deflection, preventing
permanent deformation
Redundant insulation
displacement slots provide
for maximum reliability
Integral wire strain relief on
contact prevents wire motion
from being transmitted to
wire termination areas
Built-in contact post stop
protects terminated wire
from being disturbed by
over-insertion of mating
post, prevents wire from
entering contact area and
positively limits mating
connector depth
Insulation displacement
contacts and crimp, snap-in
contacts are interchangeable
Complete serviceability
with replacement contacts
Cover styles include low
profile (polarized, non-
polarized, latching and
ejection) and standard
profile (hermaphroditic
and ejection)
Connector housings may be
stacked end-to-end within one
pair of covers. All varieties
of covers in this catalog are
suitable for multiple housing
stacking applications similar
to the example illustrated in
the photograph to the right
Recognized under the
Component Program of
Underwriters
Laboratories Inc.,
File No. E28476
Certified by Canadian
Standards
Association,
File No. LR 7189
102398-8
D-R Assembly
102396-8
Hermaphroditic Covers
s
s
s
Typical Application of End-to-End Stacking
s
Wire-to-Board
102398-8
D-R Assembly
102540-8
Polarizing Cover
102536-8
Back Cover
102398-8
D-R Assembly
102541-8
Non-Polarizing Cover
102536-8
Back Cover
102398-8
D-R Assembly
102537-8
Ejection Cover
102536-8
Back Cover
102185-2
Latch
s
103168-8
Hdr
102154-4
Header
102398-8
D-R Assembly
102681-5
Latching Cover
102536-8
Back Cover
103166-8
Header
103166-8
Header
s
s
102398-8
D-R Assembly
102396-8
Hermaphroditic Covers
s
s
5
274
s
The AMPMODU MT and
Shielded MT Interconnection
System offers labor and
cost savings through mass
termination technology,
while maintaining the time-
proven reliability of the
AMPMODU product family.
The MT system is comprised
of preloaded, double-row
receptacle assemblies with
snap-on covers and a variety
of shielding hardware and
accessories. The system is
supported by a full line of
mass termination tooling to
meet virtually most
production needs.
The insulation displacement
contact, the heart of the MT
system, features a mating
interface that is the same as
the conventional AMPMODU
crimp, snap-in contact,
featuring dual cantilever
beams, built-in overstress
protection and a completely
enclosed “box” design.
To reduce EMI/ESD
(electromagnetic
interference/
electrostatic discharge) at
the input-output interface,
add-on metal shields can be
used to convert standard
MT connectors to shielded
MT connectors.
Performance
Characteristics
Contact Current Rating—3
amperes
for single contact in free air. (Amperage
could vary due to ambient temperature,
wire size and duty cycles.)
Operating Temperature—-
-65°C to +105°C
Termination Resistance—
12 milliohms max.
Max. Mating Force—
High pressure - 26 oz. [7.23 N]
Standard pressure - 9 oz. [2.50 N]
Min. Unmating Force—-
High pressure - 5 oz. [1.39 N]
Standard pressure - 1.5 oz. [0.417 N]
Contact Retention in Housing—
5 lb. [22.24 N] per contact min.
Catalog 1307819
Revised 6-04
www.tycoelectronics.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-5-729-0425
South America: 55-11-3611-1514
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-141-810-8967
AMPMODU Interconnection System

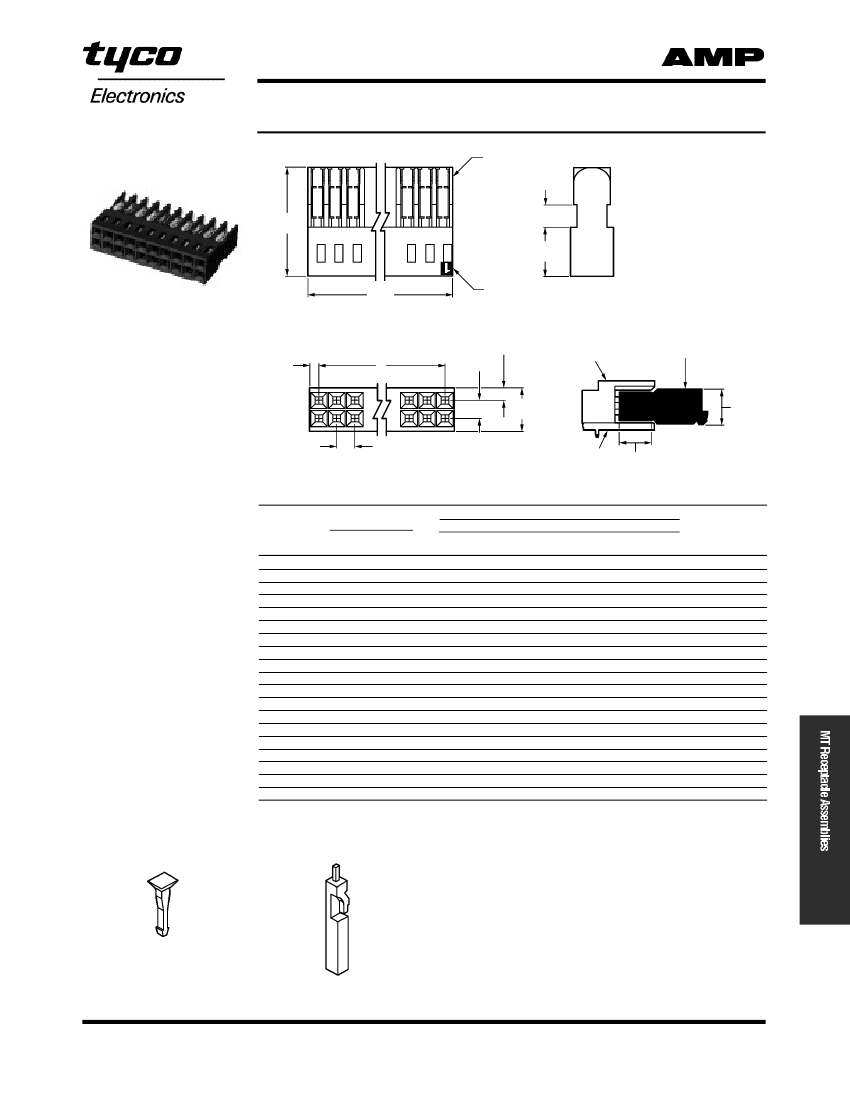

MT Receptacle Assemblies, Double-Row
.100 x .100 [2.54 x 2.54] Centerline
Housings Pre-loaded with
Standard Pressure Contacts
Contact
I.D. No.
1
1
1
1
1
1
.125
[3.18]
.600
[15.24]
.270
[6.86]
Circuit No. 1
Identifier
A
Max.
Material and Finish:
Housing—Black
thermoplastic, flame
retardant
Contacts—Copper
alloy, duplex plated
.000030 [0.00076] gold on contact area,
.000050 [0.00127] min. tin-lead in crimp
area, with entire contact underplated
.000050 [0.00127] nickel
.070
[1.78]
.050
[1.27]
B
.100
[2.54]
Right-Angle
Header
MT Receptacle
Assembly
.240
[6.10]
.100
Typ.
[2.54]
.300
[7.62]
Related Product Data:
Mateable Connectors—pages
133,
139, 143, 147, 283
Cable Insulation Wall Thickness—
.015 [0.39] max.
Cable Insulation Diameter—
.050 [1.27] max.
Mating Post Length—
.222-.273 [5.64-6.94] max.
Performance Characteristics—
page 274
Replacement Contacts—page
284
Connector Covers—
pages 277, 278
Application Tooling—
pages 290-293
PC
Board
.270
[6.86]
Technical Documents
(
pages
295, 296):
Product Specification
108-25015, 108-25018, 108-25030
Application Specification
114-25032
Instruction Sheet
408-6532
Part Nos. (Stamped)
Wire Size Range
30-26 AWG
26-22 AWG
[0.05-0.15 mm
2
]
[0.12-0.3 mm
2
]
6
.300
[7.62]
.200
[5.08]
102393-1
102398-1
8
.400
[10.16]
.300
[7.62]
102393-2
102398-2
10
.500
[12.70]
.400
[10.16]
102393-3
102398-3
12
.600
[15.24]
.500
[12.70]
102393-4
102398-4
14
.700
[17.78]
.600
[15.24]
102393-5
102398-5
16
.800
[20.32]
.700
[17.78]
102393-6
102398-6
18
.900
[22.86]
.800
[20.32]
102393-7
102398-7
20
1.000
[25.40]
.900
[22.86]
102393-8
102398-8
22
1.100
[27.94]
1.000
[25.40]
102393-9
102398-9
24
1.200
[30.48]
1.100
[27.94]
1-102393-0
1-102398-0
26
1.300
[33.02]
1.200
[30.48]
1-102393-1
1-102398-1
28
1.400
[35.56]
1.300
[33.02]
1-102393-2
1-102398-2
30
1.500
[38.10]
1.400
[35.56]
1-102393-3
1-102398-3
32
1.600
[40.64]
1.500
[38.10]
1-102393-4
1-102398-4
34
1.700
[43.18]
1.600
[40.64]
1-102393-5
1-102398-5
40
2.000
[50.80]
1.900
[48.26]
1-102393-8
1-102398-8
50
2.500
[63.50]
2.400
[60.96]
2-102393-3
2-102398-3
60
3.000
[76.20]
2.900
[73.66]
2-102393-8
2-102398-8
64
3.200
[81.28]
3.100
[78.74]
3-102393-0
3-102398-0
Note:
Contact
Extraction/Lance Reset Tool No. 843477-3,
see page 284.
No. of
Pos.
Dimensions
A
B
22-20 AWG
[0.3-0.6 mm
2
]
102448-1
102448-2
102448-3
102448-4
102448-5
102448-6
102448-7
102448-8
102448-9
1-102448-0
1-102448-1
1-102448-2
1-102448-3
1-102448-4
1-102448-5
1-102448-8
2-102448-3
2-102448-8
3-102448-0
Unloaded
Housings
102394-1
102394-2
102394-3
102394-4
102394-5
102394-6
102394-7
102394-8
102394-9
1-102394-0
1-102394-1
1-102394-2
1-102394-3
1-102394-4
1-102394-5
1-102394-8
2-102394-3
2-102394-8
3-102394-0
Keying Plugs
5
Part No. 86286-1
(Plugs into receptacle contact)
Material—Natural
color nylon
Part No. 87077-2
(Plugs directly into housing)
275
Catalog 1307819
Revised 6-04
www.tycoelectronics.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-5-729-0425
South America: 55-11-3611-1514
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-141-810-8967
AMPMODU Interconnection System
MT Receptacle Assemblies, Double-Row
