62674-121121ALF datasheet, PDF

62674-121121ALF: DescriptionCard Edge Connector, 12 Contact(s), 1 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, LEAD FREE; CategoryThe connector The connector; File Size481KB，5 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

62674-121121ALF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	62674-121121ALF	-	-	View	Buy Now

Card Edge Connector, 12 Contact(s), 1 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, LEAD FREE

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	LEAD FREE
Reach Compliance Code	compliant
Is Samacsys	N
body width	0.116 inch
subject depth	0.161 inch
body length	0.413 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	200VAC V
Durability	20 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED SYNTHETIC RESIN
MIL compliance	NO
Plug contact pitch	0.02 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.3876 mm
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	12
UL Flammability Code	94V-0
Base Number Matches	1

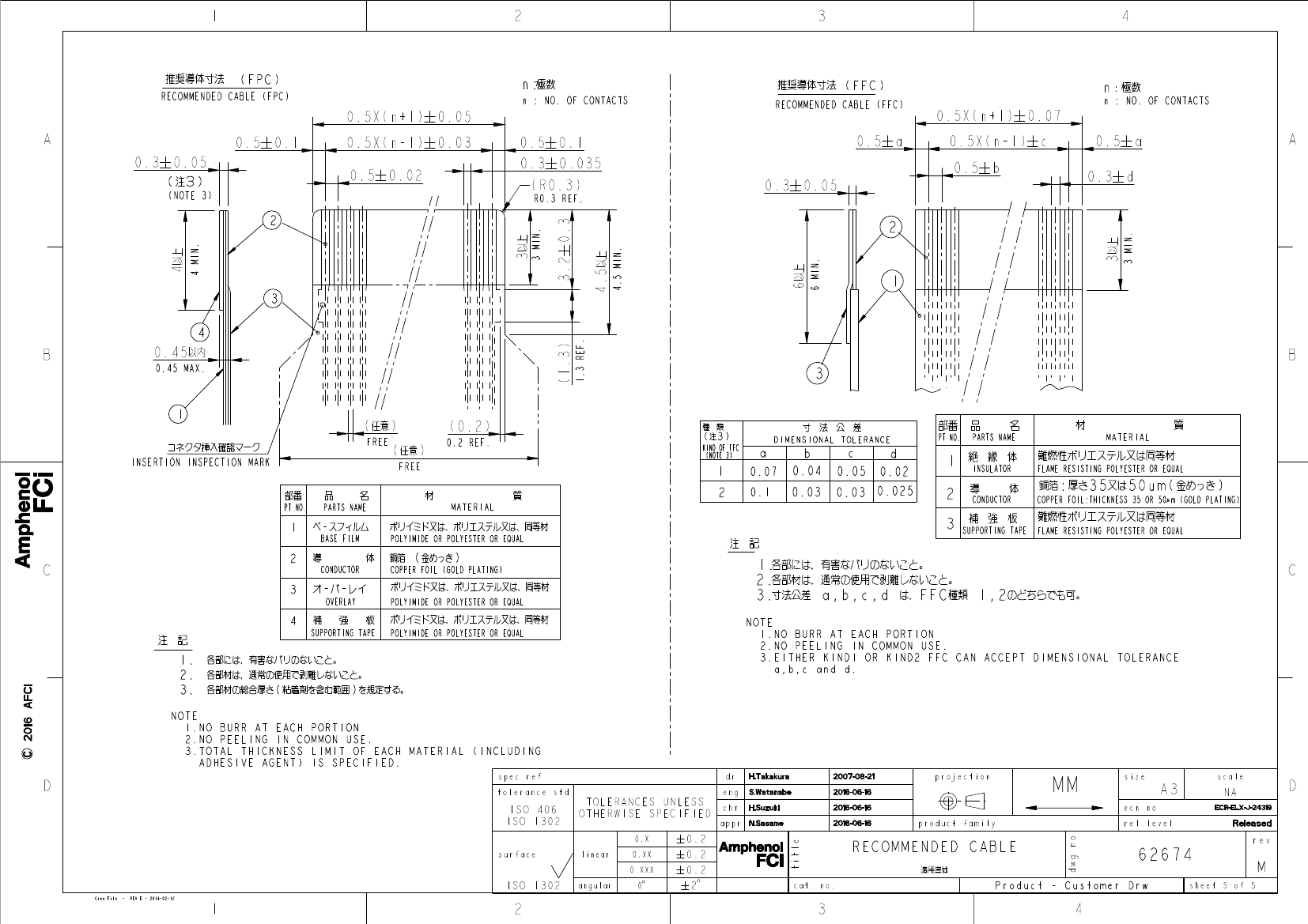

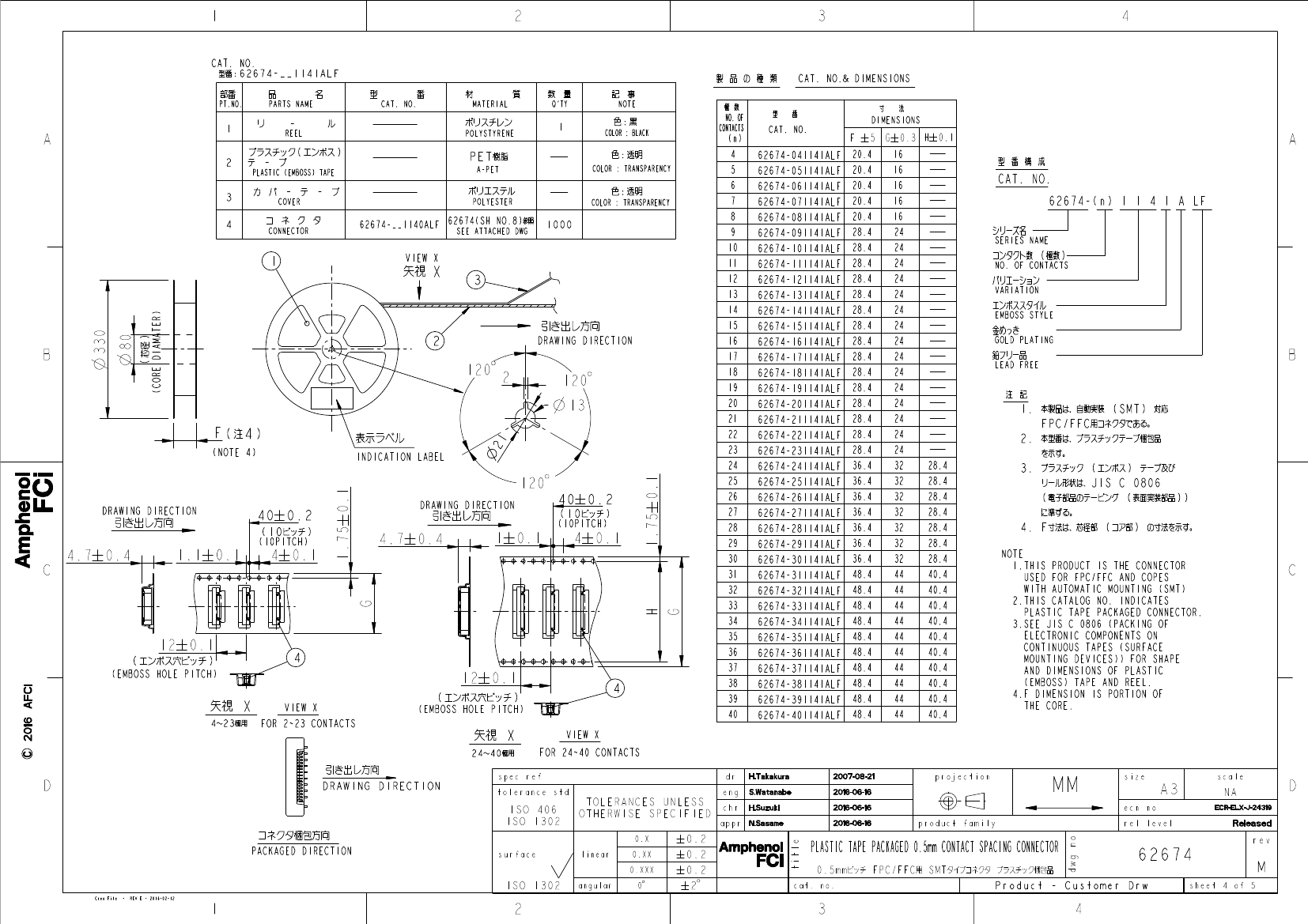

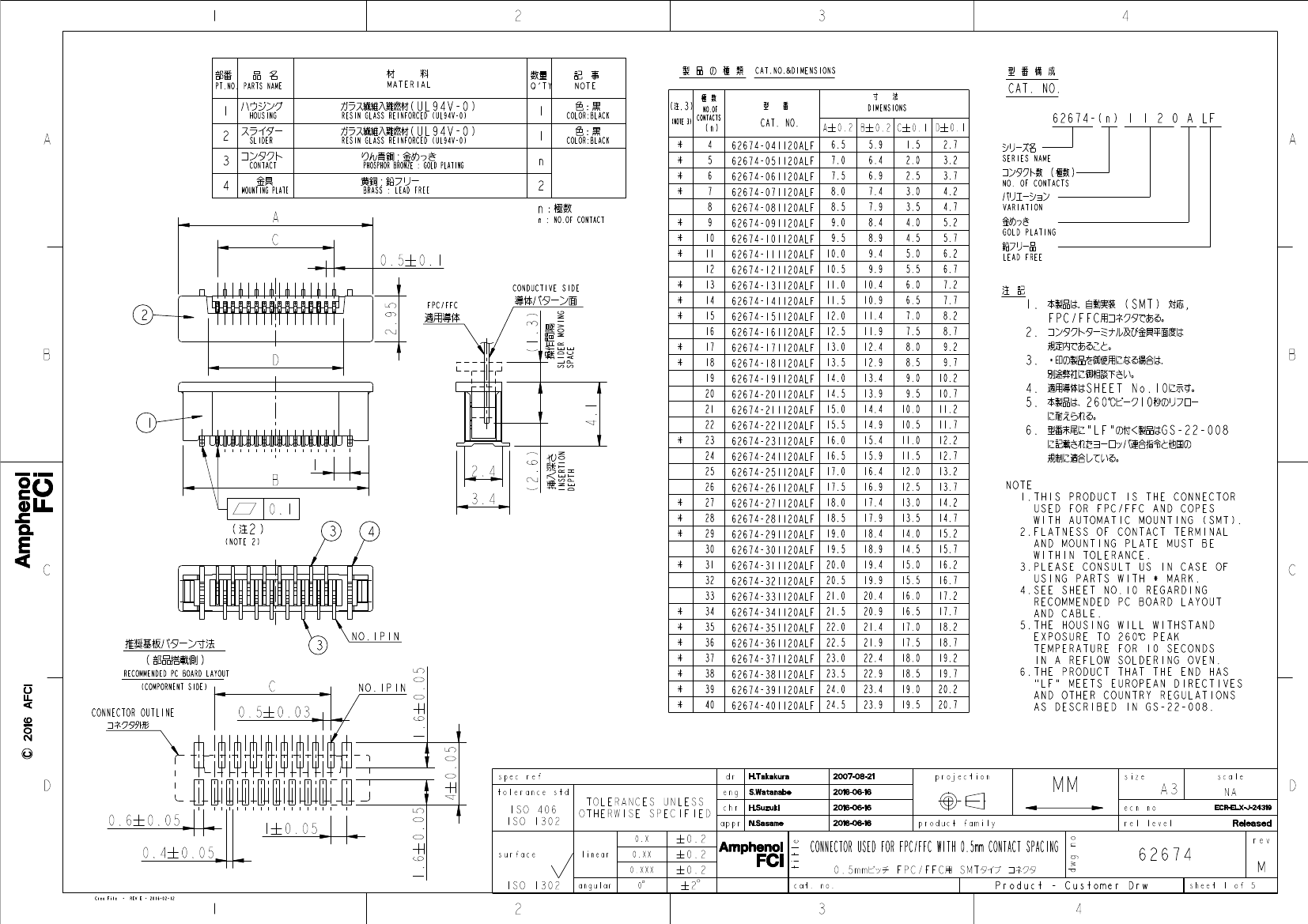

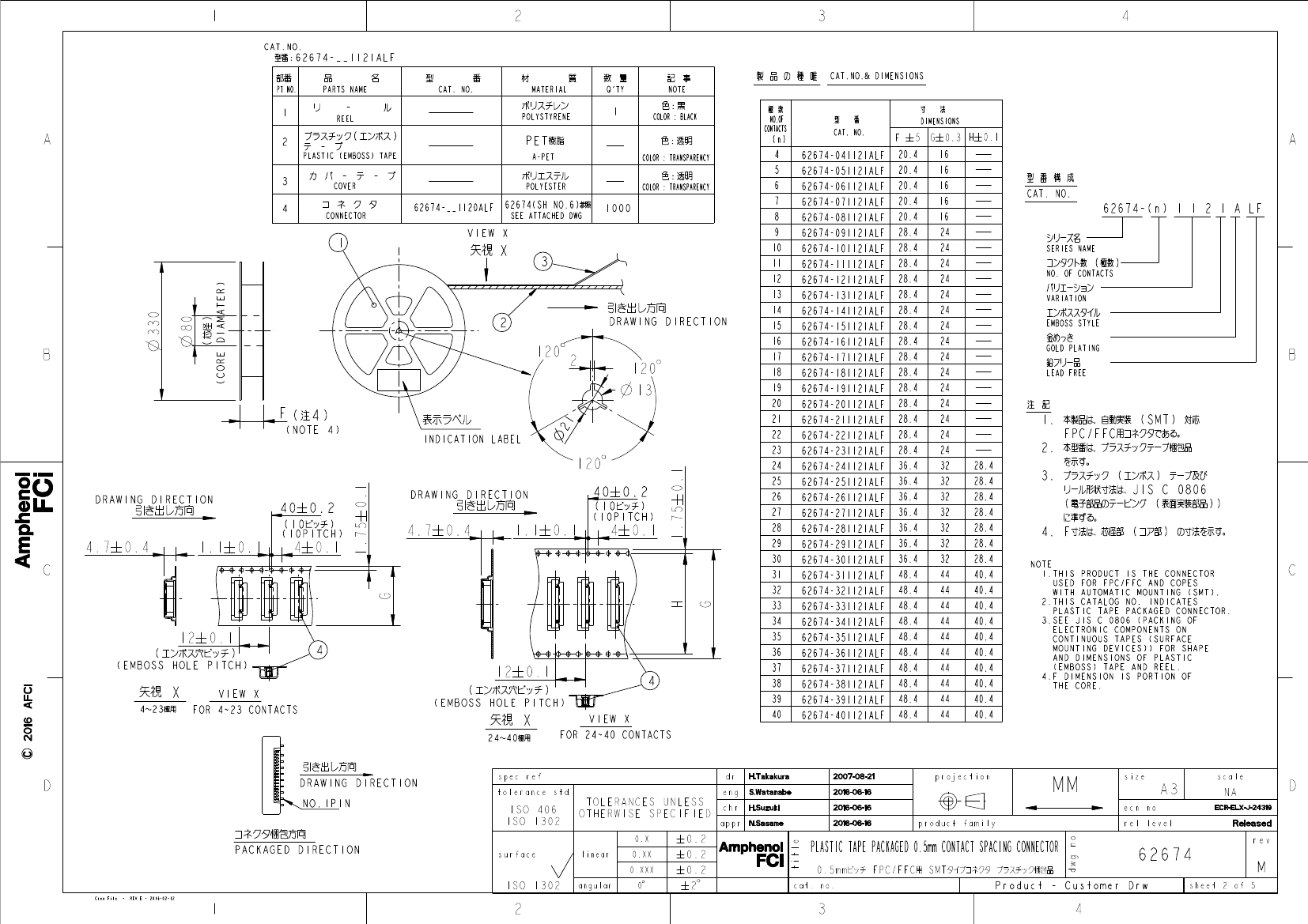

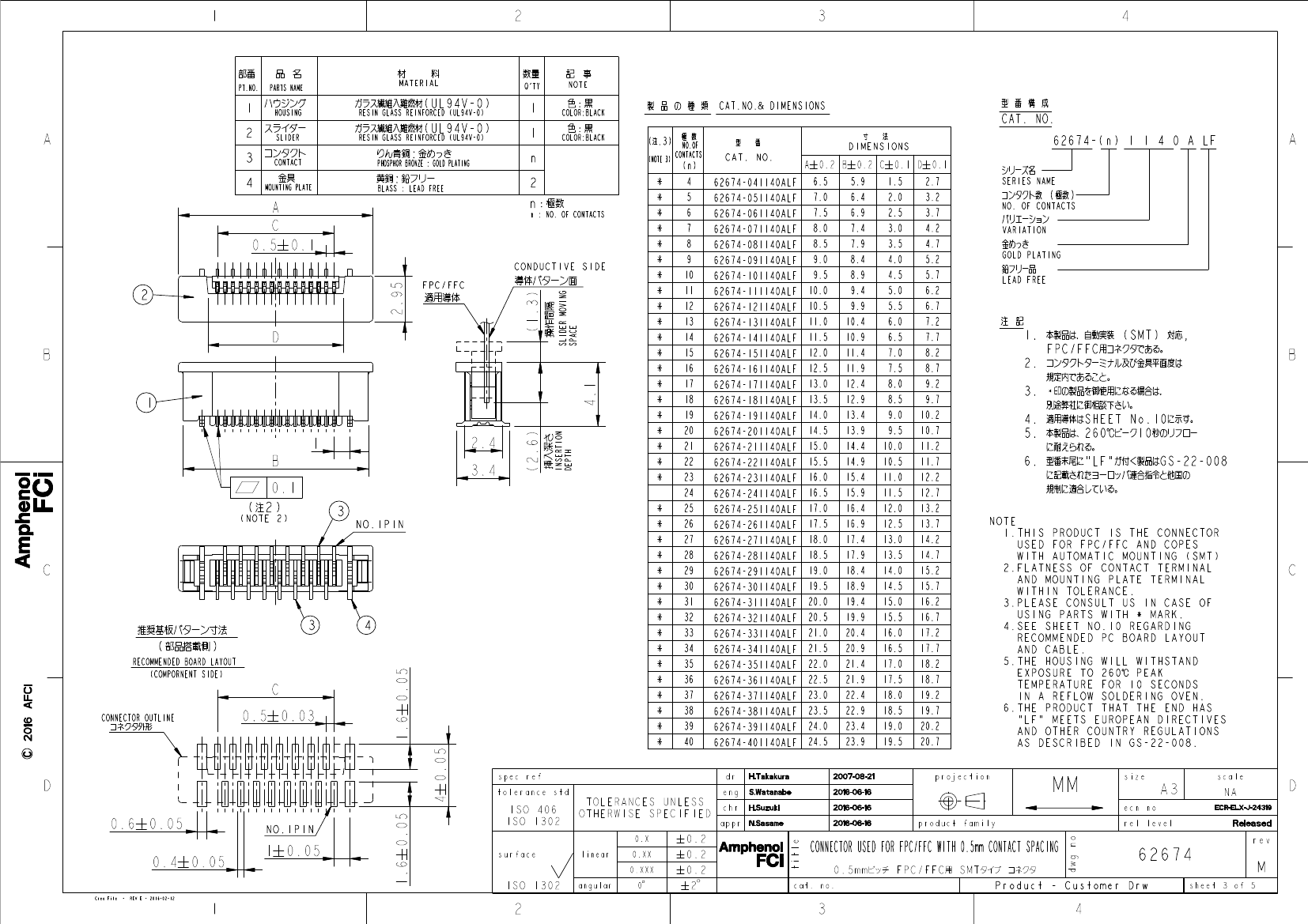

PDS: Rev :M

STATUS:Released

Printed: Jun 16, 2016

	62674-121121ALF	62674-301121DLF	62674-121121DLF	62674-261121ALF	62674-331121ALF
Description	Card Edge Connector, 12 Contact(s), 1 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, LEAD FREE	CONN FFC VERT 30POS 0.50MM SMD	CONN FFC VERT 12POS 0.50MM SMD	Card Edge Connector, 26 Contact(s), 1 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, LEAD FREE	Card Edge Connector, 33 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal, LEAD FREE
Contact material	NOT SPECIFIED	-	-	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Installation type	BOARD	surface mount	surface mount	BOARD	BOARD
Is it Rohs certified?	conform to	-	-	conform to	conform to
package instruction	LEAD FREE	-	-	LEAD FREE	LEAD FREE
Reach Compliance Code	compliant	-	-	compliant	compliant
Connector type	FFC/FPC CONNECTOR	-	-	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	-	-	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	-	-	FEMALE	FEMALE
DIN compliance	NO	-	-	NO	NO
Filter function	NO	-	-	NO	NO
IEC compliance	NO	-	-	NO	NO
MIL compliance	NO	-	-	NO	NO
Mixed contacts	NO	-	-	NO	NO
Installation method	STRAIGHT	-	-	STRAIGHT	STRAIGHT
Number of rows loaded	1	-	-	1	1
Options	GENERAL PURPOSE	-	-	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	0.5 mm	-	-	0.5 mm	0.5 mm
Termination type	SURFACE MOUNT	-	-	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	12	-	-	26	33
UL Flammability Code	94V-0	-	-	94V-0	94V-0
Base Number Matches	1	-	-	1	1
