ROHS COMPLIANT
PRODUCT DATA DRAWING
REV
REVISION HISTORY
DESCRIPTION
DATE
APPROVED
-
A
REL.DCN 31895
DCN 38280
01/05
06/11
CCC
STW
.330±.000 8.38±0
.312 [7.92]
HEX.
MATERIAL:
BODY &
COUPLING NUT:
LOCK RING &
CONTACT:
INSULATOR:
GASKET:
RESISTOR ELEMENT:
STAINLESS STEEL PER AMS-5640,
ALLOY UNS S30300, TYPE 1
BERYLLIUM COPPER PER ASTM B196
PTFE PER ASTM D1710, TYPE I, GRADE 1, CLASS B
SILICONE RUBBER PER ZZ-R-765,
CLASS 2B, GRADE 50/60
ALUMINA SUBSTRATE WITH
NICHROME RESISTOR
FINISH:
BODY:
GOLD PER ASTM B 488, TYPE I,
GRADE C, CLASS 1.27, OVER NICKEL
PER AMS-QQ-N-290, CLASS 1
GOLD PER ASTM B 488, TYPE I,
GRADE C, CLASS .50, OVER NICKEL
PER AMS-QQ-N-290, CLASS 1
GOLD PER ASTM B 488, TYPE I I,
GRADE C, CLASS 1.52, OVER NICKEL
PER AMS-QQ-N-290, CLASS 1
COUPLING NUT:
CONTACT:
PERFORMANCE:
IMPEDANCE:
FREQ. RANGE:
VSWR:
OPERATING TEMP.:
AVG. POWER:
50 OHMS
DC TO 18.0 GHz
1.10:1 DC TO 18.0 GHz
-55 C TO +125 C
1 WATT (POWER INPUT DERATED LINEARLY
FROM 25 C TO .25 WATTS AT 125 C)
MATERIAL:
FINISH:
SEE NOTES
SEE NOTES
N/A
PROPRIETARY
DIMENSIONS ARE IN INCHES TOLERANCES:
FRACTIONAL:
DECIMAL: .X
.XX
.XXX
1/64
.030
.010
.005
ANGULAR: X
X X'
1 0'
15'
UNLESS OTHERWISE SPECIFIED
1) ALL DIMENSIONS ARE IN INCHES [MILLIMETERS]
2) ALL DIMENSIONS ARE AFTER PLATING.
3) BREAK CORNERS & EDGES .005 R. MAX.
4) CHAM. 1ST & LAST THREADS.
5) SURFACE ROUGHNESS 63
e
MIL-STD-10.
6) DIA.’S ON COMMON CENTERS TO BE CONCENTRIC
WITHIN .005 T.I.R.
7) REMOVE ALL BURRS
SV Microwave, Inc.
2400 Centrepark West Drive, Suite 100
West Palm Beach, FL 33409
TITLE:
SURFACE AREA:
INTERPRET DIMENSIONS AND TOLERANCES
PER ASME Y14.5M - 1994

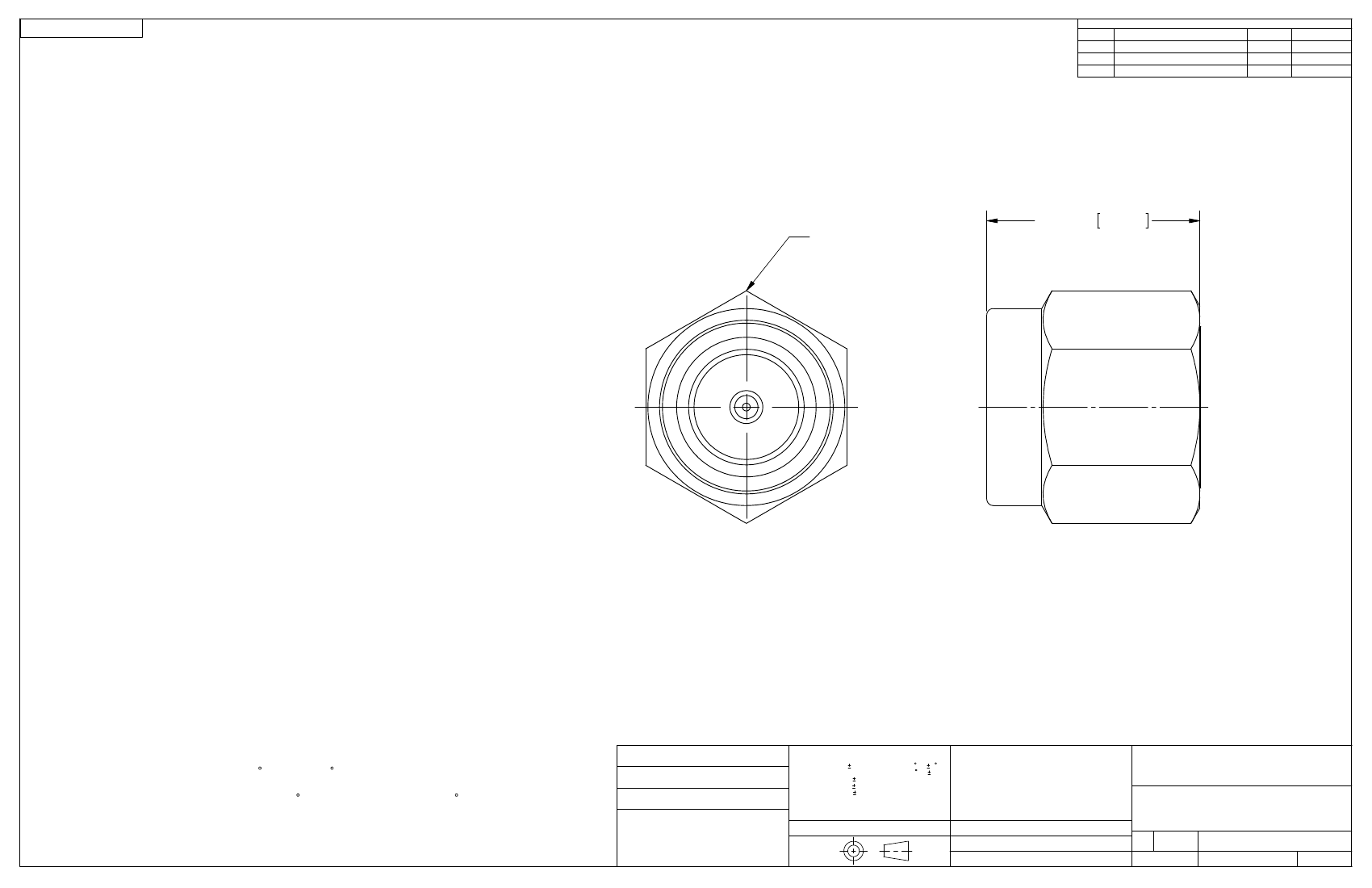

SMA 1 WATT PLUG
TERMINATION
SIZE CAGE CODE DWG. NO.
THE INFORMATION CONTAINED IN THIS DRAWING
IS THE SOLE PROPERTY OF SV MICROWAVE, INC.
ANY REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
SV MICROWAVE, INC IS PROHIBITED.
THIRD ANGLE PROJECTION
DRAWN:
CHECKED:
APPROVED:
MGT 01/14/05
CCC 01/14/05
CCC 01/14/05
B
95077
SCALE: 8:1
8018-6061
SHEET 1 OF 1
