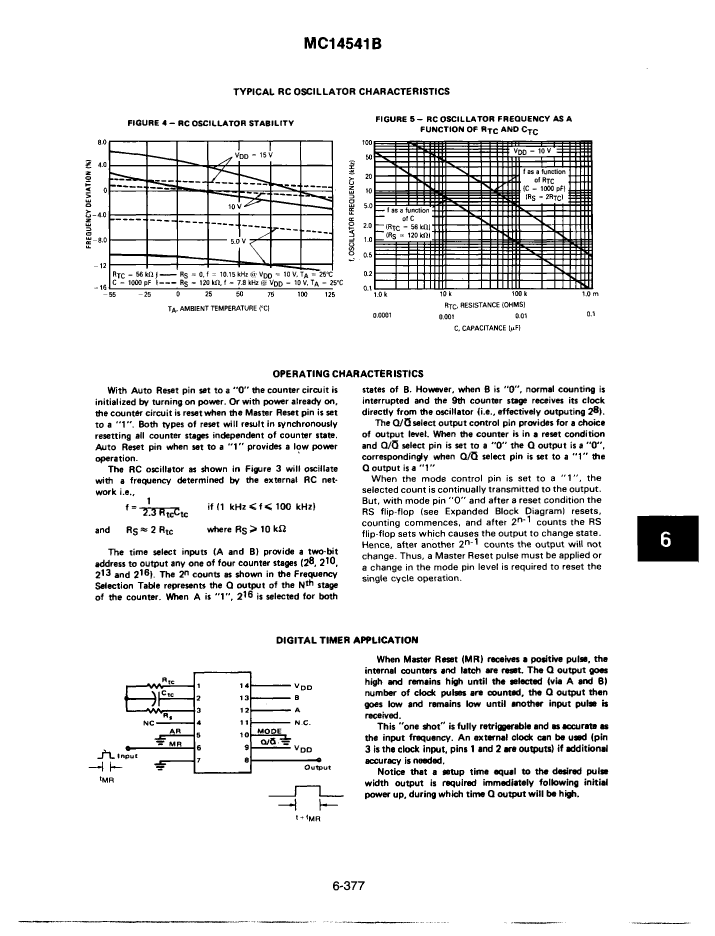

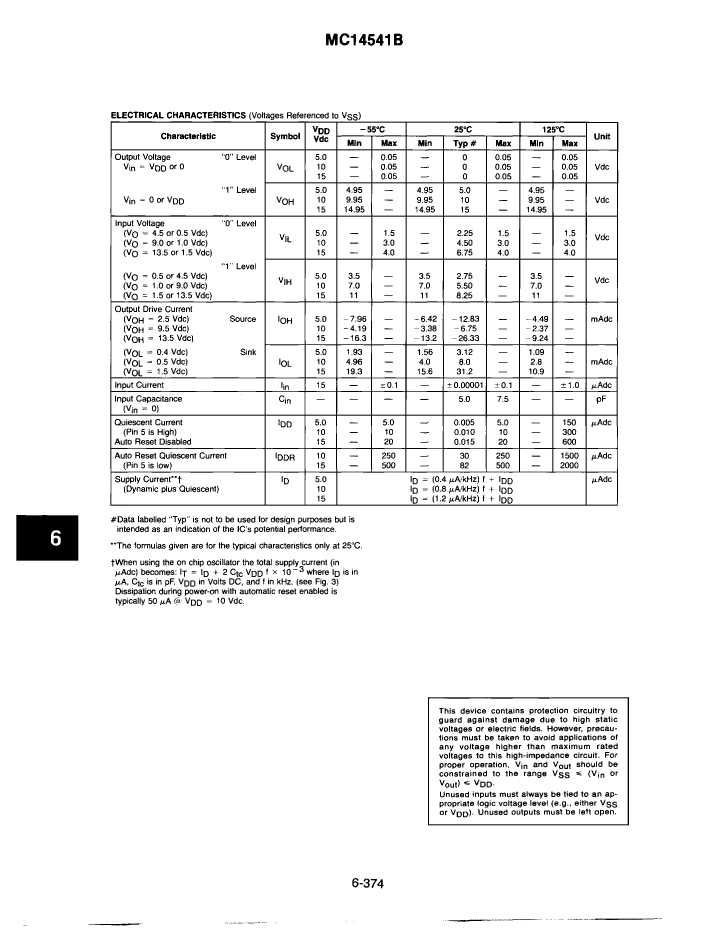

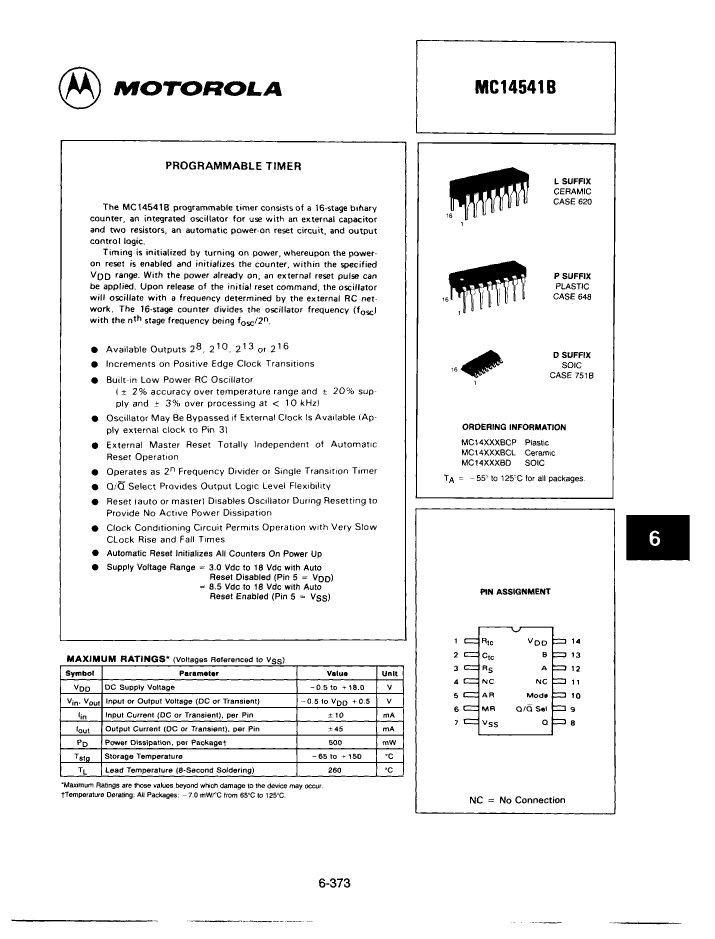

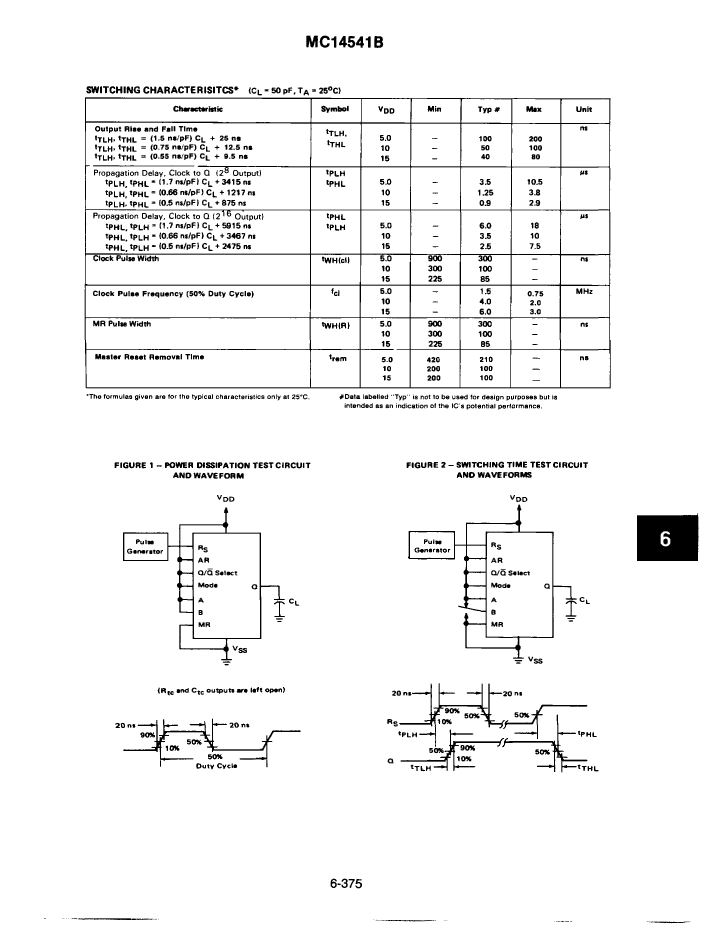

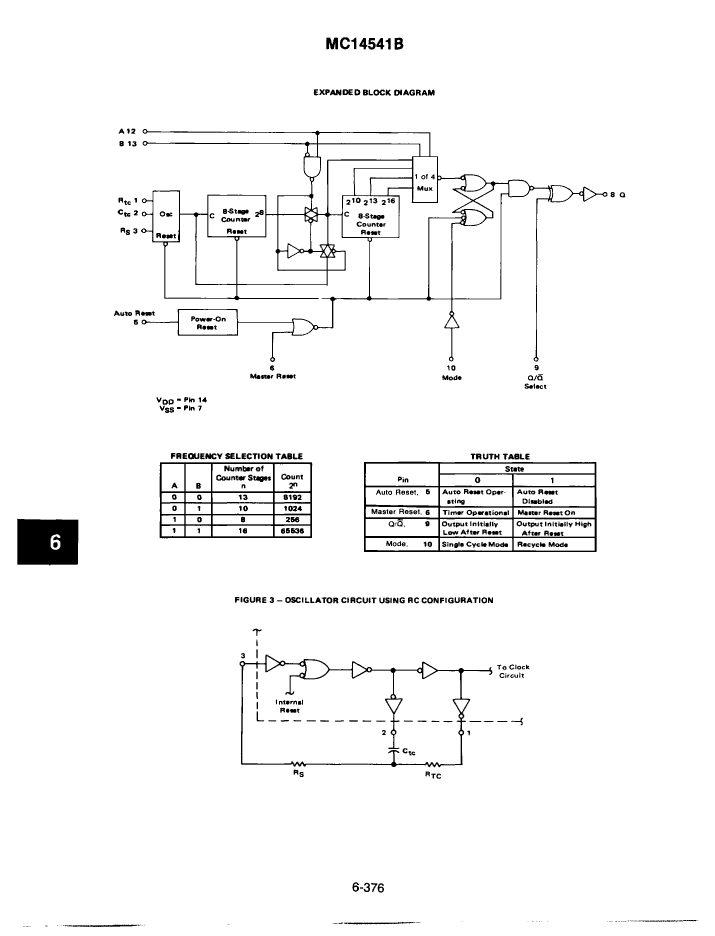

4000/14000/40000 SERIES, SYN POSITIVE EDGE TRIGGERED 16-BIT UP BINARY COUNTER, CDIP16, CERAMIC, DIP-16
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Parts packaging code | DIP |
| package instruction | DIP, |
| Contacts | 16 |
| Reach Compliance Code | unknown |
| Is Samacsys | N |
| Counting direction | UP |
| series | 4000/14000/40000 |
| JESD-30 code | R-GDIP-T16 |
| JESD-609 code | e0 |
| length | 19.3 mm |
| Load capacitance (CL) | 50 pF |
| Load/preset input | YES |
| Logic integrated circuit type | BINARY COUNTER |
| Operating mode | SYNCHRONOUS |
| Number of digits | 16 |
| Number of functions | 1 |
| Number of terminals | 16 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -40 °C |
| Package body material | CERAMIC, GLASS-SEALED |
| encapsulated code | DIP |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| propagation delay (tpd) | 18000 ns |
| Certification status | Not Qualified |
| Maximum seat height | 4.19 mm |
| Maximum supply voltage (Vsup) | 18 V |
| Minimum supply voltage (Vsup) | 3 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | NO |
| technology | CMOS |
| Temperature level | INDUSTRIAL |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Trigger type | POSITIVE EDGE |
| width | 7.62 mm |
| minfmax | 6 MHz |
| Base Number Matches | 1 |
| MC14541BCL | MC14541BDR2 | |
|---|---|---|
| Description | 4000/14000/40000 SERIES, SYN POSITIVE EDGE TRIGGERED 16-BIT UP BINARY COUNTER, CDIP16, CERAMIC, DIP-16 | 0 TIMER(S), PROGRAMMABLE TIMER, PDSO16, SOIC-16 |
| Parts packaging code | DIP | SOIC |
| package instruction | DIP, | SOP, |
| Contacts | 16 | 16 |
| Reach Compliance Code | unknown | unknown |
| Is Samacsys | N | N |
| JESD-30 code | R-GDIP-T16 | R-PDSO-G16 |
| JESD-609 code | e0 | e0 |
| length | 19.3 mm | 9.9 mm |
| Number of terminals | 16 | 16 |
| Maximum operating temperature | 85 °C | 125 °C |
| Minimum operating temperature | -40 °C | -55 °C |
| Package body material | CERAMIC, GLASS-SEALED | PLASTIC/EPOXY |
| encapsulated code | DIP | SOP |
| Package shape | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | SMALL OUTLINE |
| Certification status | Not Qualified | Not Qualified |
| Maximum seat height | 4.19 mm | 1.75 mm |
| surface mount | NO | YES |
| technology | CMOS | CMOS |
| Temperature level | INDUSTRIAL | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE | GULL WING |
| Terminal pitch | 2.54 mm | 1.27 mm |
| Terminal location | DUAL | DUAL |
| width | 7.62 mm | 3.9 mm |
| Base Number Matches | 1 | 1 |
