59453-13111CHLF datasheet, PDF

Datasheet> All Categories > The connector> The connector> 59453-13111CHLF

59453-13111CHLF: DescriptionCard Edge Connector, 13 Contact(s), 1 Row(s), Female, Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, LEAD FREE; CategoryThe connector The connector; File Size273KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

59453-13111CHLF Overview

Card Edge Connector, 13 Contact(s), 1 Row(s), Female, Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, LEAD FREE

59453-13111CHLF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	LEAD FREE
Reach Compliance Code	compliant
Is Samacsys	N
Other features	SHORT TERMINAL, BLACK ACTUATOR
Board mount options	FITTING NAIL
body width	0.035 inch
subject depth	0.142 inch
body length	0.315 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	200VAC V
Durability	10 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	ZIF N
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED THERMOPLASTIC
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.02 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Rated current (signal)	0.4 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	13
UL Flammability Code	94V-0
Evacuation force-minimum value	ZIF N
Base Number Matches	1

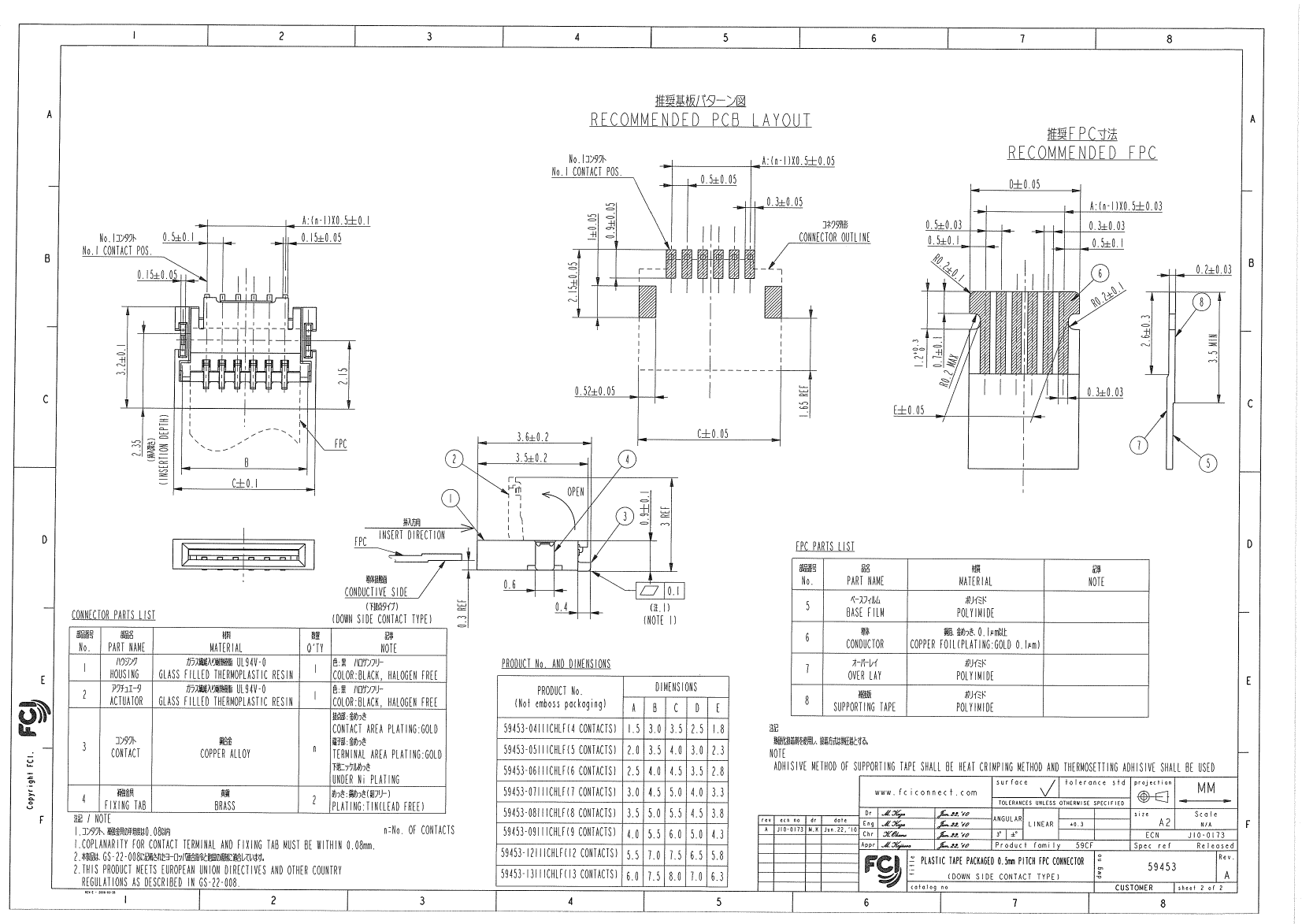

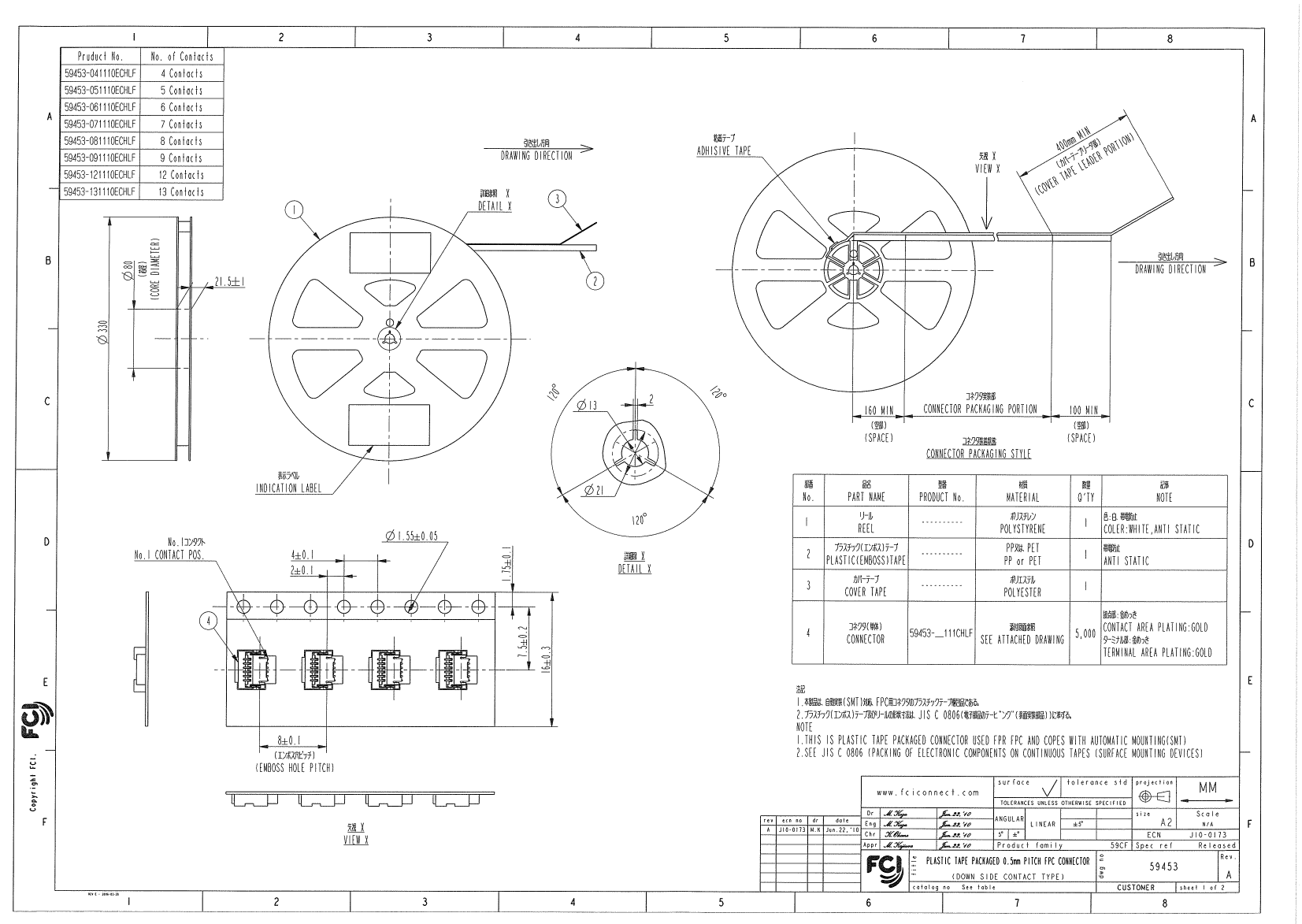

Preview

Download Datasheet

View All

PDM: Rev:A

STATUS:

Released

Printed: Oct 04, 2010

59453-13111CHLF Related Products

	59453-13111CHLF	59453-131110ECHLF	59453-081110ECHLF	59453-071110ECHLF	59453-091110ECHLF	59453-05111CHLF	59453-06111CHLF
Description	Card Edge Connector, 13 Contact(s), 1 Row(s), Female, Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, LEAD FREE	CONN FPC BOTTOM 13POS 0.50MM R/A	CONN FPC BOTTOM 8POS 0.50MM R/A	CONN FPC BOTTOM 7POS 0.50MM R/A	CONN FPC BOTTOM 9POS 0.50MM R/A	Card Edge Connector, 5 Contact(s), 1 Row(s), Female, Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, LEAD FREE	Card Edge Connector, 6 Contact(s), 1 Row(s), Female, Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, LEAD FREE
Contact material	COPPER ALLOY	copper alloy	COPPER ALLOY	NOT SPECIFIED	copper alloy	COPPER ALLOY	COPPER ALLOY
Installation type	BOARD	Surface mount, right angle	BOARD	BOARD	Surface mount, right angle	BOARD	BOARD
Is it Rohs certified?	conform to	-	conform to	conform to	-	conform to	conform to
package instruction	LEAD FREE	-	LEAD FREE	LEAD FREE	-	LEAD FREE	LEAD FREE
Reach Compliance Code	compliant	-	compliant	compliant	-	compliant	compliant
Other features	SHORT TERMINAL, BLACK ACTUATOR	-	SHORT TERMINAL, BLACK ACTUATOR	SHORT TERMINAL, BLACK ACTUATOR	-	SHORT TERMINAL, BLACK ACTUATOR	SHORT TERMINAL, BLACK ACTUATOR
Board mount options	FITTING NAIL	-	FITTING NAIL	FITTING NAIL	-	FITTING NAIL	FITTING NAIL
body width	0.035 inch	-	0.035 inch	0.035 inch	-	0.035 inch	0.035 inch
subject depth	0.142 inch	-	0.142 inch	0.142 inch	-	0.142 inch	0.142 inch
body length	0.315 inch	-	0.217 inch	0.197 inch	-	0.157 inch	0.177 inch
Connector type	FFC/FPC CONNECTOR	-	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	-	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR
Contact to complete cooperation	GOLD	-	NOT SPECIFIED	NOT SPECIFIED	-	GOLD	GOLD
Contact completed and terminated	GOLD	-	-	NOT APPLICABLE	-	GOLD	GOLD
Contact point gender	FEMALE	-	FEMALE	FEMALE	-	FEMALE	FEMALE
contact mode	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR
Contact resistance	30 mΩ	-	30 mΩ	30 mΩ	-	30 mΩ	30 mΩ
Contact style	BELLOWED TYPE	-	BELLOWED TYPE	BELLOWED TYPE	-	BELLOWED TYPE	BELLOWED TYPE
DIN compliance	NO	-	NO	NO	-	NO	NO
Dielectric withstand voltage	200VAC V	-	200VAC V	200VAC V	-	200VAC V	200VAC V
Durability	10 Cycles	-	10 Cycles	10 Cycles	-	10 Cycles	10 Cycles
Filter function	NO	-	NO	NO	-	NO	NO
IEC compliance	NO	-	NO	NO	-	NO	NO
maximum insertion force	ZIF N	-	ZIF N	ZIF N	-	ZIF N	ZIF N
Insulation resistance	100000000 Ω	-	100000000 Ω	100000000 Ω	-	100000000 Ω	100000000 Ω
Insulator color	BLACK	-	BLACK	BLACK	-	BLACK	BLACK
insulator material	GLASS FILLED THERMOPLASTIC	-	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC	-	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC
MIL compliance	NO	-	NO	NO	-	NO	NO
Plug contact pitch	0.02 inch	-	0.02 inch	0.02 inch	-	0.02 inch	0.02 inch
Mixed contacts	NO	-	NO	NO	-	NO	NO
Installation option 1	LOCKING	-	LOCKING	LOCKING	-	LOCKING	LOCKING
Installation method	RIGHT ANGLE	-	RIGHT ANGLE	RIGHT ANGLE	-	RIGHT ANGLE	RIGHT ANGLE
PCB row number	1	-	1	1	-	1	1
Number of rows loaded	1	-	1	1	-	1	1
Maximum operating temperature	85 °C	-	85 °C	85 °C	-	85 °C	85 °C
Minimum operating temperature	-55 °C	-	-55 °C	-55 °C	-	-55 °C	-55 °C
Options	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR
Rated current (signal)	0.4 A	-	0.4 A	0.4 A	-	0.4 A	0.4 A
Guideline	UL	-	UL	UL	-	UL	UL
reliability	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	-	COMMERCIAL	COMMERCIAL
Terminal pitch	0.5 mm	-	0.5 mm	0.5 mm	-	0.5 mm	0.5 mm
Termination type	SURFACE MOUNT	-	SURFACE MOUNT	SURFACE MOUNT	-	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	13	-	8	7	-	5	6
UL Flammability Code	94V-0	-	94V-0	94V-0	-	94V-0	94V-0
Evacuation force-minimum value	ZIF N	-	ZIF N	ZIF N	-	ZIF N	ZIF N
Maker	-	-	Amphenol	Amphenol	-	Amphenol	Amphenol
