GSB12110C: DescriptionUSB Connector; CategoryThe connector The connector; File Size167KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

GSB12110C Overview

USB Connector

GSB12110C Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Connector type	TELECOM AND DATACOM CONNECTOR
Base Number Matches	1

Preview

Download Datasheet

View All

Amphenol

Data Interconnects

USB

Materials

Housing

Platting on housing

Insulator

Contacts

– Phosphor Bronze (P/B)

– Tin/Lead over Ni

– 94V-0 thermoplastic

– P/B with 50µ” Ni

– 1A

– 30VAC/rms 60Hz

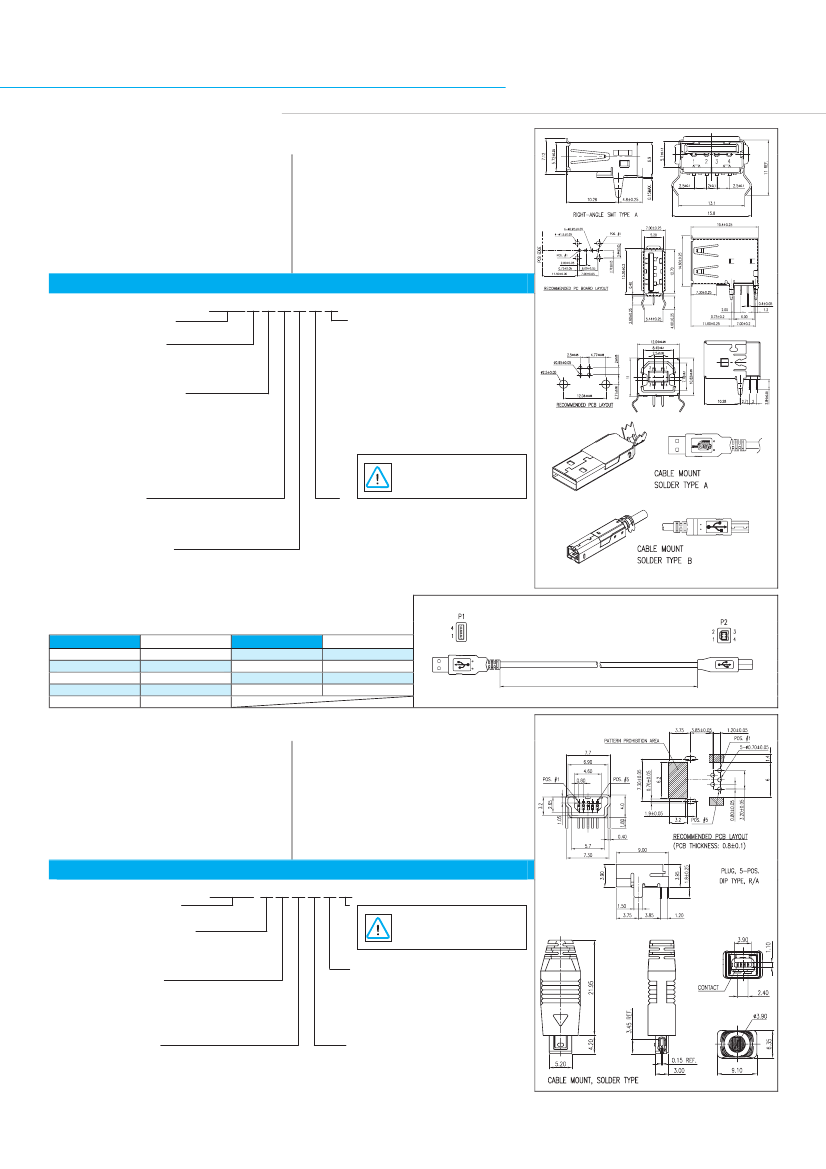

GSB Series Universal Serial Bus Connectors

Temperature

-40 to 85ºC

Durability

1500 cycles

Electrical

Current

Voltage

Features

Full metal shell for ESD shielding

Interface speeds of 12Mbs

Part Number System:

GSB X X X X X X

USB Connector

SERIES TYPE

1: Type A

2: Type B

MOUNTING STYLE

1: DIP Straight

2: DIP R/A Horizontal

4: SMT R/A Horizontal

5: Cable Mount Solder Contact

6: Cable Mount Crimp Contact

9: DIP R/A Vertical

STRUCTURE

1: Standard (Single Port)

2: Stacked (R/A DIP only)

CONTACT FINISH

1: Gold Flash

2: 30µ” Gold

FACTORY CODE

A: With Amphenol logo

H: High Temperature

FRS: With rear/front shell spring

RS: With rear Shell

P: For PC99 system

01: Cable Mount shell Crimp

size 6x6.8mm

02: Cable Mount shell Crimp

size 7x9mm

C: Cutted Boardlocks

Suffix may be added to Part Number.

This Suffix is for Internal use mainly.

Additional Suffix ‘EU’ or ‘LF’ may be

added for RoHS compliant product.

Right-Angle Vertical

Type A

Right Angle PCB Type B

COLOUR OF INSULATION

0: White

1: Black

2: Beige

Dimensions in mm

GSB Series

USB Cable Assemblies

Type A to Type B cable assemblies

Part Number:

Length

Part Number:

GSB70 97019

GSB70 97020

GSB70 97021

GSB70 97022

GSB70 97023

1000mm

1500mm

2000mm

2500mm

3000mm

GSB70 97024

GSB70 97025

GSB70 97026

GSB70 97027

Length

3500mm

4000mm

4500mm

5000mm

Mini USB

Mini Universal Serial Bus

Materials

Housing

Platting on housing

Insulator

Contacts

– Phosphor Bronze (P/B)

– Tin/Lead over Ni

– 94V-0 thermoplastic

– P/B with 50µ” Ni

– 0.5A

– 30VAC/rms 60Hz

Temperature

-40 to 85ºC

Durability

1500 cycles

Electrical

Current

Voltage

Features

Full metal shell for ESD shielding

Interface speeds of 12Mbs

Part Number System:

GMSB X X X X X X

Mini USB Connector

NUMBER OF POSITIONS

04: 4 Postions

05: 5 Positions

MOUNTING STYLE

2: DIP Right Angle

3: SMT Right Angle

4: Cable Mount Solder Type

CONTACT FINISH

0: Gold Flash

1: 15 µ” Gold

2: 30µ” Gold

AMTA

Suffix may be added to Part Number.

This Suffix is for Internal use mainly.

Additional Suffix ‘EU’ or ‘LF’ may be

added for RoHS compliant product.

PACKING OPTION

0: Tube

1: Tape & Reel (SMT only)

2: PE Bag

3: Tray

COLOUR OF INSULATION

0: White

1: Black (Standard)

2: Beige

Dimensions in mm

H-10
