11395-5: Description4 CONTACT(S), FEMALE, RIGHT ANGLE TELECOM AND DATACOM CONNECTOR, SOLDER, JACK; CategoryThe connector The connector; File Size237KB，5 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

11395-5 Overview

4 CONTACT(S), FEMALE, RIGHT ANGLE TELECOM AND DATACOM CONNECTOR, SOLDER, JACK

11395-5 Parametric

Parameter Name	Attribute value
Objectid	1466329078
Reach Compliance Code	unknown
Other features	LOW PROFILE, SHIELDED
Body/casing type	JACK
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (6) OVER NICKEL
Contact completed and terminated	GOLD (6) OVER NICKEL
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	11395
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	NICKEL
Shell material	BRASS
Termination type	SOLDER
Total number of contacts	4
UL Flammability Code	94V-0

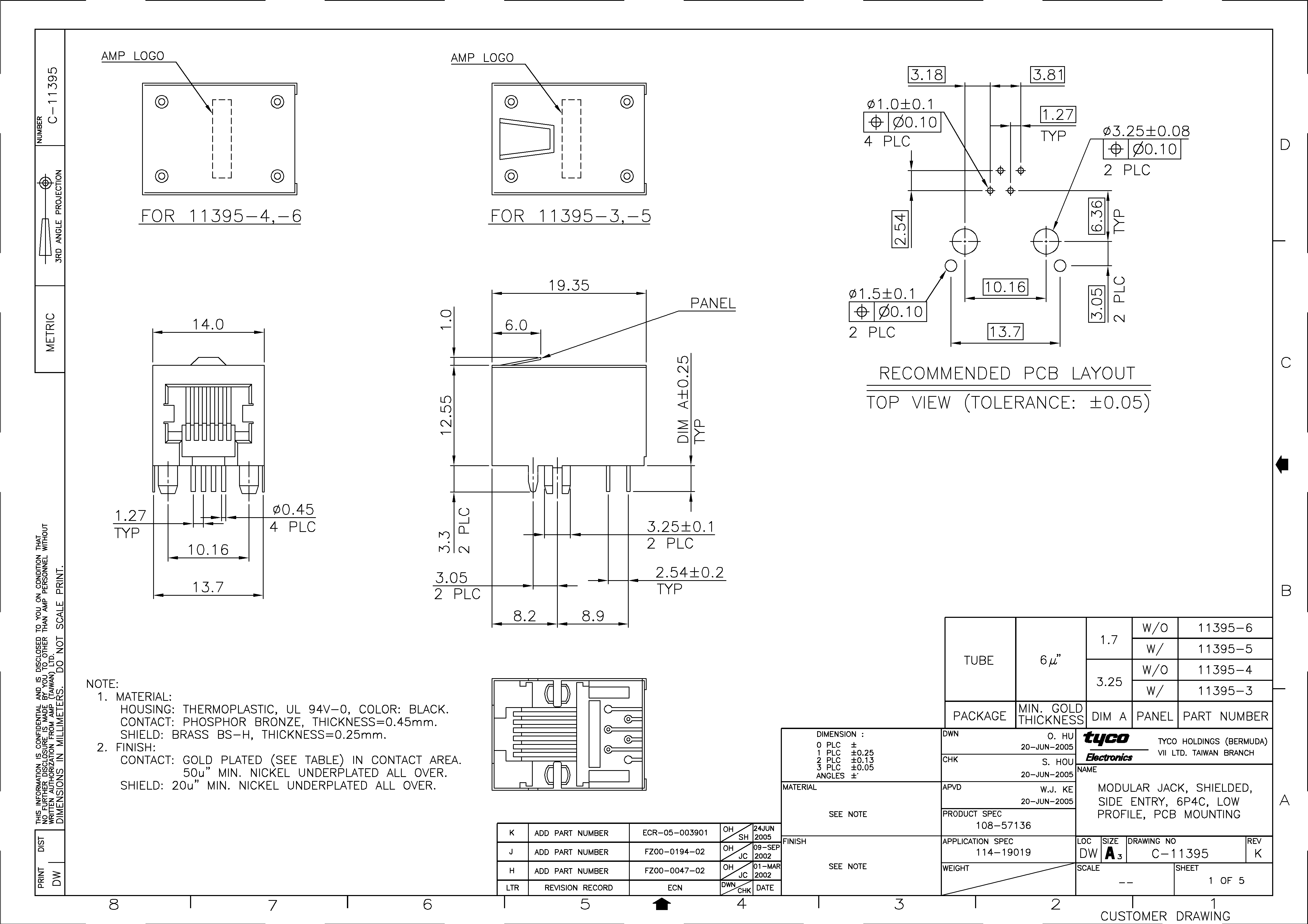

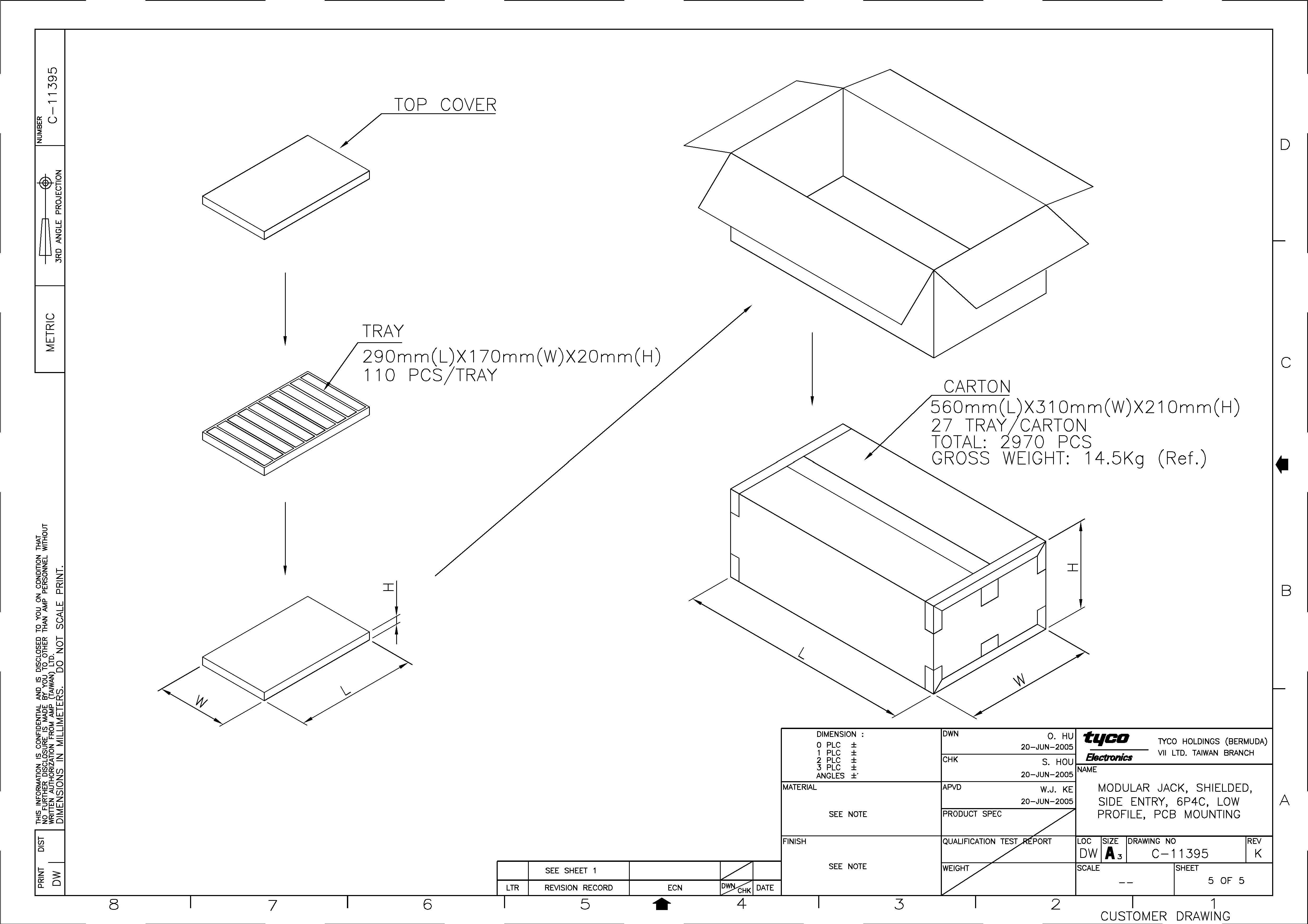

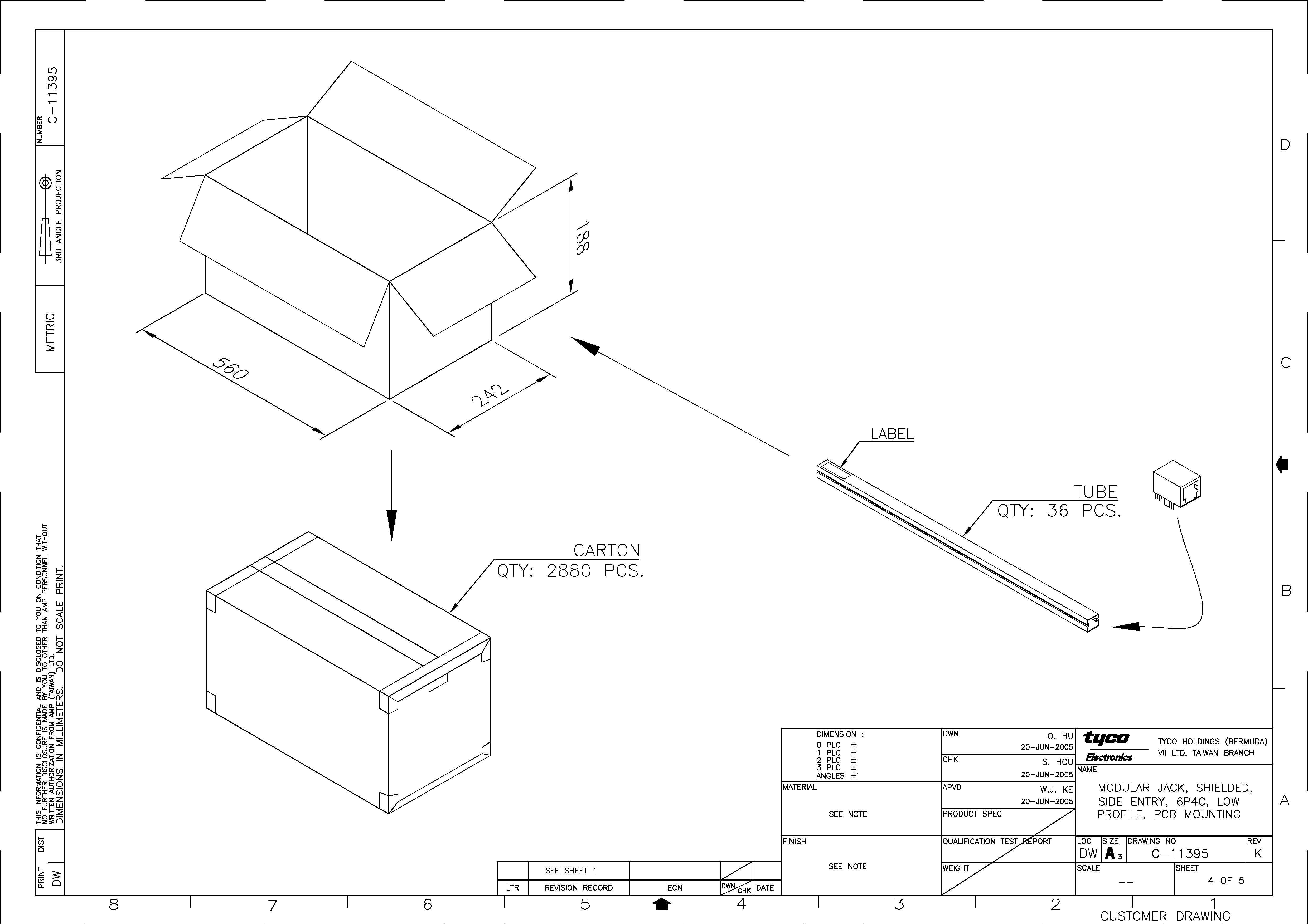

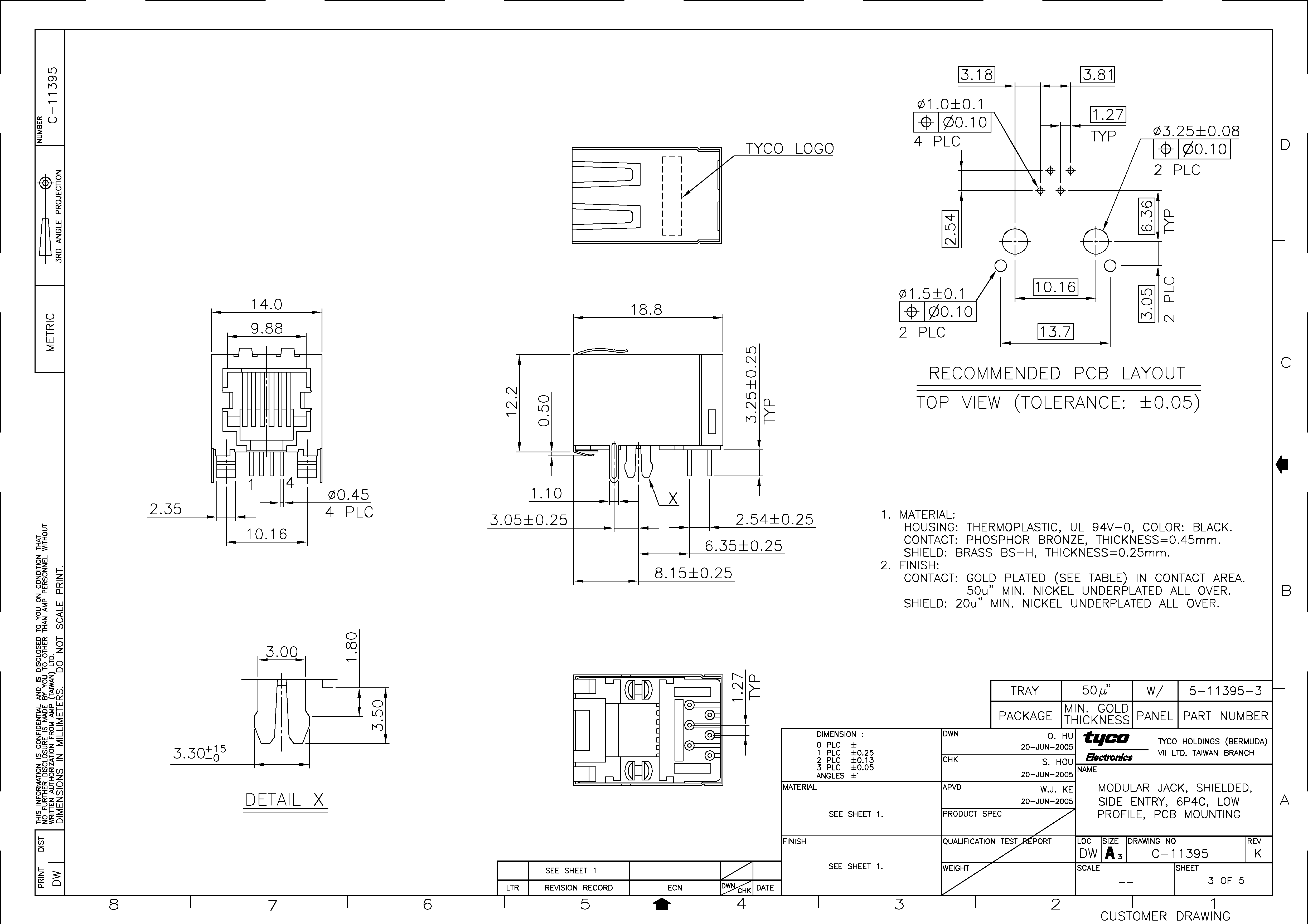

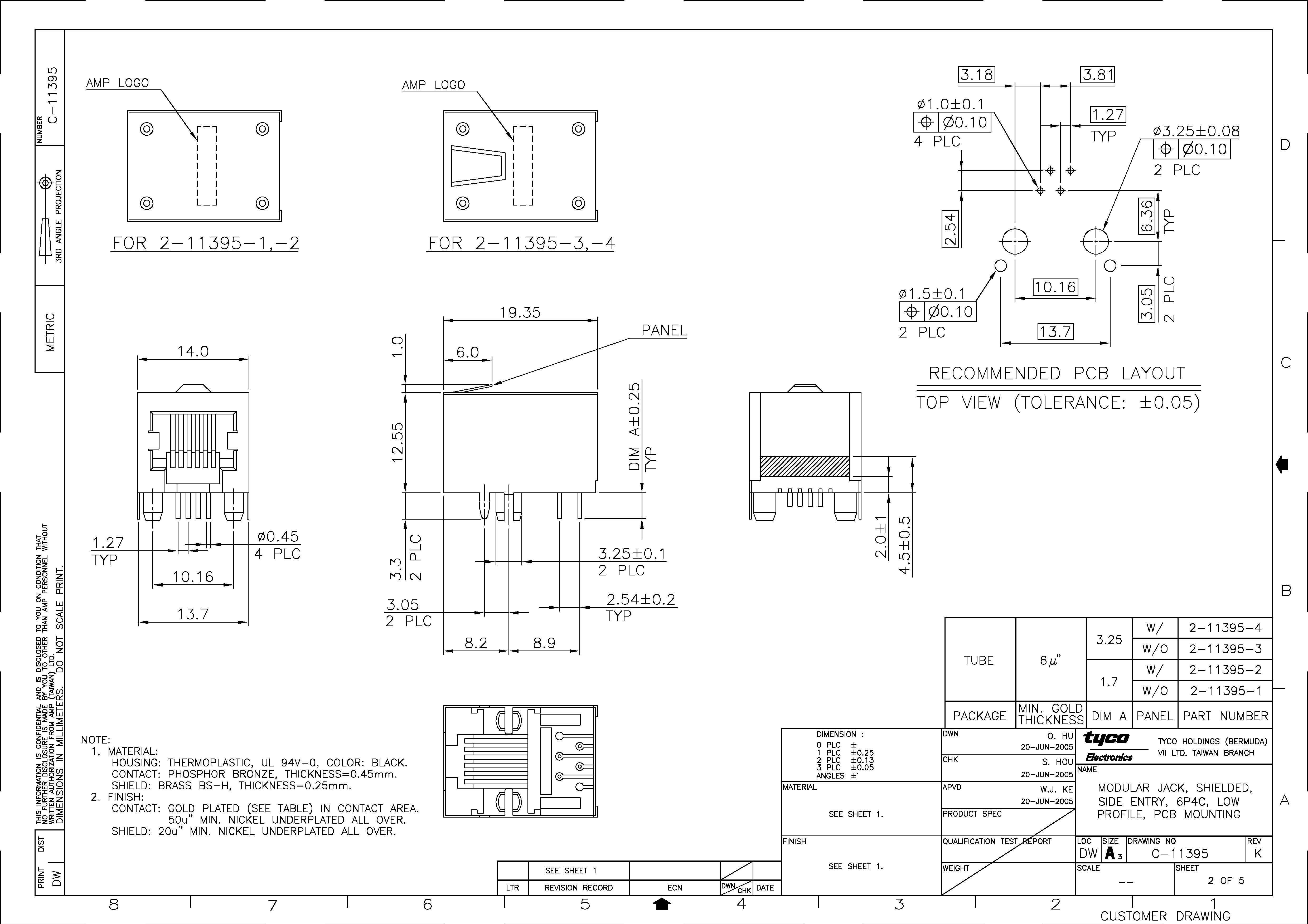

Preview

Download Datasheet

View All

11395-5 Related Products

	11395-5	2-11395-1	2-11395-2	2-11395-3	GSX-641/2P0BF24.0MHZ
Description	4 CONTACT(S), FEMALE, RIGHT ANGLE TELECOM AND DATACOM CONNECTOR, SOLDER, JACK	4 CONTACT(S), FEMALE, RIGHT ANGLE TELECOM AND DATACOM CONNECTOR, SOLDER, JACK	4 CONTACT(S), FEMALE, RIGHT ANGLE TELECOM AND DATACOM CONNECTOR, SOLDER, JACK	4 CONTACT(S), FEMALE, RIGHT ANGLE TELECOM AND DATACOM CONNECTOR, SOLDER, JACK	Parallel - Fundamental Quartz Crystal, 24MHz Nom,
Reach Compliance Code	unknown	unknown	unknown	unknown	compliant
Other features	LOW PROFILE, SHIELDED	LOW PROFILE, SHIELDED	LOW PROFILE, SHIELDED	LOW PROFILE, SHIELDED	TR
Objectid	1466329078	-	-	1466329082	1259083019
Body/casing type	JACK	JACK	JACK	JACK	-
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	-
Contact to complete cooperation	GOLD (6) OVER NICKEL	GOLD (6) OVER NICKEL	GOLD (6) OVER NICKEL	GOLD (6) OVER NICKEL	-
Contact completed and terminated	GOLD (6) OVER NICKEL	GOLD (6) OVER NICKEL	GOLD (6) OVER NICKEL	GOLD (6) OVER NICKEL	-
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	-
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
DIN compliance	NO	NO	NO	NO	-
empty shell	NO	NO	NO	NO	-
Filter function	NO	NO	NO	NO	-
IEC compliance	NO	NO	NO	NO	-
insulator material	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	-
JESD-609 code	e4	e4	e4	e4	-
MIL compliance	NO	NO	NO	NO	-
Manufacturer's serial number	11395	11395	11395	11395	-
Mixed contacts	NO	NO	NO	NO	-
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	-
Installation type	BOARD	BOARD	BOARD	BOARD	-
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-
Shell surface	NICKEL	NICKEL	NICKEL	NICKEL	-
Shell material	BRASS	BRASS	BRASS	BRASS	-
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	-
Total number of contacts	4	4	4	4	-
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	-
