98401-107-10LF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 98401-107-10LF

98401-107-10LF: DescriptionBoard Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle, ROHS COMPLIANT; CategoryThe connector The connector; File Size98KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

98401-107-10LF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	98401-107-10LF	-	-	View	Buy Now

98401-107-10LF Overview

Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle, ROHS COMPLIANT

98401-107-10LF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Is Samacsys	N
body width	0.19 inch
subject depth	0.149 inch
body length	0.5 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	MATTE TIN OVER NICKEL
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.715 mm
Plating thickness	30u inch
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	10
UL Flammability Code	94V-0
Base Number Matches	1

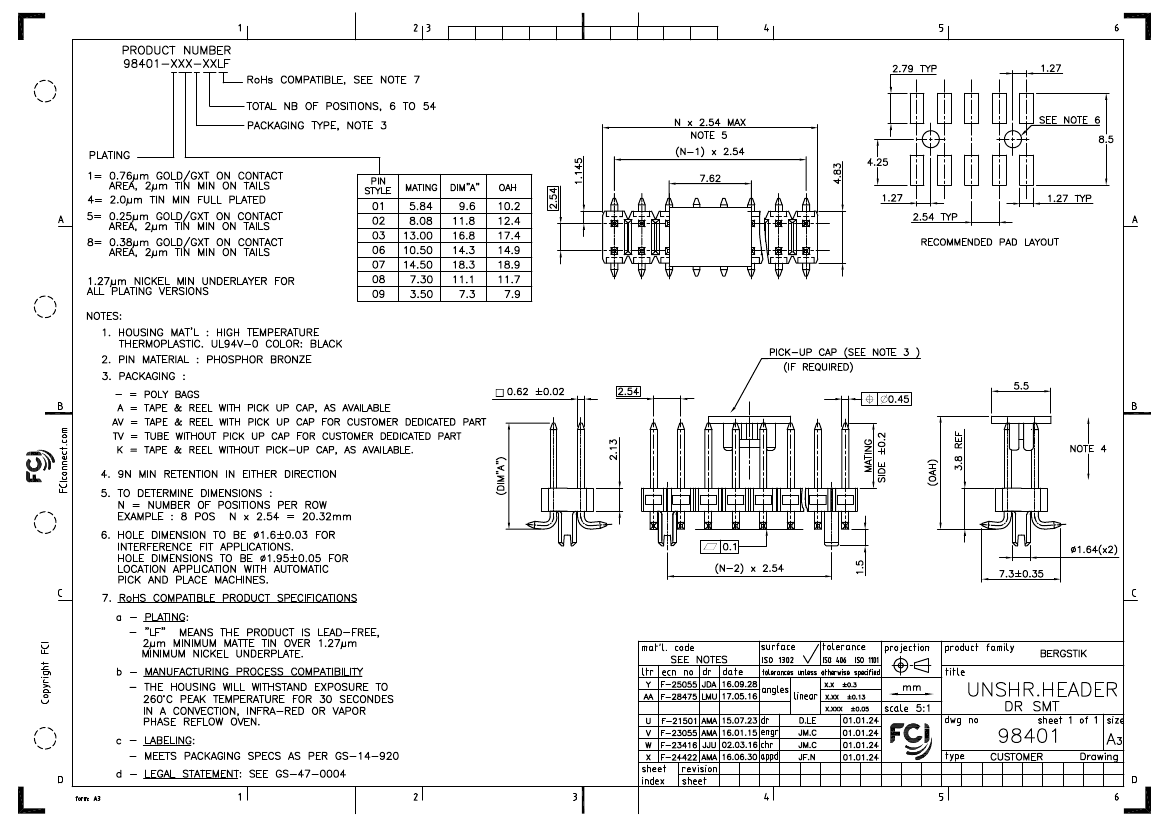

Preview

Download Datasheet

View All

PDS: Rev :AA

STATUS:Released

Printed: Nov 14, 2017
