KNF21200C33DA3TS datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> filter> KNF21200C33DA3TS

KNF21200C33DA3TS: DescriptionData Line Filter, 1 FUNCTIONS, 25 V, 0.15 A, DATA LINE FILTER, SURFACE MOUNT; CategoryAnalog mixed-signal IC filter; File Size97KB，2 Pages; ManufacturerKyocera

Download Datasheet Parametric Compare View All

KNF21200C33DA3TS Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	KNF21200C33DA3TS	-	-	View	Buy Now

KNF21200C33DA3TS Overview

Data Line Filter, 1 FUNCTIONS, 25 V, 0.15 A, DATA LINE FILTER, SURFACE MOUNT

KNF21200C33DA3TS Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
capacitance	33 µF
filter type	DATA LINE FILTER
high	0.8 mm
length	2 mm
Installation type	SURFACE MOUNT
Number of functions	1
method of packing	TAPE AND REEL
physical size	L2.0XB1.25XH0.8 (mm)/L0.079XB0.049XH0.031 (inch)
Rated current	0.15 A
Rated voltage	25 V
width	1.25 mm
Base Number Matches	1

Preview

Download Datasheet

View All

EMI Filters

KNF21 Series

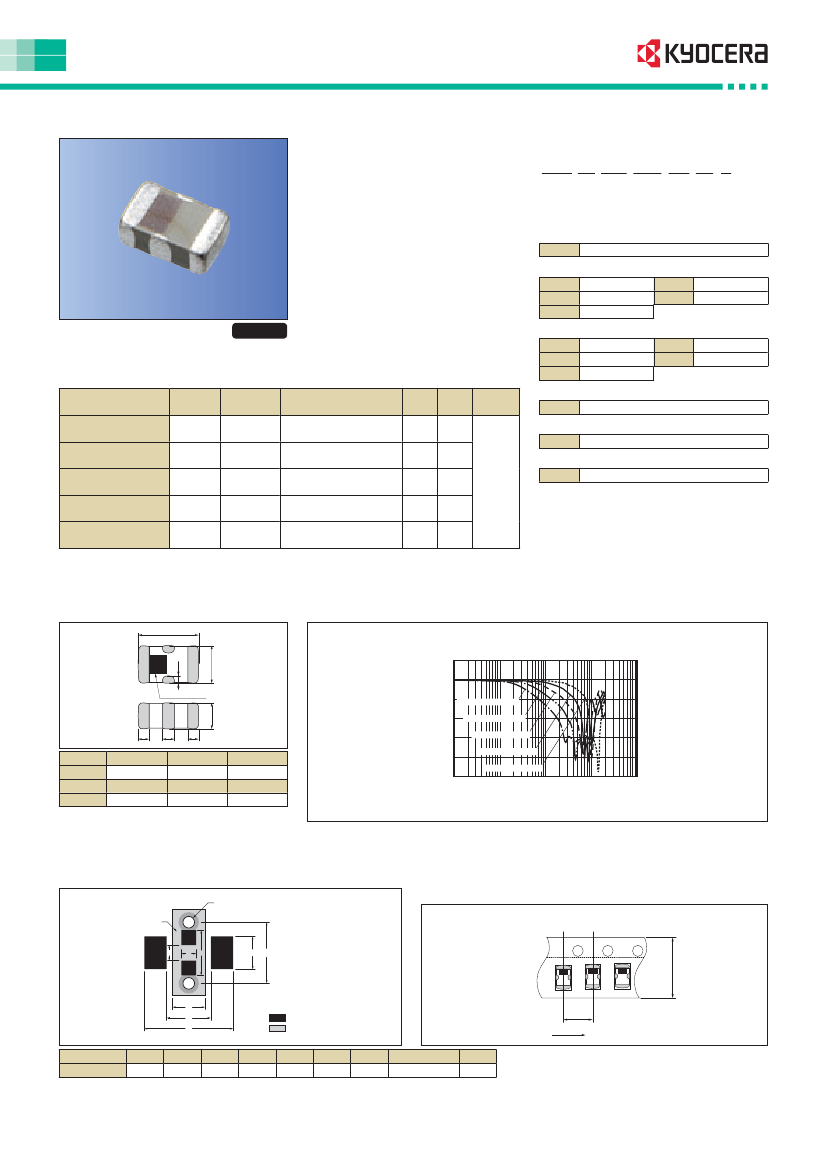

Features

• Distributed constant type LC filter.

Prevents ringing caused by circuit

impedance.

• Stable noise attenuation over wide

frequency range.

• Low profile (T=0.95mm max.) suitable for

miniature electronic equipments.

• First class auto-placement

How to Order

KNF 21 100 C65 DA 3T S

①

② ③

④

⑤ ⑥ ⑦

①

Series

②

Size Code

025

050

100

C17

C33

C65

2012 (EIA: 0805)

25MHz

50MHz

100MHz

17pF

33pF

65pF

200

400

200MHz

400MHz

③

Cut off Frequency

Applications

RoHS Compliant

• PCs, Laser Printers, Cellular Phone,

Clock Data Lines for LCD Display

• High Speed Video Signal Circuits and

Interface Circuits

• High Speed Digital Circuits

Attenuation

(Typical)

Rated Rated Operating

Current Voltage Temperature

④

Capacitance

C130

C235

130pF

235pF

Specifications

Part Number

Cut off Capacitance

Frequency (+50/

−20%)

235pF

130pF

65pF

33pF

17pF

⑤

Application

Digital Circuit in General

T&R: 3000 pcs. (Std.)

Std.

KNF21025C235DA3TS

25MHz

KNF21050C130DA3TS

50MHz

KNF21100C65DA3TS

100MHz

KNF21200C33DA3TS

200MHz

KNF21400C17DA3TS

400MHz

•

Storage

200 to 600MHz (@20dB) 150mA 25VDC

350 to 850MHz (@20dB) 150mA 25VDC

450 to 950MHz (@20dB) 150mA 25VDC

−25

+85°C

700 to 1200MHz (@20dB) 150mA 25VDC

900 to 1400MHz (@20dB) 150mA 25VDC

⑥

Packaging

⑦ Termination

condition

Temperature:

−10

+45°C

Humidity: 45 to 75%RH

Dimensions

(Unit: mm)

Attenuation Characteristics

KNF21 Series

Attenuation (dB)

OUT

Input Direction Mark

−

KNF21025C235DA

KNF21050C130DA

KNF21100C65DA

KNF21200C33DA

KNF21400C17DA

100

1000

10000

CODE

Dimensions

2.00±0.20 1.25±0.20 0.80±0.15

CODE

≥0.01

Dimensions

0.40±0.30 0.30±0.20

Frequency (MHz)

Recommended Land Pattern

(Unit: mm)

Packaging Specification

• Taping (3,000/ reel)

Taping Direction (W)

(Unit: mm)

4.0

W (Standard)

Direction of Feed

CODE

Dimensions

3.20

2.30

1.00

1.20

0.80

0.40

0.60

0.3 to 0.4

2.00

8.0

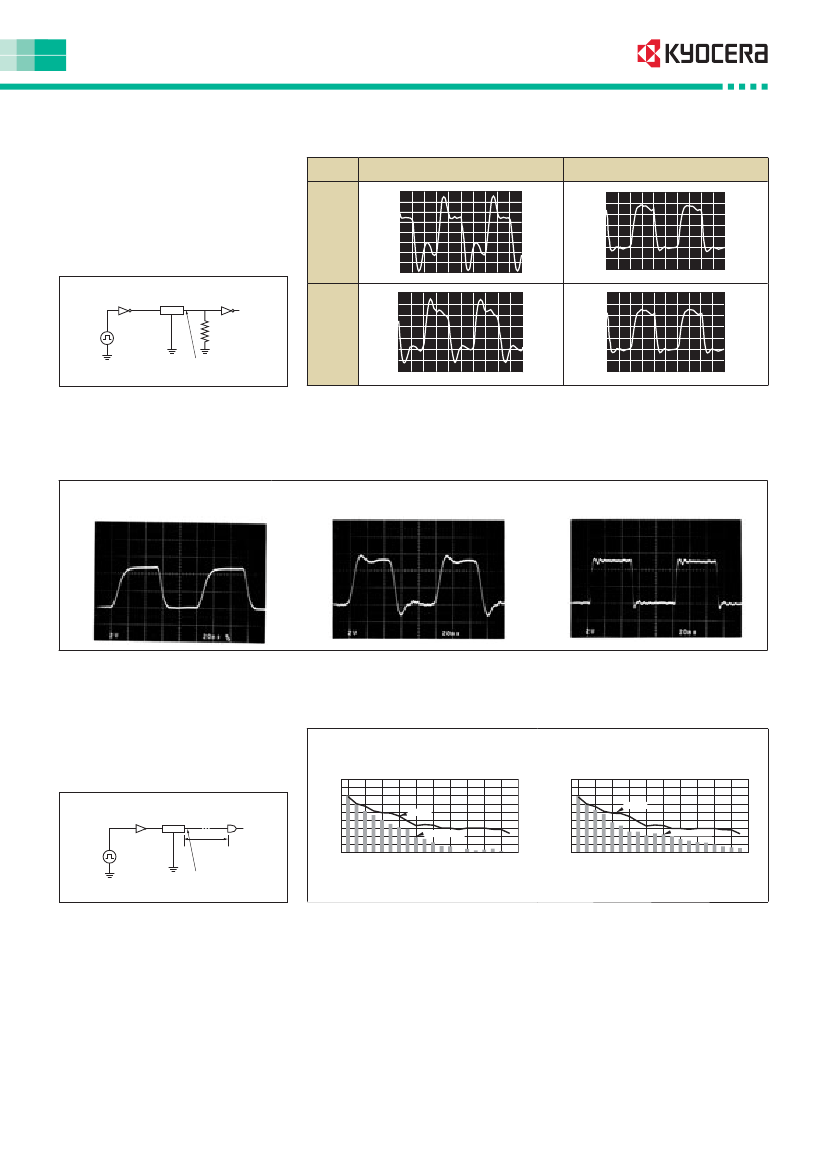

KNF21200C33DA3TS Related Products

	KNF21200C33DA3TS	KNF21400C17DA3TS	KNF21025C235DA3TS	KNF21050C130DA3TS	KNF21100C65DA3TS
Description	Data Line Filter, 1 FUNCTIONS, 25 V, 0.15 A, DATA LINE FILTER, SURFACE MOUNT	FILTER LC 17PF 400MHZ SMD	Data Line Filter, 1 FUNCTIONS, 25 V, 0.15 A, DATA LINE FILTER, SURFACE MOUNT	Data Line Filter, 1 FUNCTIONS, 25 V, 0.15 A, DATA LINE FILTER, SURFACE MOUNT	Data Line Filter, 1 FUNCTIONS, 25 V, 0.15 A, DATA LINE FILTER, SURFACE MOUNT
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
capacitance	33 µF	17 µF	235 µF	130 µF	65 µF
filter type	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER
high	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm
length	2 mm	2 mm	2 mm	2 mm	2 mm
Installation type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	1	1	1	1	1
method of packing	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL
physical size	L2.0XB1.25XH0.8 (mm)/L0.079XB0.049XH0.031 (inch)	L2.0XB1.25XH0.8 (mm)/L0.079XB0.049XH0.031 (inch)	L2.0XB1.25XH0.8 (mm)/L0.079XB0.049XH0.031 (inch)	L2.0XB1.25XH0.8 (mm)/L0.079XB0.049XH0.031 (inch)	L2.0XB1.25XH0.8 (mm)/L0.079XB0.049XH0.031 (inch)
Rated current	0.15 A	0.15 A	0.15 A	0.15 A	0.15 A
Rated voltage	25 V	25 V	25 V	25 V	25 V
width	1.25 mm	1.25 mm	1.25 mm	1.25 mm	1.25 mm
Is it Rohs certified?	-	conform to	conform to	conform to	conform to
Maker	-	Kyocera	Kyocera	Kyocera	Kyocera
