Product Data Sheet

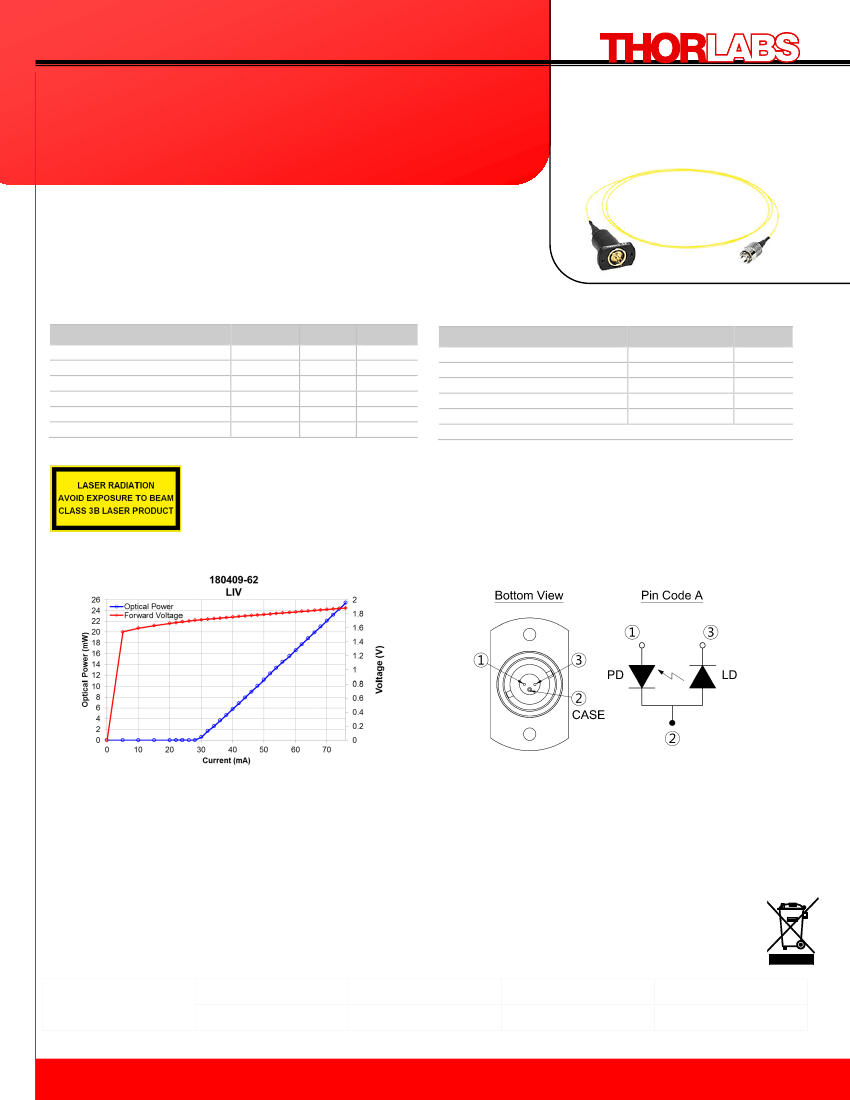

Single Mode Fiber-Pigtailed Laser
S/N: 180409-62

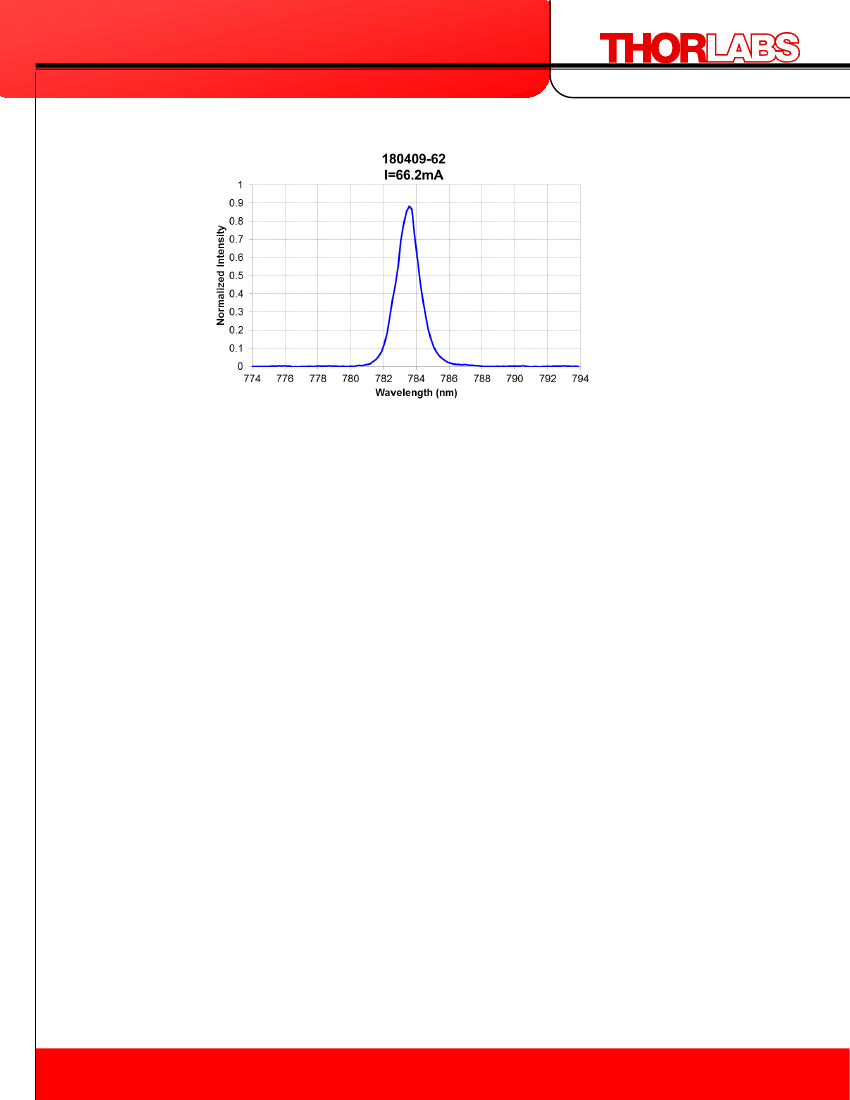

Center Wavelength: 783.5 nm
Fiber Type: 780HP
Test Date: 4/11/2018
LP785-SF20
ËLP785-SF20=Î
Ë180409-62<Î
Diode Package: TO 5.6 mm
Connector: FC/PC
Tested By: Leila
QA: Pass
Summary of Test Data ( CW, T
case
=25°C)
Absolute Maximum Ratings
Parameter
Fiber Output Power
Operating Current@P
op
Operating Voltage@P
op
Monitor Current @P
op
Threshold Current
Slope Efficiency
Symbol
P
op
I
op
V
op
I
mon
I
th
ΔP/ΔI
Value
20.0
66.2
1.85
0.175
29.3
0.55
Unit
mW
mA
V
mA
mA
W/A
Parameter
Laser Diode Current*
Optical Output Power*
LD Reverse Voltage*
Storage Temperature
Case Temperature
* CW, T
case
=25°C
Ratings
76
25
2
-10~+65
0~+50
Unit
mA
mW
V
°C
°C
CAUTION- use of controls or adjustments or performance of procedures other than those specified
herein may result in hazardous radiation exposure. There are no user serviceable parts in this product.
When proper power is applied to this product, Laser radiation will be emitted from the optical fiber.
Important Notes:
1.
2.
3.
4.
T
he maximum ratings mean the limitation over which the laser should not be operated even instant time.
Do not clean the fiber connector when the diode is in operation. The laser should be off when plugging or un-plugging the connector.
To protect the laser diode from damage due to static electricity (ESD), please follow proper ESD handling precautions.
Do not pull or fold the fiber. The fiber is very fragile and easily broken. Avoid handling the fiber by the rubber “boots” of the black
housing and connector ends of the pigtail.
5. To ensure safe operation use only with a suitable power source that complies with the pertinent requirements for laser systems as
specified in IEC-60825-1 “Safety of Laser Products.”
Thorlabs Inc
56 Sparta Avenue
Newton, New Jersey 07860
USA
US, Canada & South America
1-973-300-3000
Brazil
+55-16-3413 7062
France
+33 (0)970 440 844
Scandinavia
+46-31-733-30-00
Europe
+49 (0) 8131-5956-0
Japan & Asia
+81-3-5979-8889
UK & Ireland
+44 (0)1353-654440
China
+86 (0)21-60561122
