Part Number

Search

10537/BEAJC

Description
Decade Counter, 10K Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, ECL, CDIP16, CERDIP-16
Categorylogic    logic
File Size786KB,13 Pages
ManufacturerMotorola ( NXP )
Websitehttps://www.nxp.com
Download Datasheet Parametric Compare View All

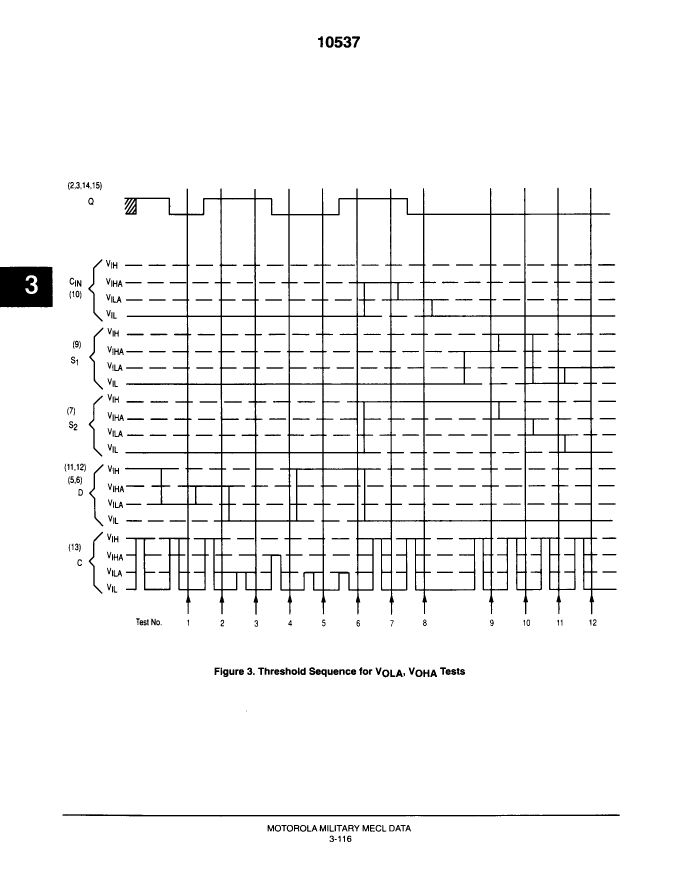

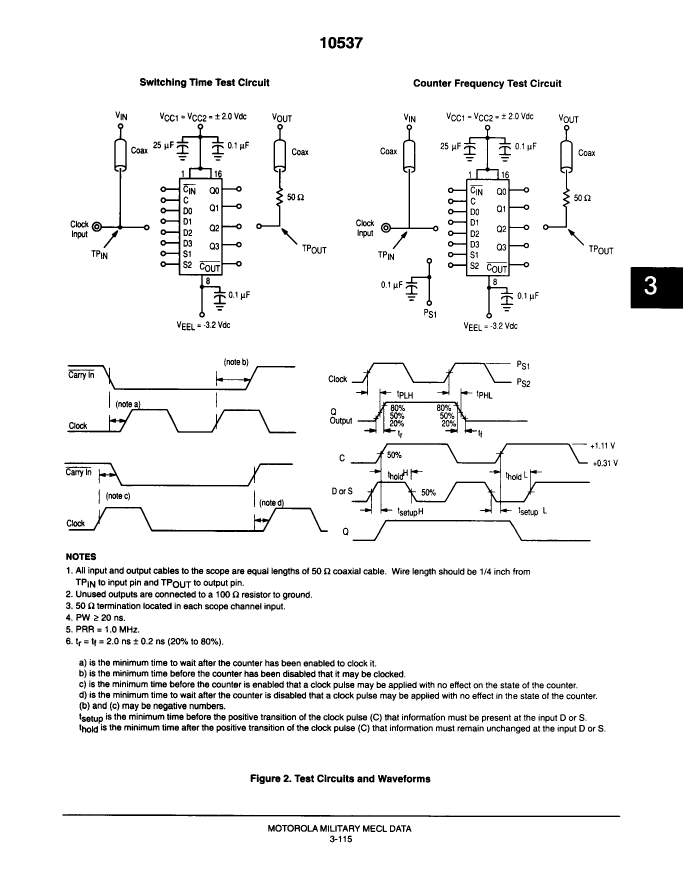

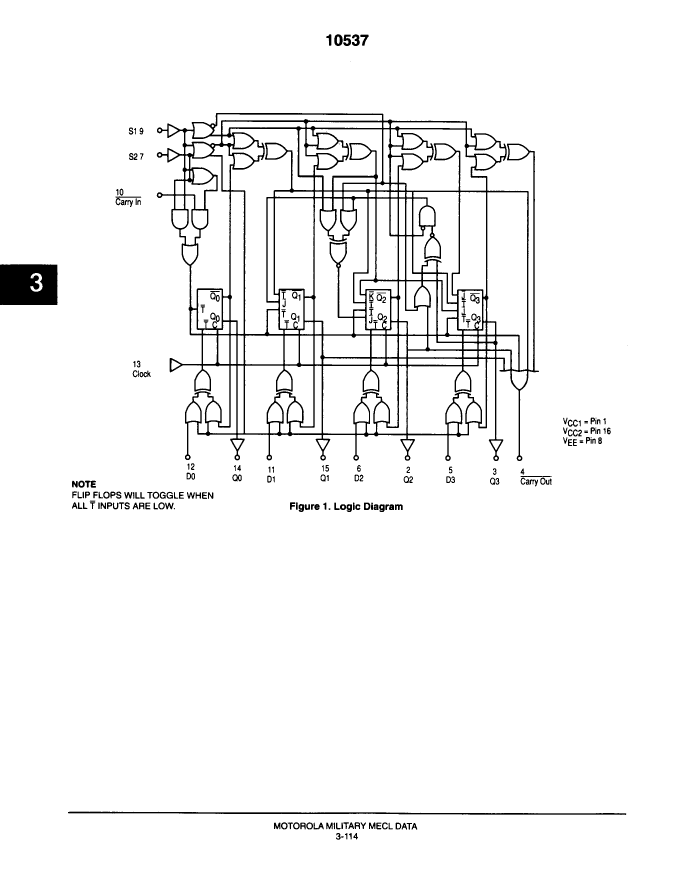

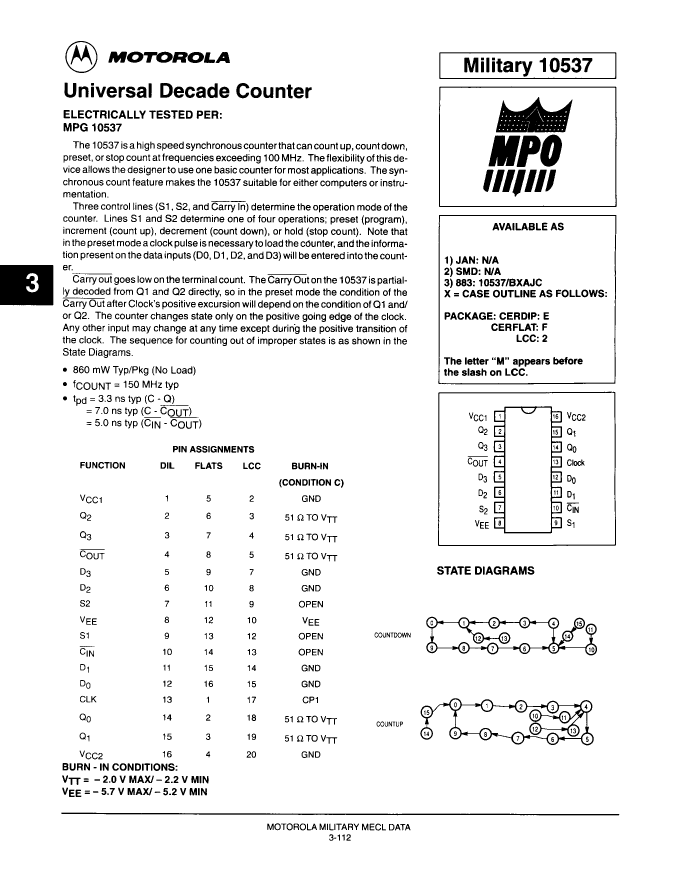

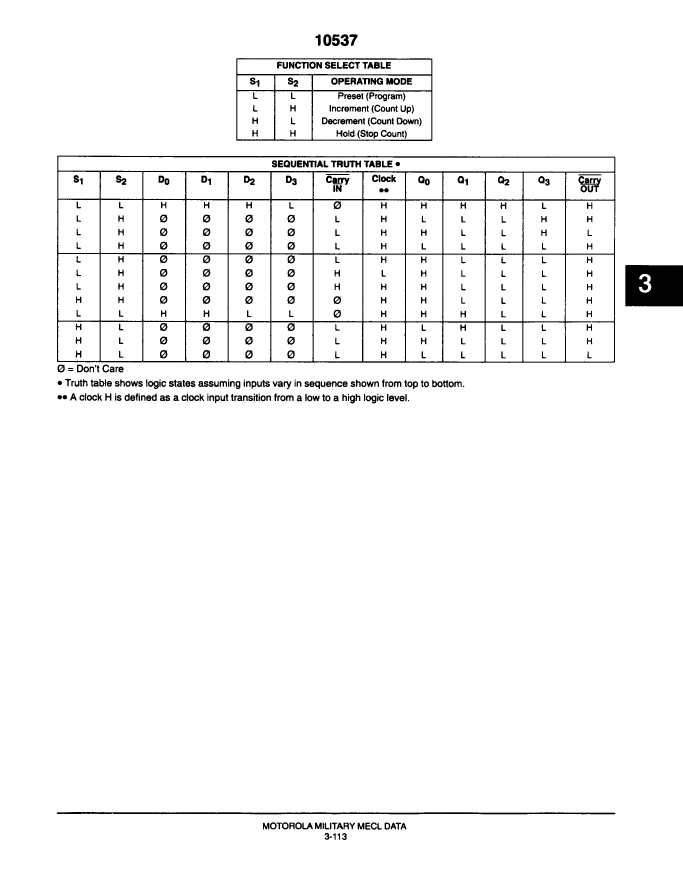

10537/BEAJC Overview

Decade Counter, 10K Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, ECL, CDIP16, CERDIP-16

10537/BEAJC Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
package instructionDIP, DIP16,.3
Reach Compliance Codeunknown
Is SamacsysN
Other featuresTCO OUTPUT; COUNT ENABLE INPUT
Counting directionBIDIRECTIONAL
series10K
JESD-30 codeR-GDIP-T16
JESD-609 codee0
length19.495 mm
Load/preset inputYES
Logic integrated circuit typeDECADE COUNTER
Maximum Frequency@Nom-Sup115000000 Hz
Operating modeSYNCHRONOUS
Number of digits4
Number of functions1
Number of terminals16
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Output characteristicsOPEN-EMITTER
Package body materialCERAMIC, GLASS-SEALED
encapsulated codeDIP
Encapsulate equivalent codeDIP16,.3
Package shapeRECTANGULAR
Package formIN-LINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
power supply-5.2 V
Maximum supply current (ICC)165 mA
propagation delay (tpd)5.2 ns
Certification statusNot Qualified
Filter level38535Q/M;38534H;883B
Maximum seat height5.08 mm
surface mountNO
technologyECL
Temperature levelMILITARY
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
Trigger typePOSITIVE EDGE
width7.62 mm
minfmax115 MHz
Base Number Matches1

10537/BEAJC Related Products

10537/BEAJC
Description Decade Counter, 10K Series, Synchronous, Positive Edge Triggered, 4-Bit, Bidirectional, ECL, CDIP16, CERDIP-16
Is it Rohs certified? incompatible
package instruction DIP, DIP16,.3
Reach Compliance Code unknown
Is Samacsys N
Other features TCO OUTPUT; COUNT ENABLE INPUT
Counting direction BIDIRECTIONAL
series 10K
JESD-30 code R-GDIP-T16
JESD-609 code e0
length 19.495 mm
Load/preset input YES
Logic integrated circuit type DECADE COUNTER
Maximum Frequency@Nom-Sup 115000000 Hz
Operating mode SYNCHRONOUS
Number of digits 4
Number of functions 1
Number of terminals 16
Maximum operating temperature 125 °C
Minimum operating temperature -55 °C
Output characteristics OPEN-EMITTER
Package body material CERAMIC, GLASS-SEALED
encapsulated code DIP
Encapsulate equivalent code DIP16,.3
Package shape RECTANGULAR
Package form IN-LINE
Peak Reflow Temperature (Celsius) NOT SPECIFIED
power supply -5.2 V
Maximum supply current (ICC) 165 mA
propagation delay (tpd) 5.2 ns
Certification status Not Qualified
Filter level 38535Q/M;38534H;883B
Maximum seat height 5.08 mm
surface mount NO
technology ECL
Temperature level MILITARY
Terminal surface Tin/Lead (Sn/Pb)
Terminal form THROUGH-HOLE
Terminal pitch 2.54 mm
Terminal location DUAL
Maximum time at peak reflow temperature NOT SPECIFIED
Trigger type POSITIVE EDGE
width 7.62 mm
minfmax 115 MHz
Base Number Matches 1
