M2019SS1W01-BA datasheet, PDF - EEWORLD Datasheet

M2019SS1W01-BA: DescriptionToggle Switch, SPDT, On-off-(on), Horizontal, Solder Lug Terminal, Toggle Bat Actuator, Panel Mount; CategoryMechanical and electronic products switch; File Size1MB，10 Pages; ManufacturerNDK; Websitehttp://www.ndk.com/en/

Download Datasheet Parametric View All

M2019SS1W01-BA Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	M2019SS1W01-BA	-	-	View	Buy Now

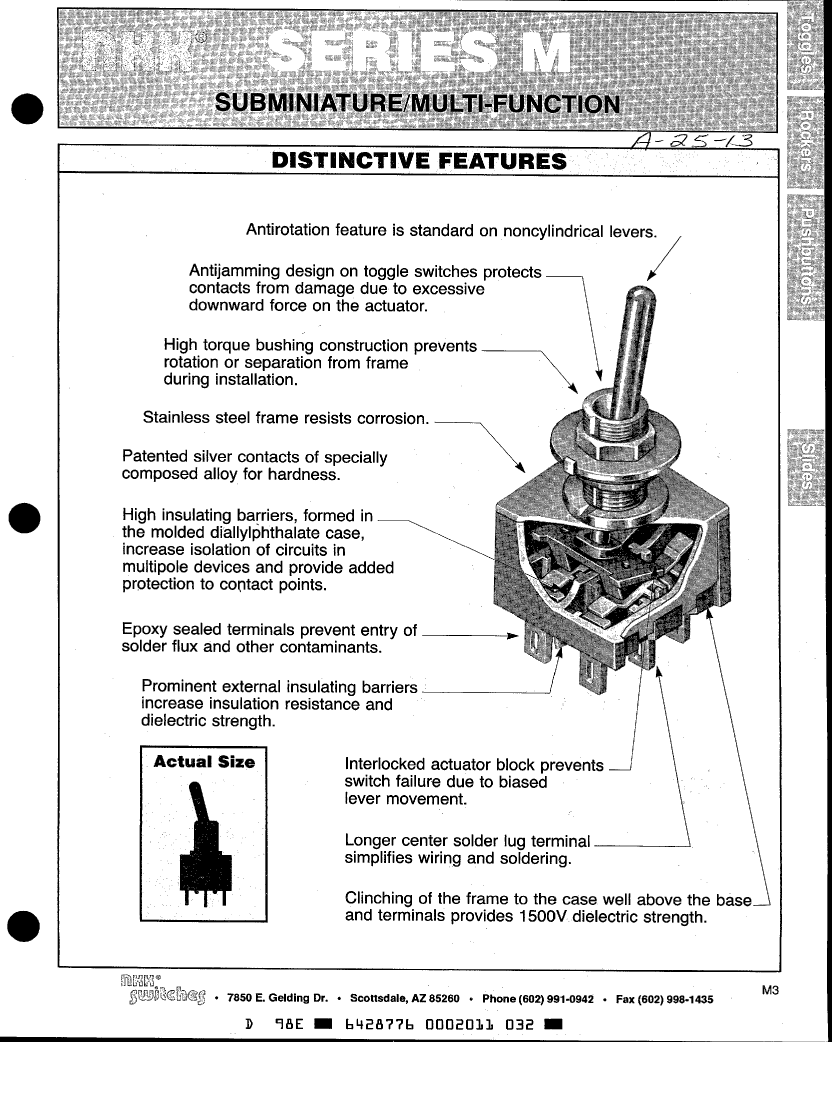

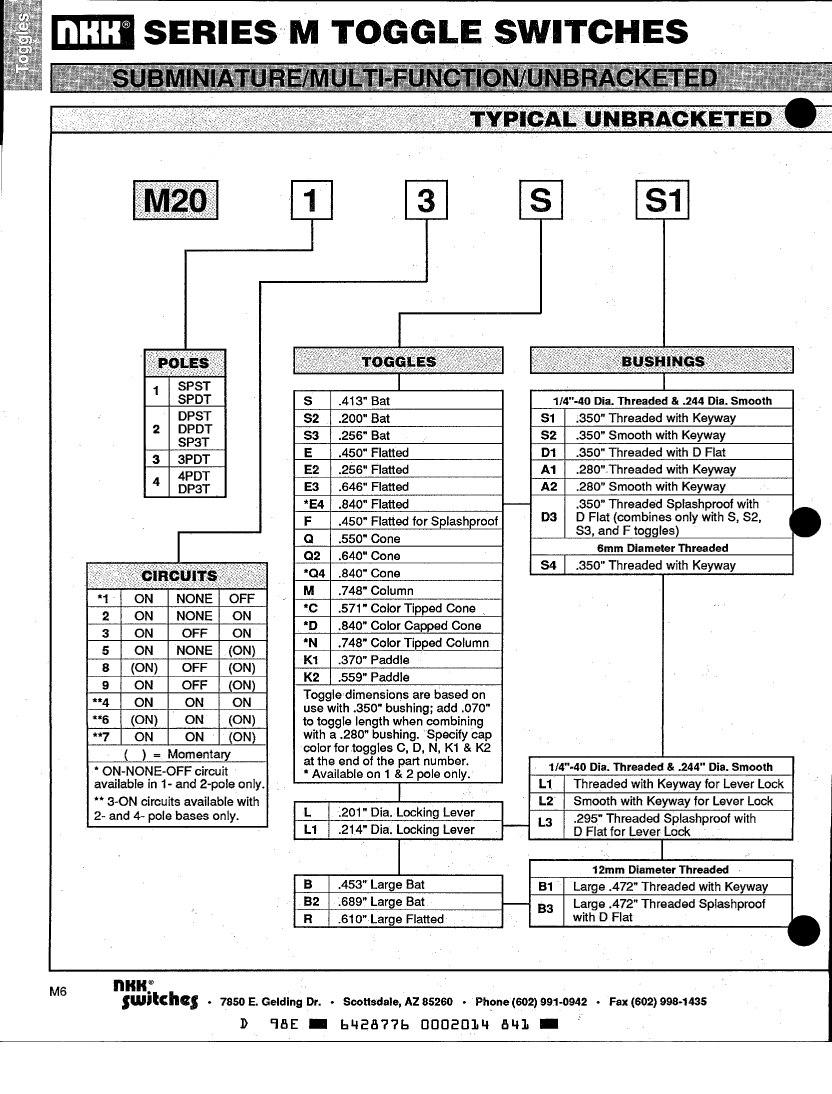

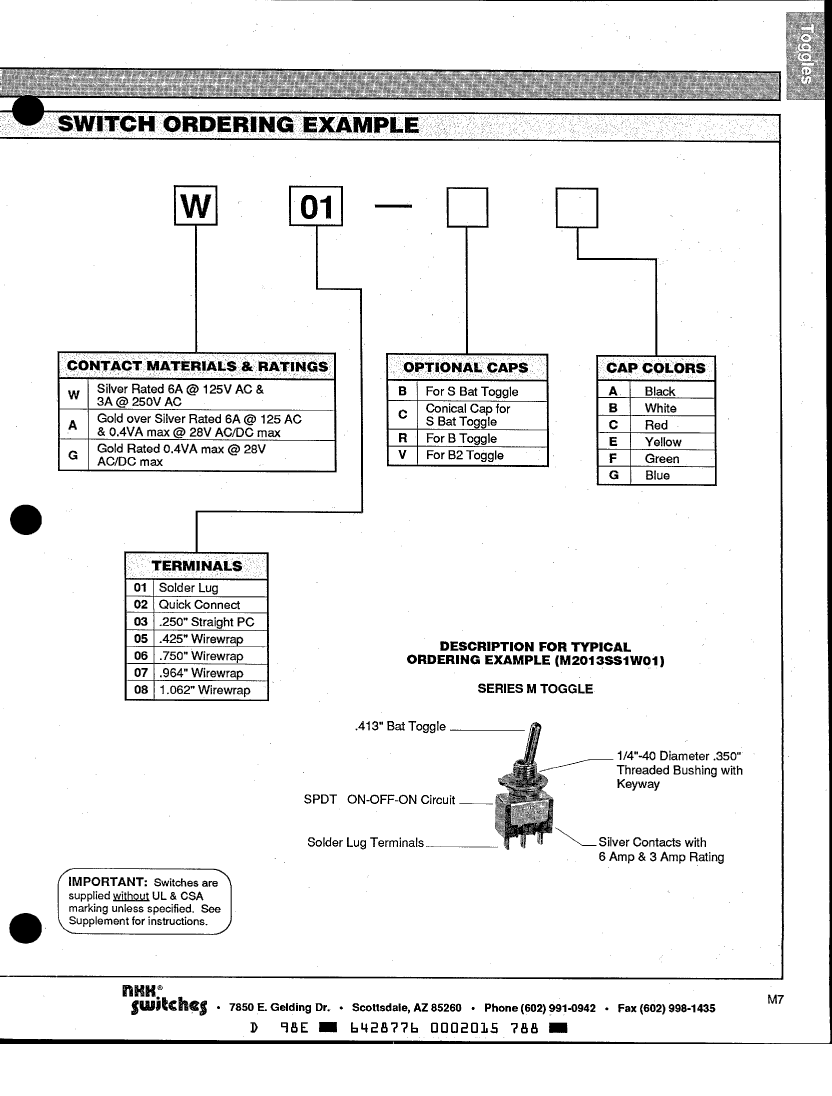

Toggle Switch, SPDT, On-off-(on), Horizontal, Solder Lug Terminal, Toggle Bat Actuator, Panel Mount

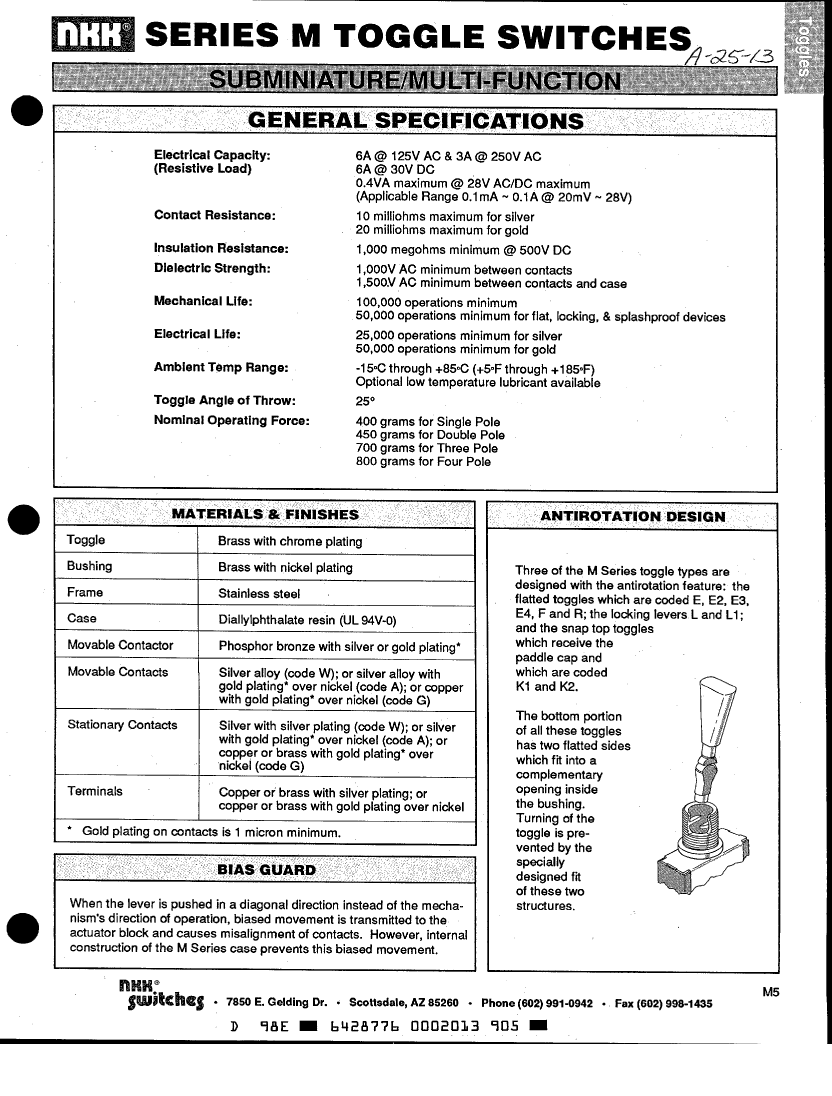

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	NDK
Reach Compliance Code	not_compliant
Actuator angle	25 deg
Actuator color	BLACK
Actuator length	0.532 inch
Actuator material	BRASS
Actuator type	TOGGLE BAT
body width	7.8994 mm
body height	35.814 mm
Body length or diameter	13.0048 mm
Casing diameter	0.25 inch
Nozzle length	0.35 inch
Casing type	1/4-40
center contact material	SILVER
Center contact plating	SILVER
Contact (AC) maximum rated R load	3A@250VAC
Maximum contact current (AC)	3 A

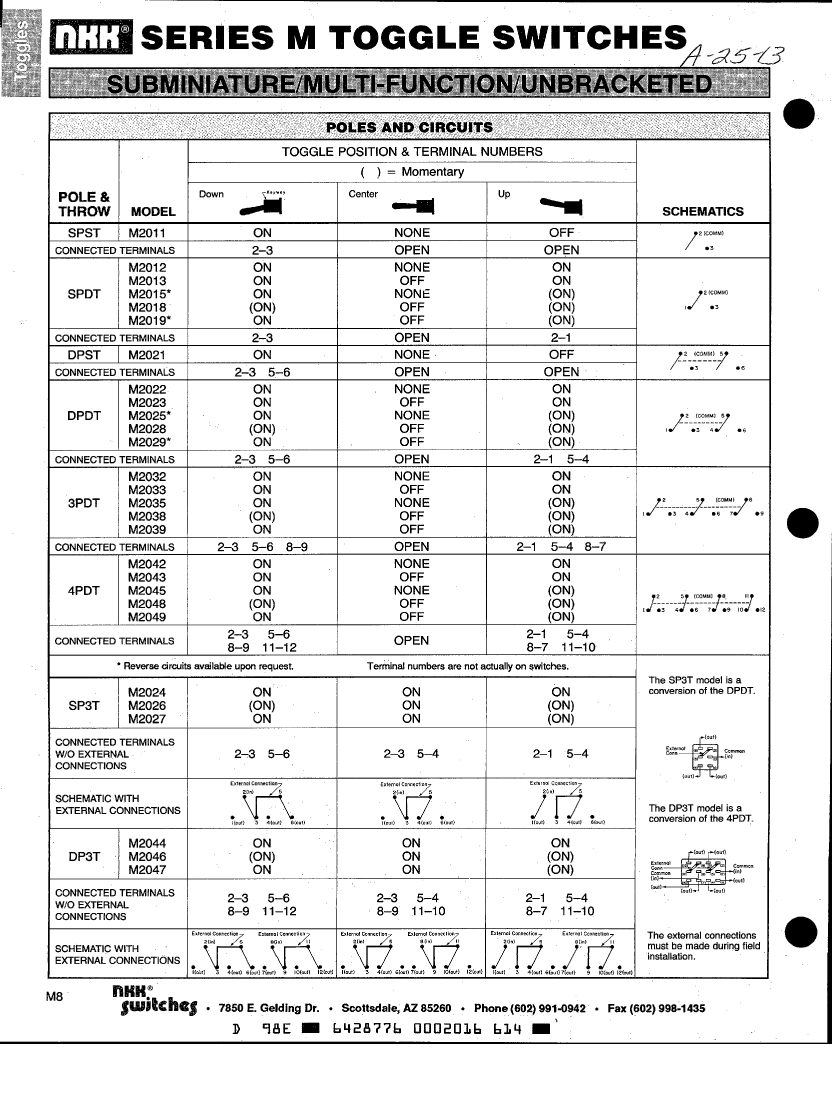

Contact function	ON-OFF-(ON)
Contact resistance	0.01 mΩ
Maximum contact voltage (AC)	250 V
Dielectric withstand voltage	1500VAC V
Electrical life	25000 Cycle(s)
End contact material	SILVER
End contact plating	SILVER
Shell material	STAINLESS STEEL
Insulation resistance	1000000000 Ω
insulator material	DIALLYL PHTHALATE
JESD-609 code	e4
Installation features	PANEL MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-15 °C
seal	EPOXY
Solderability	WAVE
surface mount	NO
Switch action	HORIZONTAL
switch function	SPDT
Switch type	TOGGLE SWITCH
Terminal surface	GOLD OVER NICKEL/SILVER
Terminal length	0.157 inch
Terminal material	COPPER ALLOY
Termination type	SOLDER LUG

Printed from www.freetradezone.com, a service of Partminer, Inc.

This Material Copyrighted By Its Respective Manufacturer
