Part Number

Search

10553M/B2AJC

Description
10K SERIES, DUAL LOW LEVEL TRIGGERED D LATCH, TRUE OUTPUT, CQCC20, CERAMIC, LCC-20
Categorylogic    logic
File Size108KB,5 Pages
ManufacturerMotorola ( NXP )
Websitehttps://www.nxp.com
Download Datasheet Parametric Compare View All

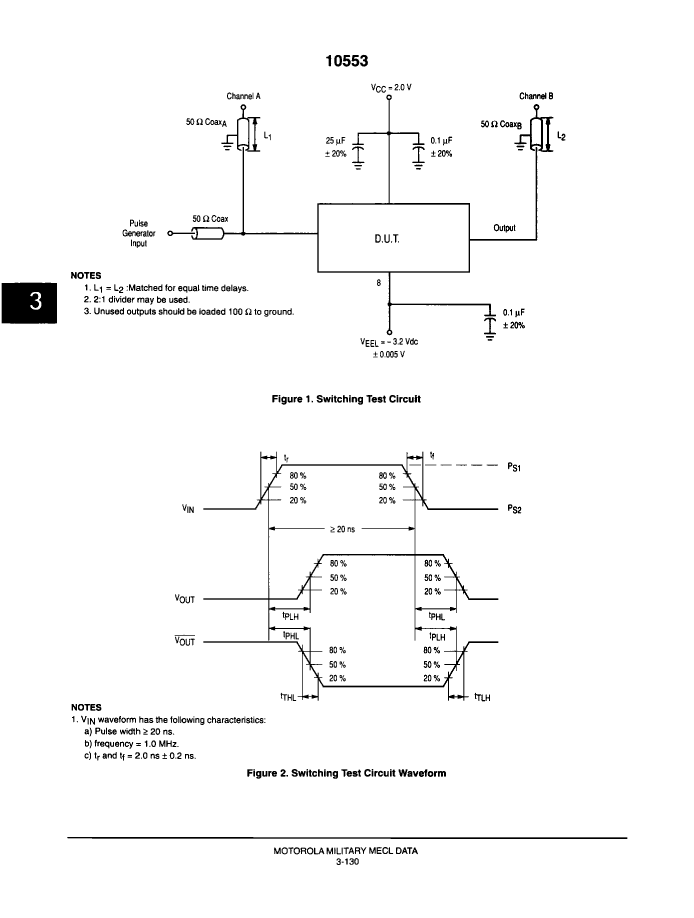

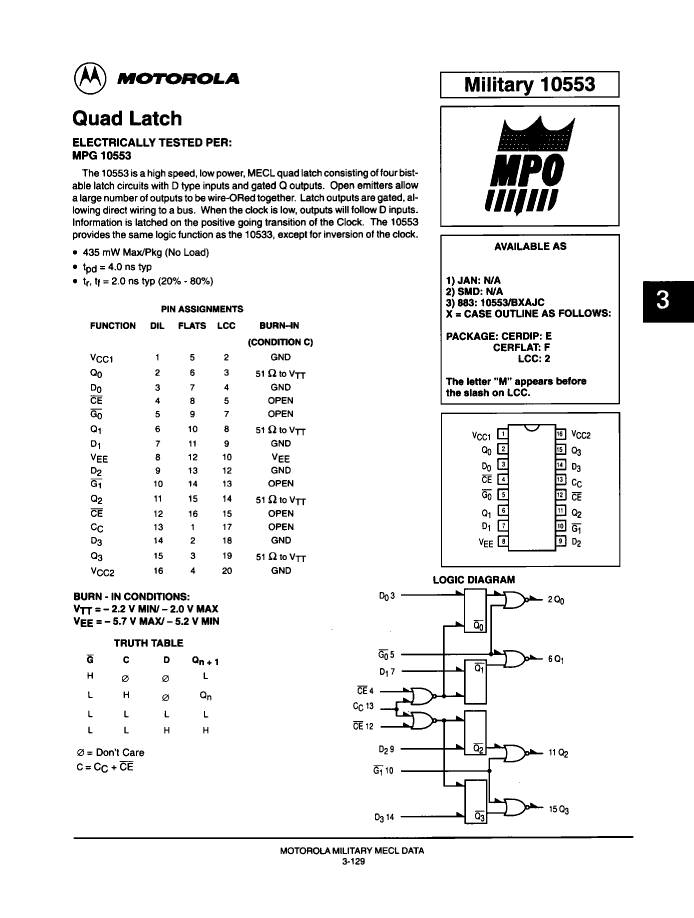

10553M/B2AJC Overview

10K SERIES, DUAL LOW LEVEL TRIGGERED D LATCH, TRUE OUTPUT, CQCC20, CERAMIC, LCC-20

10553M/B2AJC Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
Parts packaging codeQLCC
package instructionQCCN, LCC20,.35SQ
Contacts20
Reach Compliance Codeunknown
Is SamacsysN
Other featuresWITH ADDITIONAL COMMON CLOCK; STROBED OUTPUTS
series10K
JESD-30 codeS-CQCC-N20
JESD-609 codee0
length8.885 mm
Logic integrated circuit typeD LATCH
Number of digits2
Number of functions2
Number of terminals20
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Output characteristicsOPEN-EMITTER
Output polarityTRUE
Package body materialCERAMIC, METAL-SEALED COFIRED
encapsulated codeQCCN
Encapsulate equivalent codeLCC20,.35SQ
Package shapeSQUARE
Package formCHIP CARRIER
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Maximum supply current (ICC)83 mA
Prop。Delay @ Nom-Sup6.6 ns
propagation delay (tpd)6.6 ns
Certification statusNot Qualified
Filter level38535Q/M;38534H;883B
Maximum seat height1.9 mm
surface mountYES
technologyECL
Temperature levelMILITARY
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formNO LEAD
Terminal pitch1.27 mm
Terminal locationQUAD
Maximum time at peak reflow temperatureNOT SPECIFIED
Trigger typeLOW LEVEL
width8.885 mm
Base Number Matches1

10553M/B2AJC Related Products

10553M/B2AJC 10553/BEAJC
Description 10K SERIES, DUAL LOW LEVEL TRIGGERED D LATCH, TRUE OUTPUT, CQCC20, CERAMIC, LCC-20 10K SERIES, DUAL LOW LEVEL TRIGGERED D LATCH, TRUE OUTPUT, CDIP16, CERDIP-16
Is it Rohs certified? incompatible incompatible
Parts packaging code QLCC DIP
package instruction QCCN, LCC20,.35SQ DIP, DIP16,.3
Contacts 20 16
Reach Compliance Code unknown unknown
Is Samacsys N N
Other features WITH ADDITIONAL COMMON CLOCK; STROBED OUTPUTS WITH ADDITIONAL COMMON CLOCK; STROBED OUTPUTS
series 10K 10K
JESD-30 code S-CQCC-N20 R-GDIP-T16
JESD-609 code e0 e0
length 8.885 mm 19.495 mm
Logic integrated circuit type D LATCH D LATCH
Number of digits 2 2
Number of functions 2 2
Number of terminals 20 16
Maximum operating temperature 125 °C 125 °C
Minimum operating temperature -55 °C -55 °C
Output characteristics OPEN-EMITTER OPEN-EMITTER
Output polarity TRUE TRUE
Package body material CERAMIC, METAL-SEALED COFIRED CERAMIC, GLASS-SEALED
encapsulated code QCCN DIP
Encapsulate equivalent code LCC20,.35SQ DIP16,.3
Package shape SQUARE RECTANGULAR
Package form CHIP CARRIER IN-LINE
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED
Maximum supply current (ICC) 83 mA 83 mA
Prop。Delay @ Nom-Sup 6.6 ns 6.6 ns
propagation delay (tpd) 6.6 ns 6.6 ns
Certification status Not Qualified Not Qualified
Filter level 38535Q/M;38534H;883B 38535Q/M;38534H;883B
Maximum seat height 1.9 mm 5.08 mm
surface mount YES NO
technology ECL ECL
Temperature level MILITARY MILITARY
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal form NO LEAD THROUGH-HOLE
Terminal pitch 1.27 mm 2.54 mm
Terminal location QUAD DUAL
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED
Trigger type LOW LEVEL LOW LEVEL
width 8.885 mm 7.62 mm
Base Number Matches 1 1
