3-119734-6

Description

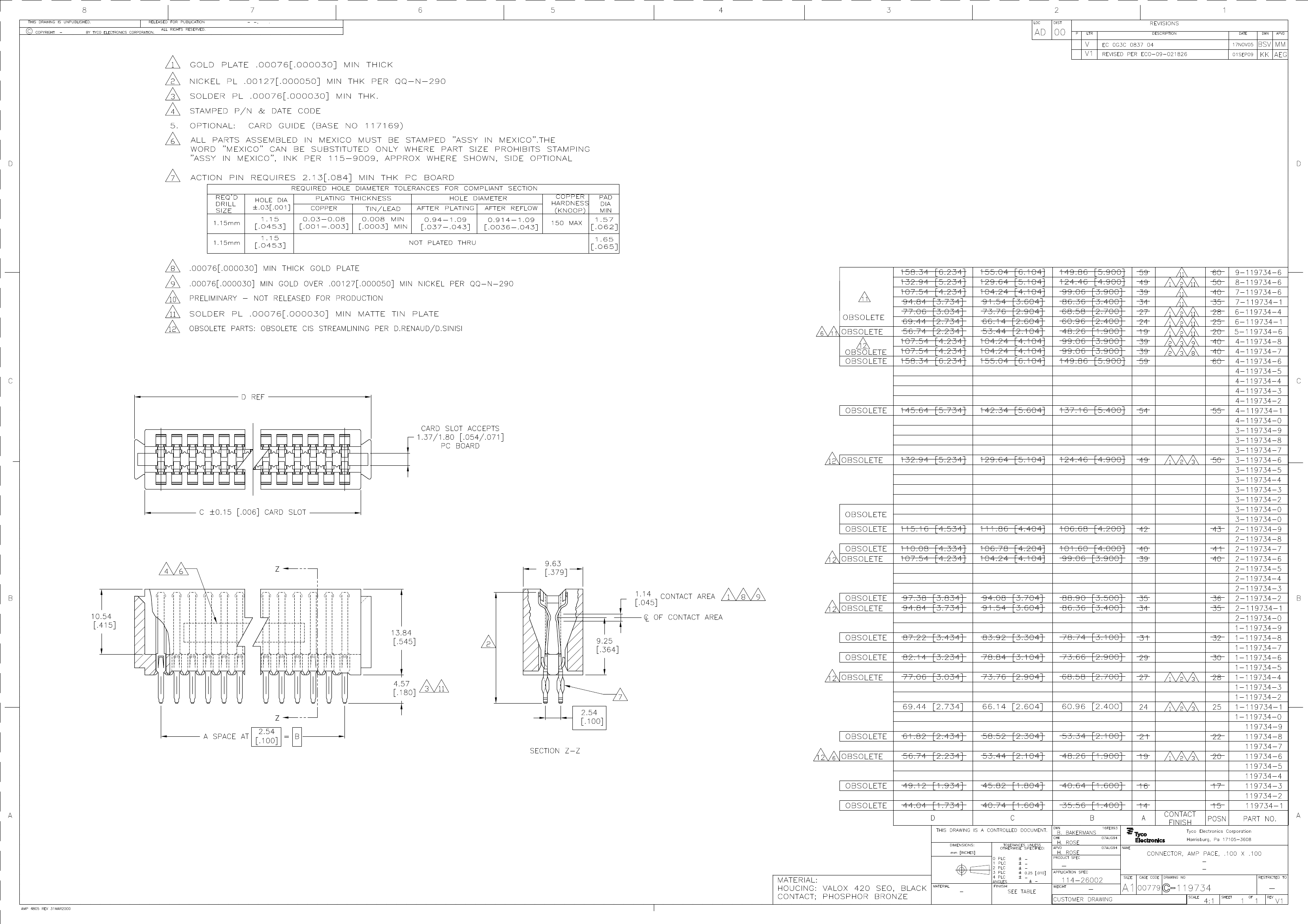

EDGE CONNECTOR,PCB MNT,RECEPT,100 CONTACTS,0.1 PITCH,PC TAIL TERMINAL
CategoryThe connector    The connector
File Size204KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Download Datasheet Parametric View All

3-119734-6 Online Shopping

Suppliers Part Number Price MOQ In stock
3-119734-6 - - View Buy Now

3-119734-6 Overview

EDGE CONNECTOR,PCB MNT,RECEPT,100 CONTACTS,0.1 PITCH,PC TAIL TERMINAL

3-119734-6 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
Objectid302318906
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresCLOSED ENDCLOSED END
body width0.38 inch
subject depth0.55 inch
body length5.234 inch
Body/casing typeRECEPTACLE
Connector typeCARD EDGE CONNECTOR
Contact to complete cooperationAU-PD-NI ON NI
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact resistance5 mΩ
Contact styleBELLOWED TYPE
Dielectric withstand voltage1000VAC V
Durability100 Cycles
maximum insertion force2.224 N
Insulator colorBLACK
insulator materialGLASS FILLED POLYESTER
Manufacturer's serial number119734
Plug contact pitch0.1 inch
Match contact row spacing0.1 inch
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature85 °C
Minimum operating temperature-55 °C
PCB contact patternRECTANGULAR
PCB contact row spacing2.54 mm
Plating thicknessFLASH inch
Rated current (signal)3 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal length0.18 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts100
Evacuation force-minimum value.139 N
