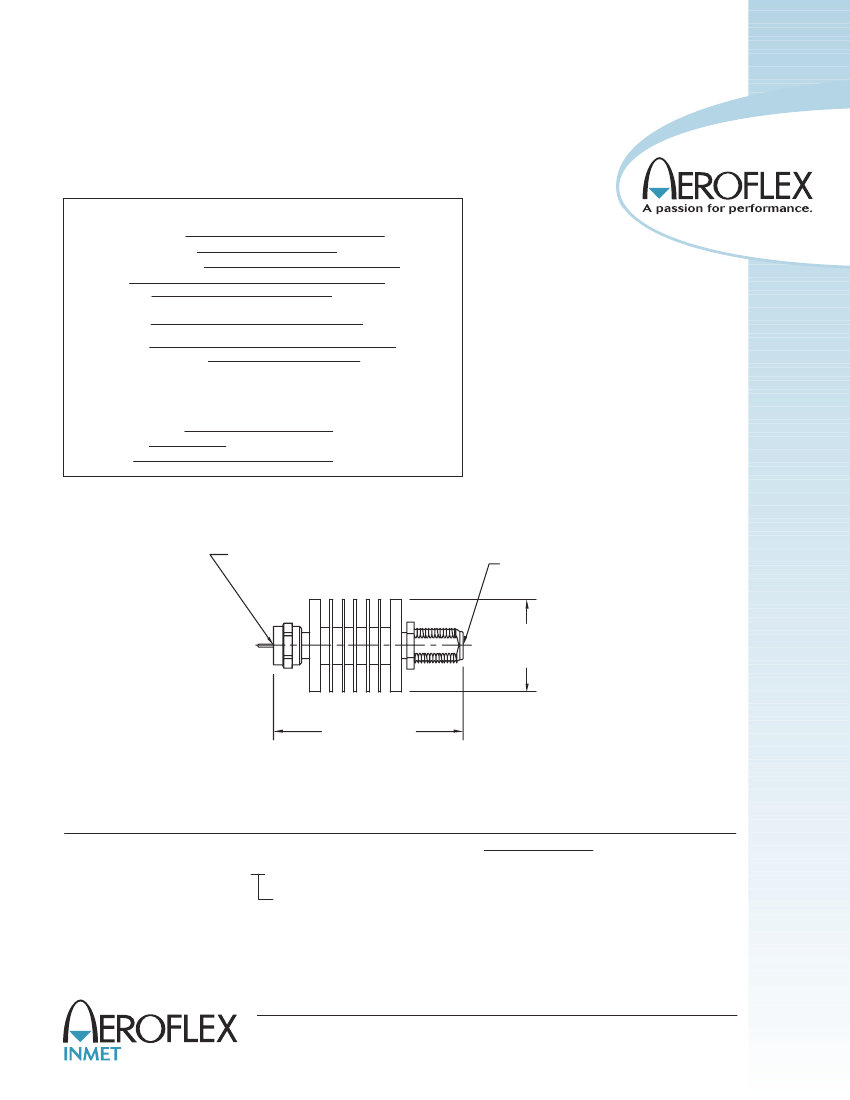

ATTENUATORS
Type F, DC-1 GHz, 10 Watts
SPECIFICATIONS:
Models: 1F10W-XX, 1F10W-XXF & 1F10W-XXM
Electrical:
Frequency Range
Standard dB Values*
Attenuation Accuracy
VSWR
Input Power
Peak Power
Impedance
Operating Temp Range
DC - 1 GHz
3, 6, 10, 20 & 30 dB
±0.5 dB
1.25:1 Max.
10 Watts Avg. @ 25°C
Derated Linearly to 2 Watts @ +80 C
o
500 Watts Max.
(5uSec Pulse, .05% Duty Cycle)
75 Ohms
-65°C to +80°C
Mechanical:
Type F Connectors
Conductors
Housing
Nickel Plated Brass
Nickel Plated Brass & Beryllium Copper
Anodized Aluminum
Type F Male
Type F Female
Ø1.00±.02
[25.40±0.51]
2.03±.06
[51.50±1.52]
HOW TO ORDER:
Model Number:
1F10W-XX
dB Value
Ordering Examples:
Model Number:
1F10W-20
20 dB; Type F - Male/Fem
Model Number:
1F10W-6
6 dB; Type F - Male/Fem
Note: Dimensions in Brackets are Expressed in Millimeters and are for Reference Only.
*Othere dB values and frequency ranges are available.
1F10W-ATT:REV E
Aeroflex / Inmet, Inc.
• 300 Dino Drive, Ann Arbor, MI 48103 • U.S.A.
888-244-6638 or 734-426-5553 • FAX: 734-426-5557
www.aeroflex-inmetcorp.com • sales@aeroflex-inmetcorp.com
