1N200W-40: DescriptionFixed Attenuator, 0MHz Min, 1500MHz Max, ROHS COMPLIANT PACKAGE; CategoryWireless rf/communication Radio frequency and microwave; File Size47KB，1 Pages; ManufacturerCobham PLC; Environmental Compliance

Download Datasheet Parametric View All

1N200W-40 Overview

Fixed Attenuator, 0MHz Min, 1500MHz Max, ROHS COMPLIANT PACKAGE

1N200W-40 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Is Samacsys	N
Other features	N-F; N-M, I/P POWER-MAX(PEAK)=2000W
Nominal attenuation	40 dB
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	53.01 dBm
JESD-609 code	e4
Maximum operating frequency	1500 MHz
Minimum operating frequency
Maximum operating temperature	125 °C
Minimum operating temperature	-54 °C
RF/Microwave Device Types	FIXED ATTENUATOR
Terminal surface	GOLD
Maximum voltage standing wave ratio	1.15
Base Number Matches	1

Preview

Download Datasheet

View All

Attenuators

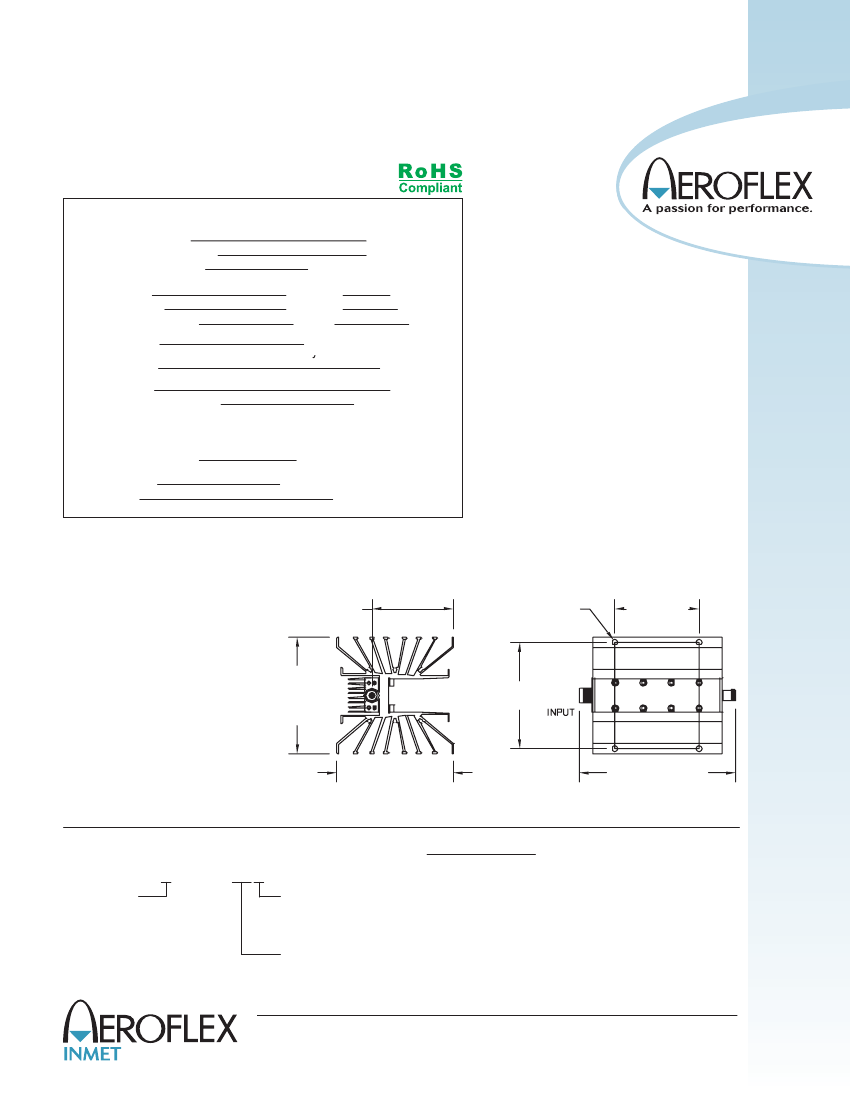

Type N, up to 2.5 GHz, 200 Watts

SPECIFICATIONS:

Models: XN200W-XX, XN200W-XXF, XN200W-XXM

Electrical:

Frequency Range

Standard Freq. Values

Standard dB Values

Attenuation Accuracy

3 - 6 dB

10 - 40 dB

Input VSWR (Max.)

Input Power

Peak Power

Impedance

Operating Temp Range

DC - 2.5 GHz

1.5 & 2.5 GHz

3, 6, 10, 20, 30 & 40 dB

1.5 - 2.5 GHz

DC - 1.5 GHz

±0.50 dB

±0.75 dB

±1.0 dB

1.15:1

1.25:1

200 Watts Avg. @ +25°C

Derated Linearly to 40 Watts @ +125 C

2 kW Max.

(5uSec Pulse, .05% Duty Cycle)

50 Ohms

-54°C to +125°C

Mechanical:

Type N Connectors

Mates with MIL-STD-348

Passivated Stainless Steel

Gold Plated Beryllium Copper

Anodized Aluminum

Note: Units are unidirectional. Units must

be positioned in such a way as to allow free

air flow around fins to assure performance.

Conductors

Housing

Model Number:

XN200W-XX

Male/Female Connectors

Length: 8.35 ±.10 [212.09 ±2.54]

Pictured

4.38±.07

[111.25±1.78]

8X .302 [Ø7.67]

THRU ONE FIN

THIS SIDE AND

OPPOSITE SIDE

2X 4.50

[114.3]

Model Number:

XN200W-XXF

Female/Female Connectors

Length: 8.44 ±.10 [214.38 ±2.54]

6.25±.12

[158.75±3.05]

Model Number:

XN200W-XXM

Male/Male Connectors

Length: 8.28 ±.10 [210.31 ±2.54]

2X 5.70 [144.78]

6.25±.12

[158.75±3.05]

8.35±.10

[212.09±2.54]

HOW TO ORDER:

Model Number:

Ordering Examples:

Model Number:

1N200W-10

DC - 1.5 GHz, 10 dB; Type N - Male/Fem

Connector Configuration

= Male/Female

F = Fem/Fem

M = Male/Male

dB Value

Model Number:

2N200W-40F

DC - 2.5 GHz, 40 dB; Type N - Fem/Fem

Model Number:

2N200W-30M

DC - 2.5 GHz, 30 dB; Type N - Male/Male

XN200W-ATT: REV E

XN200W-XXY

Freq. Range

1 = DC - 1.5 GHz

2 = DC - 2.5 GHz

Note: Dimensions in Brackets are Expressed in Millimeters and are for Reference Only.

Aeroflex / Inmet, Inc.

• 300 Dino Drive, Ann Arbor, MI 48103 • U.S.A.

888-244-6638 or 734-426-5553 • FAX: 734-426-5557

www.aeroflex-inmet.com • sales@aeroflex-inmet.com
