12T50W-06M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> 12T50W-06M

12T50W-06M: DescriptionFixed Attenuator, 0MHz Min, 12400MHz Max, ROHS COMPLIANT PACKAGE; CategoryWireless rf/communication Radio frequency and microwave; File Size41KB，1 Pages; ManufacturerCobham PLC

Download Datasheet Parametric View All

12T50W-06M Overview

Fixed Attenuator, 0MHz Min, 12400MHz Max, ROHS COMPLIANT PACKAGE

12T50W-06M Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Is Samacsys	N
Other features	TNC-M, I/P POWER-MAX(PEAK)=500W
Nominal attenuation	6 dB
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	46.99 dBm
JESD-609 code	e4
Maximum operating frequency	12400 MHz
Minimum operating frequency
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
RF/Microwave Device Types	FIXED ATTENUATOR
Terminal surface	GOLD
Maximum voltage standing wave ratio	1.35
Base Number Matches	1

Preview

Download Datasheet

View All

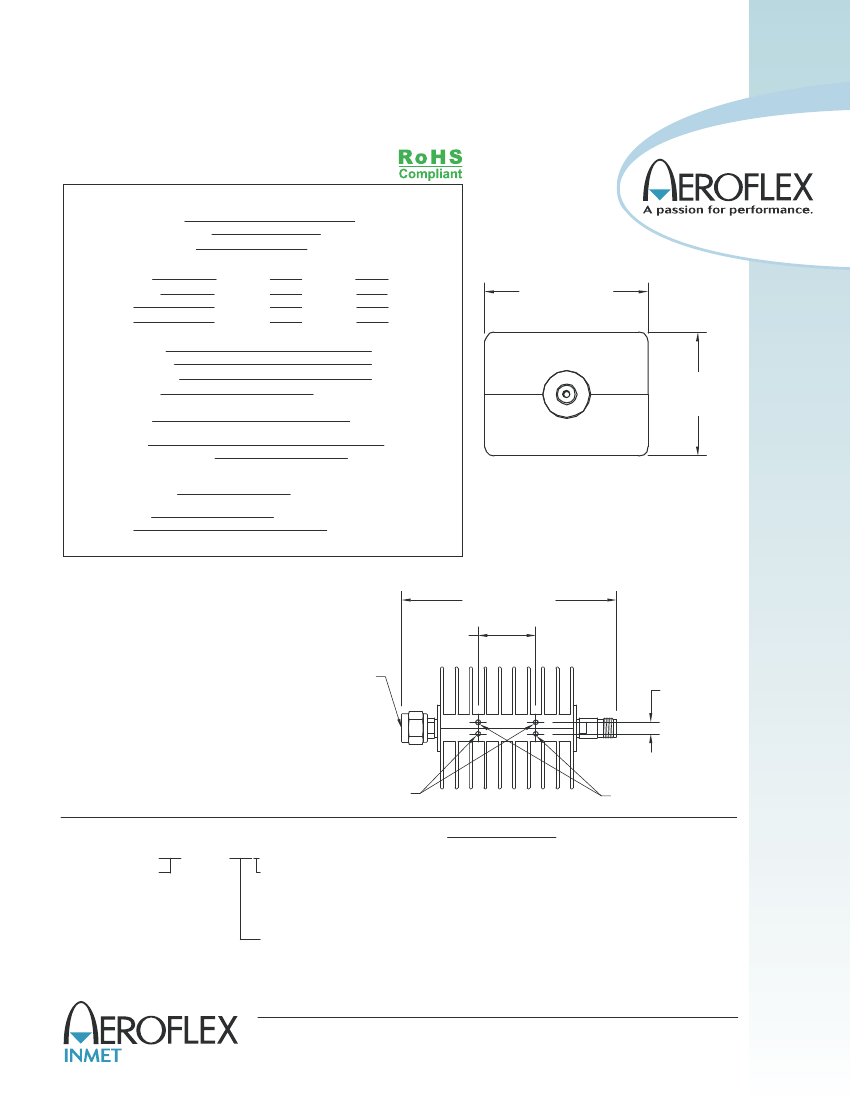

ATTENUATORS

TNC, up to 18 GHz, 50 Watts

SPECIFICATIONS:

Models: XXT50W-XX, XXT50W-XXF & XXT50W-XXM

Electrical:

Frequency Range

Standard Freq. Values

Standard dB Values*

Attenuation Accuracy

3, & 6 dB

10 & 20 dB

30 dB

40 dB

VSWR

DC - 6 GHz

6 - 1 GHz

2.4

2.4 - 18 GHz

Input Power

Peak Power

Impedance

Operating Temp Range

DC - 18.0 GHz

2.5, 6, 2.4 & 18 GHz

3, 6, 10, 20, 30 & 40 dB

2.4 - 18 GHz

6 - 1 GHz

2.4

±0.75 dB

±1.00 dB

±0.75 dB

±1.00 dB

±1.25 dB

±1.50 dB

1.25:1 Max.

1.35:1 Max.

1.45:1 Max.

50 Watts Avg. @ 25°C

Derated Linearly to 10 Watts @ +1 C

DC - 6 GHz

±0.75 dB

±1.00 dB

3.50±.02

[88.90±0.51]

2.65±.02

[67.31±0.51]

500 Watts Max.

(5uSec Pulse, .05% Duty Cycle)

50 Ohms

-65°C to +125°C

Passivated Stainless Steel

Mechanical:

TNC Connectors**

Mates with MIL

-STD-348

END VIEW

TYPICAL

Units must be Mounted in such a way as to

Allow for Free Air Flow Around fins to Insure

Performance

Conductors

Gold Plated Beryllium Copper

Housing

Anodized Aluminum

**TNC Connectors are 18 GHz Mode-Free

Note: Units are Unidirectional, Therefore Input Connector MUST be Specified & will be Indicated on Unit

Model Number:

Pictured

XXT50W-XX

1.25

1.75]

INPUT

4.65±.05

[1 1

18. 1±1.27]

Model Number:

XXT50W-XXF

Female/Female Connectors

Length: 4.75 ±.05 [1

20.7 ±1.3]

.25 [6.35]

Model Number:

XXT50W-XXM

Male/Male Connectors

Length: 4.56 ±.05 [1

15.8 ±1.3]

2X M4x0.7 TAP

x .50[1

2.7] DP

Ordering Examples:

2X 8-32UNC-2B TAP

x .50[1

2.7] DP

HOW TO ORDER:

Model Number:

XXT50W-XXY

Freq. Range

2 = DC - 2.5 GHz

6 = DC - 6 GHz

1 = DC - 1 GHz

2.4

18 = DC - 18 GHz

Connector Configuration

= Male/Female (Male Input)

F = Fem/Fem

M = Male/Male

FM = Female/Male (Female Input)

dB Value

18T50W-20

Model Number:

DC - 18 GHz; 20 dB; TNC - Male/Fem (Male Input)

6T50W-03F

Model Number:

DC - 6 GHz; 3 dB; TNC - Fem/Fem

Model Number:

6T50W-10FM

DC - 6 GHz; 10 dB; TNC - Fem/Male (Female Input)

Note: Dimensions in Brackets are Expressed in Millimeters and are for Reference Only.

Design specifications are subject to change without notice.

Contact factory for technical specifications before purchasing or use.

XXT50W-XX: REV F

Aeroflex / Inmet, Inc.

• 300 Dino Drive, Ann Arbor, MI 48103 • U.S.A.

888-244-6638 or 734-426-5553 • FAX: 734-426-5557

www.aeroflex-inmet.com • inmetsales@aeroflex-.com
