12B20W-40M: DescriptionFixed Attenuator, 0MHz Min, 12400MHz Max, ROHS COMPLIANT PACKAGE; CategoryWireless rf/communication Radio frequency and microwave; File Size36KB，1 Pages; ManufacturerCobham PLC

Download Datasheet Parametric View All

12B20W-40M Overview

Fixed Attenuator, 0MHz Min, 12400MHz Max, ROHS COMPLIANT PACKAGE

12B20W-40M Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Is Samacsys	N
Other features	SMA-M, I/P POWER-MAX(PEAK)=500W
Nominal attenuation	40 dB
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	43.01 dBm
JESD-609 code	e4
Maximum operating frequency	12400 MHz
Minimum operating frequency
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
RF/Microwave Device Types	FIXED ATTENUATOR
Terminal surface	GOLD
Maximum voltage standing wave ratio	1.3
Base Number Matches	1

Preview

Download Datasheet

View All

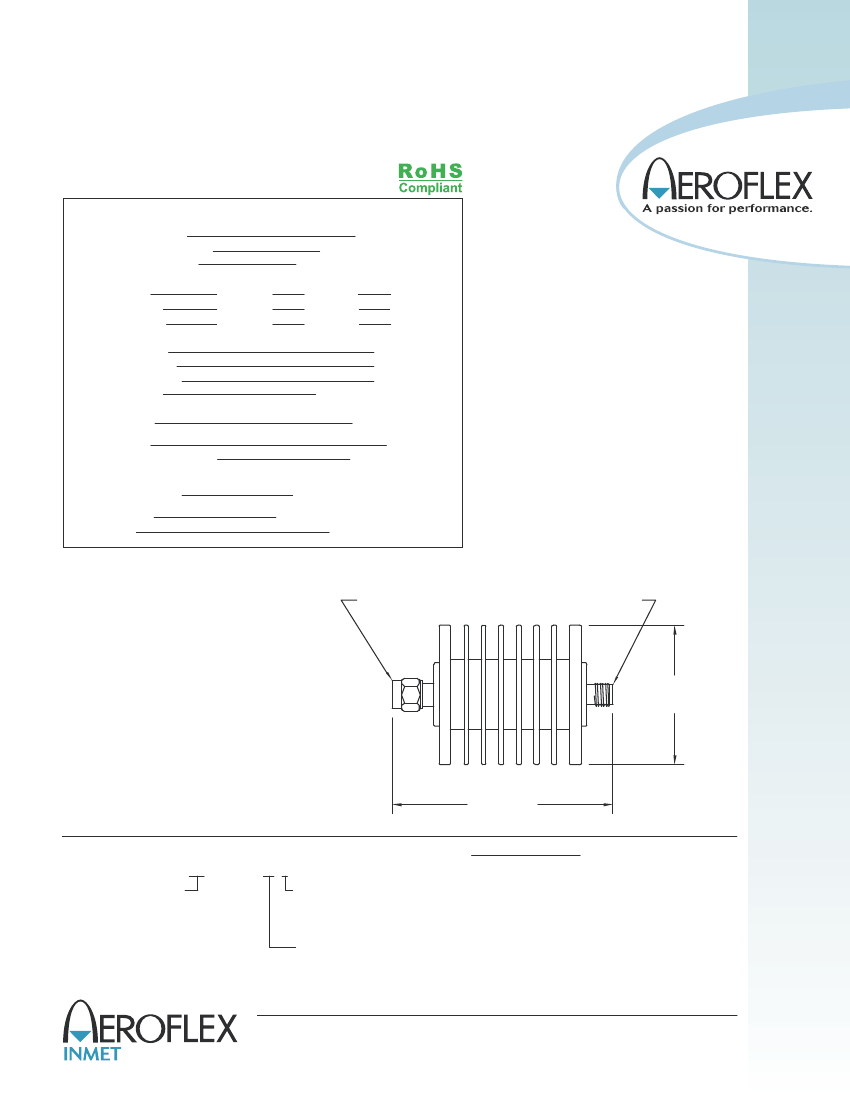

ATTENUATORS

SMA, up to 18 GHz, 20 Watts

SPECIFICATIONS:

Models: XXB20W-XX, XXB20W-XXF, XXB20W-XXM

Electrical:

Frequency Range

Standard Freq. Values

Standard dB Values

Attenuation Accuracy

3 & 6 dB

10 & 20 dB

30 & 40 dB

VSWR

DC - 6 GHz

6 - 1 GHz

2.4

12.4 - 18 GHz

Input Power

Peak Power

Impedance

Operating Temp Range

DC - 18.0 GHz

2.5, 6, 1 & 18 GHz

2.4

0, 3, 6, 10, 20, 30 & 40 dB

2.4 - 18 GHz

6 - 1 GHz 1

2.4

±0.50 dB

±0.75 dB

±1.00 dB

±1.50 dB

1.20:1 Max.

1.30:1 Max.

1.40:1 Max.

20 Watts Avg. @ 25°C

Derated Linearly to 4 Watts @ +1

DC - 6 GHz

±0.30 dB

±0.50 dB

±0.75 dB

500 Watts Max.

(5uSec Pulse, .05% Duty Cycle)

50 Ohms

-65°C to +125°C

Passivated Stainless Steel

Gold Plated Beryllium Copper

Anodized Aluminum

Mechanical:

SMA Connectors

Mates with MIL

-STD-348

Conductors

Housing

Model Number:

XXB20W-XX

Male/Female Connectors

Length: 2.33 ±.05 [59.2 ±1.3]

Pictured

SMA MALE

SMA FEMALE

Model Number:

XXB20W-XXF

Female/Female Connectors

Length: 2.20 ±.05 [55.9 ±1.3]

Ø1.49 ±.02

[37.85 ±0.51]

Model Number:

XXB20W-XXM

Male/Male Connectors

Length: 2.46 ±.05 [62.5 ±1.3]

2.33 ±.05

[59.2 ±1.3]

Ordering Examples:

Model Number:

18B20W-20

DC - 18 GHz; 20 dB; SMA - Male/Fem

Connector Configuration

= Male/Female

F = Fem/Fem

M = Male/Male

Model Number:

6B20W-02F

DC - 6 GHz; 2 dB; SMA - Fem/Fem

HOW TO ORDER:

Model Number:

XXB20W-XXY

Freq. Range

2 = DC - 2.5 GHz

6 = DC - 6 GHz

1 = DC - 1 GHz

2.4

18 = DC - 18 GHz

dB Value

Note: Dimensions in Brackets are Expressed in Millimeters and are for Reference Only.

Design specifications are subject to change without notice.

Contact factory for technical specifications before purchasing or use.

XXB20W-XX: REV C

Aeroflex / Inmet, Inc.

• 300 Dino Drive, Ann Arbor, MI 48103 • U.S.A.

888-244-6638 or 734-426-5553 • FAX: 734-426-5557

www.aeroflex-inmet.com • inmetsales@aeroflex-.com
