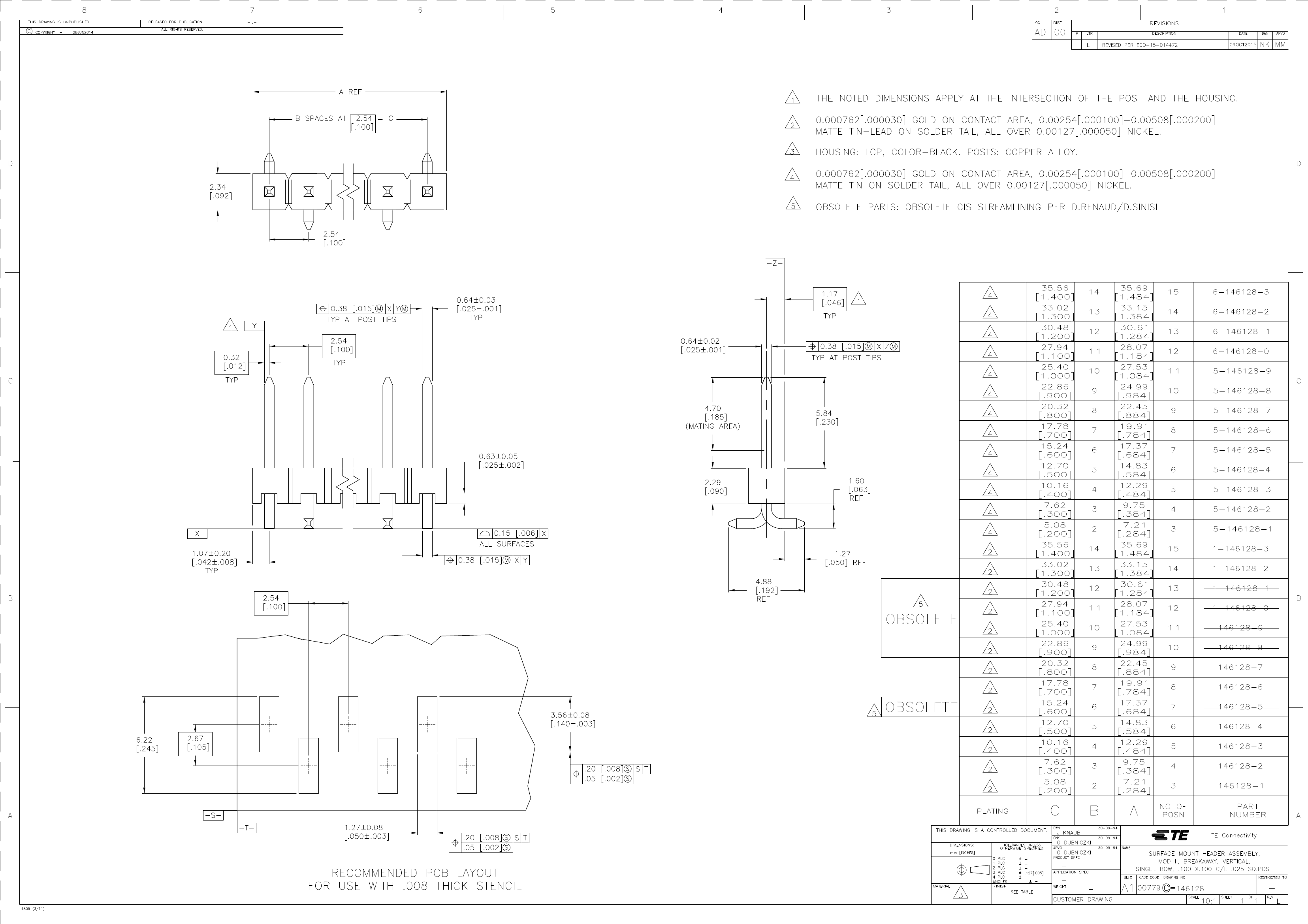

Preview

146128-8: DescriptionHEADER CONNECTOR,PCB MNT,RECEPT,10 CONTACTS,PIN,0.1 PITCH,BLACK; CategoryThe connector The connector; File Size136KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

146128-8 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	146128-8	-	-	View	Buy Now

146128-8 Overview

HEADER CONNECTOR,PCB MNT,RECEPT,10 CONTACTS,PIN,0.1 PITCH,BLACK

146128-8 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	compli
body width	0.092 inch
subject depth	0.09 inch
body length	0.984 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	12 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	750VAC V
Durability	200 Cycles
maximum insertion force	2.502 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
Manufacturer's serial number	146
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-65 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.667 mm
Plating thickness	30u inch
Rated current (signal)	2 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal pitch	5.08 mm
Total number of contacts	10
Evacuation force-minimum value	.417 N
Base Number Matches	1

Preview

Download Datasheet

View All

146128-8 Related Products

	146128-8	146128-5	146128-9	MA-141-043-257-A2400
Description	HEADER CONNECTOR,PCB MNT,RECEPT,10 CONTACTS,PIN,0.1 PITCH,BLACK	HEADER CONNECTOR,PCB MNT,RECEPT,7 CONTACTS,PIN,0.1 PITCH,BLACK	HEADER CONNECTOR,PCB MNT,RECEPT,11 CONTACTS,PIN,0.1 PITCH,BLACK	Board Connector
Is it Rohs certified?	incompatible	incompatible	incompatible	conform to
Reach Compliance Code	compli	compliant	unknow	compliant
body width	0.092 inch	0.092 inch	0.092 inch	0.08 inch
subject depth	0.09 inch	0.09 inch	0.09 inch	0.135 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	MALE	MALE	MALE	FEMALE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	12 mΩ	12 mΩ	12 mΩ	26 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	RND PIN-SKT
Durability	200 Cycles	200 Cycles	200 Cycles	500 Cycles
maximum insertion force	2.502 N	2.502 N	2.502 N	2.78 N
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω
insulator material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	POLYPHENYLENE SULFIDE
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.05 inch
Number of connectors	ONE	ONE	ONE	ONE
Number of rows loaded	1	1	1	1
Maximum operating temperature	105 °C	105 °C	105 °C	125 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-55 °C
Plating thickness	30u inch	30u inch	30u inch	50u inch
Rated current (signal)	2 A	2 A	2 A	3 A
Guideline	UL, CSA	UL, CSA	UL, CSA	MIL
Total number of contacts	10	7	11	43
Evacuation force-minimum value	.417 N	.417 N	.417 N	2.78 N
body length	0.984 inch	0.684 inch	1.084 inch	-
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	-
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	-
Dielectric withstand voltage	750VAC V	750VAC V	750VAC V	-
Insulator color	BLACK	BLACK	BLACK	-
Manufacturer's serial number	146	146	146	-
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	-
PCB row number	2	2	2	-
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	-
PCB contact row spacing	2.667 mm	2.667 mm	2.667 mm	-
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	-
Terminal pitch	5.08 mm	5.08 mm	5.08 mm	-
