1540RA-20 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> 1540RA-20

Preview

1540RA-20: Description1000MHz - 4000MHz RF/MICROWAVE DIRECTIONAL COUPLER, 0.5dB INSERTION LOSS-MAX; CategoryWireless rf/communication Radio frequency and microwave; File Size151KB，1 Pages; ManufacturerCobham Semiconductor Solutions

Download Datasheet Parametric Compare View All

1540RA-20 Overview

1000MHz - 4000MHz RF/MICROWAVE DIRECTIONAL COUPLER, 0.5dB INSERTION LOSS-MAX

1540RA-20 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	SMA-F
structure	COAXIAL
Maximum input power (CW)	46.99 dBm
Maximum insertion loss	0.5 dB
Maximum operating frequency	4000 MHz
Minimum operating frequency	1000 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	DIRECTIONAL COUPLER
Maximum voltage standing wave ratio	1.25
Base Number Matches	1

Preview

Download Datasheet

View All

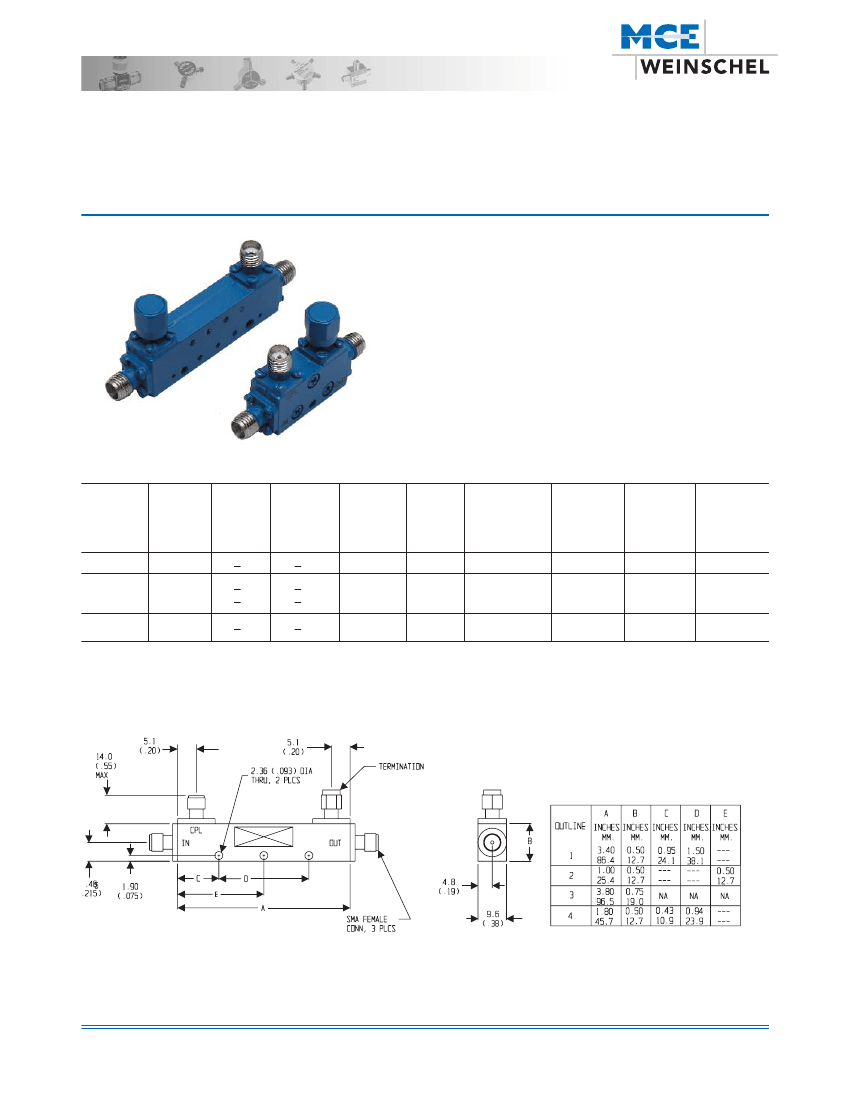

Models 1536RA, 1538RA & 1540RA

Directional Couplers

Discontinued Product...Only available while supplies last!

0.5 to 2.0 GHz

This series of directional couplers feature high directivity

and low SWR and are conservatively rated to ensure the

most reliable service and performance under severe envi-

ronmental conditions. These designs are ideal for lab

applications, internal leveling, ECM Systems, communica-

tion satelites, RF and microwave test equipment, and

wireless applications. Other features include:

o

Selection of Coupling Factors:

20 & 30 dB

o

Female SMA Connectors:

Rugged 4 hole connector

construction insures mechanical superiority

o

Temperature Range:

-55˚C to +85˚C

o

Octive and Multi-octive Models

Specifications

Model

Number

Frequency

Range

(GHz)

1.0-2.0

0.5-2.0

1.0-4.0

Coupling

(dB)*

20+1.20

20+1.25

30+1.25

20+1.25

Frequency

Flatness*

(dB)

+0.75

+1.00

+0.75

Minimum

Directivity

(dB)

20

18

20

Maximum

SWR

Maximum

Insertion Loss

above Coupling

Loss (dB)

0.25

0.50

Maximum

Peak**

Power (kW)

3

Maximum

Average**

Power (W)

50

Outline

(See Below)

1536RA-20

1538RA-20

1538RA-30

1540RA-20

1.25

4

1

3

* Coupling includes frequency flatness. Coupling measurement is referenced to the Input Port.

** Peak and average power handling capability only apply if the main line is terminated in a 1.25 maximum SWR for 10 dB models

and 1.75 for 20 and 30 dB models.

Physical Dimensions

NOTE:

All dimensions are given in mm (inches) and are maximum, unless otherwise specified.

5305 Spectrum Drive, Frederick, MD 21703-7362 TEL: 301-846-9222, 800-638-2048

web: www.weinschel.com email: sales@weinschel.com

Fax: 301-846-9116

4-10-03

1540RA-20 Related Products

	1540RA-20	1536RA-20	1538RA-30	1538RA-20
Description	1000MHz - 4000MHz RF/MICROWAVE DIRECTIONAL COUPLER, 0.5dB INSERTION LOSS-MAX	1000MHz - 2000MHz RF/MICROWAVE DIRECTIONAL COUPLER, 0.25dB INSERTION LOSS-MAX	500MHz - 2000MHz RF/MICROWAVE DIRECTIONAL COUPLER, 0.25dB INSERTION LOSS-MAX	500MHz - 2000MHz RF/MICROWAVE DIRECTIONAL COUPLER, 0.25dB INSERTION LOSS-MAX
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	SMA-F	SMA-F	SMA-F	SMA-F
structure	COAXIAL	COAXIAL	COAXIAL	COAXIAL
Maximum input power (CW)	46.99 dBm	46.99 dBm	46.99 dBm	46.99 dBm
Maximum insertion loss	0.5 dB	0.25 dB	0.25 dB	0.25 dB
Maximum operating frequency	4000 MHz	2000 MHz	2000 MHz	2000 MHz
Minimum operating frequency	1000 MHz	1000 MHz	500 MHz	500 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	DIRECTIONAL COUPLER	DIRECTIONAL COUPLER	DIRECTIONAL COUPLER	DIRECTIONAL COUPLER
Maximum voltage standing wave ratio	1.25	1.25	1.25	1.25
Base Number Matches	1	1	1	1
