10524/BEAJC: DescriptionTTL to ECL Translator, 4 Func, Complementary Output, ECL, CDIP16, CERDIP-16; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size695KB，10 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

10524/BEAJC Overview

TTL to ECL Translator, 4 Func, Complementary Output, ECL, CDIP16, CERDIP-16

10524/BEAJC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DIP, DIP16,.3
Reach Compliance Code	unknown
ECCN code	EAR99
maximum delay	8 ns
Interface integrated circuit type	TTL TO ECL TRANSLATOR
JESD-30 code	R-GDIP-T16
JESD-609 code	e0
length	19.495 mm
Number of digits	1
Number of functions	4
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	OPEN-EMITTER
Output latch or register	NONE
Output polarity	COMPLEMENTARY
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5,-5.2 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum seat height	5.08 mm
Nominal supply voltage	5 V
Supply voltage1-Nom	-5.2 V
surface mount	NO
technology	ECL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
Base Number Matches	1

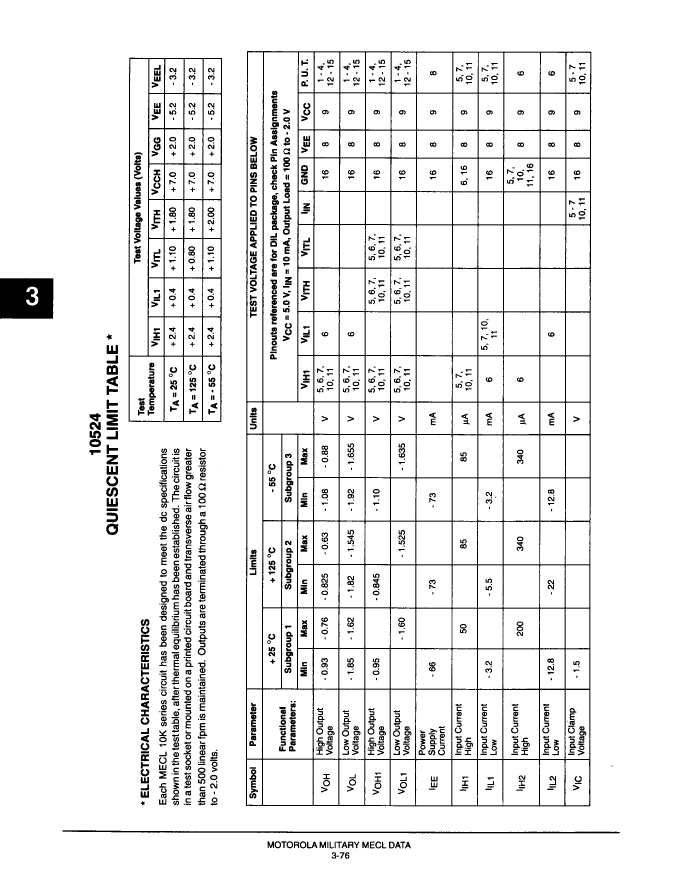

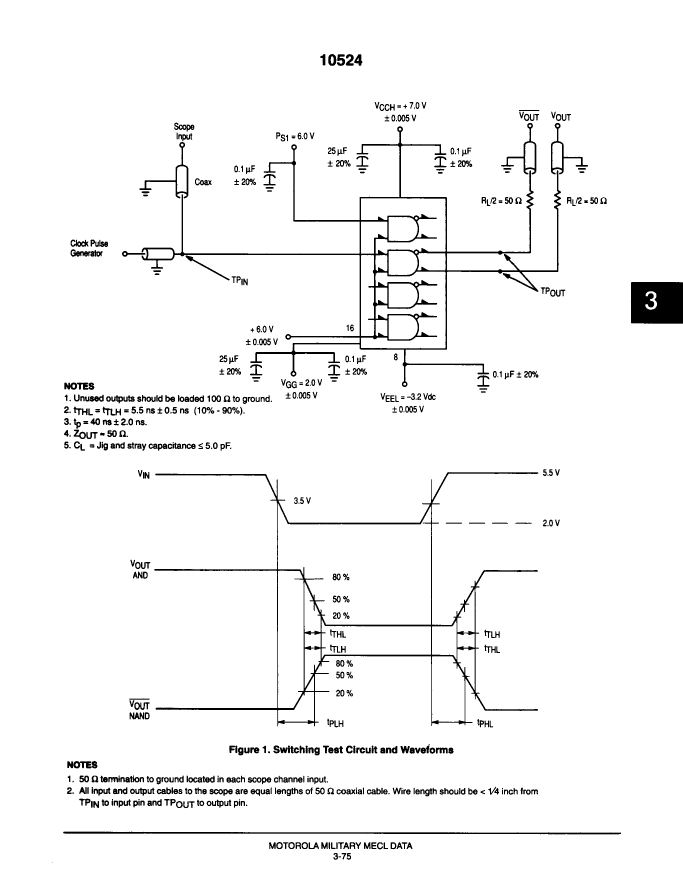

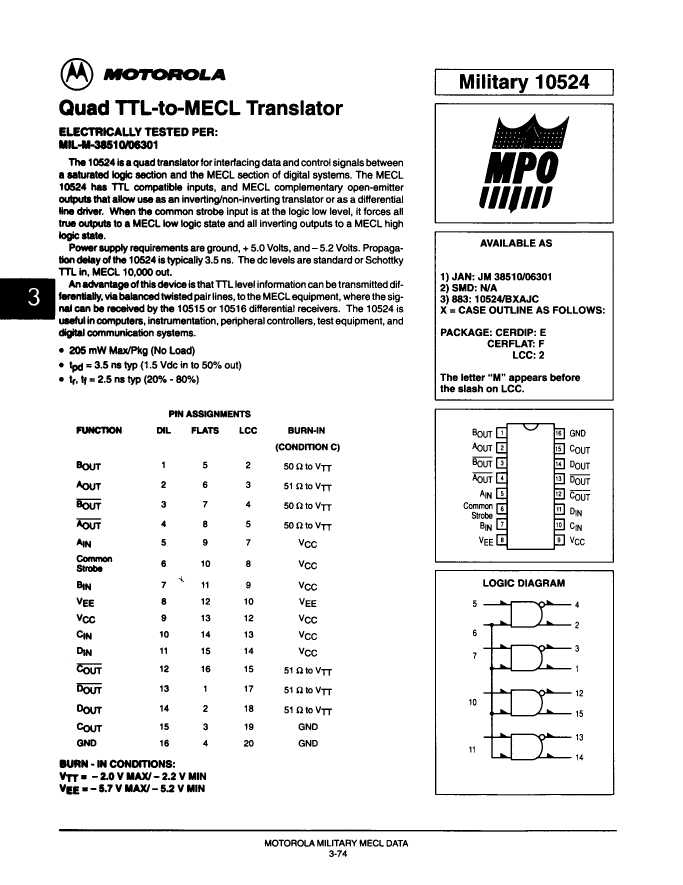

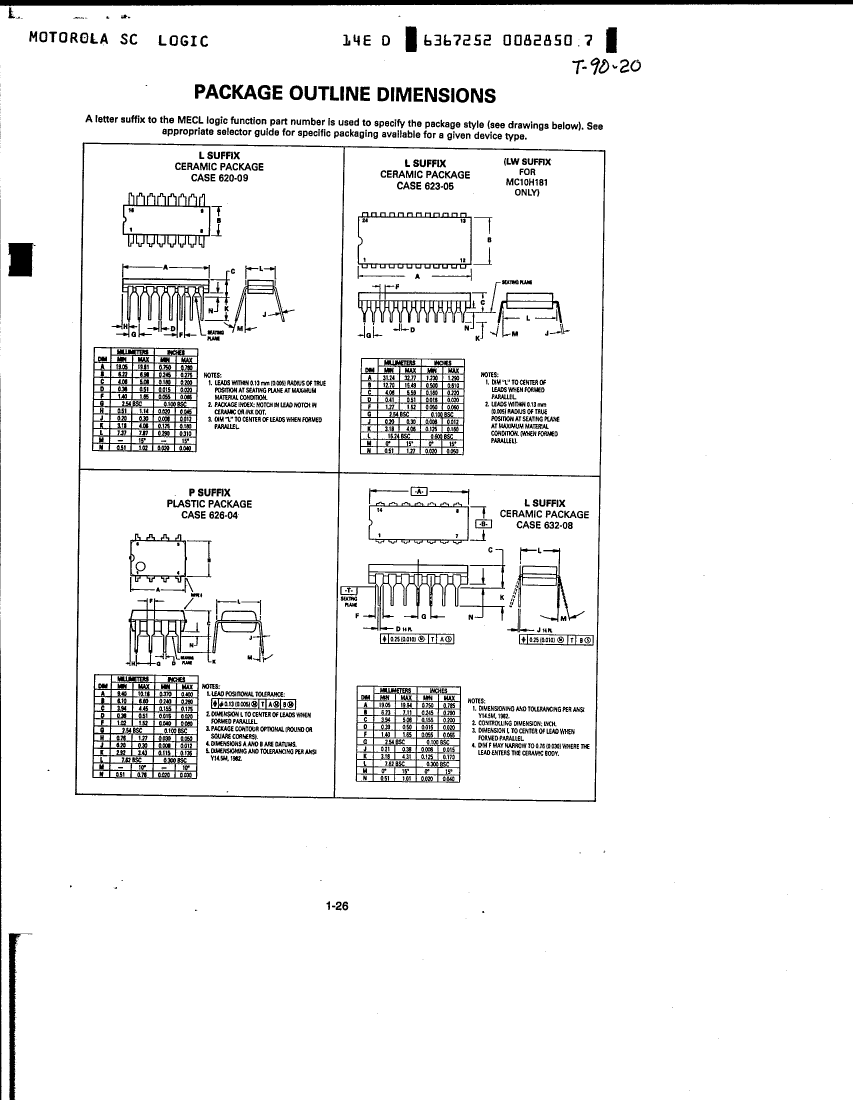

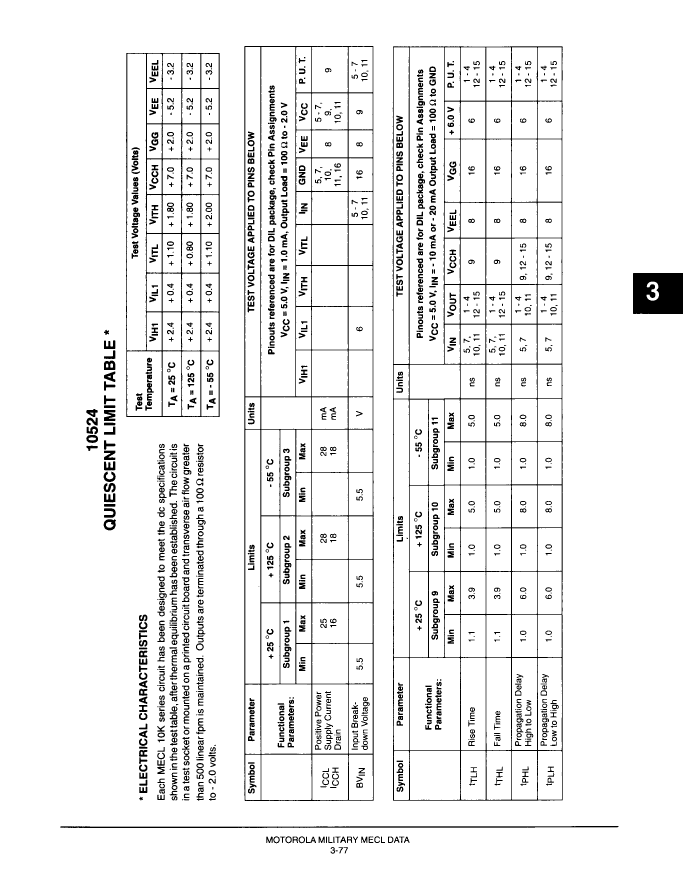

Preview

Download Datasheet

View All

10524/BEAJC Related Products

	10524/BEAJC	10524M/B2AJC
Description	TTL to ECL Translator, 4 Func, Complementary Output, ECL, CDIP16, CERDIP-16	TTL to ECL Translator, 4 Func, Complementary Output, ECL, CQCC20, CERAMIC, LCC-20
Is it Rohs certified?	incompatible	incompatible
package instruction	DIP, DIP16,.3	QCCN, LCC20,.35SQ
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
maximum delay	8 ns	8 ns
Interface integrated circuit type	TTL TO ECL TRANSLATOR	TTL TO ECL TRANSLATOR
JESD-30 code	R-GDIP-T16	S-CQCC-N20
JESD-609 code	e0	e0
length	19.495 mm	8.89 mm
Number of digits	1	1
Number of functions	4	4
Number of terminals	16	20
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Output characteristics	OPEN-EMITTER	OPEN-EMITTER
Output latch or register	NONE	NONE
Output polarity	COMPLEMENTARY	COMPLEMENTARY
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	QCCN
Encapsulate equivalent code	DIP16,.3	LCC20,.35SQ
Package shape	RECTANGULAR	SQUARE
Package form	IN-LINE	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
power supply	5,-5.2 V	5,-5.2 V
Certification status	Not Qualified	Not Qualified
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B
Maximum seat height	5.08 mm	1.9 mm
Nominal supply voltage	5 V	5 V
Supply voltage1-Nom	-5.2 V	-5.2 V
surface mount	NO	YES
technology	ECL	ECL
Temperature level	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	NO LEAD
Terminal pitch	2.54 mm	1.27 mm
Terminal location	DUAL	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
width	7.62 mm	8.89 mm
Base Number Matches	1	1
