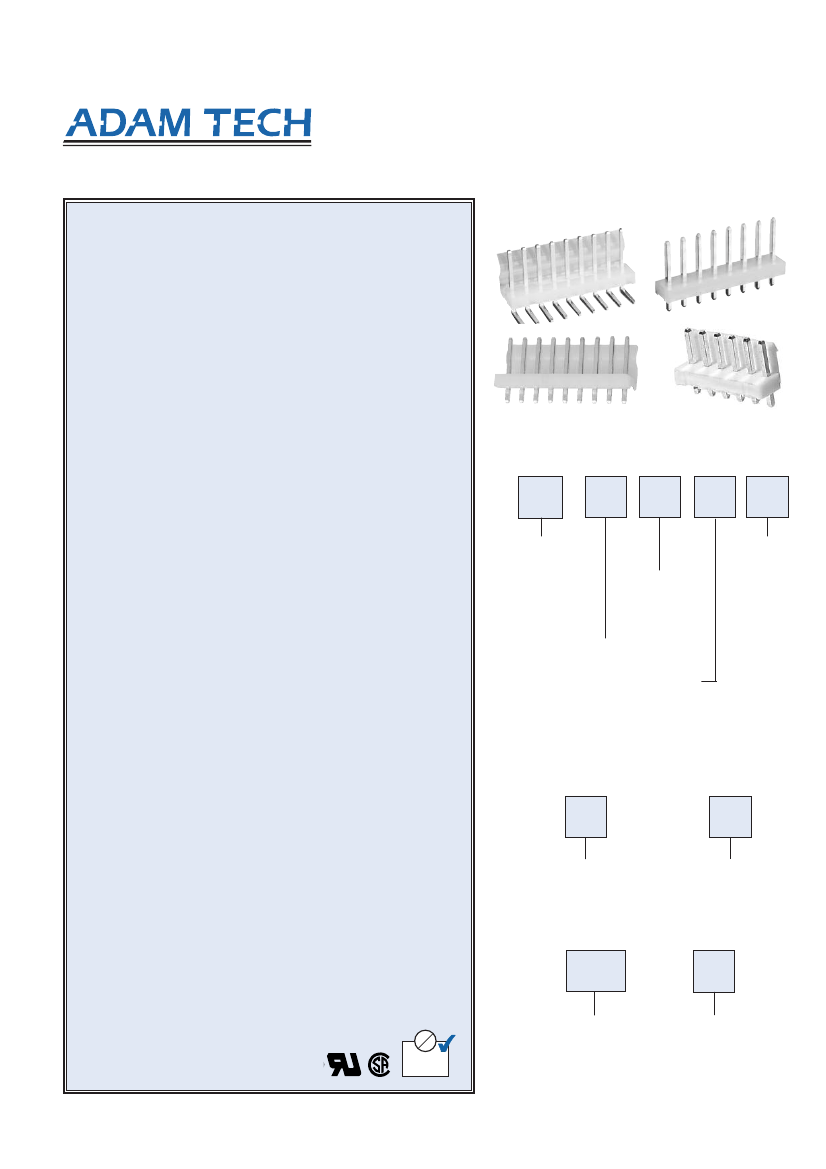

.156" HEADER & HOUSING
Adam Technologies, Inc.
INTRODUCTION:
Adam Tech .156” Headers and Housings are two matched sets of
Crimp Wire Housings and PCB mounted Latching Headers available
in Straight and Right Angle orientation. This system is available with
a front locking header, a rear locking header or without a locking
feature. Each of the locking types are polarized to fit in only one
direction with the housing. This system provides a sturdy, high
current, high reliability connection with or without the polarized
locking option.
FEATURES:
Matched Latching Housing & Header system
Straight, Right Angle mounting Headers
Choice of Two Latching Types
Housings feature High pressure, Low insertion force contacts
.156" [3.96] CENTERLINE
LHB & MTB SERIES
POWER HEADER
MATING CONNECTORS:
Adam Tech MTB series and all industry standard latching type
.156 [3.96mm] centers
SPECIFICATIONS:
Material:
Insulator: Nylon 66, rated UL94V-2
Insulator Color: Natural
Contacts: Phosphor bronze and Brass
Contact Plating:
Tin over copper underplate overall
Electrical:
Operation voltage: 250V AC max.
Current rating: 5 Amp max.
Insulation resistance: 1000 MΩ min.
Dielectric withstanding voltage: 1000V AC for 1 minute
Mechanical:
Recommended wire size: 18 to 24 Awg
Environmental:
Operating temperature: -25°C to +85°C
PACKAGING:
Anti-static plastic bags
APPROVALS AND CERTIFICATIONS:
UL Recognized File No. E224053
CSA Certified File No. LR1578596
LHB
SERIES
INDICATOR
LHB
= Power
Header
LHC
= Power
Header with
Rear Lock
12
S
A
1
FRICTION LOCK /
POLARIZER
OPTION
1
= With Lock
Polarizer
(LHB only)
2
= Without Lock
Polarizer
LHB only)
3
= With Rear Lock
(LHC only)
PIN TYPE
S
= .045" Square
POSITIONS
2 thru 20
PIN ANGLE
A
= Straight
B
= Right Angle
ORDERING INFORMATION
HOUSING
MTB
12
SERIES INDICATOR
MTB
= Wire housing
MTC
= Latching Wire Housing
POSITIONS
2 thru 20
CRIMP CONTACT
MTB-C
SERIES INDICATOR
MTB-C
= Crimp contact
MTC-C
= Crimp contact
R
PACKAGING
B
= 1000 pieces
loose cut
R
= 6000 pieces
on reel
Pb
UL
®
®
®
E
D
COMPLIANT
2002
/ 95
/ EC
RoHS
V
909 Rahway Avenue
•
Union, New Jersey 07083
•
T: 908-687-5000
•
F: 908-687-5710
•
WWW.ADAM-TECH.COM
283
RoHS
COMPLIANT
