1332G-FREQ-OUT21 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> 1332G-FREQ-OUT21

1332G-FREQ-OUT21: DescriptionCMOS Output Clock Oscillator, 26MHz Min, 30MHz Max; CategoryPassive components oscillator; File Size49KB，3 Pages; ManufacturerNDK; Websitehttp://www.ndk.com/en/

Download Datasheet Parametric View All

1332G-FREQ-OUT21 Overview

CMOS Output Clock Oscillator, 26MHz Min, 30MHz Max

1332G-FREQ-OUT21 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
maximum descent time	5 ns
Frequency Adjustment - Mechanical	NO
frequency stability	100%
Manufacturer's serial number	1330
Installation features	THROUGH HOLE MOUNT
Maximum operating frequency	30 MHz
Minimum operating frequency	26 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Oscillator type	CMOS
Output load	15 pF
physical size	13.2mm x 13.2mm x 5mm
longest rise time	5 ns
Nominal supply voltage	5 V
surface mount	NO
maximum symmetry	55/45 %
Base Number Matches	1

Preview

Download Datasheet

View All

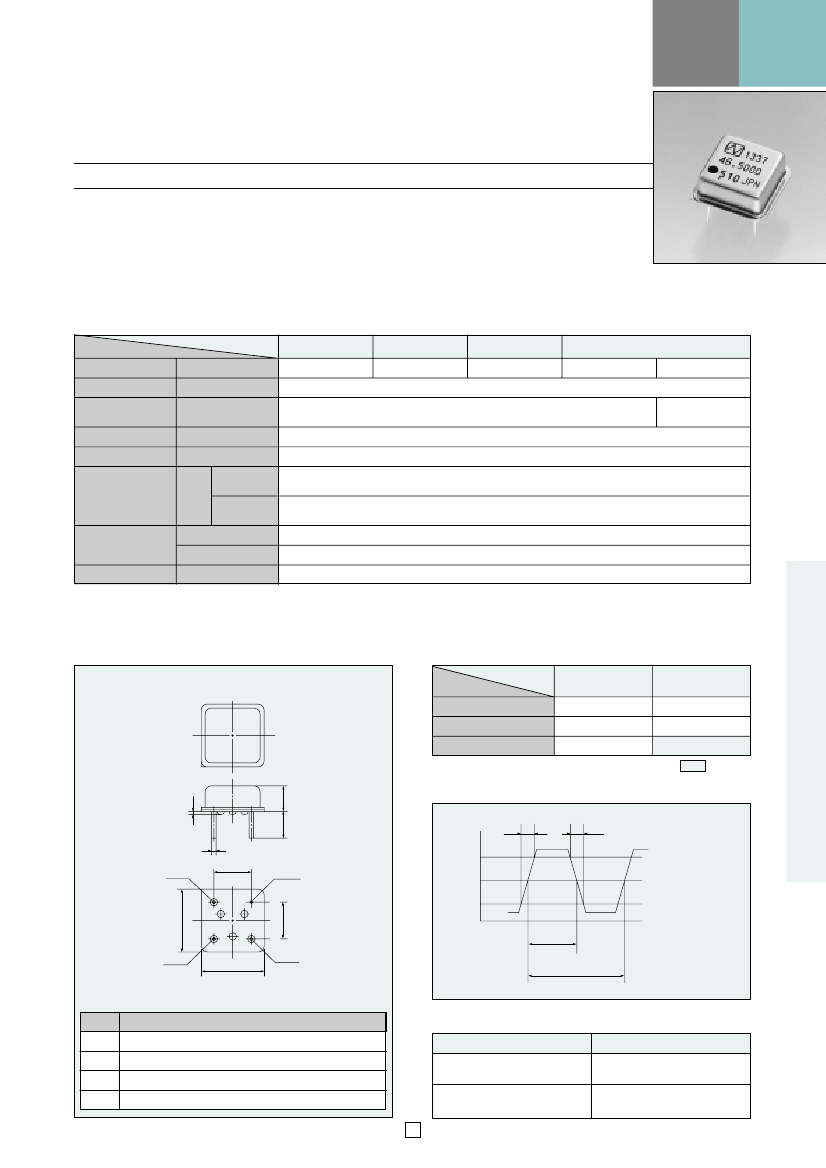

1320 SERIES

Features

Directly drives the TTL or C-MOS IC.

Available from low frequency range up, 875kHz.

Large fanout capability TTL5 (LS-TTL25).

Low power consumption high speed Tr/Tf and accurate duty cycle

(45 to 55%/< 6.5MHz).

Item

Frequency

Model

(MHz)

(V)

(mA)

+5VDC, 25°C

(V)

(ns)

(%)

1/2V

(ns)

1.4V

(pF)

Fanout (gate)

TTL GATE

Tri-state

Absolute Maximum Rating

Supply Voltage (V

) –0.5~+7.0V DC

Storage Temperature Range –55~+125°C

1328

3.5~7

+5±10%

7~15

1329

15~22

8 (TYP)

13 (max)

1326

0.875~1.75

1327

1.75~3.5

5 (TYP)

10 (max)

Supply Voltage (V

)

Current Consumption

max/V

min

Tr max/Tf max

Duty Cycle

0.4/V

–0.5 I

=8mA I

=-8mA

5/5 (Value between 0.1×V

and 0.9×V

)

45~55 (

6.5MHz), 40~60(

6.5MHz)

CRYSTAL CLOCK OSCILLATORS

Stand-by Function

Yes

Note: The values of Current Consumption, Tr/Tf, Duty Cycle show the standard values under 5TTL.

If requested, Duty Cycle 45~55% ( 6.5MHz), No stand-by function version #5 pin : L level or no osc, #1 pin : L level (+0.8V max) is

available.

1320 Series Outline

(mm)

Option of Frequency Stability

Frequency stability

(×10

-6

)

Ope. Temp.

0~+70°C

–10~+70°C

–20~+70°C

±50

—

±100

Standard

0.7±0.3

min max

4.0 5.0

Output Wave <C-MOS/TTL>

0.9V

1/2V

or 1.4V

0.1V

4-ø0.45

7.62±0.30

13.2max

Duty Cycle = t / T×100 [%]

Connection

NC/STAND-BY

GND (CASE)

OUTPUT

Stand-by Function <Tri-state>

# 1 pin input

H level (+2.2 Vmin)

or open

L level (+0.8 Vmax)

# 5 pin output

Operating

High impedance
