BTA225B800C datasheet, PDF - EEWORLD Datasheet

BTA225B800C: DescriptionTRIAC, 800V V(DRM), 25A I(T)RMS; CategoryAnalog mixed-signal IC Trigger device; File Size156KB，3 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/

Download Datasheet Parametric Compare View All

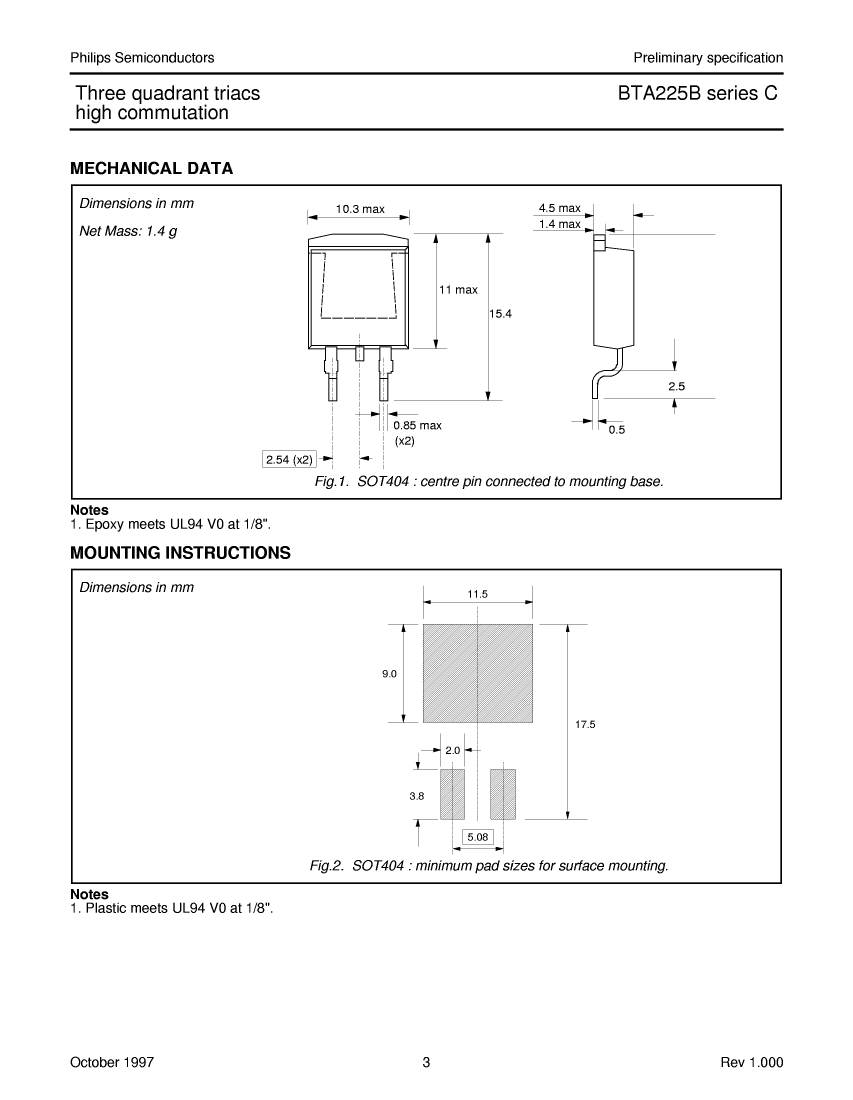

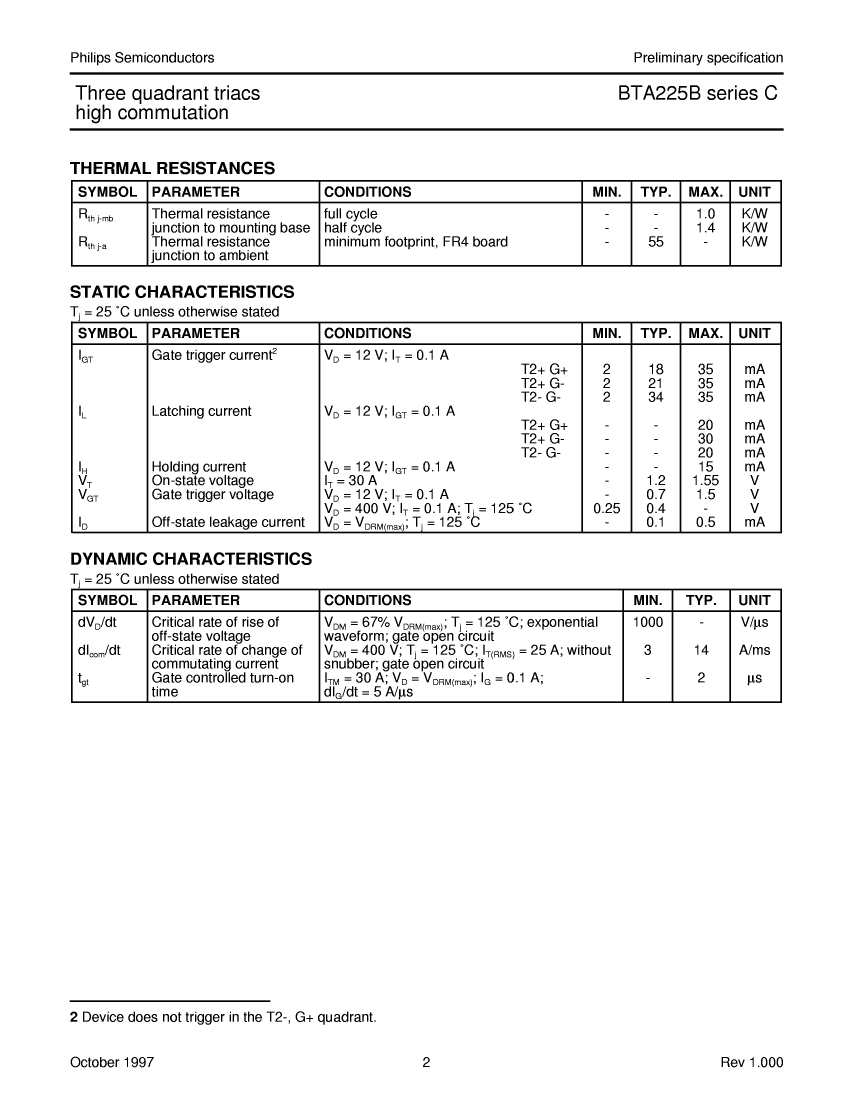

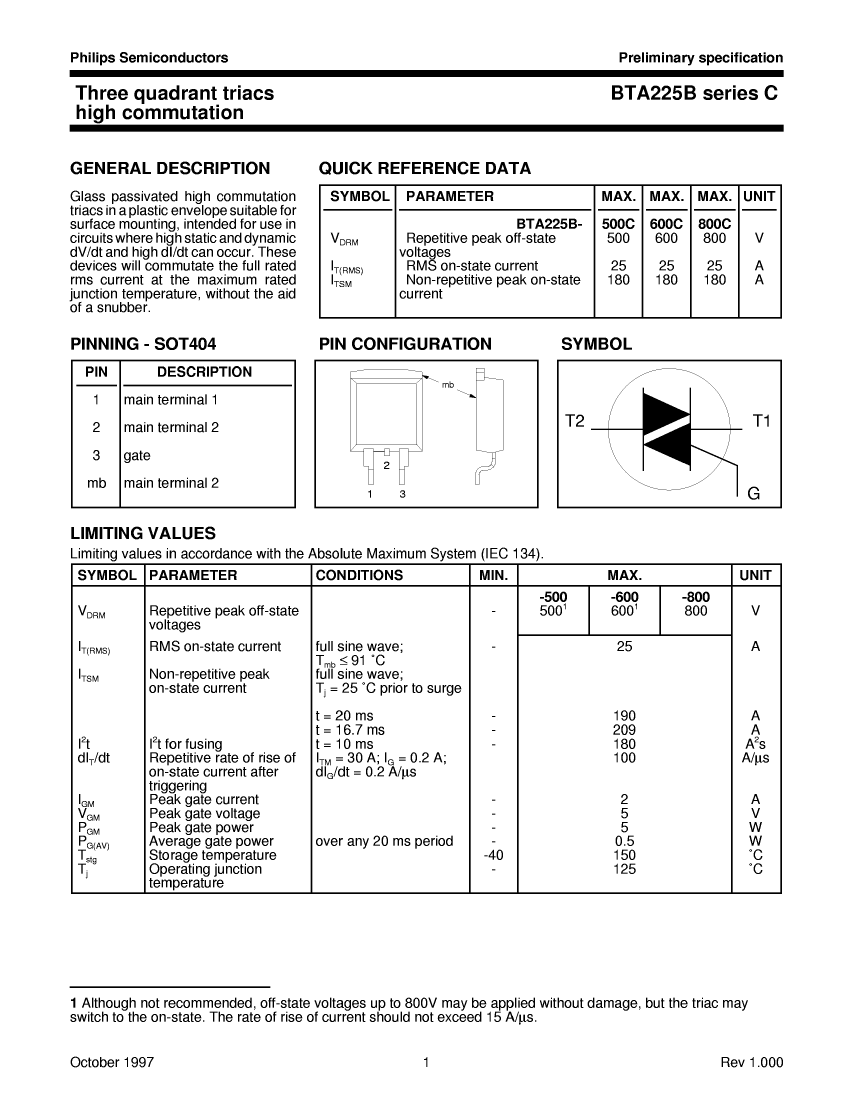

BTA225B800C Overview

TRIAC, 800V V(DRM), 25A I(T)RMS

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	,
Reach Compliance Code	unknown
Critical rise rate of minimum off-state voltage	1000 V/us
Maximum DC gate trigger current	35 mA
Maximum DC gate trigger voltage	1.5 V
Maximum holding current	15 mA
JESD-609 code	e0
Maximum leakage current	0.5 mA
Maximum on-state voltage	1.5 V
Maximum operating temperature	125 °C
Maximum rms on-state current	25 A
Off-state repetitive peak voltage	800 V
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Trigger device type	TRIAC
Base Number Matches	1

	BTA225B800C	C4SMB-DXF-XHHKKMT1	BTA225B500C
Description	TRIAC, 800V V(DRM), 25A I(T)RMS	Cree® Screen Master® 4-mm Oval LED	TRIAC, 500V V(DRM), 25A I(T)RMS
Is it Rohs certified?	incompatible	-	incompatible
Reach Compliance Code	unknown	-	unknown
Critical rise rate of minimum off-state voltage	1000 V/us	-	1000 V/us
Maximum DC gate trigger current	35 mA	-	35 mA
Maximum DC gate trigger voltage	1.5 V	-	1.5 V
Maximum holding current	15 mA	-	15 mA
JESD-609 code	e0	-	e0
Maximum leakage current	0.5 mA	-	0.5 mA
Maximum on-state voltage	1.5 V	-	1.5 V
Maximum operating temperature	125 °C	-	125 °C
Maximum rms on-state current	25 A	-	25 A
Off-state repetitive peak voltage	800 V	-	500 V
surface mount	NO	-	NO
Terminal surface	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)
Trigger device type	TRIAC	-	TRIAC
Base Number Matches	1	-	1
