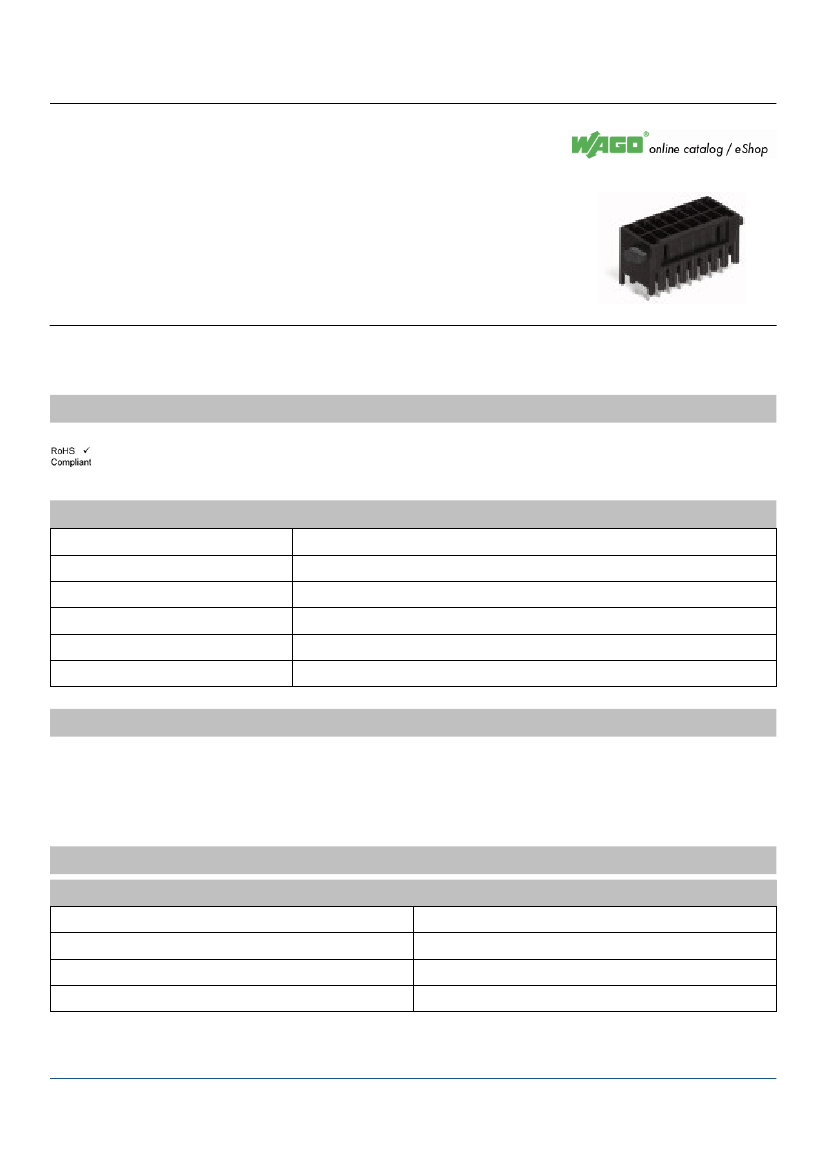

Printview: Male header (for PCBs); Straight solder pin 0.8 x 0.8 mm; 11x2-pole; with ejectors and
orientation nose; Pin spacing 3.5 mm / 0.138 in; 100% protected against mismating; 2 rows; Vertical PCB
mounting - Item No.: 713-1471/037-000
.
Male header (for PCBs); Straight solder pin 0.8 x 0.8 mm; 11x2-
pole; with ejectors and orientation nose; Pin spacing 3.5 mm /
0.138 in; 100% protected against mismating; 2 rows; Vertical PCB
mounting
Item No.: 713-1471/037-000
.
Male header (for PCBs); Straight solder pin 0.8 x 0.8 mm; 11x2-pole; with ejectors and orientation nose; Pin spacing
3.5 mm / 0.138 in; 100% protected against mismating; 2 rows; Vertical PCB mounting
.
Marking
.
Business data
Supplier
Item no.
GTIN / EAN
Content
Order amount
Customer item number
.
Notes
WAGO
713-1471/037-000
4045454809331
1
50
Item description:Header housing is molded of THR-compatible insulation material for lead-free Reflow
solderingSeparated pin slots prevent damage and make the headers touch-proof when unplugged100% protected
against mismatingCoding option available
Technical data
Miscellaneous
No. of poles
Pin spacing
Color
Ratings according to 1
22
3.5 mm (0.138 in %)
black
IEC/EN 60664-1
WAGO Kontakttechnik GmbH & Co. KG
1
Printview: Male header (for PCBs); Straight solder pin 0.8 x 0.8 mm; 11x2-pole; with ejectors and
orientation nose; Pin spacing 3.5 mm / 0.138 in; 100% protected against mismating; 2 rows; Vertical PCB
mounting - Item No.: 713-1471/037-000
Technical data
Rated voltage (III / 3) [V]
Rated surge voltage (III / 3) [kV]
Rated voltage (III / 2) [V]
Rated surge voltage (III / 2) [kV]
Rated voltage (II / 2) [V]
Rated surge voltage (II / 2) [kV]
Nominal current [A]
Number of levels
Solder pin length [mm]
Drilled hole diameter (tolerance) [mm]
Material group
Insulating material
Flammability rating per UL 94
Limit temperature range
Contact material
Contact plating
Fire load [MJ]
Weight [g]
Width
Height
Height from the surface
Length
80 [V]
2.5 [kV]
160 [V]
2.5 [kV]
250 [V]
2.5 [kV]
10 [A]
2
3.8 [mm]
1.2(+ 0.1) [mm]
I
Polyphthalamide (PPA GF)
V0
-60 … 100 C
Electrolytic copper (Ecu)
tin-plated
0.121 [MJ]
5.844 [g]
46.6 mm / 1.835 in
17.3 mm / 0.681 in
13.5 mm / 0.531 in
13.3 mm / 0.524 in
WAGO Kontakttechnik GmbH & Co. KG
2
Printview: Male header (for PCBs); Straight solder pin 0.8 x 0.8 mm; 11x2-pole; with ejectors and
orientation nose; Pin spacing 3.5 mm / 0.138 in; 100% protected against mismating; 2 rows; Vertical PCB
mounting - Item No.: 713-1471/037-000

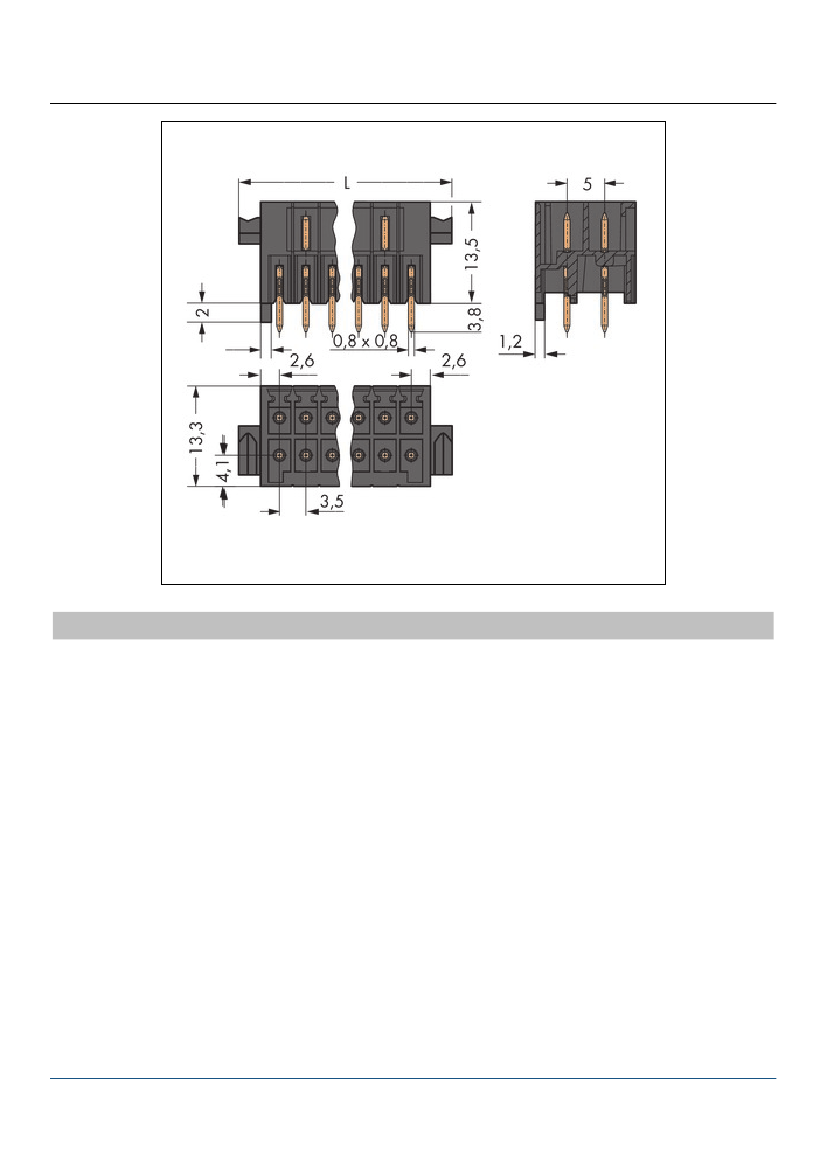

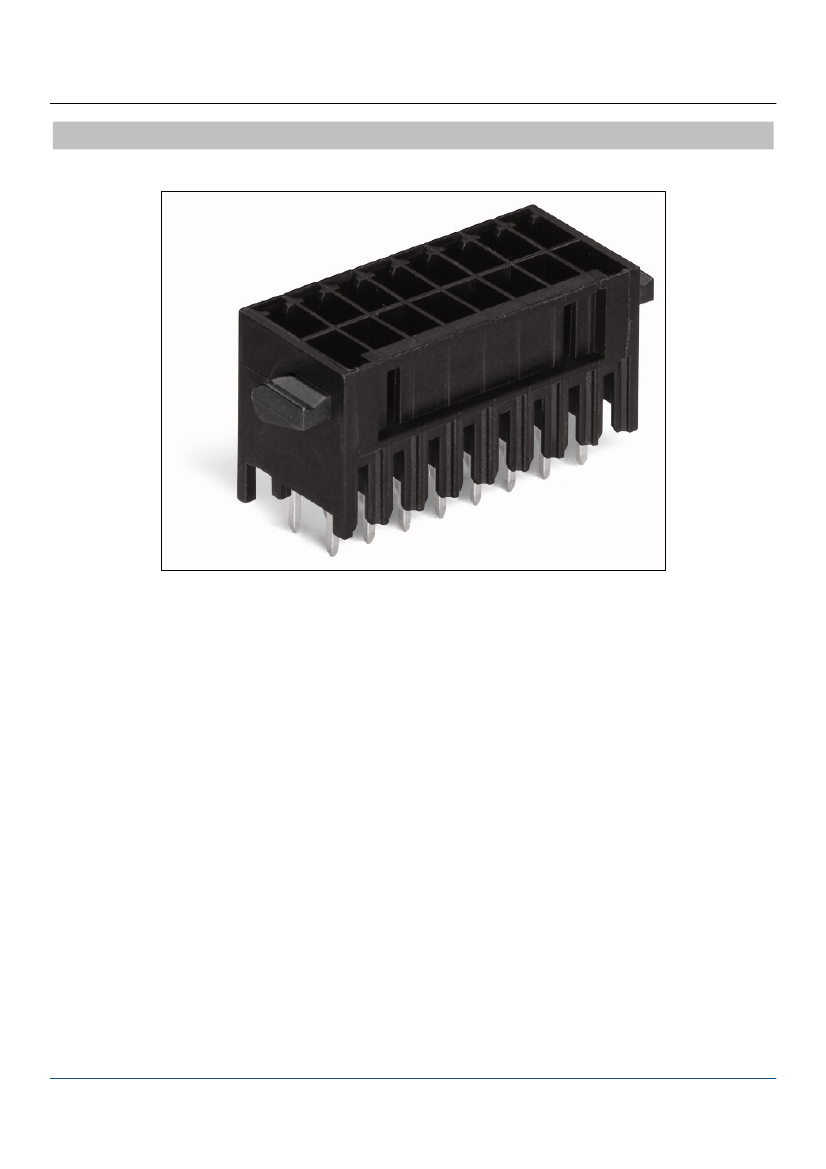

Images & drawings
WAGO Kontakttechnik GmbH & Co. KG
3
Printview: Male header (for PCBs); Straight solder pin 0.8 x 0.8 mm; 11x2-pole; with ejectors and
orientation nose; Pin spacing 3.5 mm / 0.138 in; 100% protected against mismating; 2 rows; Vertical PCB
mounting - Item No.: 713-1471/037-000
.
Address
WAGO Kontakttechnik GmbH & Co. KG
Hansastr. 27
32423 Minden
Telefon: 0571/887-0
Fax: 0571/887-169
http://www.wago.com
© WAGO Kontakttechnik GmbH & Co. KG
Technische Änderungen und Irrtümer vorbehalten.
WAGO Kontakttechnik GmbH & Co. KG
4
