1-87865-1 datasheet, PDF - EEWORLD Datasheet

1-87865-1: DescriptionHEADER CONNECTOR,CABLE MNT,PLUG,30 CONTACTS,SKT,0.1 PITCH,CRIMP TERMINAL,LATCH,BLACK; CategoryThe connector The connector; File Size74KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

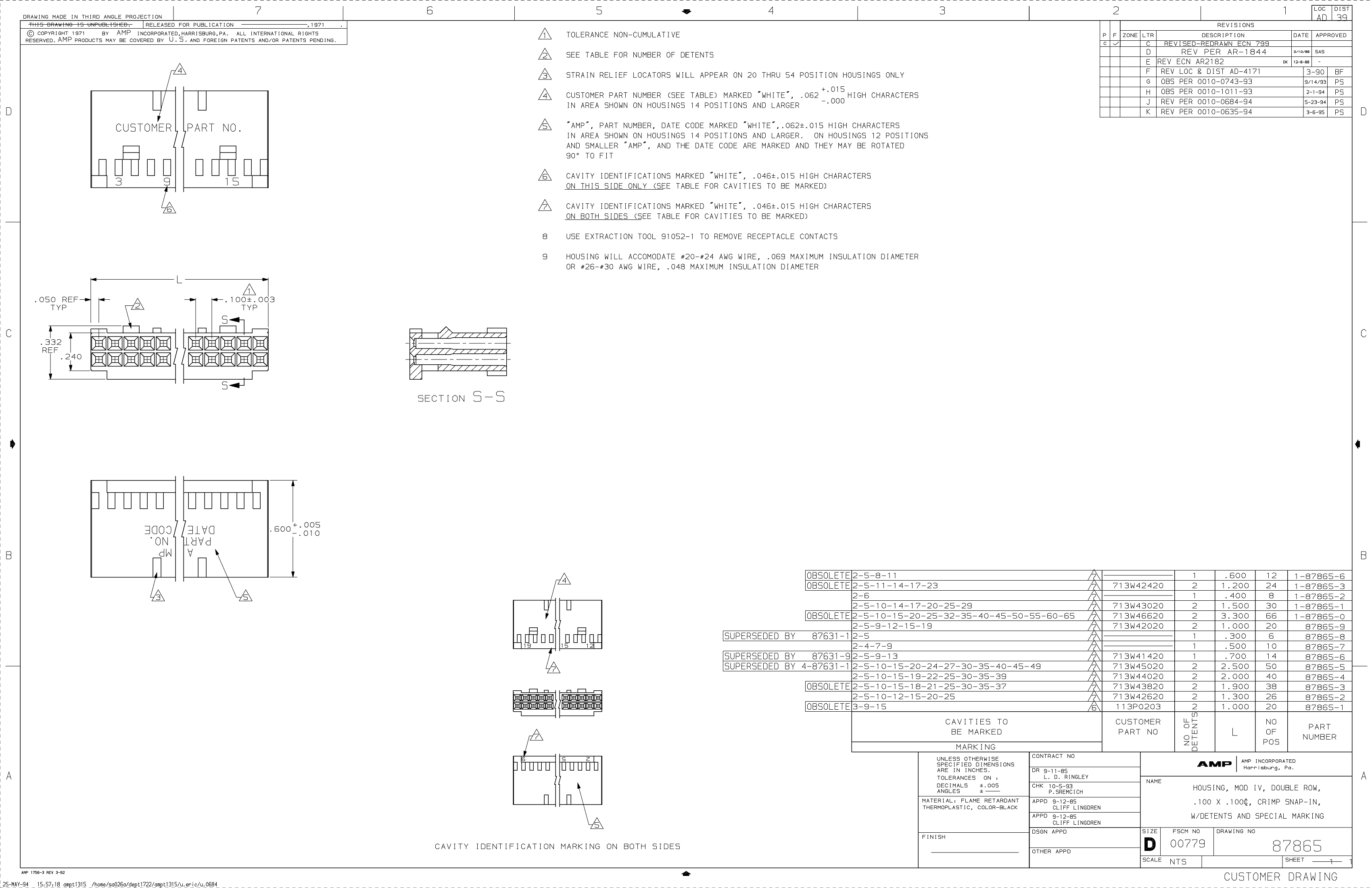

1-87865-1 Overview

HEADER CONNECTOR,CABLE MNT,PLUG,30 CONTACTS,SKT,0.1 PITCH,CRIMP TERMINAL,LATCH,BLACK

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compli
Other features	ROHS AND ELV COMPLIANT
body width	0.332 inch
subject depth	0.6 inch
body length	1.5 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact point gender	FEMALE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	250VAC V
maximum insertion force	4.448 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
Manufacturer's serial number	87865
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LATCH
Installation option 2	GUIDE SLOT
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-65 °C
polarization key	POLARIZED HOUSING
Guideline	UL
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	30
Maximum wire diameter	22 AWG
Minimum wire diameter	30 AWG
Evacuation force-minimum value	.556 N
Base Number Matches	1
