B32-1010: DescriptionKeypad Switch, 1 Switches, SPST, Momentary-tactile, Solder Terminal, Through Hole-right Angle, ROHS COMPLIANT; CategoryMechanical and electronic products switch; File Size186KB，3 Pages; ManufacturerOMRON; Websitehttps://www.omron.com; Environmental Compliance

Download Datasheet Parametric Compare View All

B32-1010 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	B32-1010	-	-	View	Buy Now

B32-1010 Overview

Keypad Switch, 1 Switches, SPST, Momentary-tactile, Solder Terminal, Through Hole-right Angle, ROHS COMPLIANT

B32-1010 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Actuator type	PROJECTED PLUNGER TYPE
Other features	PANEL MOUNTABLE
Body length or diameter	6 mm
Circuit configuration	1X1
Installation features	THROUGH HOLE-RIGHT ANGLE
Number of switches	1
Maximum operating temperature	70 °C
Minimum operating temperature	-25 °C
method of packing	BAG; BULK
surface mount	NO
Switch action	MOMENTARY-TACTILE
switch function	SPST
Switch type	KEYPAD SWITCH
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

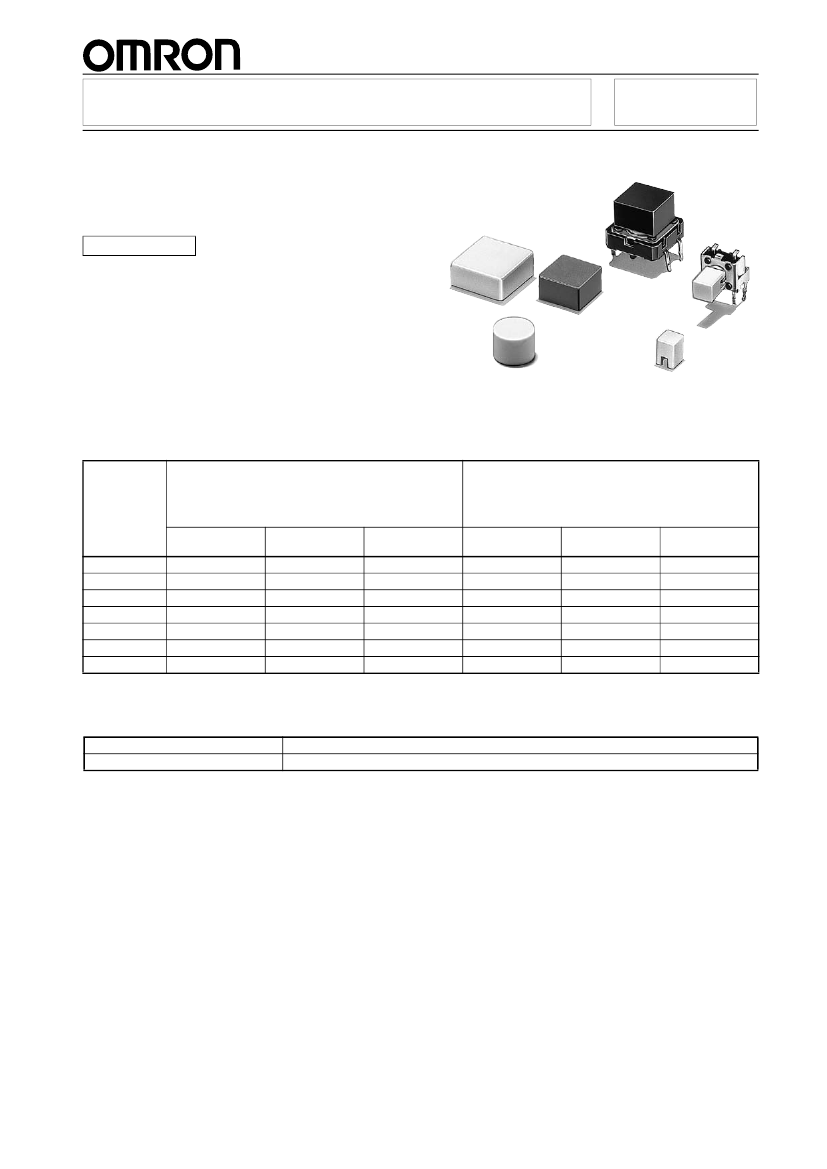

Tactile Switch Key Top

Key Top Designed Specially for

Projected-plunger-type B3F, B3FS, and

B3W Switches

●

Available in a wide range of colors and sizes.

B32

RoHS Compliant

■

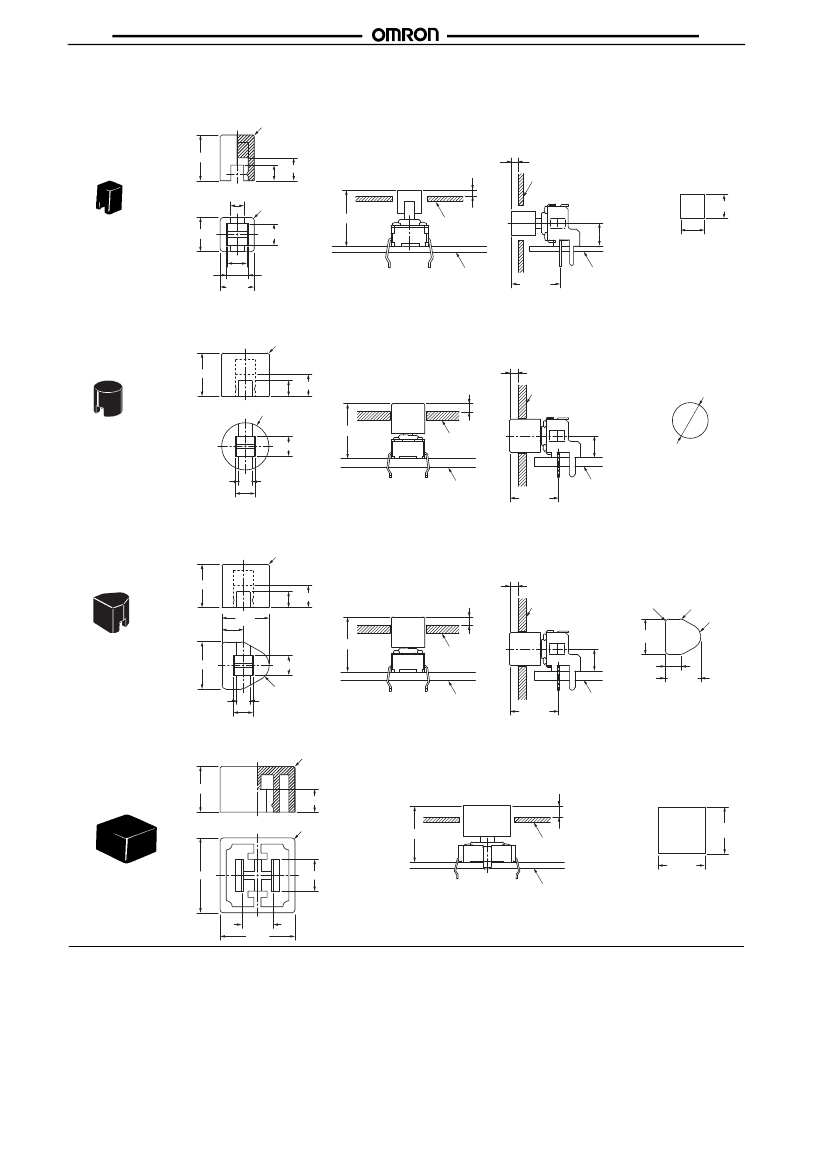

List of Models

Color

6 mm Switches

B3F-1000, -1000-G,

B3F-3000, -3000-G, -6000,

B3W-1000,

B3FS-1000

4 mm Key

Top

6 mm dia.

Key Top

B32-2000

B32-2010

---

D-type

Key Top

B32-2100

B32-2110

---

9 mm

Key Top

B32-1200

B32-1210

B32-1220

B32-1230

B32-1240

B32-1260

B32-1280

12 mm Switches

B3F-4000, -5000, -5001,

B3W-4000,

B3FS-4000

12 mm

Key Top

B32-1300

B32-1310

B32-1320

B32-1330

B32-1340

B32-1360

B32-1380

9.5-mm dia.

B32-1600

B32-1610

B32-1620

B32-1630

---

For B3F, B3FS, and B3W Switches

lvory

Black

Orange

Yellow

Blue

White

Red

Note:

■

B32-1000

B32-1010

B32-1020

B32-1030

B32-1040

B32-1060

B32-1080

Bulk Packed, 1000 pcs per bag. Order in multiple of the package quantity.

Characteristics

-25°C to +70°C at 60%RH max. (with no icing or condensation)

35% to 85% (at 5 to 35°C)

Ambient operating temperature

Ambient operating humidity
