LD09S13A4GV00LF

Description
D Subminiature Connector, 9 Contact(s), Female, Solder Terminal, #4-40
CategoryThe connector    The connector
File Size176KB,2 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

LD09S13A4GV00LF Online Shopping

Suppliers Part Number Price MOQ In stock
LD09S13A4GV00LF - - View Buy Now

LD09S13A4GV00LF Overview

D Subminiature Connector, 9 Contact(s), Female, Solder Terminal, #4-40

LD09S13A4GV00LF Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time11 weeks
body width0.53 inch
subject depth0.577 inch
body length1.213 inch
Connector typeD SUBMINIATURE CONNECTOR
Contact to complete cooperationAU ON NI
Contact point genderFEMALE
Contact materialCOPPER ALLOY
contact modeSTAGGERED
Contact resistance25 mΩ
Contact styleRND PIN-SKT
Insulation resistance5000000000 Ω
Insulator colorBLACK
insulator materialTHERMOPLASTIC
Manufacturer's serial numberLD
Installation option 1#4-40
Installation option 2SCREW
Installation methodRIGHT ANGLE
Installation typeBOARD
PCB row number2
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-55 °C
PCB contact patternSTAGGERED
PCB contact row spacing1.27 mm
Plating thicknessFLASH inch
Rated current (signal)5 A
GuidelineUL
reliabilityCOMMERCIAL
Shell surfaceTIN OVER NICKEL
Terminal length0.114 inch
Termination typeSOLDER
Total number of contacts9
Base Number Matches1

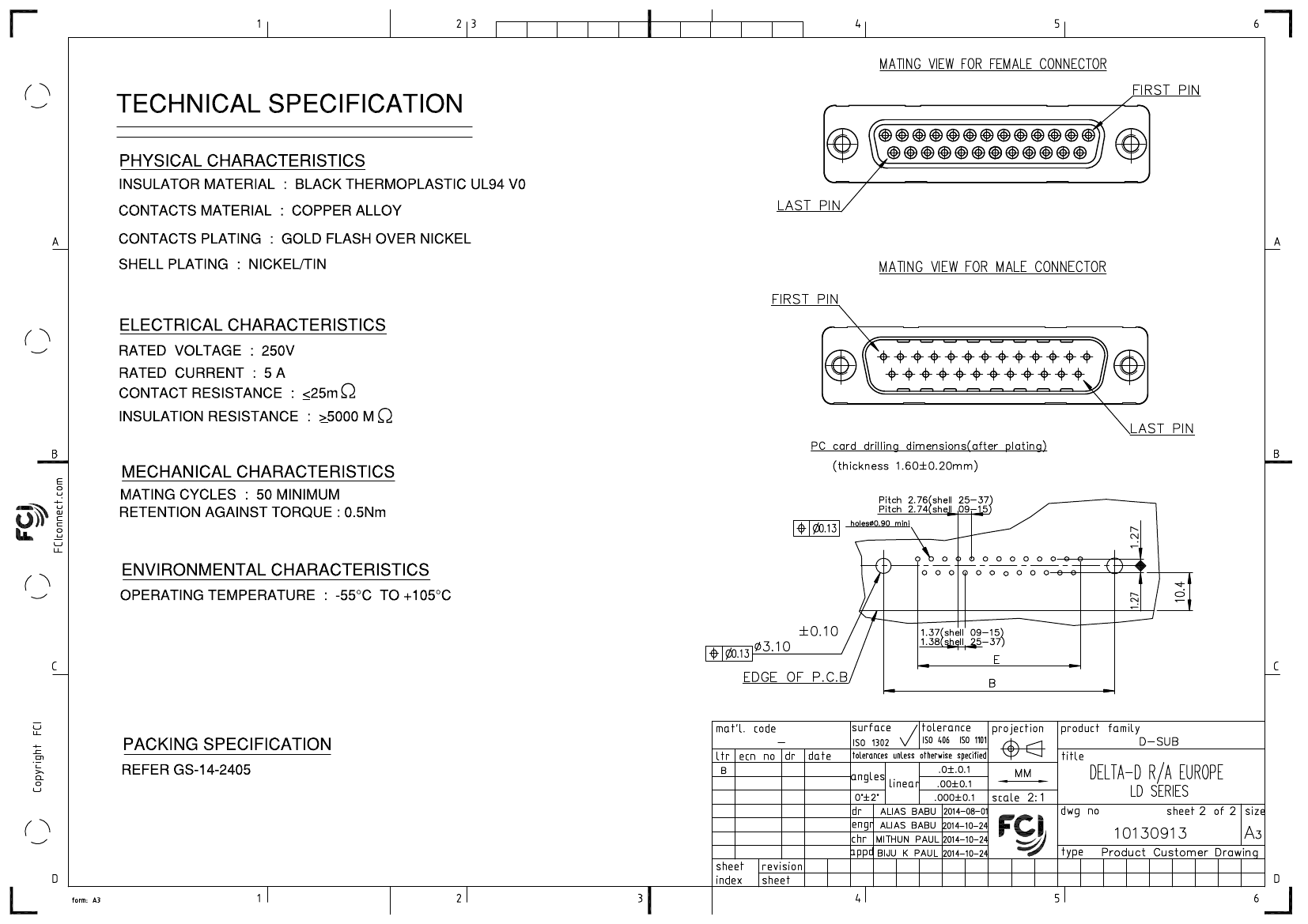

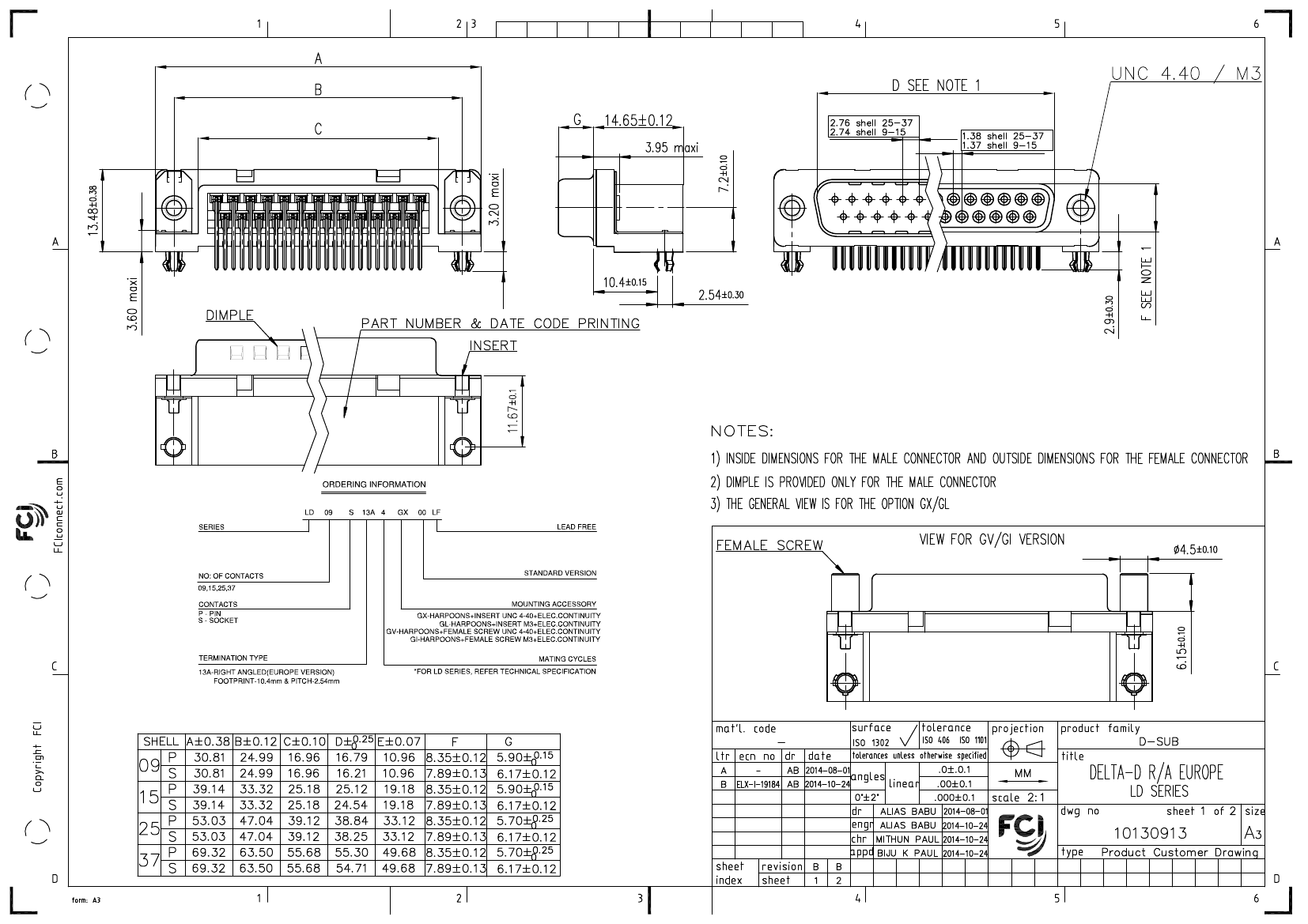

PDS: Rev :B
STATUS:Released
Printed: Oct 24, 2014

LD09S13A4GV00LF Related Products

LD09S13A4GV00LF LD15P13A4GX00LF
Description D Subminiature Connector, 9 Contact(s), Female, Solder Terminal, #4-40 D Subminiature Connector, 15 Contact(s), Male, Solder Terminal, #4-40
Is it Rohs certified? conform to conform to
Reach Compliance Code compliant compliant
ECCN code EAR99 EAR99
body width 0.53 inch 0.53 inch
subject depth 0.577 inch 0.577 inch
body length 1.213 inch 1.541 inch
Connector type D SUBMINIATURE CONNECTOR D SUBMINIATURE CONNECTOR
Contact to complete cooperation AU ON NI AU ON NI
Contact point gender FEMALE MALE
Contact material COPPER ALLOY COPPER ALLOY
contact mode STAGGERED STAGGERED
Contact resistance 25 mΩ 25 mΩ
Contact style RND PIN-SKT RND PIN-SKT
Insulation resistance 5000000000 Ω 5000000000 Ω
Insulator color BLACK BLACK
insulator material THERMOPLASTIC THERMOPLASTIC
Manufacturer's serial number LD LD
Installation option 1 #4-40 #4-40
Installation option 2 SCREW LOCKING
Installation method RIGHT ANGLE RIGHT ANGLE
Installation type BOARD BOARD
PCB row number 2 2
Number of rows loaded 2 2
Maximum operating temperature 105 °C 105 °C
Minimum operating temperature -55 °C -55 °C
PCB contact pattern STAGGERED STAGGERED
PCB contact row spacing 1.27 mm 1.27 mm
Plating thickness FLASH inch FLASH inch
Rated current (signal) 5 A 5 A
Guideline UL UL
reliability COMMERCIAL COMMERCIAL
Shell surface TIN OVER NICKEL TIN OVER NICKEL
Terminal length 0.114 inch 0.114 inch
Termination type SOLDER SOLDER
Total number of contacts 9 15
Base Number Matches 1 1
