NOTES:
1. MATERIALS AND FINISHES:
HD-BNC STR PLUG - BRASS, NICKEL PLATING
BNC STR PLUG - PHOSPHOR BRONZE, NICKEL PLATING
CABLE - BELDEN 4505R, BLACK
2. ELECTRICAL:
A. IMPEDANCE: 75 OHM
3. PACKAGING:
A. QUANTITY: SINGLE PACK
B. MARKING: BAG TO BE MARKED
"AMPHENOL RF, 95-850-217-XXX AND DATE CODE"
THIRD ANGLE PROJ.
REV
REVISIONS
A
RELEASE TO MFG.
DESCRIPTION
20-Nov-18
DATE
9701
ECO
APPR
PL
LENGTH 'L' (SEE TABLE)
HEAT SHRINK TUBE
TYP(2)
INTERFACE PER
HD-BNC PLUG
95-850-217-006
95-850-217-012
95-850-217-018
95-850-217-024
95-850-217-036
95-850-217-048
-
-
-
-
-
-
PART NUMBER
(IMPERIAL)
PART NUMBER
(METRIC)
-
-
-
-
-
-
LENGTH TABLE
LENGTH IN INCHES
[METERS] 'L'
6.00 [0.152]
9.84 [0.250]
LENGTH 'X' IN INCHES
[METERS] MIN
0.75 [0.019]
LENGTH 'X' (SEE TABLE)
TYP(2)
INTERFACE PER
MIL-STD-348
SERIES: BNC PLUG
95-850-217M025
12.00 [0.305]
18.00 [0.457]
19.69 [0.500]
24.00 [0.610]
29.53 [0.750]
36.00 [0.914]
39.37 [1.000]
48.00 [1.219]
49.21 [1.250]
59.06 [1.500]
60.00 [1.524]
72.00 [1.829]
118.11 [3.000]
120.00 [3.048]
144.00 [3.658]
180.00 [4.572]
196.85 [5.000]
393.70 [10.000]
600.00 [15.240]
787.40 [20.000]
1181.10 [30.000]
1200.00 [30.480]
DRAWN
LOKESH P
ENGINEER
LOKESH P
APPROVED
K.CAPOZZI
900.00 [22.860]
300.00 [7.620]
78.74 [2.000]
95-850-217M050
95-850-217M075
95-850-217M100
95-850-217M125
95-850-217M150
-
-
SCALE
0.500
95-850-217-060
95-850-217-072
-
-
95-850-217M200
95-850-217M300
-
-
95-850-217M500
95-850-217M10L
95-850-217M20L
95-850-217M30L
-
-
-
-
-
95-850-217-120
95-850-217-144
95-850-217-180
-
-
-
-
1.50 [0.038]
TOLERANCE TABLE
LENGTH IN INCHES/FT [METERS]
0" - 23.90" [0 - 0.607]
24.00" - 59.00" [0.610 - 1.499]
5.0' - 24.9' [1.524 - 7.617]
25.0' & UP [7.620
& UP]
TOLERANCE
# 0.25" [0.006]
# 0.50" [0.013]
# 2.5%
# 5.0%
DESIGN REQUIREMENTS:
X
FREQUENCY:
DC - 12 GHz
95-850-217-300
X
CONTINUITY
X
HI-POT : 300 VRMS
OTHER
95-850-217L050
95-850-217L075
95-850-217L100
MATERIAL
SEE NOTES
REFERENCE
EAR # 8638
VSWR:____ : 1 MAX
INS. LOSS : ____ dB MAX
CUSTOMER OUTLINE DRAWING
ALL OTHER SHEETS ARE FOR INTERNAL USE ONLY
DATE
24-Sep-18
DATE
24-Sep-18
DATE
20-Nov-18
UNLESS OTHERWISE SPECIFIED, DIMENSIO NS ARE IN INCHES AND TOLERANCES ARE:
2 PLACE DECIMAL
3 PLACE DECIMAL
ANGLES
NOTICE - These drawings, specifications, or other data (1) are, and remain the
property of Amphenol corp. (2) must be returned upon request; and (3) are
confidential and not to be disclosed to any person other than those to whom
they
are given by Amphenol Corp. the furnishing of these drawings, specifications,
or
other data by Amphenol Corp., or to any other person to anyone for any purpose
is
not to be regarded by implication or otherwise in any manner licensing,
granting
rights to permitting such holder or any other person to manufacture, use or
sell any
product, process or design, patented or otherwise, that may in any way be
related to
or disclosed by said drawings, specifications, or other data.
TITLE

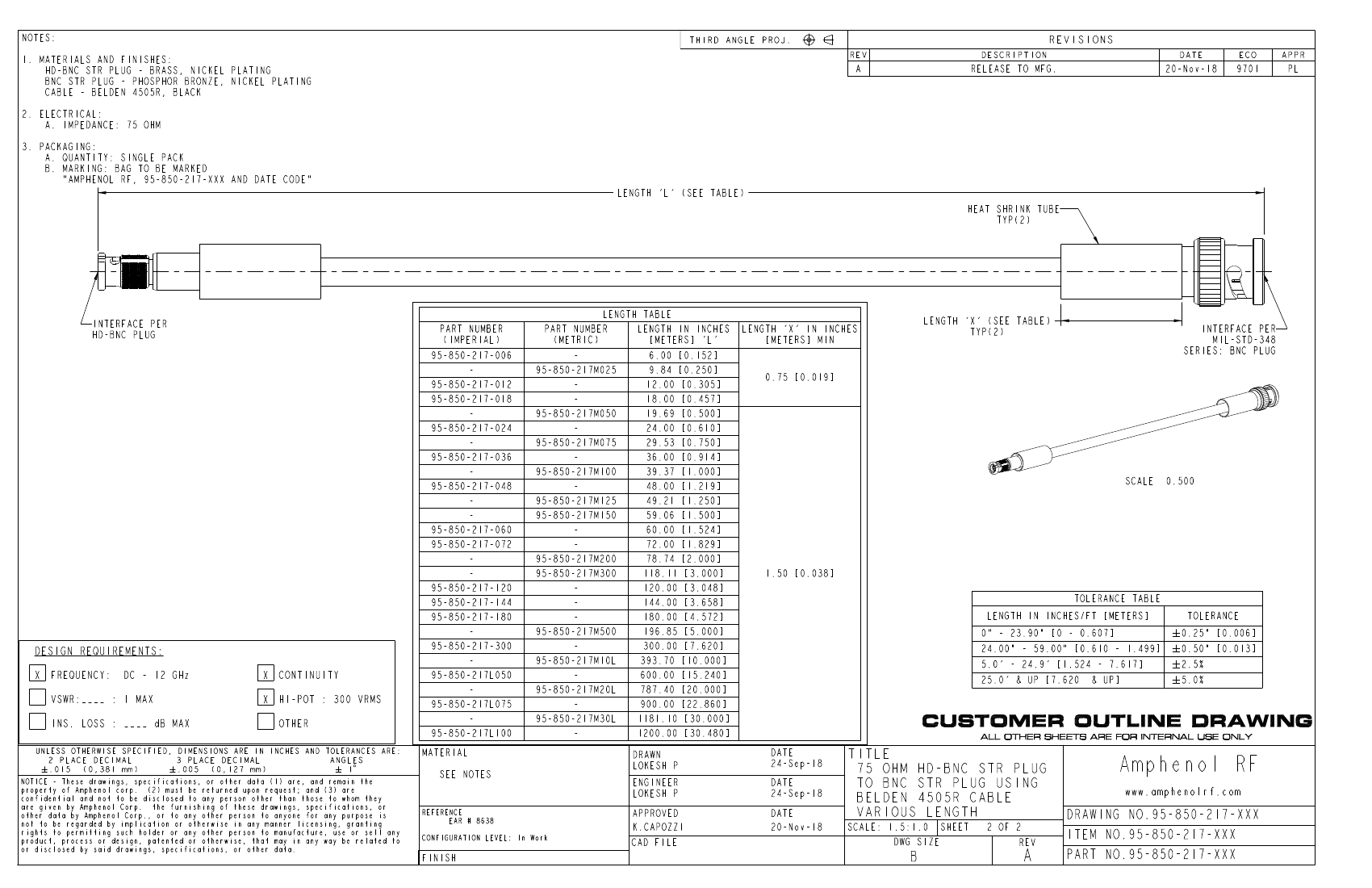

75 OHM HD-BNC STR PLUG
TO BNC STR PLUG USING
BELDEN 4505R CABLE
VARIOUS LENGTH
SCALE: 1.5:1.0
DWG SIZE
SHEET
2 OF 2
Amphenol RF
www.amphenolrf.com
DRAWING NO. 95-850-217-XXX
ITEM NO. 95-850-217-XXX
PART NO. 95-850-217-XXX
CONFIGURATION LEVEL: In Work
FINISH
CAD FILE
B
REV
A
