LF351 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > accessories> LF351

Preview

LF351: DescriptionOP-AMP, 13000 uV OFFSET-MAX, 4 MHz BAND WIDTH, PDIP8; Categoryaccessories; File Size596KB，14 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Download user manual Compare View All

LF351 Overview

OP-AMP, 13000 uV OFFSET-MAX, 4 MHz BAND WIDTH, PDIP8

User Manual

【User Guide】UM0065 MACROMODELS USER MANUAL FOR STANDARD LINEAR PRODUCTS

Preview

Download Datasheet

View All

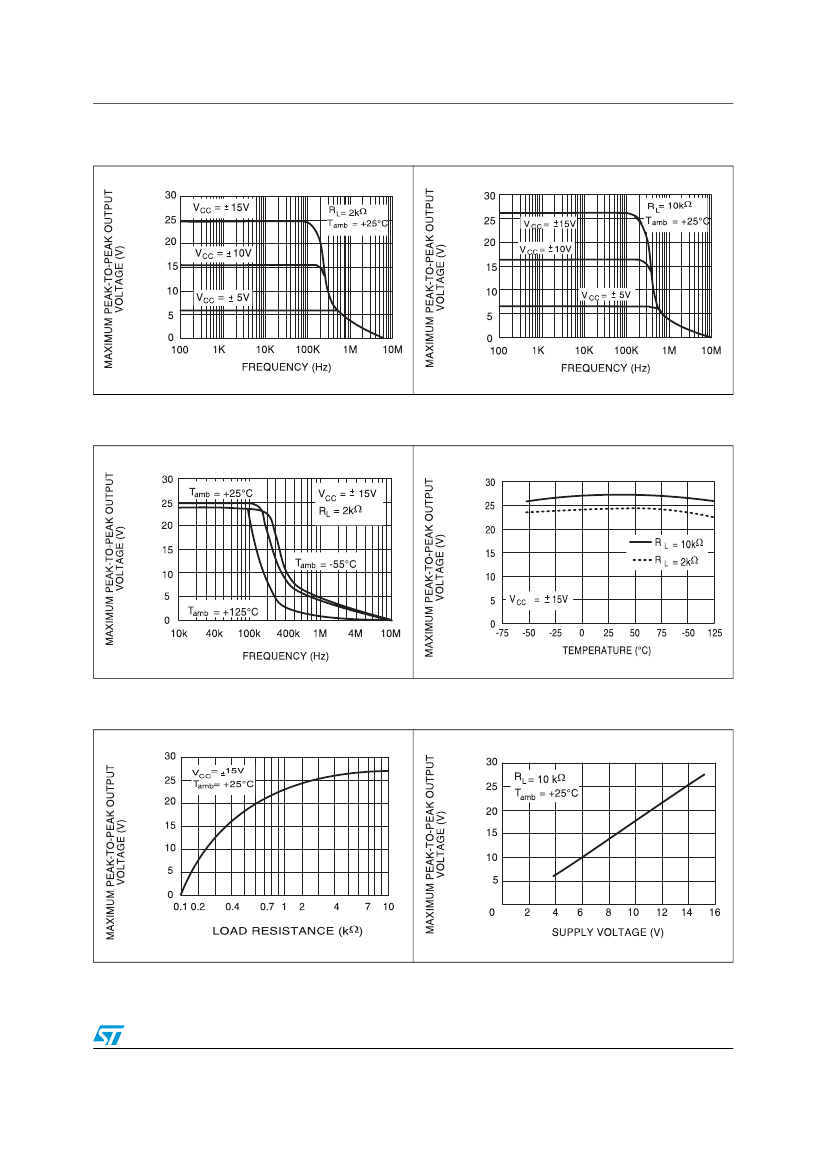

LF351

Wide bandwidth single JFET operational amplifiers

Features

■

Internally adjustable input offset voltage

Low power consumption

Wide common-mode (up to V

CC+

) and

differential voltage range

Low input bias and offset current

Output short-circuit protection

High input impedance JFET input stage

Internal frequency compensation

Latch up free operation

High slew rate 16 V/µs (typical)

SO-8

(Plastic micro package)

DIP8

(Plastic package)

Description

These circuits are high speed JFET input single

operational amplifiers incorporating well matched,

high voltage JFET and bipolar transistors in a

monolithic integrated circuit.

The devices feature high slew rates, low input

bias and offset currents, and low offset voltage

temperature coefficient.

Pin connections

(top view)

1 - Offset null 1

2 - Inverting input

3 - Non-inverting input

4 - V

5 - Offset null 2

6 - Output

7 - V

8 - N.C.

April 2008

Rev 2

1/14

www.st.com

LF351 Related Products

	LF351	LF351_08	LF151D	LF151N	LF151DT	LF251D	LF251N	LF251DT
Description	OP-AMP, 13000 uV OFFSET-MAX, 4 MHz BAND WIDTH, PDIP8	OP-AMP, 13000 uV OFFSET-MAX, 4 MHz BAND WIDTH, PDIP8	OP-AMP, 13000 uV OFFSET-MAX, 4 MHz BAND WIDTH, PDIP8	OP-AMP, 13000 uV OFFSET-MAX, 4 MHz BAND WIDTH, PDIP8	OP-AMP, 13000 uV OFFSET-MAX, 4 MHz BAND WIDTH, PDIP8	OP-AMP, 13000 uV OFFSET-MAX, 4 MHz BAND WIDTH, PDIP8	OP-AMP, 13000 uV OFFSET-MAX, 4 MHz BAND WIDTH, PDIP8	OP-AMP, 13000 uV OFFSET-MAX, 4 MHz BAND WIDTH, PDIP8
Is it lead-free?	-	-	Lead free	Lead free	Contains lead	Lead free	Lead free	Lead free
Is it Rohs certified?	-	-	conform to	conform to	incompatible	conform to	conform to	conform to
Maker	-	-	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics
Parts packaging code	-	-	SOIC	DIP	SOIC	SOIC	DIP	SOIC
package instruction	-	-	SOP, SOP8,.25	DIP, DIP8,.3	SOP, SOP8,.25	SOP, SOP8,.25	DIP, DIP8,.3	SOP, SOP8,.25
Contacts	-	-	8	8	8	8	8	8
Reach Compliance Code	-	-	compli	compli	unknow	compli	compli	compli
ECCN code	-	-	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Amplifier type	-	-	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Architecture	-	-	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	-	-	0.02 µA	0.02 µA	0.02 µA	0.02 µA	0.02 µA	0.02 µA
Maximum bias current (IIB) at 25C	-	-	0.0002 µA	0.0002 µA	0.0002 µA	0.0002 µA	0.0002 µA	0.0002 µA
Nominal Common Mode Rejection Ratio	-	-	70 dB	70 dB	70 dB	70 dB	70 dB	70 dB
frequency compensation	-	-	YES	YES	YES	YES	YES	YES
Maximum input offset current (IIO)	-	-	0.004 µA	0.004 µA	0.004 µA	0.004 µA	0.004 µA	0.004 µA
Maximum input offset voltage	-	-	13000 µV	13000 µV	13000 µV	13000 µV	13000 µV	13000 µV
JESD-30 code	-	-	R-PDSO-G8	R-PDIP-T8	R-PDSO-G8	R-PDSO-G8	R-PDIP-T8	R-PDSO-G8
JESD-609 code	-	-	e4	e3	-	e4	e3	e4
low-bias	-	-	YES	YES	YES	YES	YES	YES
low-dissonance	-	-	NO	NO	NO	NO	NO	NO
Negative supply voltage upper limit	-	-	-18 V	-18 V	-18 V	-18 V	-18 V	-18 V
Nominal Negative Supply Voltage (Vsup)	-	-	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V
Number of functions	-	-	1	1	1	1	1	1
Number of terminals	-	-	8	8	8	8	8	8
Maximum operating temperature	-	-	125 °C	125 °C	125 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-	-	-55 °C	-55 °C	-55 °C	-40 °C	-40 °C	-40 °C
Package body material	-	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	-	-	SOP	DIP	SOP	SOP	DIP	SOP
Encapsulate equivalent code	-	-	SOP8,.25	DIP8,.3	SOP8,.25	SOP8,.25	DIP8,.3	SOP8,.25
Package shape	-	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	-	-	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	-	-	NOT SPECIFIED	NOT SPECIFIED	225	260	NOT SPECIFIED	260
power supply	-	-	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V
Certification status	-	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	-	-	1.75 mm	5.08 mm	1.75 mm	1.75 mm	5.08 mm	1.75 mm
minimum slew rate	-	-	12 V/us	12 V/us	12 V/us	12 V/us	12 V/us	12 V/us
Nominal slew rate	-	-	16 V/us	16 V/us	16 V/us	16 V/us	16 V/us	16 V/us
Maximum slew rate	-	-	3.4 mA	3.4 mA	3.4 mA	2.5 mA	2.5 mA	3.4 mA
Supply voltage upper limit	-	-	18 V	18 V	18 V	18 V	18 V	18 V
Nominal supply voltage (Vsup)	-	-	15 V	15 V	15 V	15 V	15 V	15 V
surface mount	-	-	YES	NO	YES	YES	NO	YES
technology	-	-	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	-	-	MILITARY	MILITARY	MILITARY	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	-	-	Nickel/Palladium/Gold (Ni/Pd/Au)	Matte Tin (Sn)	-	Nickel/Palladium/Gold (Ni/Pd/Au)	Matte Tin (Sn)	NICKEL PALLADIUM GOLD
Terminal form	-	-	GULL WING	THROUGH-HOLE	GULL WING	GULL WING	THROUGH-HOLE	GULL WING
Terminal pitch	-	-	1.27 mm	2.54 mm	1.27 mm	1.27 mm	2.54 mm	1.27 mm
Terminal location	-	-	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	-	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	30	NOT SPECIFIED	30
Nominal Uniform Gain Bandwidth	-	-	4000 kHz	4000 kHz	4000 kHz	4000 kHz	4000 kHz	4000 kHz
Minimum voltage gain	-	-	25000	25000	25000	50000	-	25000
width	-	-	3.9 mm	7.62 mm	3.9 mm	3.9 mm	7.62 mm	3.9 mm
