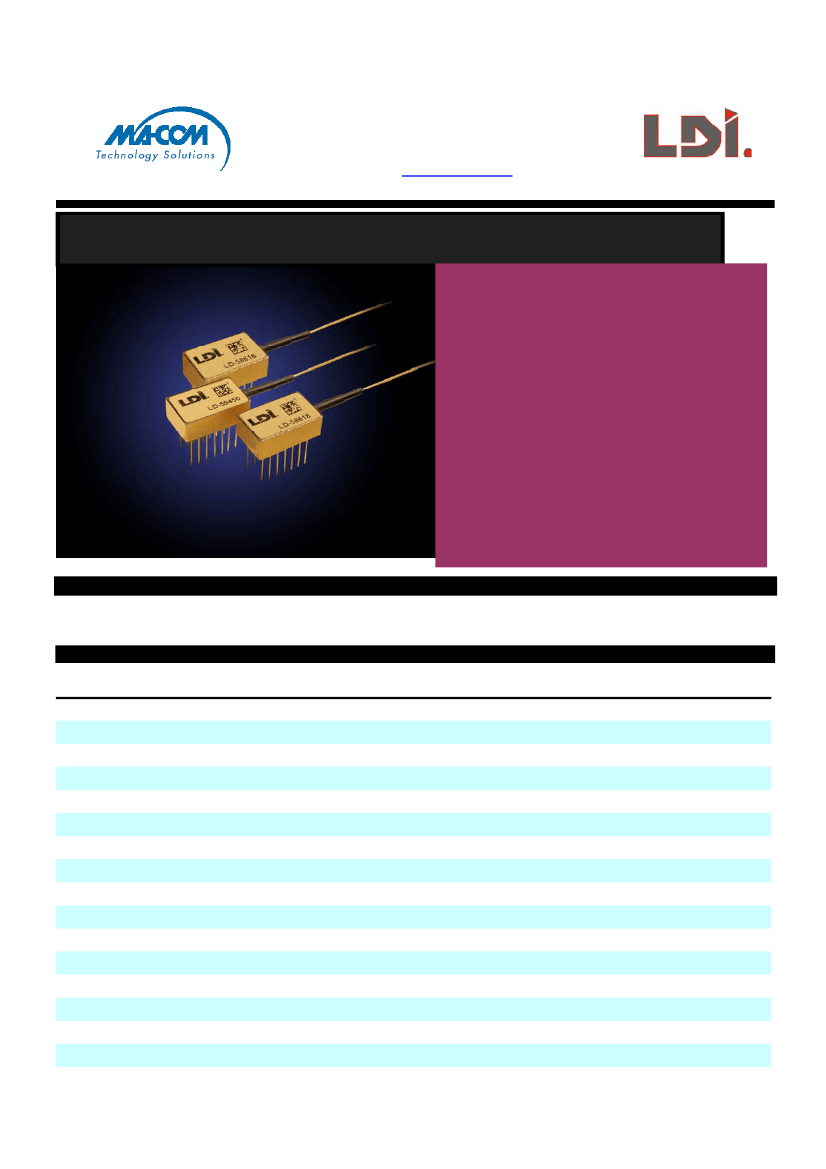

1300nm Edge-Emitting LED
Excellent Thermal Stability
Singlemode and Multimode Pigtail
Hermetic 14-PIN DIL Packages
Thermoelectric Cooler Option
Military Screening Available
High Reliability Coupling
Applications Include:
Data Transmission Systems
Fiber Optic Modems
TFOCA Systems
Laser Diode Incorporated’s 1300nm edge-emitting LEDs (Light Emitting Diode) feature stable power and spectral
characteristics over temperature. These LEDs are typically used in data or analog transmission systems where the
launch power requirements are too great for an SLED component and where a laser is not suitable.
Specifications and Limits @ 25
o
C
Electro-Optical Characteristics
PARAMETER
Center wavelength
Spectral width
Spectrum vs. temperature coefficient
Spectral width vs. temperature coefficient
Optical rise/fall time
Forward current
Output power
Into 50-micron core, multimode fiber at 150mA
Option 1
Option 2
Into 9-micron core, singlemode fiber at 150 mA
Option 1
Option 2
Average power decrease with increase in temperature*
Average power increase with decrease in temperature*
*Uncooled versions
only;
cooled versions available upon request
Unit
nm
nm
nm/
o
C
nm/
o
C
ns
mA
uW
Min.
1265
Typ.
1300
80
0.75
0.3
4.0
Max.
1330
150
uW
uW
40
80
uW
uW
%/ C
%/
o
C
o
4
8
-1.5
5.0
LDI Document #10-4400-0009 Rev. C 1/19/09
Absolute Maximum Ratings
Units
Forward Current
Forward Voltage
Soldering time at 260 C
o
Packaged Diode Characteristics
Typ.
Max.
200
2
10
Min.
mA
V
sec
-
-
-
-
-
-
LDT
Package Style
1,2
Pigtail
Operating Temperature
Storage Temperature
362
LH
50/125
362NF
60005
NF
LH
50/125
9/125
-40 to +85
-40 to +85
60005NF
NF
9/125
Note:
1. No Flange (NF) 2. Long Horn (LH)
Fibers have a 900um tight buffer jacket. Other fiber pigtails available upon request.

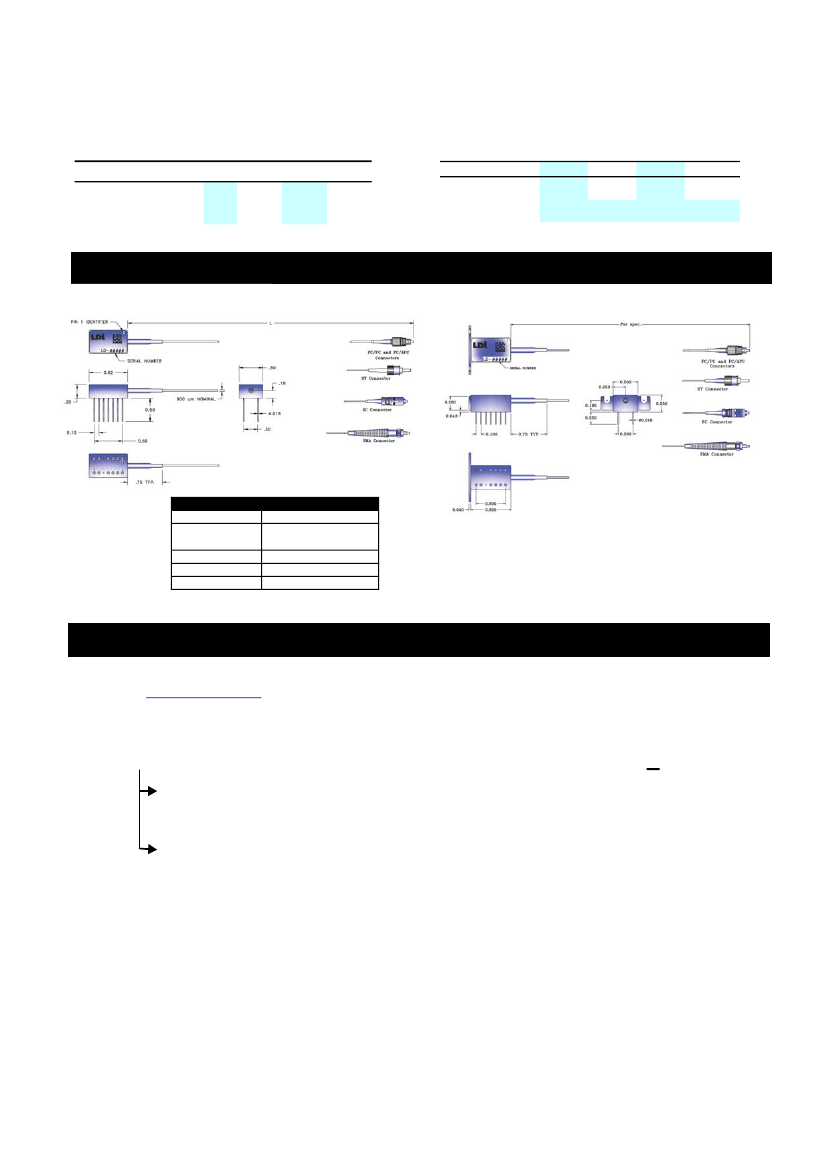

Outline Drawings
No Flange (NF) Package
Standard Long Horn (LH) Package
PIN ASSIGNMENTS
Pin No.
Function
1,2,3,4,6,7,8,11,
12,13,14 No connection
5 LED anode (+), Ground
9 LED cathode (-)
10 Ground
Dimensions: Inches [mm]
Detailed package drawings available upon request
Part Ordering Information
Products can be ordered directly from Laser Diode Inc. or its representatives. For a complete listing of representatives, visit
our website at
www.laserdiode.com.
When ordering, refer to the numbering sequence below.
Type
LDT
362 (MM Coupled)
or
Package
Power
Connector
xx
No designation = LH
NF = No Flange
60005 (SM Coupled) No designation = LH
NF = No Flange
Example:
LDT 60005NF-004R
-
xxx
040 = 40uW
080 = 80uW
xx
FC
ST®
SC
SMA
R
RoHS Designator
-
004 = 4uW
008 = 8uW
RoHS Designator
LED, 1300nm, 4uW, 14 pin-DIP, no flange
9/125/900 um pigtail, RoHS Compliant
Personal Hazard and Handling Precautions:
Handle optical fiber with normal care, avoiding
stretch, tension, twist, kink or bend abuse.
ESD
precautions apply.
Warranty:
Please refer to your product purchase
agreement for complete details or check
with your Laser Diode sales representative.
Notice:
Laser Diode Incorporated reserves
the right to make changes to the
products or information contained
herein without notice. No liability is
assumed as a result of their use or
application.
LDI Document #10-4400-0009 Rev. C 1/19/09
